Amana
Countertop Microwave

Model # F1560L-P1319612M Official Amana family size microwave

Here are the diagrams and repair parts for Official Amana F1560L-P1319612M family size microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Diode R9800486
#600D

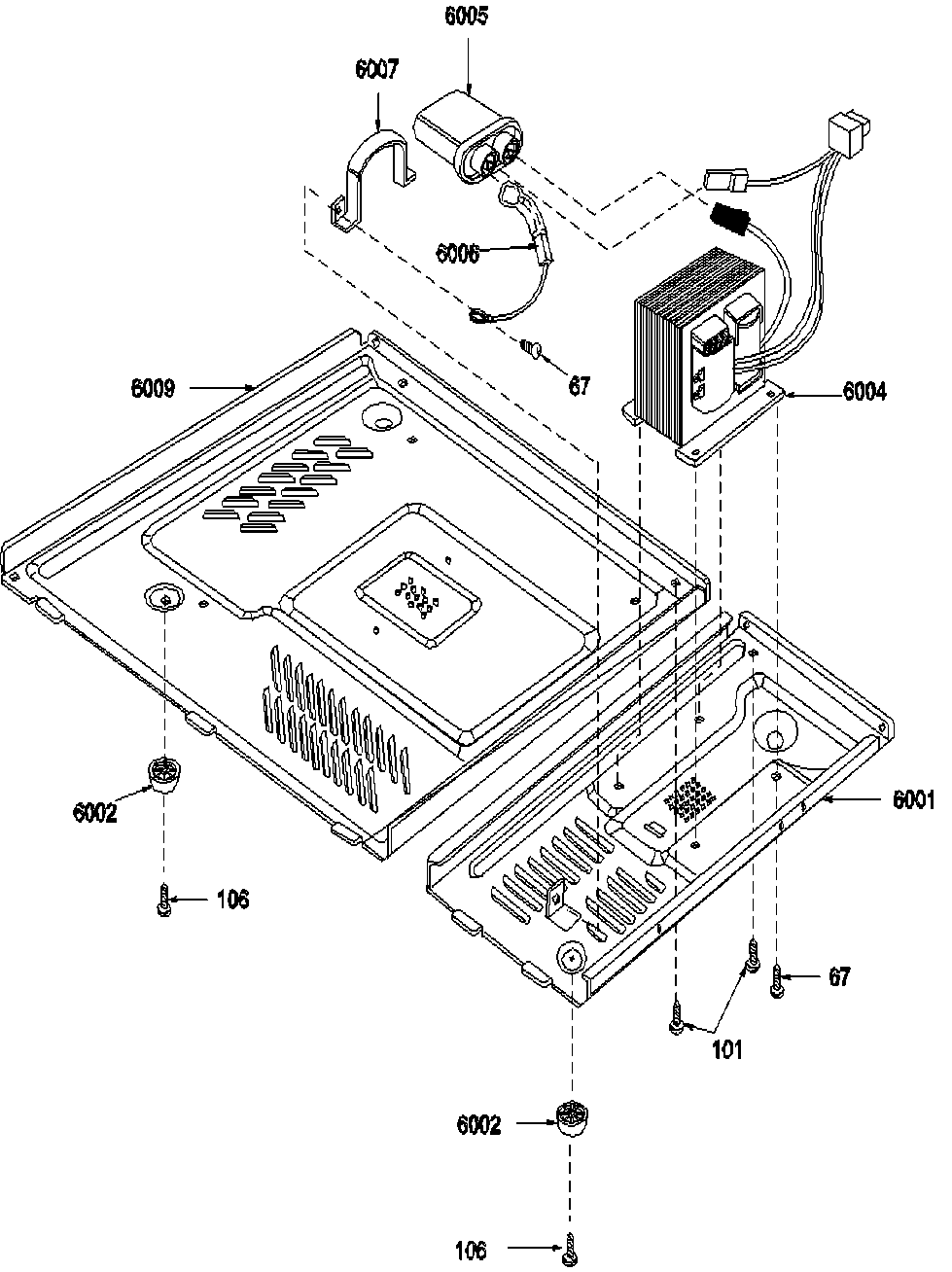

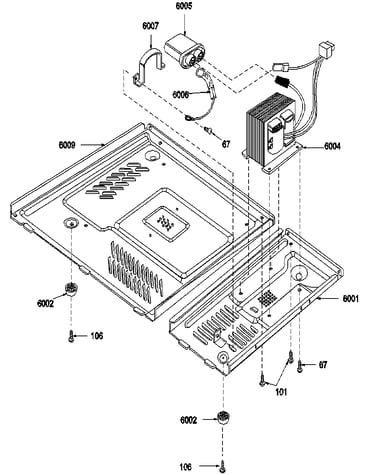

Transformer & base plate diagram

Diode

Part #R9800486

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9800486. Substitute parts can look different from the original.
$20.69 |
19% OFF Phone Price : $25.69
In Stock
Spring R9800320
#200A

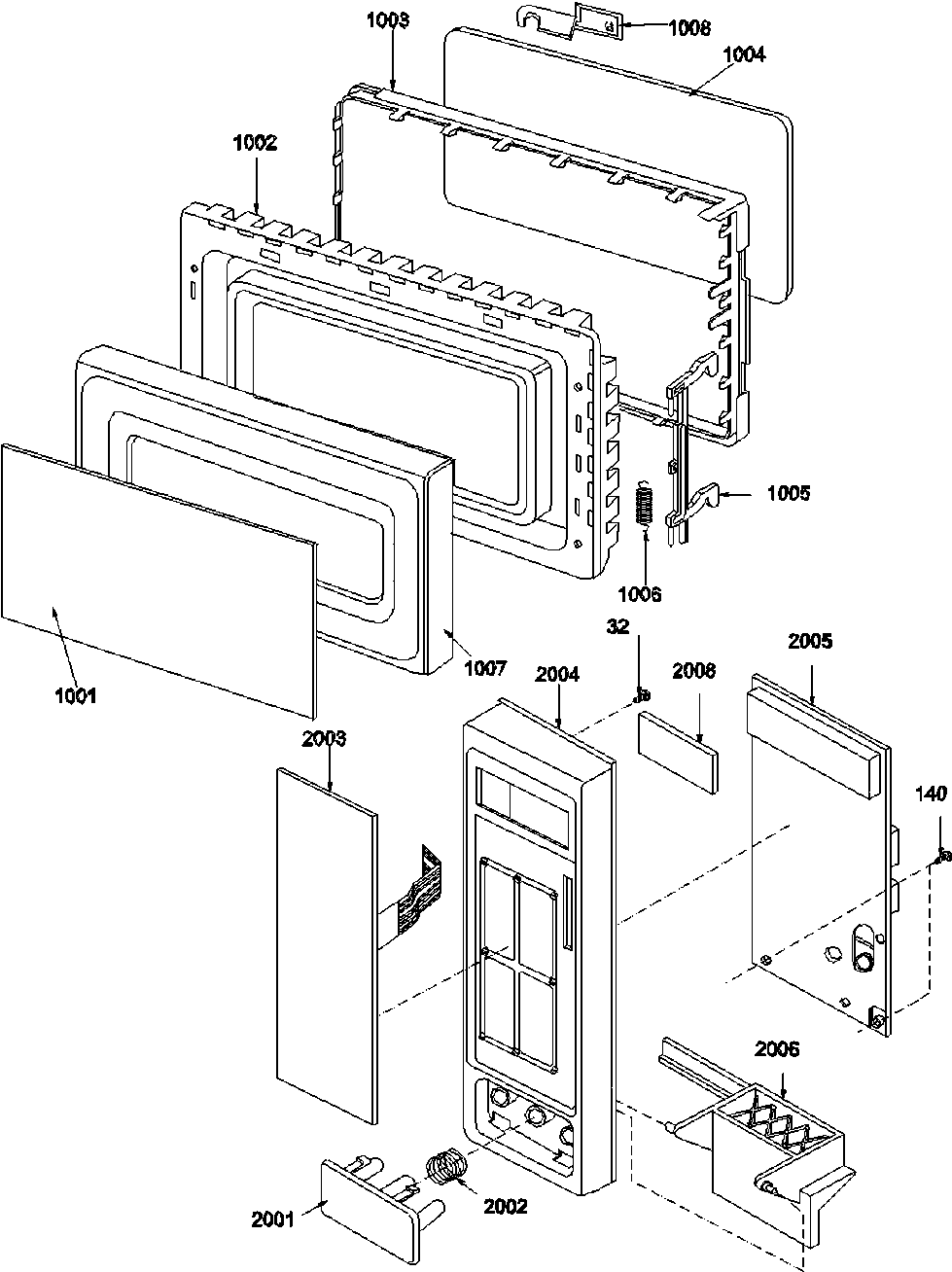

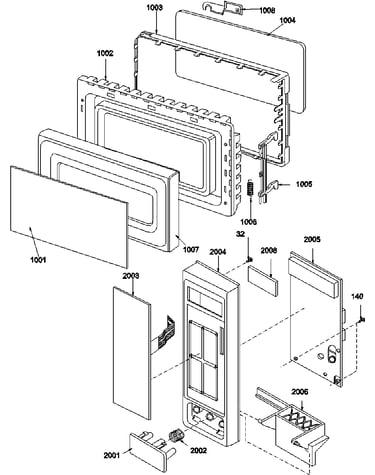

Door & control panel diagram

Spring

Part #R9800320

Replaced by #WP4158178

?
Manufacturer substitution
This part replaces R9800320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Rivet R9800452
#300E

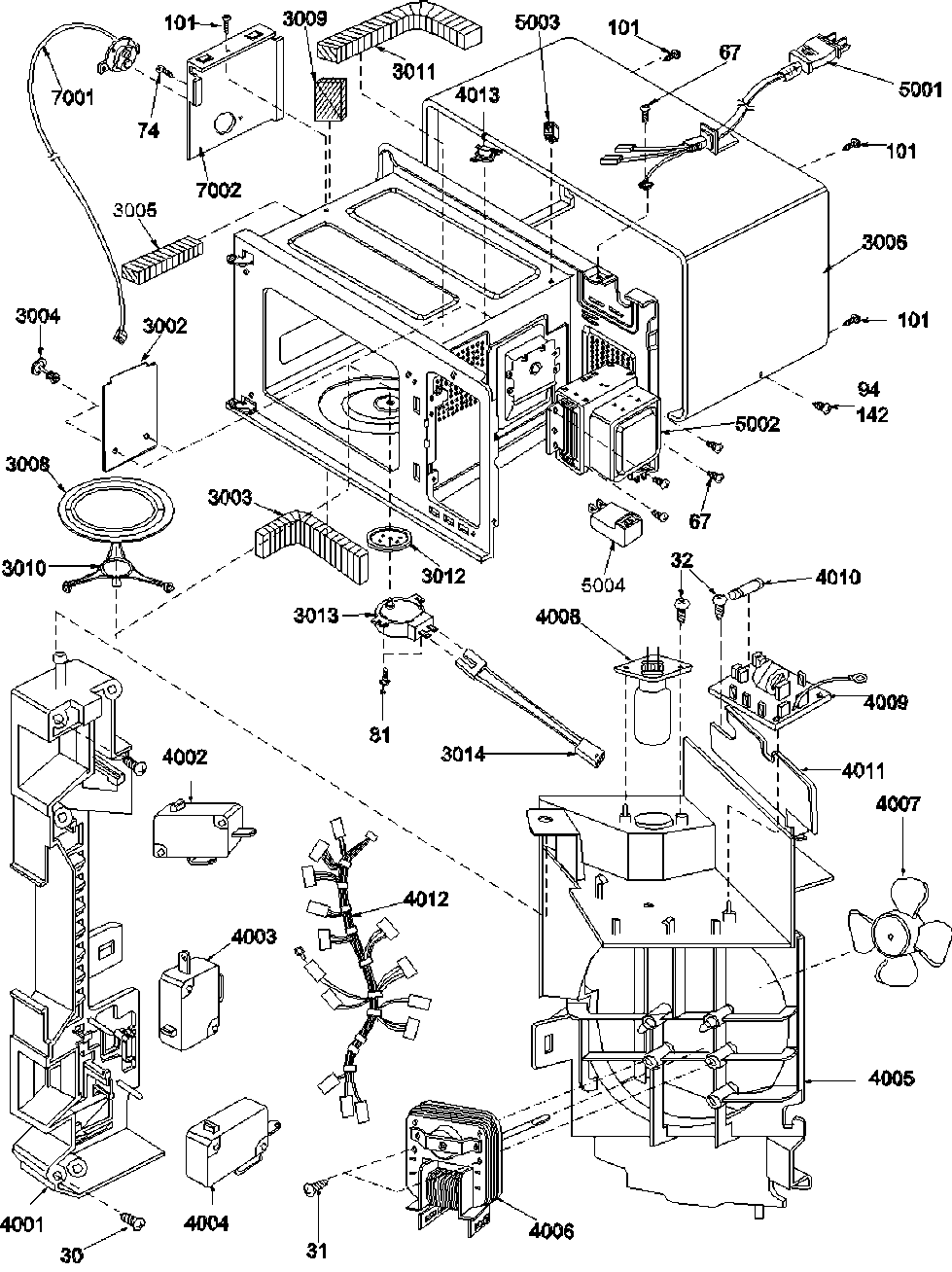

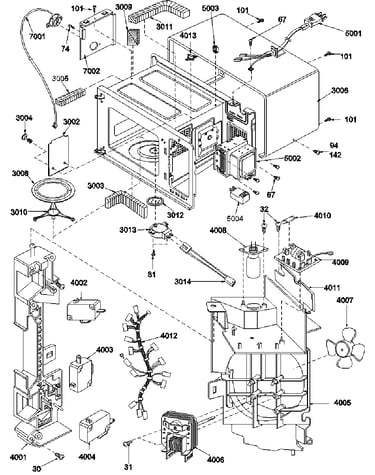

Internal components diagram

Rivet

Part #R9800452

Replaced by #WP4359508

?
Manufacturer substitution
This part replaces R9800452. Substitute parts can look different from the original.
This item is not returnable
$6.02 |
14% OFF Phone Price : $7.02
In Stock
Tray R9800389
#300C

Internal components diagram

Tray

Part #R9800389

Replaced by #WPW10267856

?
Manufacturer substitution
This part replaces R9800389. Substitute parts can look different from the original.
$43.49 |
10% OFF Phone Price : $48.49
In Stock
Ring R9800396
#301

Internal components diagram

Ring

Part #R9800396

The manufacturer no longer makes this part, and there's no substitute part

Base Plate R9800494
#600F

Transformer & base plate diagram

Base plate

Part #R9800494

The manufacturer no longer makes this part, and there's no substitute part

Door Frame Assembly E R9800266
#100A

Door & control panel diagram

Door frame assembly e

Part #R9800266

The manufacturer no longer makes this part, and there's no substitute part

Outer Case E R9800377
#300B

Internal components diagram

Outer case e

Part #R9800377

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 12401519
#3

Miscellaeous information diagram

Owner's manual

Part #12401519

The manufacturer no longer makes this part, and there's no substitute part

Leg R0654128
#600

Transformer & base plate diagram

Leg

Part #R0654128

The manufacturer no longer makes this part, and there's no substitute part
