Craftsman
Reel Walk-Behind Mower

Model # 53691000 Official Craftsman 18" hand reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 53691000 18" hand reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Car Bolt 126211
#19

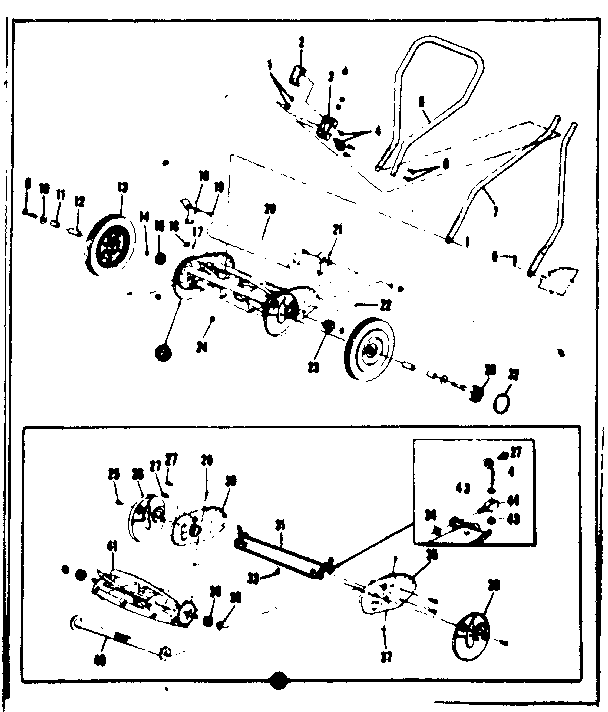

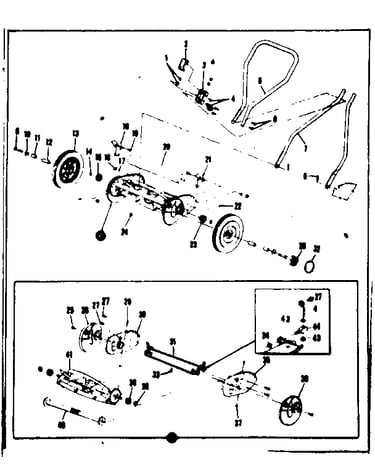

Unit parts diagram

Car bolt

Part #126211

The manufacturer no longer makes this part, and there's no substitute part

Split Lockwr 120638
#17

Unit parts diagram

Split lockwr

Part #120638

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 997314
#1

Unit parts diagram

Lock nut

Part #997314

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 110968
#10

Unit parts diagram

Lock washer

Part #110968

The manufacturer no longer makes this part, and there's no substitute part

Screw 121887
#33

Unit parts diagram

Screw

Part #121887

The manufacturer no longer makes this part, and there's no substitute part

Screw 999602
#29

Unit parts diagram

Screw

Part #999602

The manufacturer no longer makes this part, and there's no substitute part

Tie Piece 39204
#3

Unit parts diagram

Tie piece

Part #39204

The manufacturer no longer makes this part, and there's no substitute part

Brush Bar Ay 39203
#40

Unit parts diagram

Brush bar ay

Part #39203

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 120368
#43

Unit parts diagram

Hex nut

Part #120368

The manufacturer no longer makes this part, and there's no substitute part

Wood Roller 39207
#20

Unit parts diagram

Wood roller

Part #39207

The manufacturer no longer makes this part, and there's no substitute part
