Snapper 1694854 snow thrower Parts
Here are the diagrams and repair parts for Snapper 1694854 snow thrower, as well as links to manuals and error code tables, if available.
Owner’s manual
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 1694854 Snowblowers

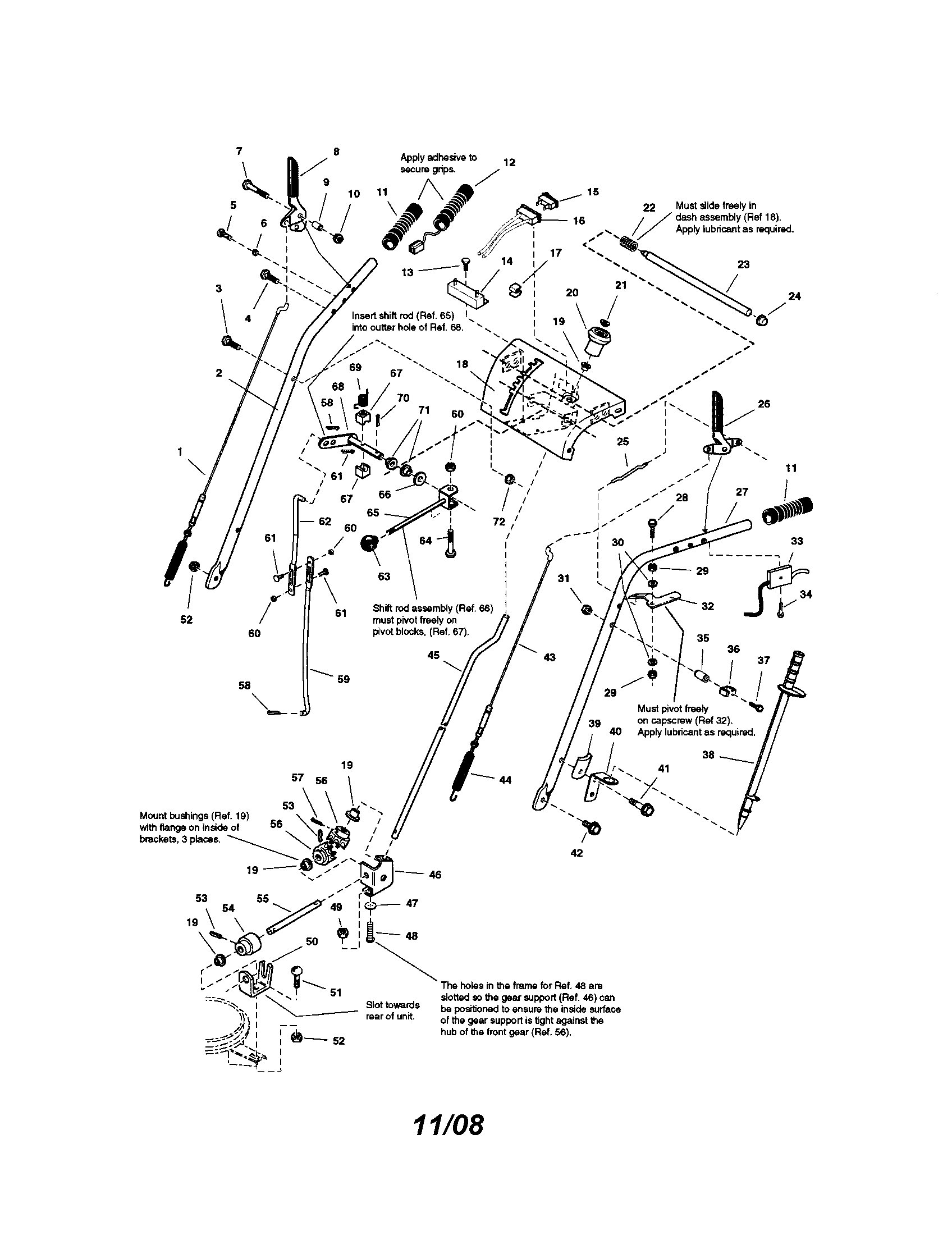

Handles/controls diagram
Snapper Grip
Part #1726317Replaced by #1726317SM
Manufacturer substitutionThis part replaces 1726317. Substitute parts can look different from the original.In Stock$16.66
Qty

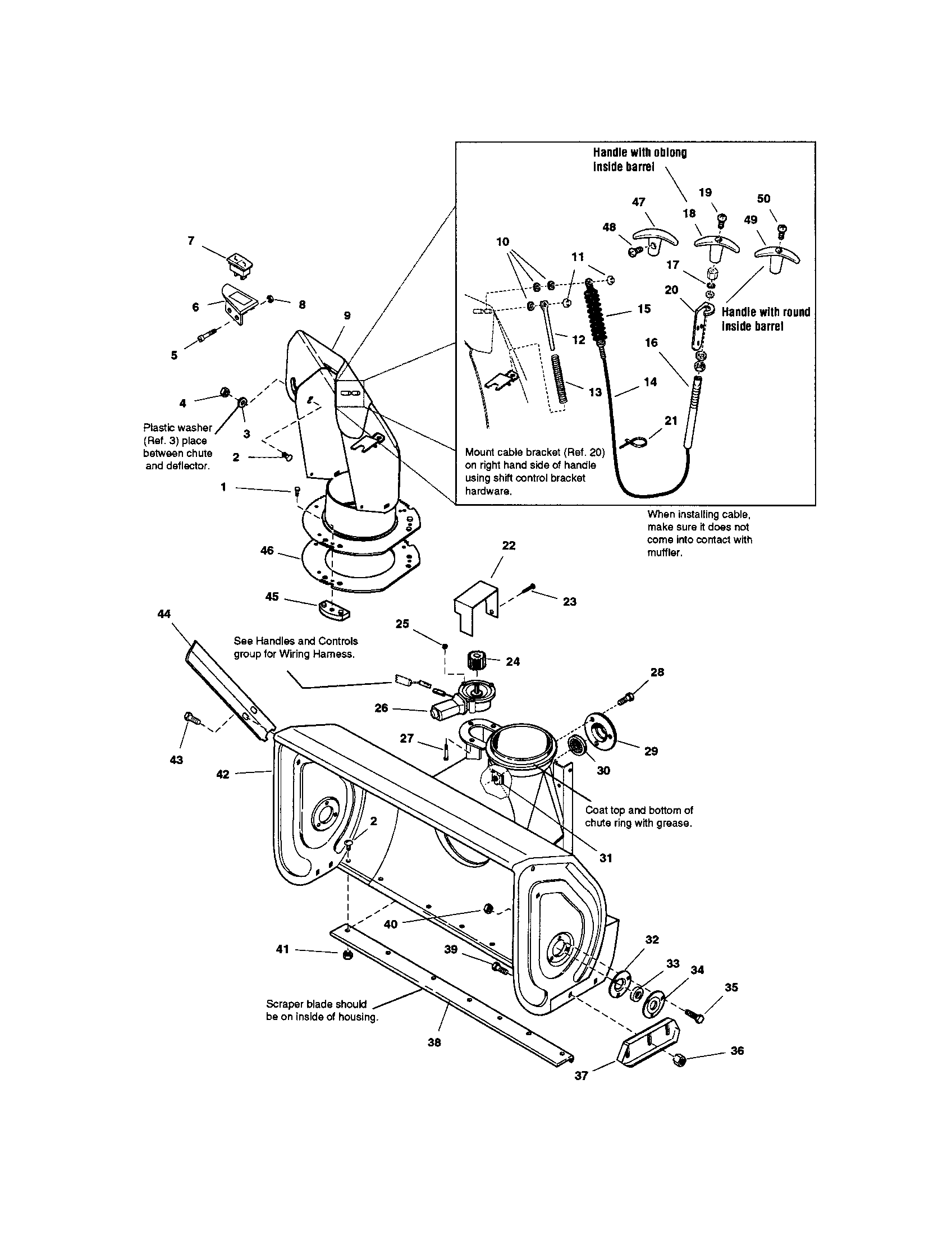

Auger housing/chute-38" diagram
Snapper Washer
Part #2860210Replaced by #2860210SM

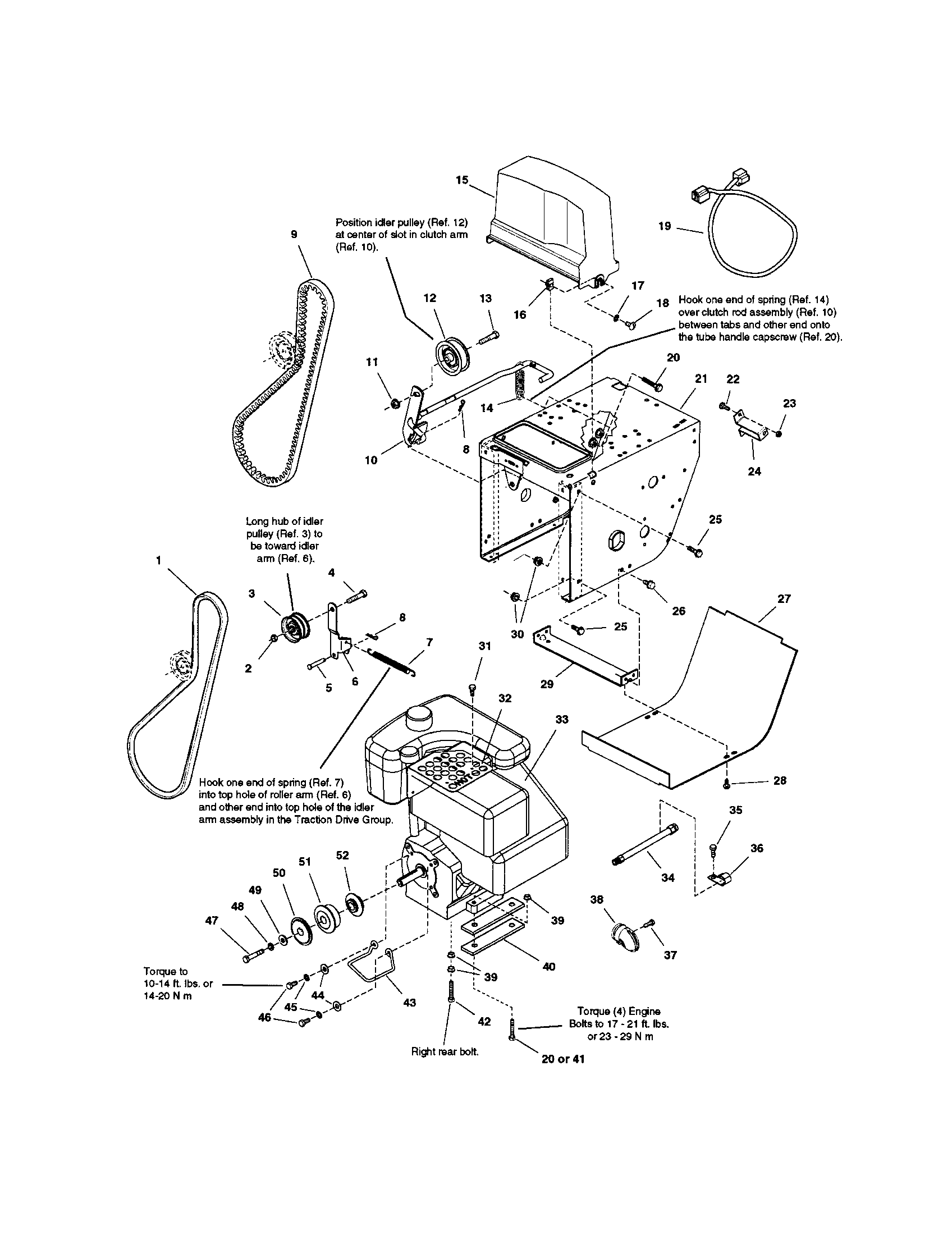

Manufacturer substitutionThis part replaces 2860210. Substitute parts can look different from the original.In Stock$8.83QtyEngine/frame diagram
Snapper V-belt
Part #1725416Replaced by #1725416SM

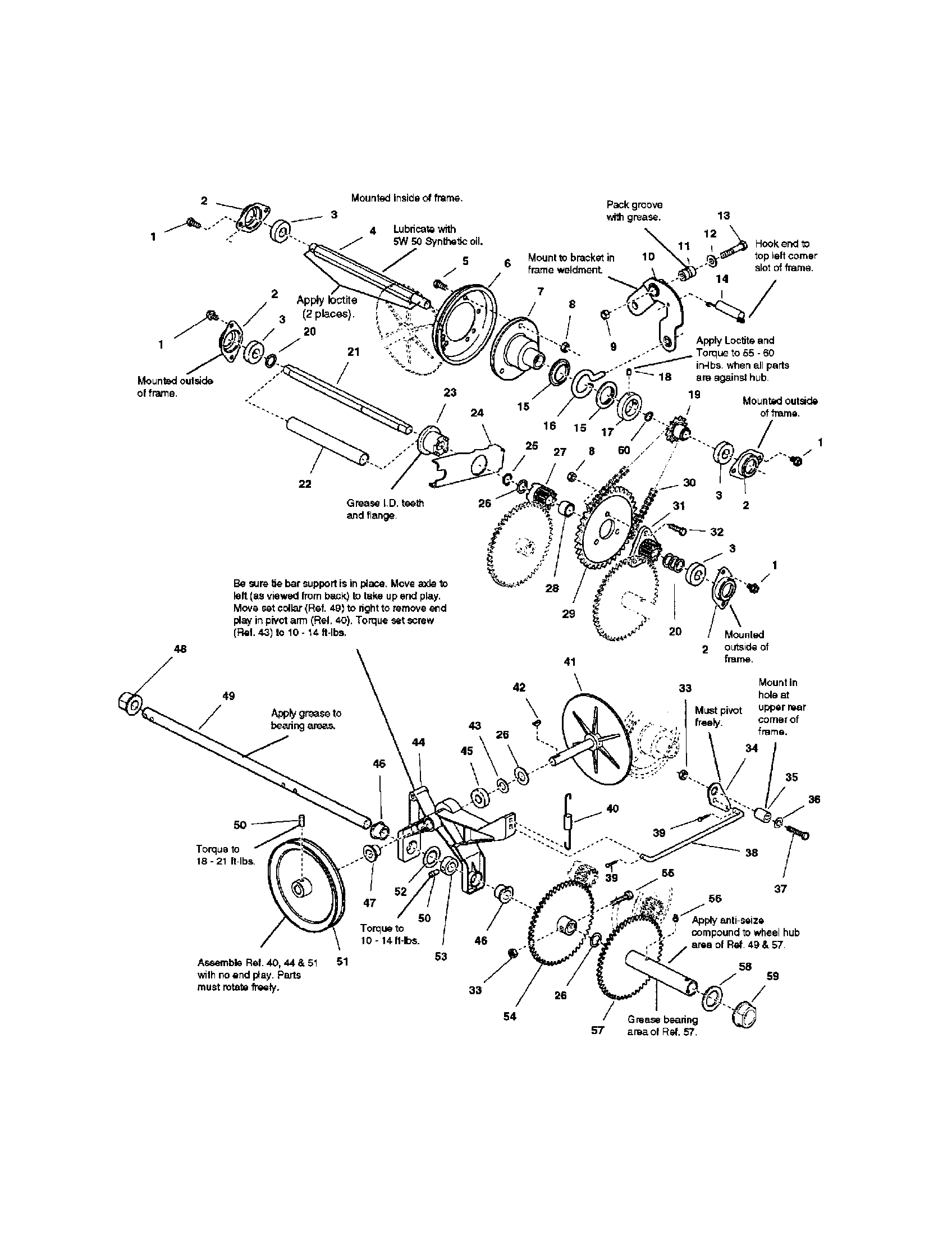

Manufacturer substitutionThis part replaces 1725416. Substitute parts can look different from the original.In Stock$40.49QtyTraction drive diagram
Snapper Washer
Part #2860169Replaced by #2860169SM
Manufacturer substitutionThis part replaces 2860169. Substitute parts can look different from the original.In Stock$13.23QtyTraction drive diagram
Snapper Jackshaft-do
Part #1718752Replaced by #1718752SM
Manufacturer substitutionThis part replaces 1718752. Substitute parts can look different from the original.In Stock$107.36QtyAuger housing/chute-24"/28"/32" diagram
Snapper Bolt
Part #1960711Replaced by #703448
Manufacturer substitutionThis part replaces 1960711. Substitute parts can look different from the original.In Stock$30.99QtyEngine/frame diagram
Snapper Washer, Lock, 3
Part #1916965Replaced by #703454

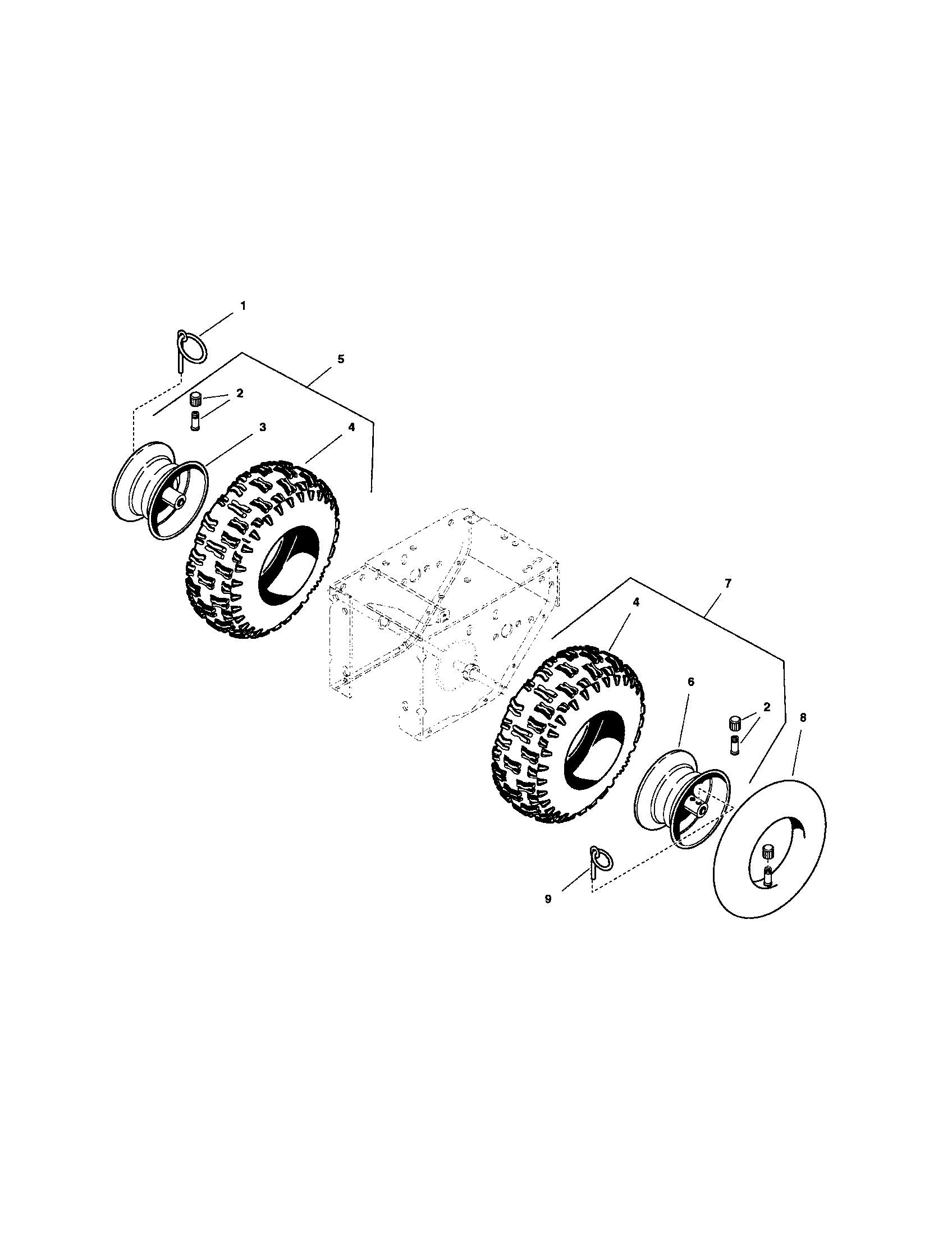

Manufacturer substitutionThis part replaces 1916965. Substitute parts can look different from the original.This item is not returnableIn Stock$6.40QtyWheels/tires diagram
Snapper Wheel- 3.756
Part #1714242Replaced by #1714242SM

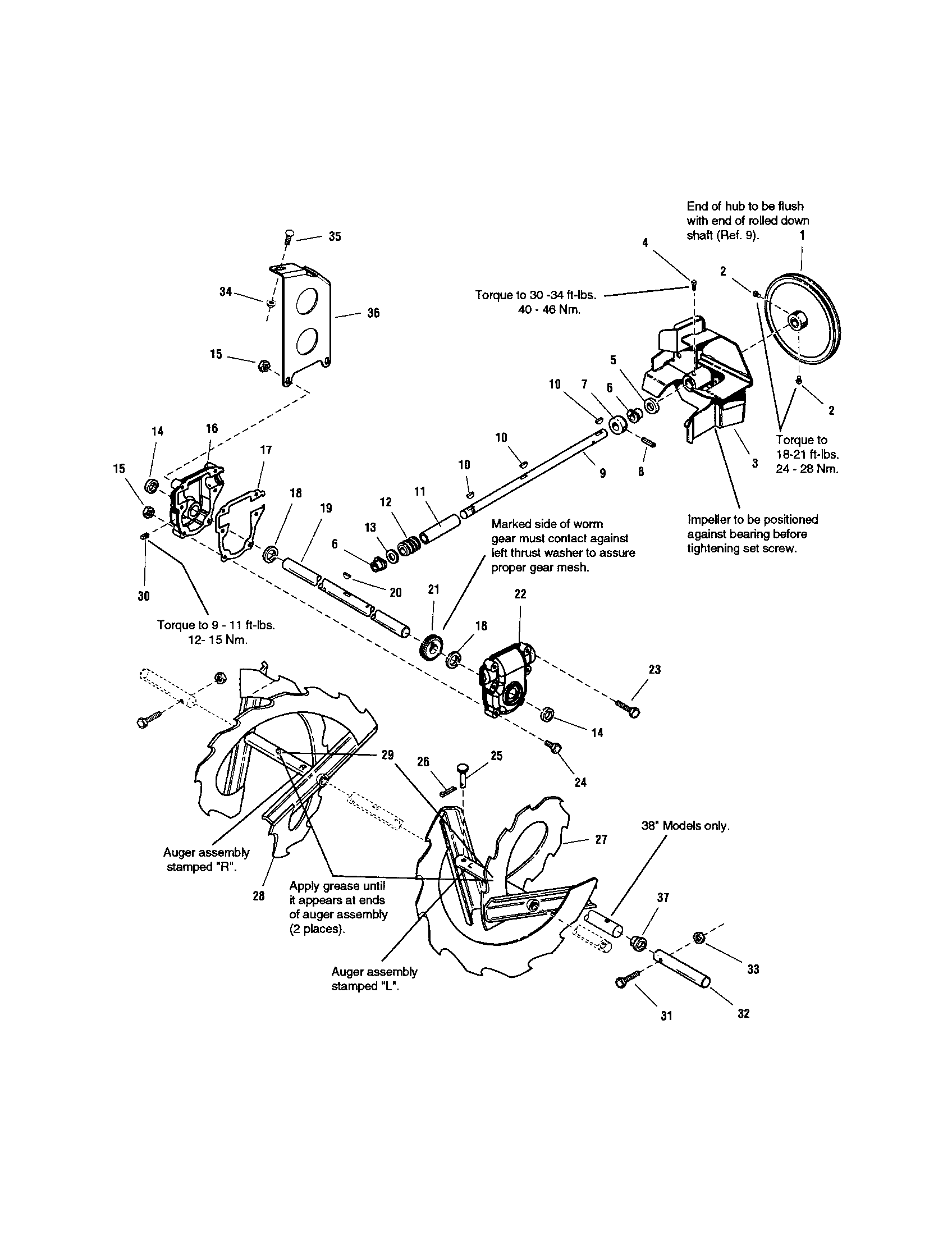

Manufacturer substitutionThis part replaces 1714242. Substitute parts can look different from the original.In Stock$148.26QtyAuger and impeller diagram
Snapper Bushing
Part #1612149Replaced by #1612149SM
Manufacturer substitutionThis part replaces 1612149. Substitute parts can look different from the original.In Stock$77.76QtyAuger housing/chute-38" diagram
Snapper Handle
Part #1719138Replaced by #1719138SM
Manufacturer substitutionThis part replaces 1719138. Substitute parts can look different from the original.In Stock$32.38Qty
Most common symptoms to help you fix your snowblowers
Choose a symptom to see related snowblower repairs.
Main causes: dirty carburetor, clogged fuel filter, dirty spark plug, incorrect valve lash, leaky engine gaskets...
Main causes: broken shear pins, worn or loose auger drive belt, auger drive cable failure, damaged auger, bad gear case...
Things to do: replace the spark plug, change the oil, rebuild the carburetor, adjust valve lash, adjust or replace the b...
Main causes: dirty carburetor, stale fuel...
Main causes: loose drive clutch cable, damaged drive clutch cable, worn friction disc, scraper blade scraping the ground...
Main causes: clogged chute, damaged auger blades, broken shear pins, worn auger belt, damaged gear case, engine problems...
Main causes: clogged chute, snow build-up in auger housing, broken auger shear pins, auger drive belt needs adjustment, ...
Main causes: snow build-up in chute, chute drive mechanism failure, bad chute control assembly...
Repair guides for gas snowblowers
These step-by-step repair guides will help you safely fix what’s broken on your snowblower.
How to adjust snowblower skid shoes
To prevent snowblower auger and shave plate damage, adjust the skid shoes regularly to keep the shave plate ¼-inch high....
Repair time and Difficulty
15 minutes or less
How to rebuild a snowblower carburetor
Rebuild the carburetor on your snowblower if the engine isn't getting fuel....
Repair time and Difficulty
45 minutes or less
How to replace a snowblower 4-way chute control assembly
Replace the 4-way chute control assembly on your snowblower if it’s damaged....
Repair time and Difficulty
30 minutes or less
Effective articles & videos to help repair your snowblowers
Use the advice and tips in these articles and videos to get the most out of your snowblower.
If you're looking for the age of you Craftsman snowblower, our guide will help....
Proper drive control cable tension is key to smooth snowblower operation, and you can learn how to test and adjust it yo...
Avoid costly snowblower repairs this season. Watch how to lubricate the drive hex shaft to prevent friction, improve tra...
