Amana
Microwave/Hood Combo

Model # MVH200W1-P1119103M Official Amana microwave/hood combo

Here are the diagrams and repair parts for Official Amana MVH200W1-P1119103M microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Primary Switch R0702548
#30

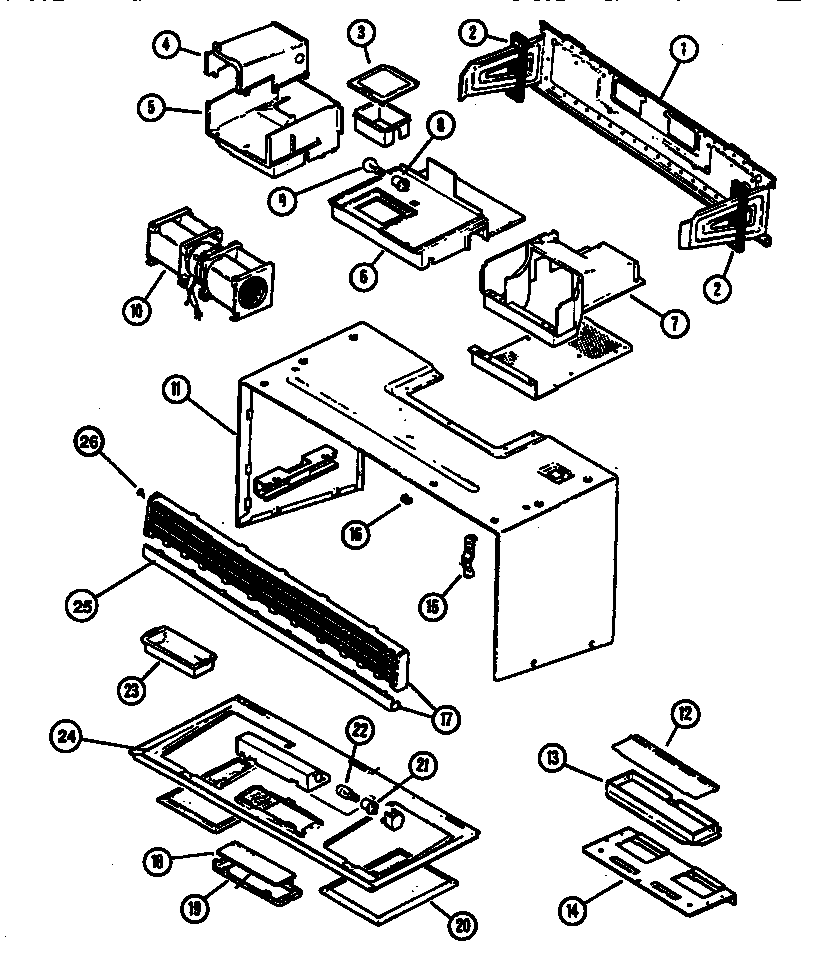

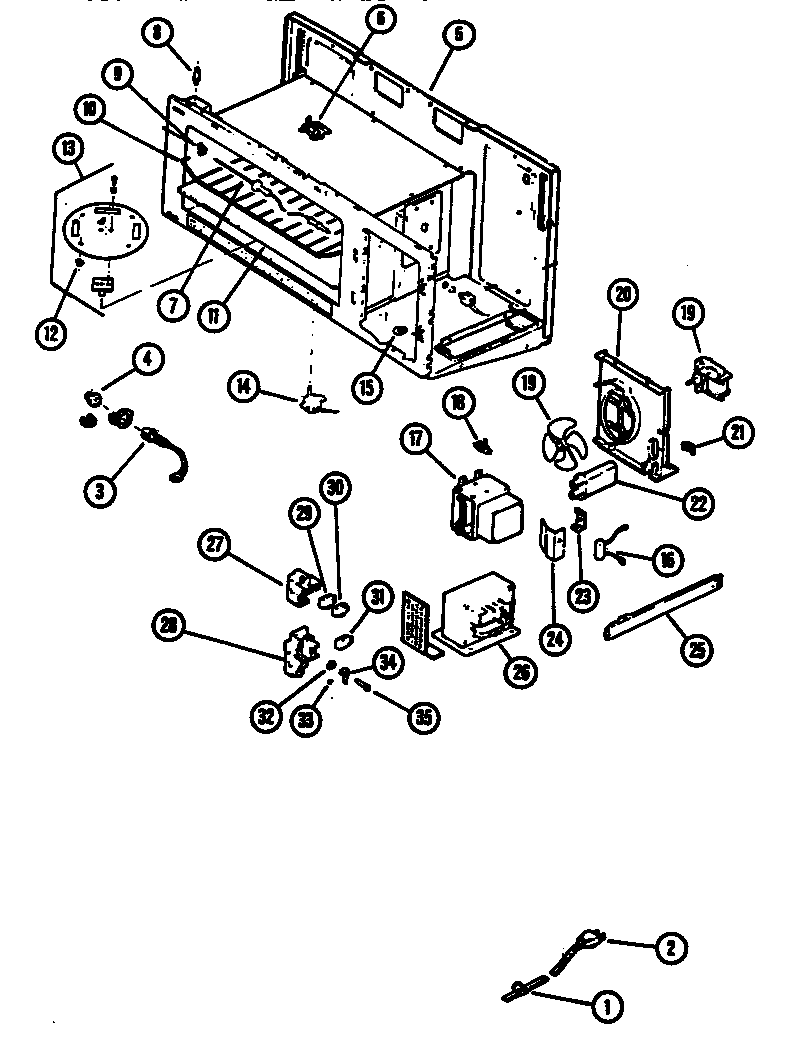

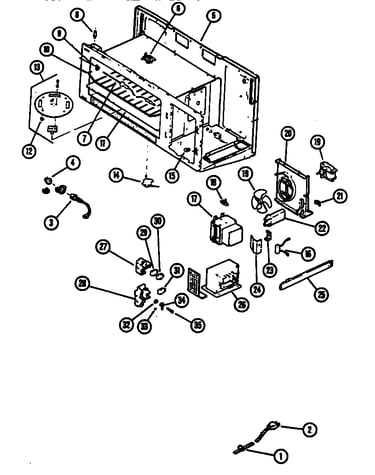

Cavity assy diagram

Primary switch

Part #R0702548

The manufacturer no longer makes this part, and there's no substitute part

Duct-upper Right R0705970
#7

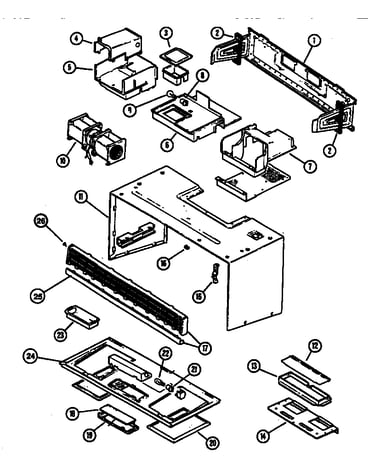

Cabinet assy diagram

Duct-upper right

Part #R0705970

The manufacturer no longer makes this part, and there's no substitute part

Damper Hood R0705884
#12

Cabinet assy diagram

Damper hood

Part #R0705884

The manufacturer no longer makes this part, and there's no substitute part

Latch R0705882
#27

Cavity assy diagram

Latch

Part #R0705882

The manufacturer no longer makes this part, and there's no substitute part

Damper Door R0705885
#13

Cabinet assy diagram

Damper door

Part #R0705885

The manufacturer no longer makes this part, and there's no substitute part

Duct-upper Left R0705969
#5

Cabinet assy diagram

Duct-upper left

Part #R0705969

The manufacturer no longer makes this part, and there's no substitute part

Net-smart Board & Display R0710186
#7

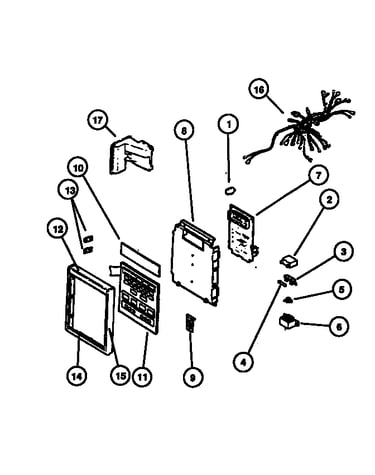

Control panel assy diagram

Net-smart board & display

Part #R0710186

The manufacturer no longer makes this part, and there's no substitute part

Lamp-oven R0712014
#9

Cabinet assy diagram

Lamp-oven

Part #R0712014

The manufacturer no longer makes this part, and there's no substitute part

Handle Trim R0705988
#12

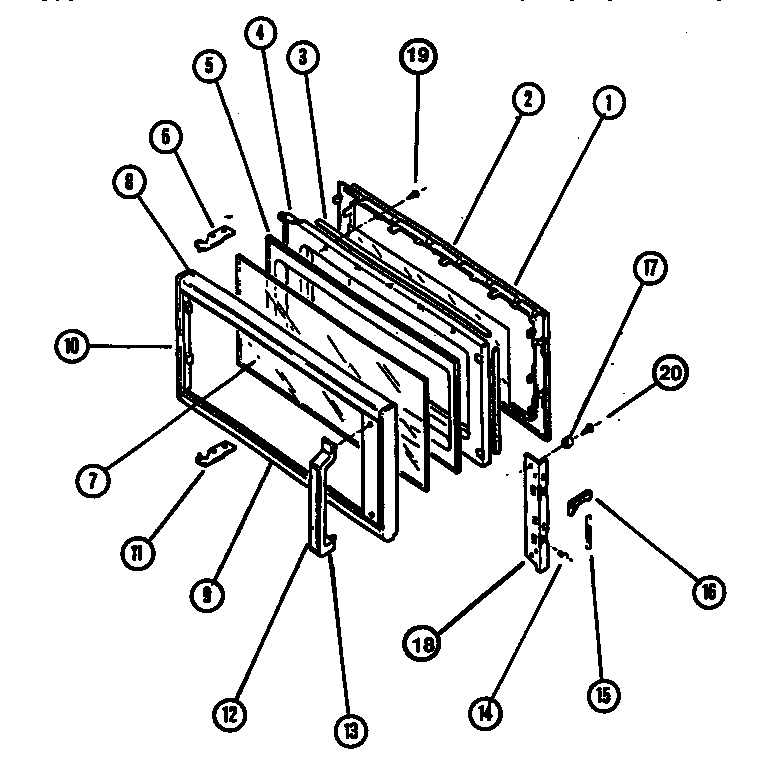

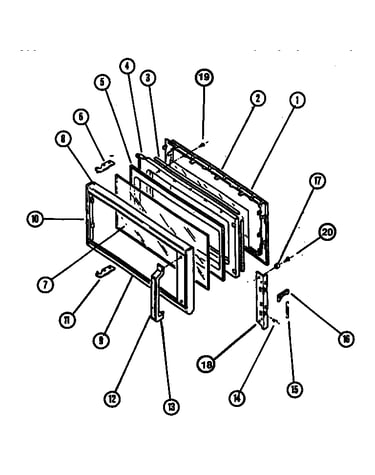

Door assy diagram

Handle trim

Part #R0705988

The manufacturer no longer makes this part, and there's no substitute part

Hinge, Upper R0705990
#6

Door assy diagram

Hinge, upper

Part #R0705990

The manufacturer no longer makes this part, and there's no substitute part
