Whirlpool
Wine & Beverage Cooler

Model # WUB50X24HV01 Official Whirlpool beverage center

Here are the diagrams and repair parts for Official Whirlpool WUB50X24HV01 beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

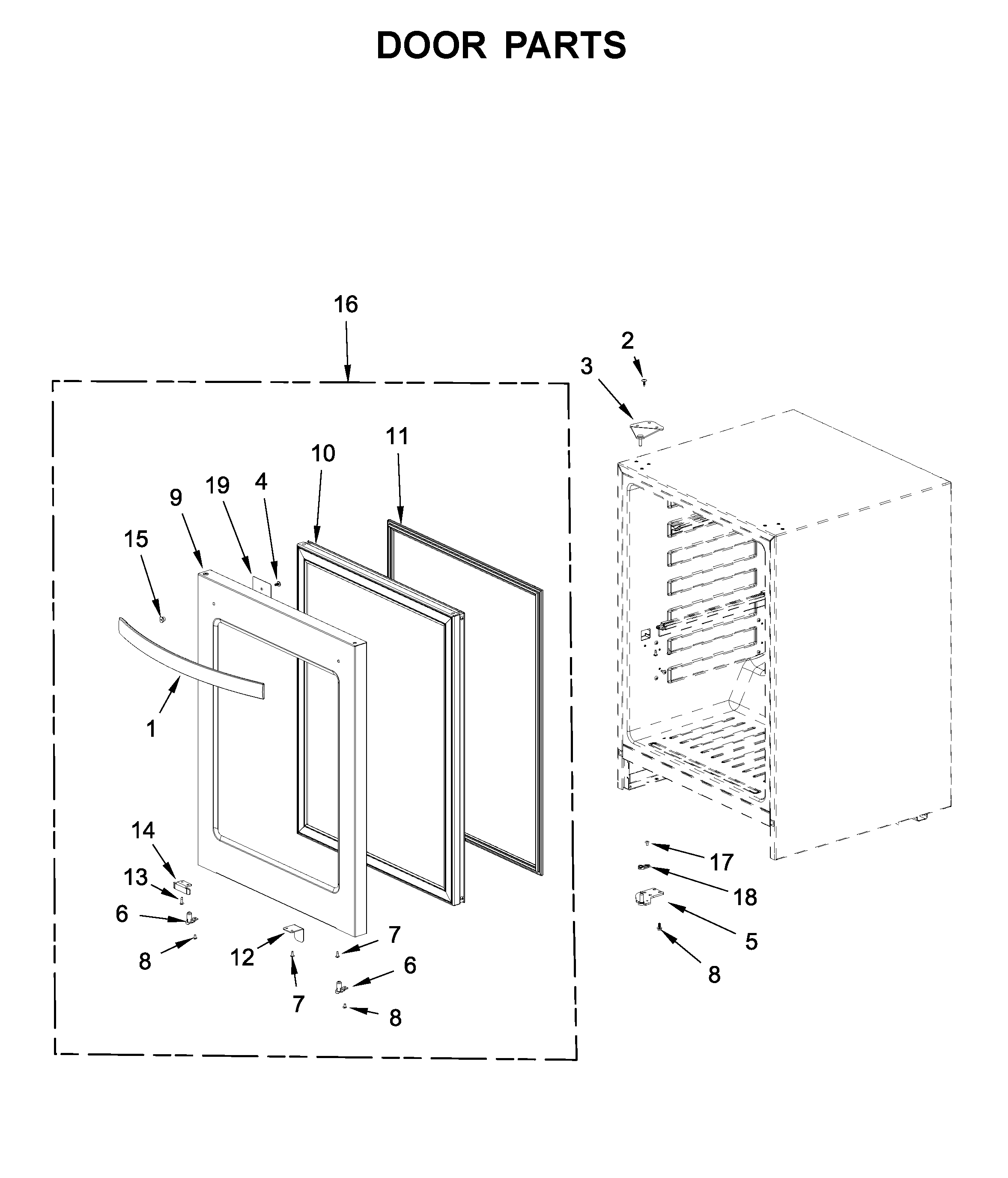

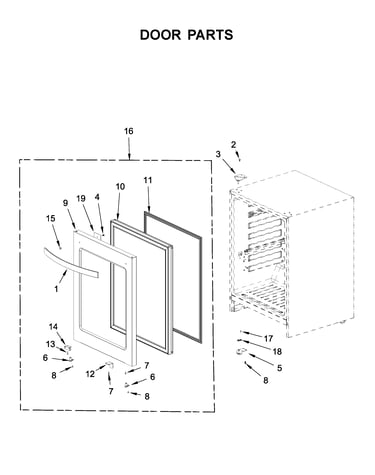

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Leg, Levelin W11313121
#22

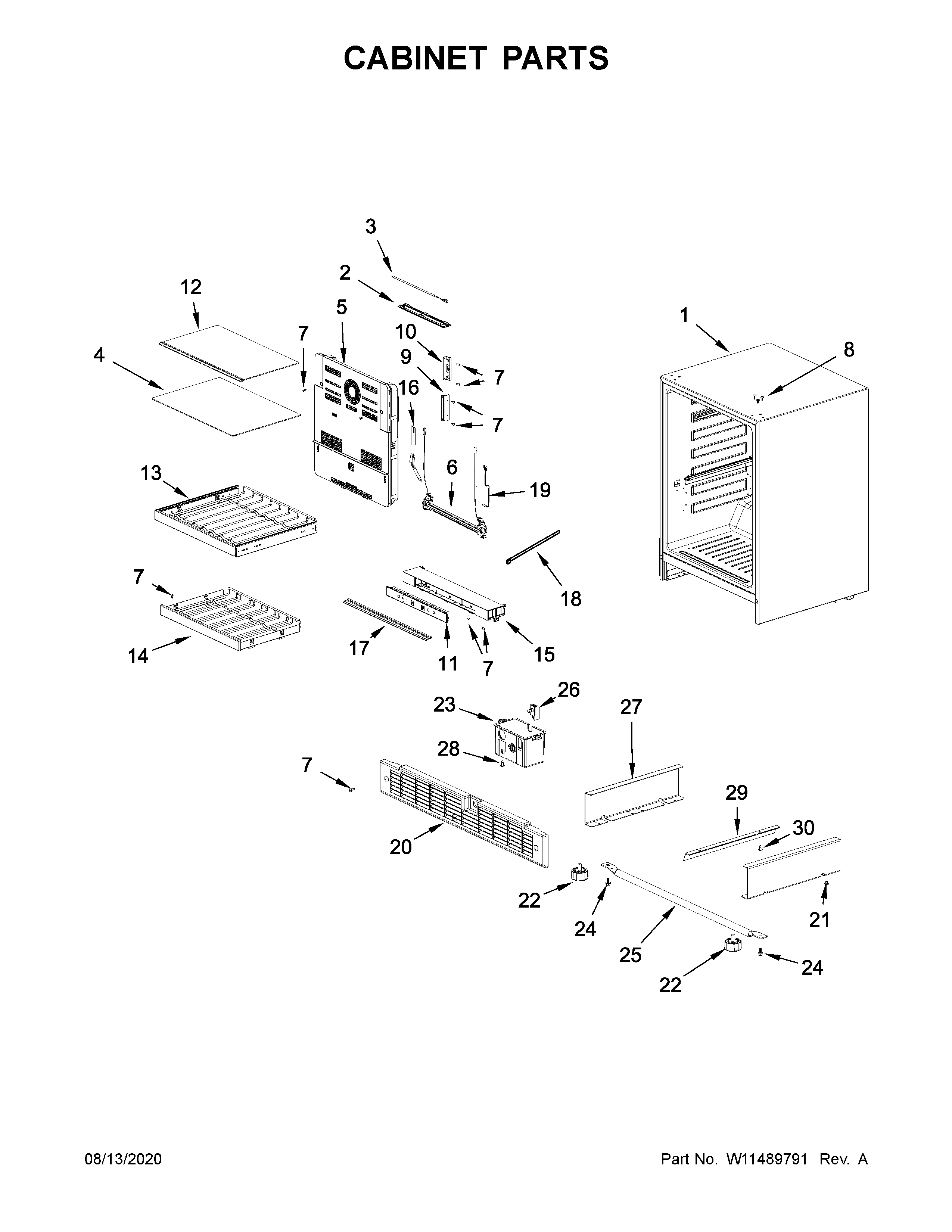

Cabinet parts diagram

Leg, levelin

Part #W11313121

Replaced by #W11106296

?
Manufacturer substitution
This part replaces W11313121. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Grommet 4344779
#16

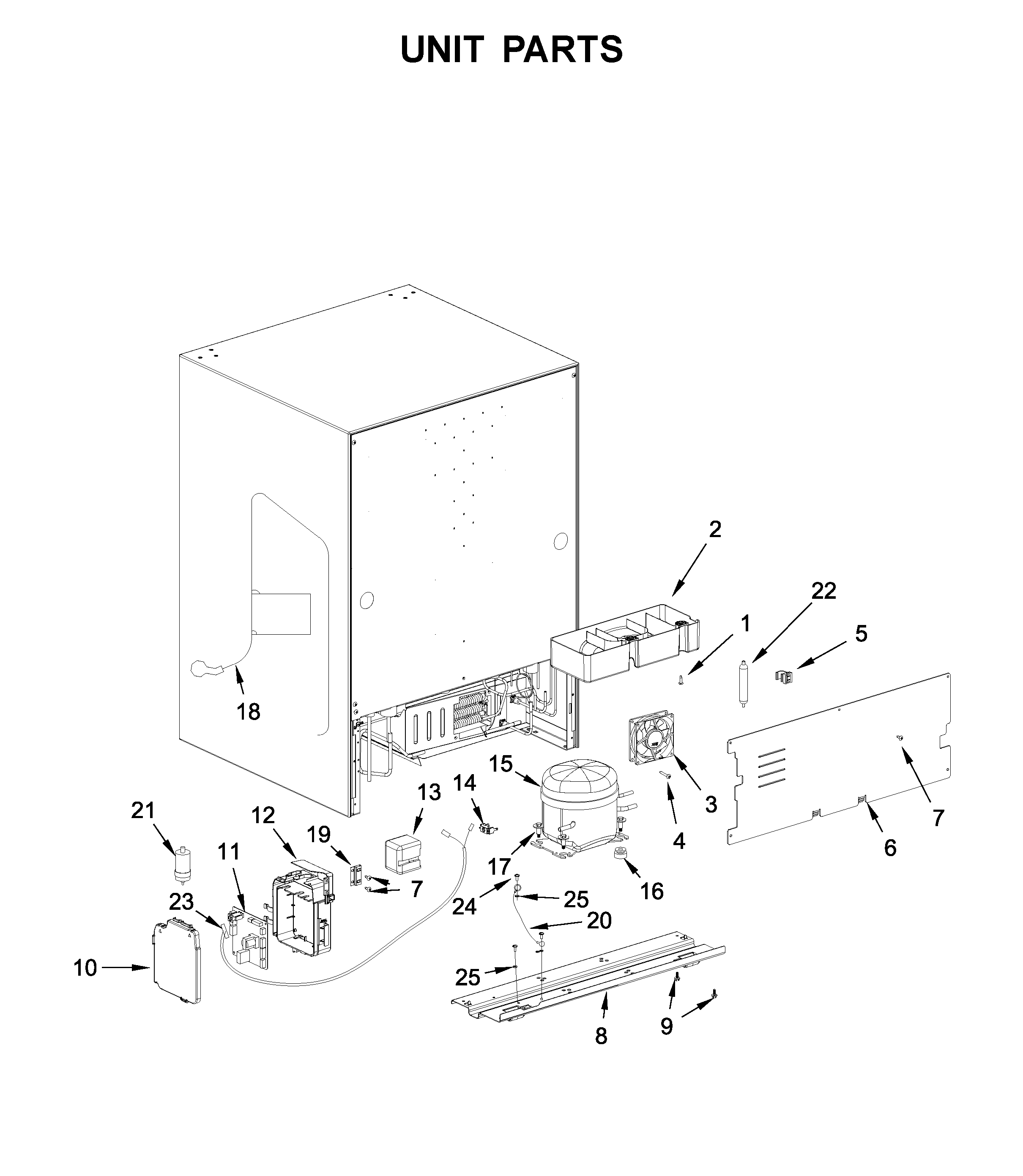

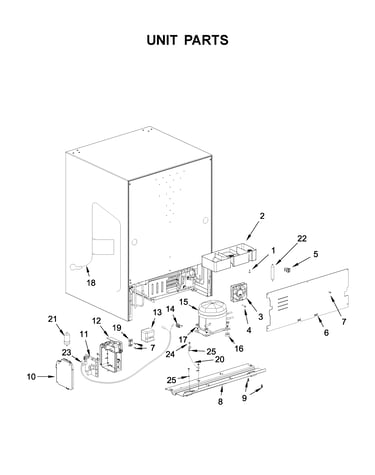

Unit parts diagram

Grommet

Part #4344779

Replaced by #WP4344779

?
Manufacturer substitution
This part replaces 4344779. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
Screw W11371341
#4

Unit parts diagram

Screw

Part #W11371341

$9.82
In Stock
Screw 4344796
Screw

Part #4344796

$12.49
In Stock
Compressor W10780362
#15

Unit parts diagram

Compressor

Part #W10780362

$263.27
In Stock
Screw W11375763
#1

Unit parts diagram

Screw

Part #W11375763

$11.78
In Stock
Wire Tie 4344829
#18

Cabinet parts diagram

Wire tie

Part #4344829

$9.83
In Stock
Plate, Base W11476534
#8

Unit parts diagram

Plate, base

Part #W11476534

$67.76
In Stock
Screw W11371095
#7

Cabinet parts diagram

Screw

Part #W11371095

$9.82
In Stock
Wine Rack W11312494
#14

Cabinet parts diagram

Wine rack

Part #W11312494

$156.40
In Stock
