KitchenAid
Microwave/Hood Combo

Model #KHMS2040BB2 KitchenAid microwave/hood combo

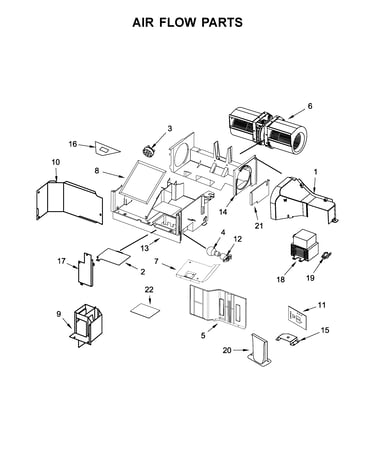

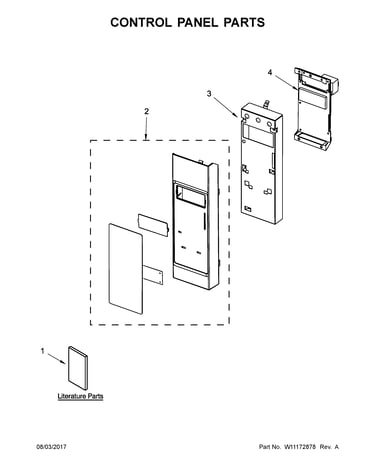

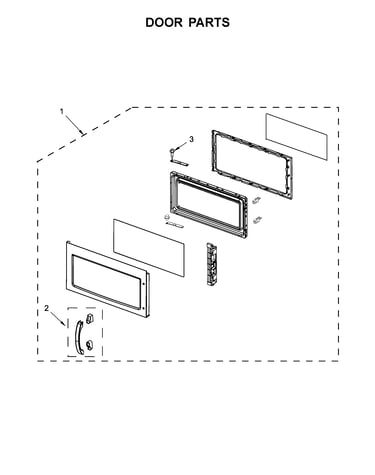

Here are the diagrams and repair parts for KitchenAid KHMS2040BB2 microwave/hood combo, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 90 parts

Microwave Mounting Plate

#1

Cabinet and installation parts Diagram

Microwave mounting plate

Part #W11025649
$8.70

In Stock

Microwave Door Interlock Switch

#9

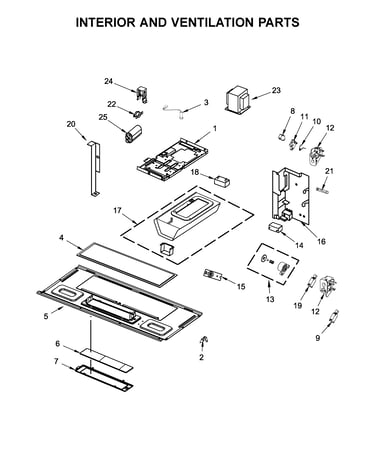

Interior and ventilation parts Diagram

$19.33 |
12% OFF MSRP:$21.89

In Stock

Microwave Door Interlock Switch

#8

Interior and ventilation parts Diagram

$22.16

In Stock

Microwave Fuse

#21

Interior and ventilation parts Diagram

Microwave fuse

Part #W10138793
This item is not returnable
$6.03

In Stock

Microwave Installation Template

#NI

Cabinet and installation parts Diagram

Microwave installation template

Part #W10190018
This item is not returnable
$4.50

In Stock

Microwave Turntable Motor Coupler

#8

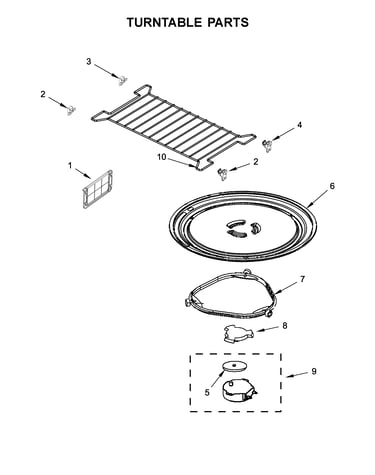

Turntable parts Diagram

Microwave turntable motor coupler

Part #W10337248
This item is not returnable
$5.32

In Stock

Microwave Door Interlock Spring

#10

Interior and ventilation parts Diagram

Microwave door interlock spring

Part #W10156812
This item is not returnable
$6.23

In Stock

Microwave Vent Grille (White)

#6

Cabinet and installation parts Diagram

$64.64

In Stock

Microwave Turntable Motor

#9

Turntable parts Diagram

$58.27 |
23% OFF MSRP:$76.00

In Stock

Microwave Light Lens Bracket

#7

Interior and ventilation parts Diagram

Microwave light lens bracket

Part #W10210873
This item is not returnable
$3.17

In Stock
