Model # 3901 Official Makita plate joiner

Here are the diagrams and repair parts for Official Makita 3901 plate joiner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Bearing 211106-1
#26

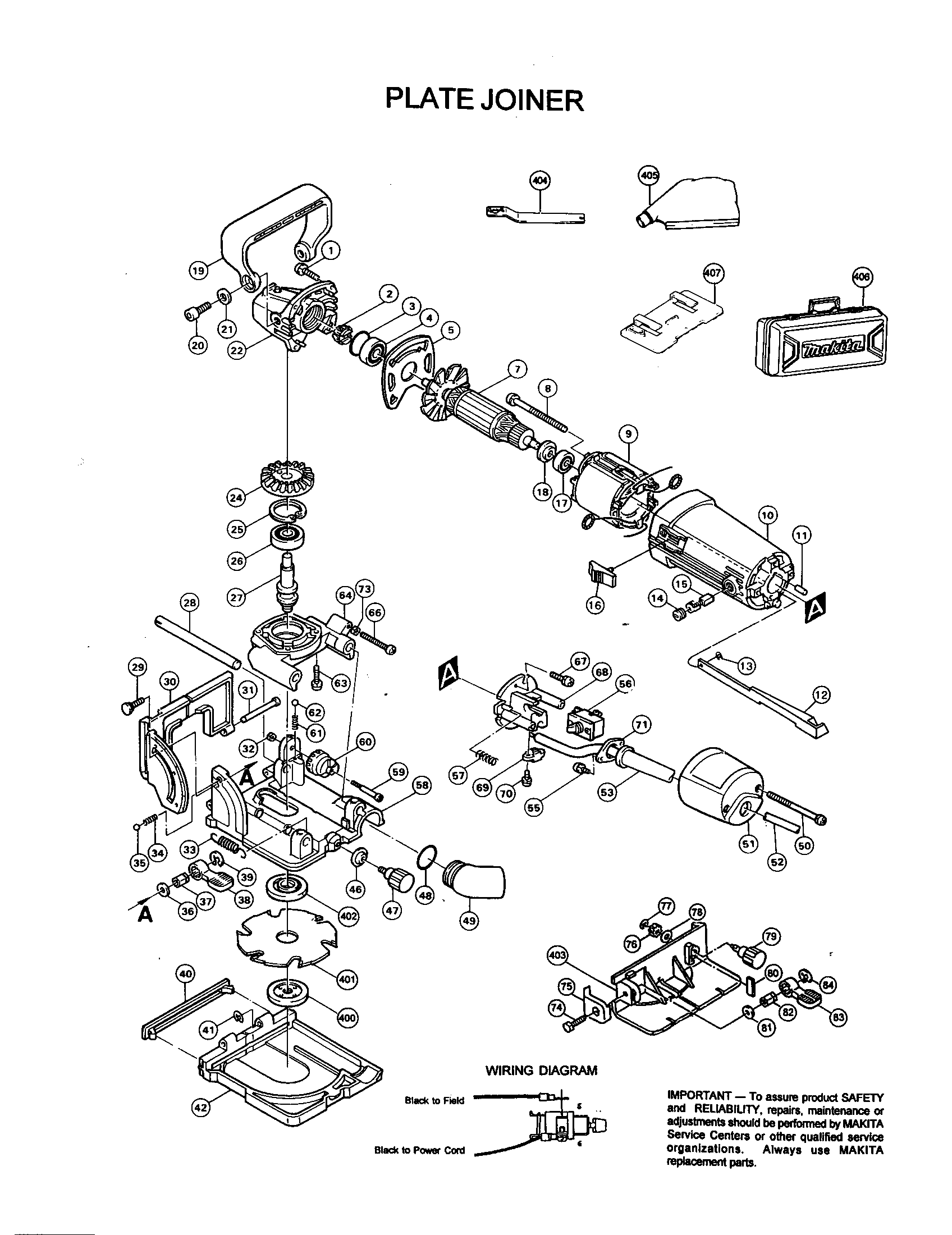

Plate joiner diagram

Bearing

Part #211106-1

The manufacturer no longer makes this part, and there's no substitute part

Rubber Pin 263002-9
#11

Plate joiner diagram

Rubber pin

Part #263002-9

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 253804-1
#81

Plate joiner diagram

Flat washer

Part #253804-1

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 643550-8
#14

Plate joiner diagram

Brush cap

Part #643550-8

The manufacturer no longer makes this part, and there's no substitute part

Nut Wrench 782401-1
#404

Plate joiner diagram

Nut wrench

Part #782401-1

The manufacturer no longer makes this part, and there's no substitute part

Strain Relef 687002-9
#69

Plate joiner diagram

Strain relef

Part #687002-9

The manufacturer no longer makes this part, and there's no substitute part

Washer 681614-0
#18

Plate joiner diagram

Washer

Part #681614-0

The manufacturer no longer makes this part, and there's no substitute part

Ball 216001-0
Ball

Part #216001-0

The manufacturer no longer makes this part, and there's no substitute part

Screw 911123-8
#70

Plate joiner diagram

Screw

Part #911123-8

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 682502-4
#53

Plate joiner diagram

Power tool power cord strain relief

Part #682502-4

The manufacturer no longer makes this part, and there's no substitute part
