Model # YWMH31017HS2 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool YWMH31017HS2 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

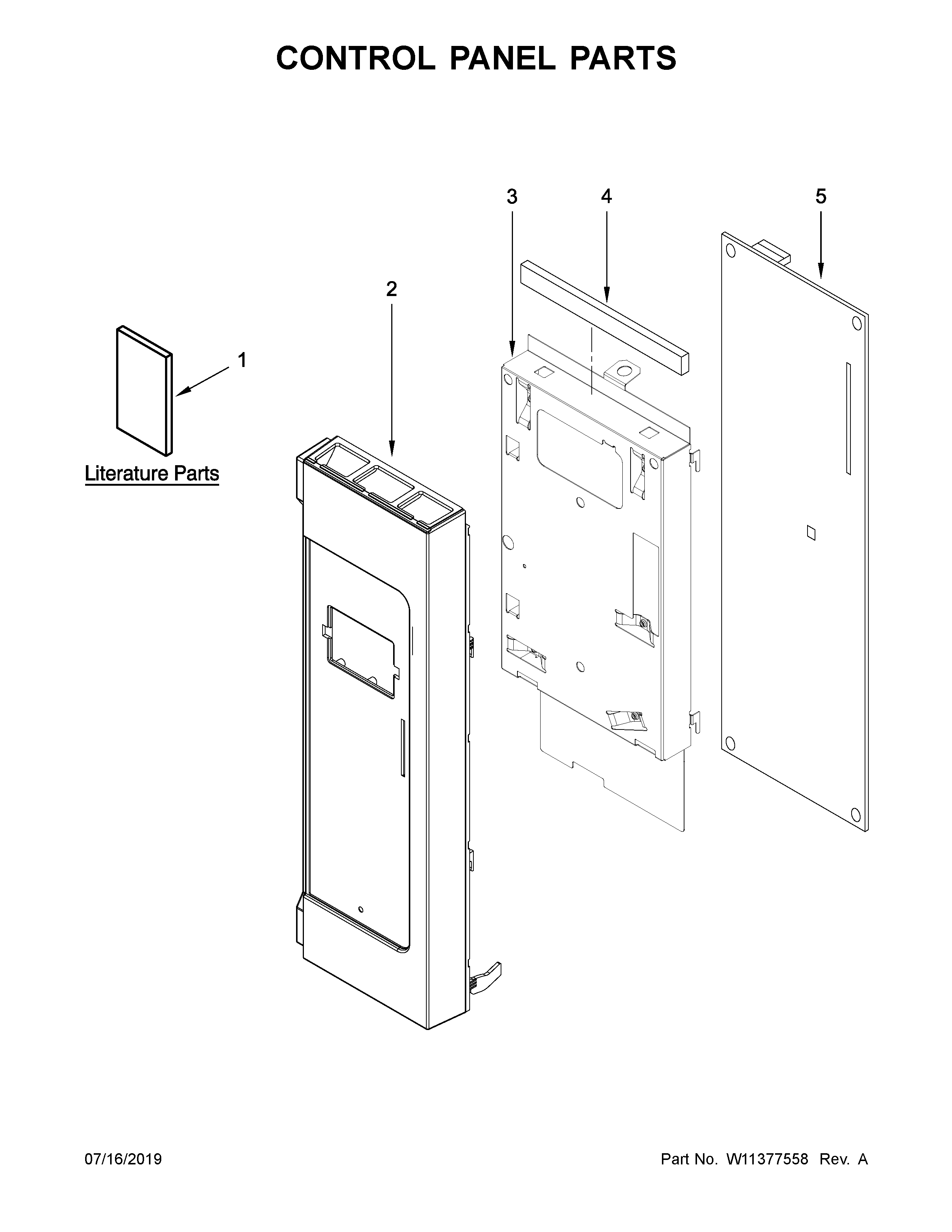

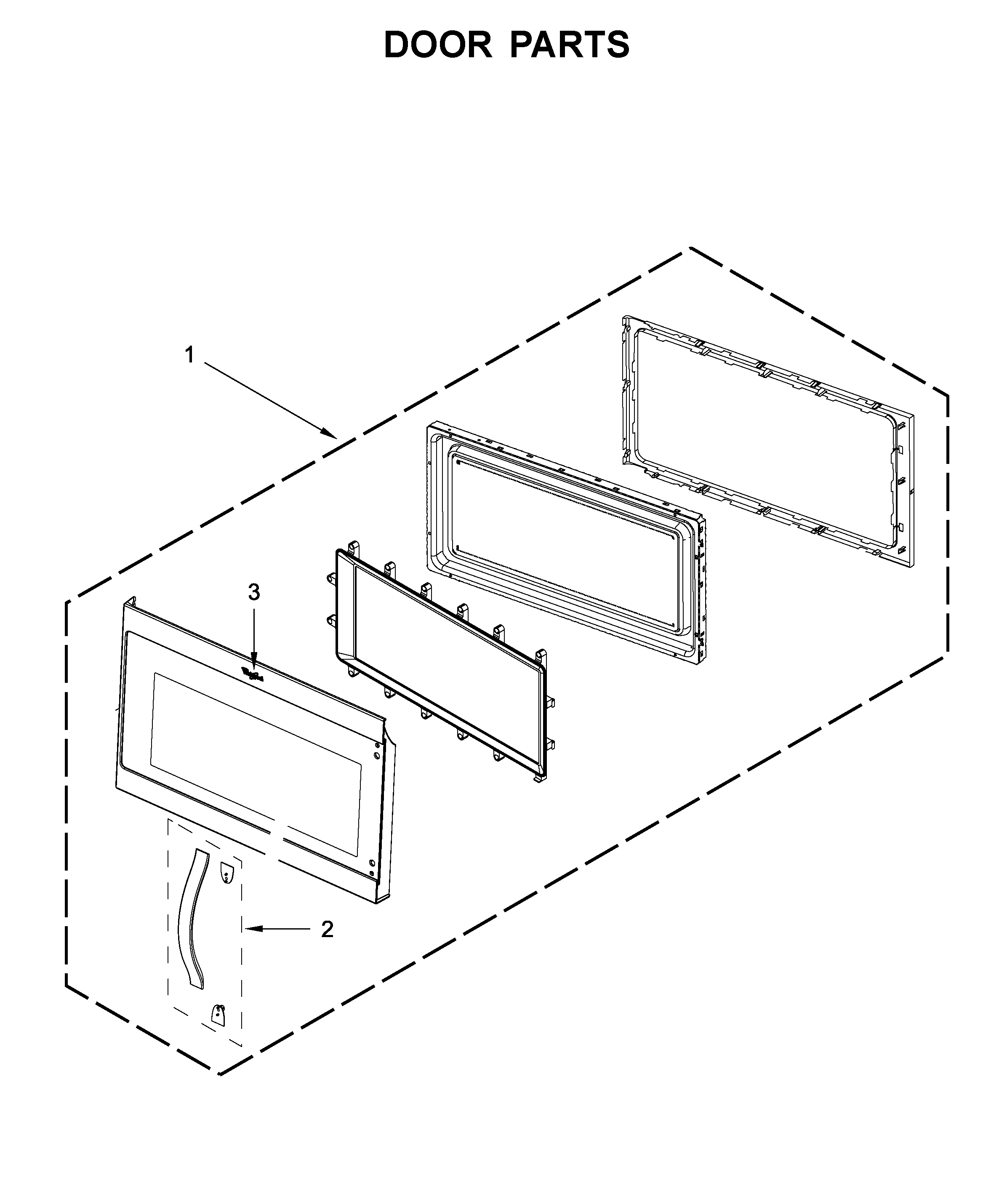

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |

Gaoxin-hvd C W11222648
#23

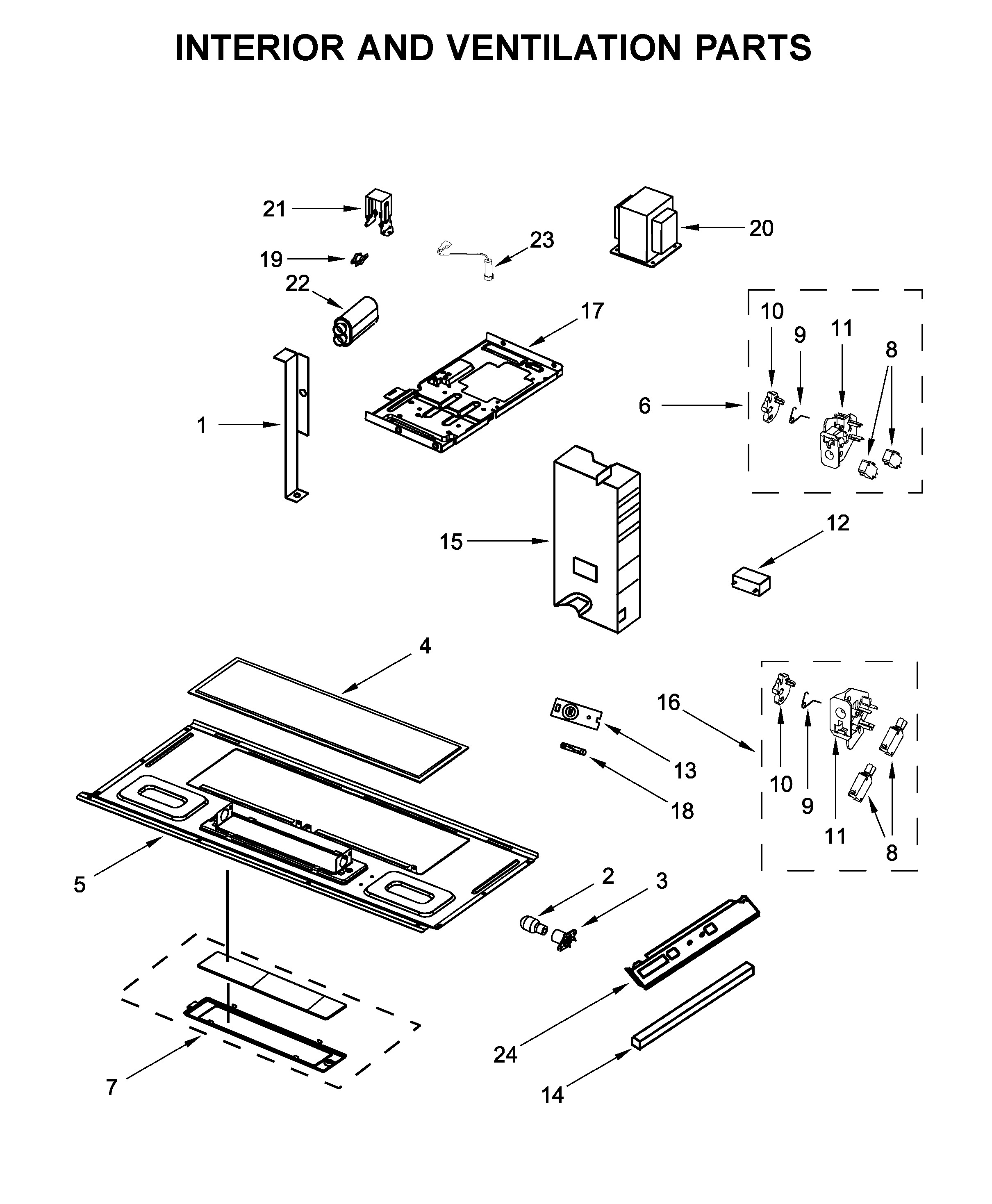

Interior and ventilation parts diagram

Gaoxin-hvd c

Part #W11222648

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W11222648. Substitute parts can look different from the original.
BEST SELLER
$24.65
18% OFF MSRP : $30.00
In Stock
Lamp Assembly 4393681
#3

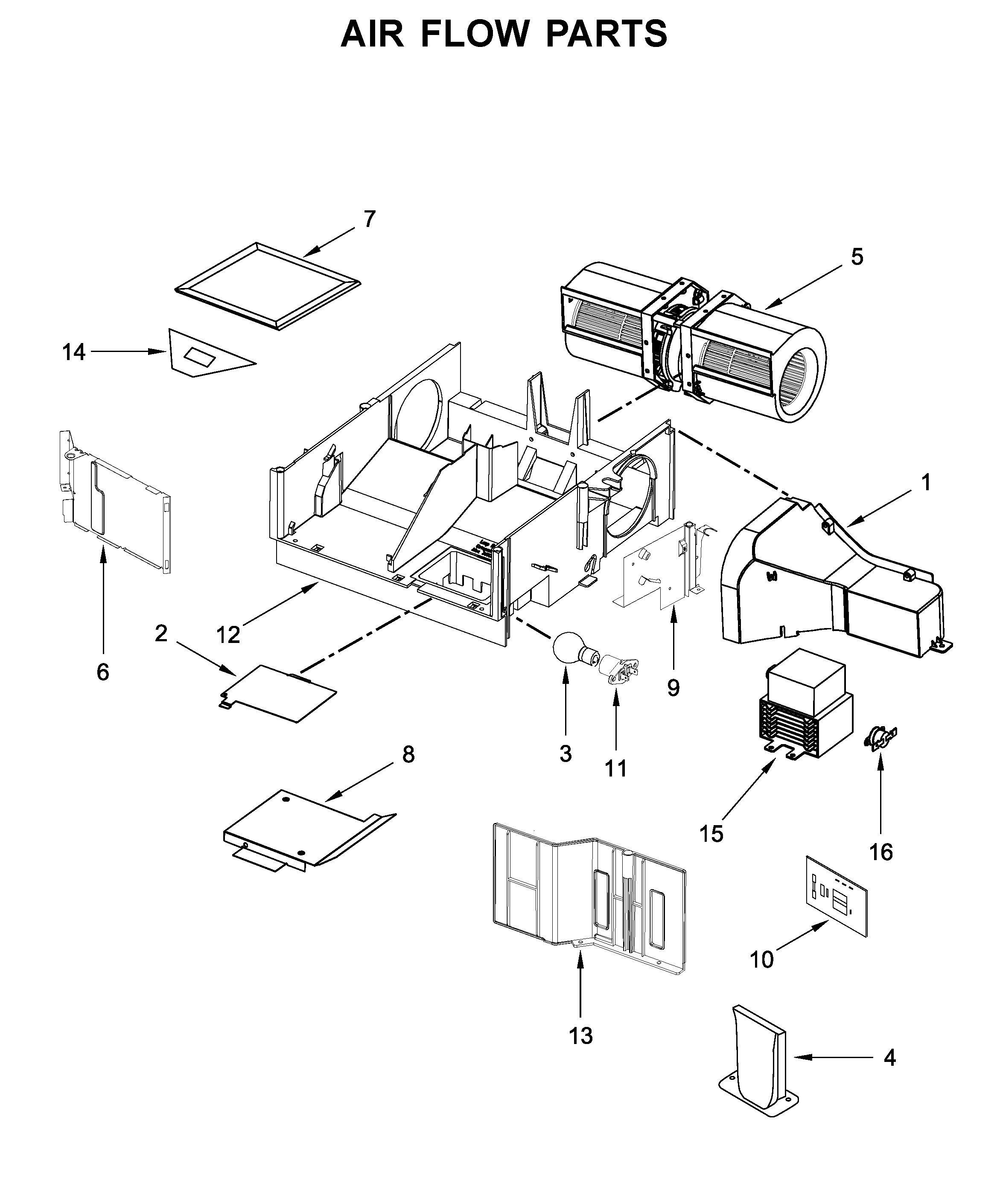

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$9.29
42% OFF MSRP : $16.00
Back Order
Microwave/hood Light Bulb 8206232
#2

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$9.29
42% OFF MSRP : $16.00
Back Order
Microwave Door Interlock Support, Upper 8206419
#11

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

BEST SELLER
In Stock
Microwave Vent Louver Motor Cam Plate (replaces W10508437) W10562613
#10

Interior and ventilation parts diagram

Microwave vent louver motor cam plate (replaces w10508437)

Part #W10562613

BEST SELLER
$11.59
45% OFF MSRP : $21.00
In Stock
Magnetron W10693025
#15

Air flow parts diagram

Magnetron

Part #W10693025

Replaced by #WPW10693025

?
Manufacturer substitution
This part replaces W10693025. Substitute parts can look different from the original.
BEST SELLER
$110.29
26% OFF MSRP : $150.00
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$26.90
14% OFF Phone Price : $31.12
In Stock
Microwave Turntable Motor (replaces 8183954) W10642989
#6

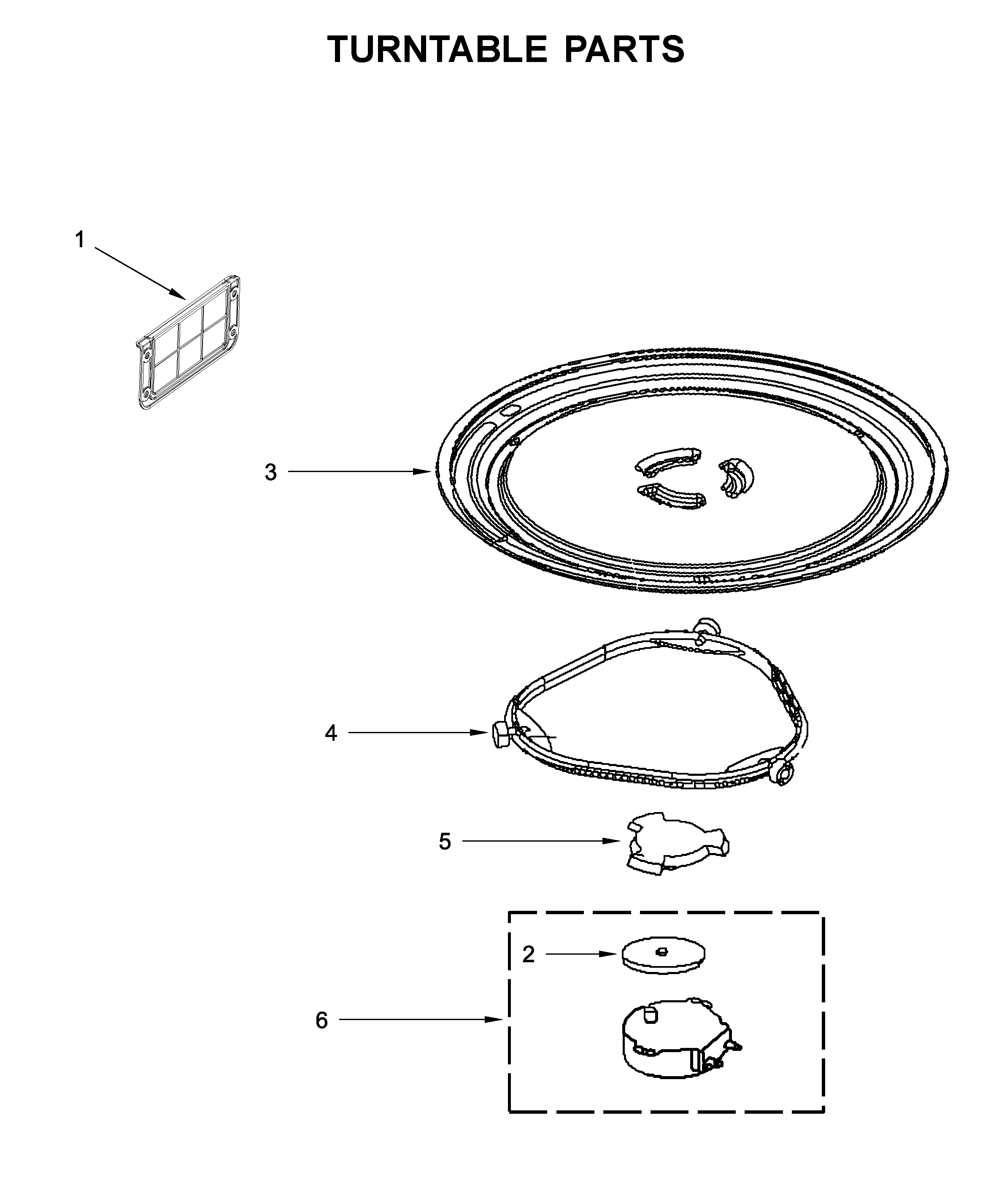

Turntable parts diagram

Microwave turntable motor (replaces 8183954)

Part #W10642989

$77.21
30% OFF MSRP : $110.00
In Stock
Ring, Turntable (with Rollers) W11193600
#4

Turntable parts diagram

Ring, turntable (with rollers)

Part #W11193600

Replaced by #W11252182

?
Manufacturer substitution
This part replaces W11193600. Substitute parts can look different from the original.
$38.92
11% OFF Phone Price : $43.92
In Stock
Microwave Installation Hardware Kit (replaces W10811221) W10821385
#NI

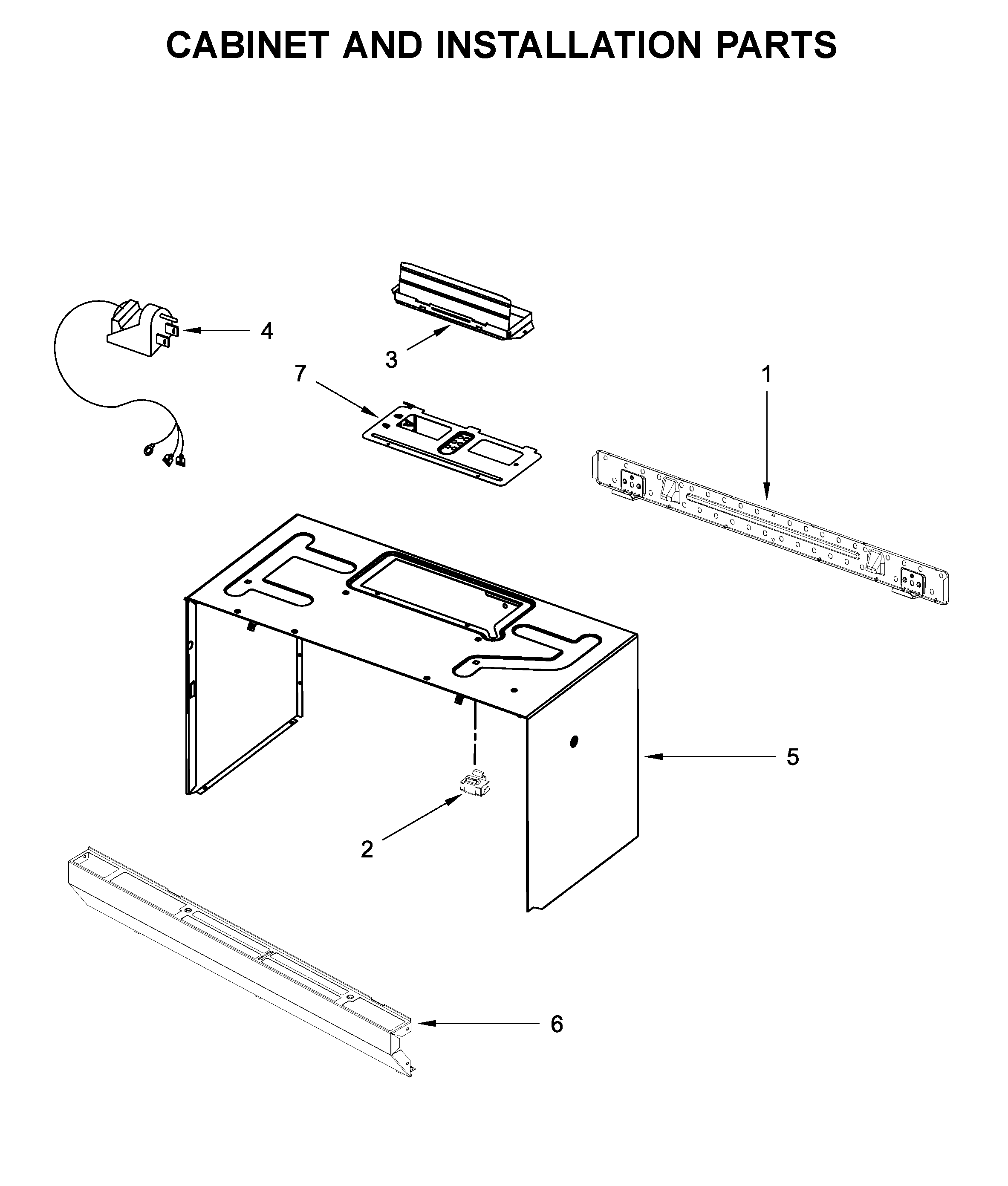

Cabinet and installation parts diagram

Microwave installation hardware kit (replaces w10811221)

Part #W10821385

$50.70
23% OFF MSRP : $66.00
In Stock
