Model # GG30WC02 Official Thermador cooktop

Here are the diagrams and repair parts for Official Thermador GG30WC02 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

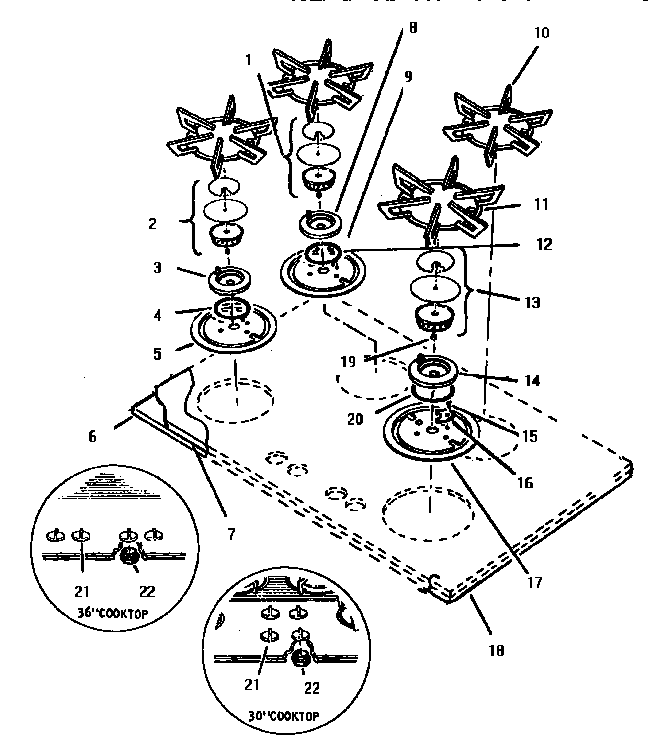

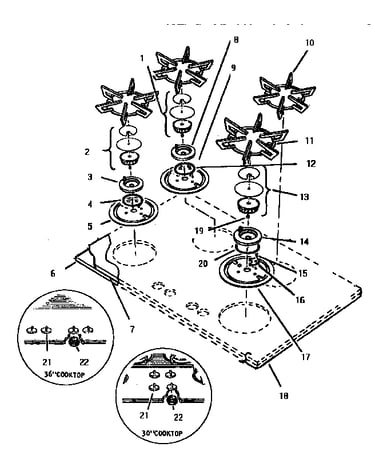

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Nut 14-93-160
Nut

Part #14-93-160

Replaced by #00418677

?
Manufacturer substitution
This part replaces 14-93-160. Substitute parts can look different from the original.
This item is not returnable
In Stock
Igniter 14-41-509
Igniter

Part #14-41-509

The manufacturer no longer makes this part, and there's no substitute part

Gasket Kit, Glass Top 14-61-172
Gasket kit, glass top

Part #14-61-172

The manufacturer no longer makes this part, and there's no substitute part

Burner Plate, Front 14-41-504-02
Burner plate, front

Part #14-41-504-02

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Blower Knob 20-09-299-01
#23

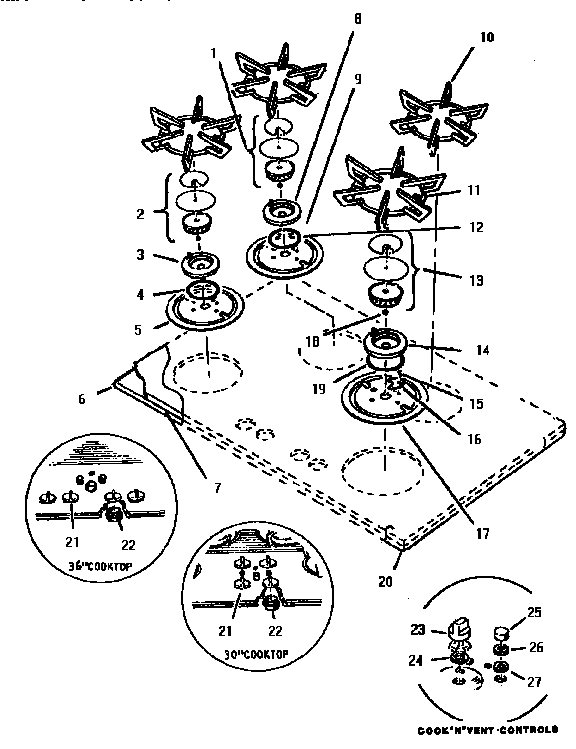

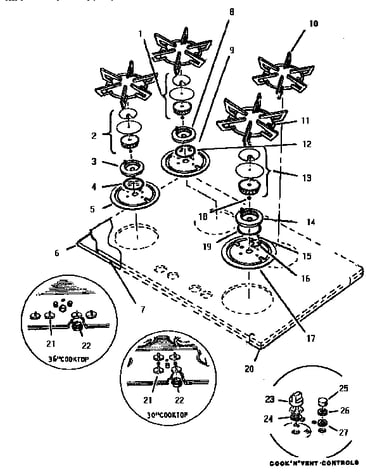

Ggcv36wc02 and ggcv30wc02 (ggcv30wc02) (ggcv36wc02) diagram

Cooktop blower knob

Part #20-09-299-01

The manufacturer no longer makes this part, and there's no substitute part

Cap 14-41-507-02
Cap

Part #14-41-507-02

The manufacturer no longer makes this part, and there's no substitute part

Main Top 20-01-481
#7

Ggcv36wc02 and ggcv30wc02 (ggcv30wc02) (ggcv36wc02) diagram

Main top

Part #20-01-481

The manufacturer no longer makes this part, and there's no substitute part

Cap (2) 20-09-347
#25

Ggcv36wc02 and ggcv30wc02 (ggcv30wc02) (ggcv36wc02) diagram

Cap (2)

Part #20-09-347

The manufacturer no longer makes this part, and there's no substitute part

Gasket (2) 14-92-083
#27

Ggcv36wc02 and ggcv30wc02 (ggcv30wc02) (ggcv36wc02) diagram

Gasket (2)

Part #14-92-083

The manufacturer no longer makes this part, and there's no substitute part

Burner Holding Screw (4) 14-09-156
Burner holding screw (4)

Part #14-09-156

The manufacturer no longer makes this part, and there's no substitute part
