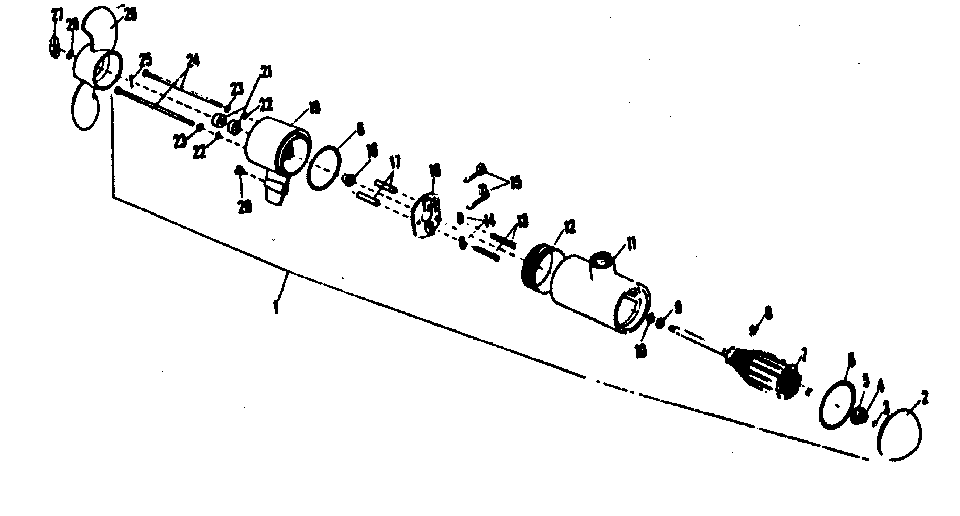

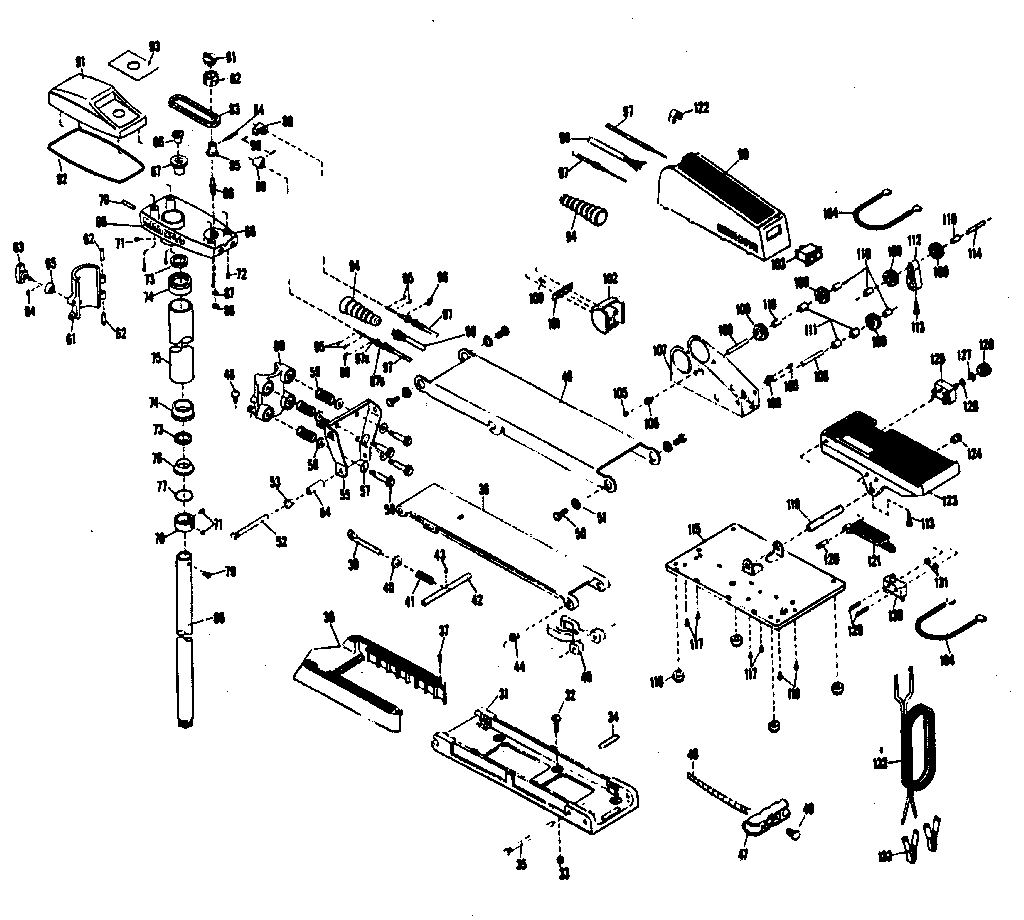

Model # 565M Official Minn Kota electric fishing motor

Here are the diagrams and repair parts for Official Minn Kota 565M electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Washer 405170

#9

All parts diagram

Washer

Part #405170

The manufacturer no longer makes this part, and there's no substitute part

Br Plt Screw 405341

#13

All parts diagram

Br plt screw

Part #405341

The manufacturer no longer makes this part, and there's no substitute part

Top Brg 226621

#67

All parts diagram

Top brg

Part #226621

The manufacturer no longer makes this part, and there's no substitute part

Upper Arm 229420

#49

All parts diagram

Upper arm

Part #229420

The manufacturer no longer makes this part, and there's no substitute part

Decal 226565

#93

All parts diagram

Decal

Part #226565

The manufacturer no longer makes this part, and there's no substitute part

Bearing Ret 405301

#5

All parts diagram

Bearing ret

Part #405301

The manufacturer no longer makes this part, and there's no substitute part

Mtg Nut 215310

#33

All parts diagram

Mtg nut

Part #215310

The manufacturer no longer makes this part, and there's no substitute part

Screw 225343

#105

All parts diagram

Screw

Part #225343

The manufacturer no longer makes this part, and there's no substitute part

Prop-washer 205170

#28

All parts diagram

Prop-washer

Part #205170

The manufacturer no longer makes this part, and there's no substitute part

Switch 225402

#130

All parts diagram

Switch

Part #225402

The manufacturer no longer makes this part, and there's no substitute part
