Model # SCD6040S Official Samsung digital camcorder

Here are the diagrams and repair parts for Official Samsung SCD6040S digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

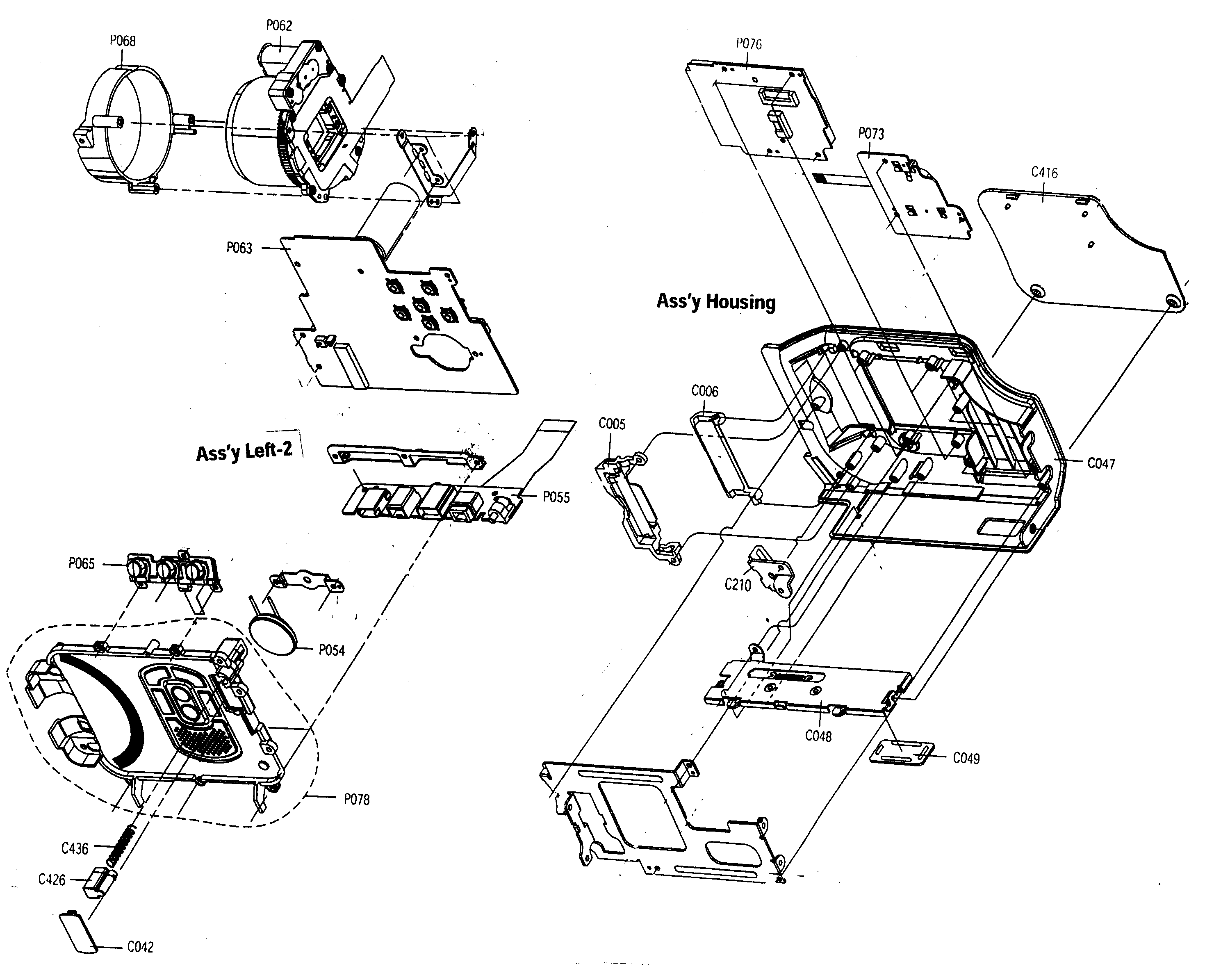

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Spring AD61-01757A
#C435

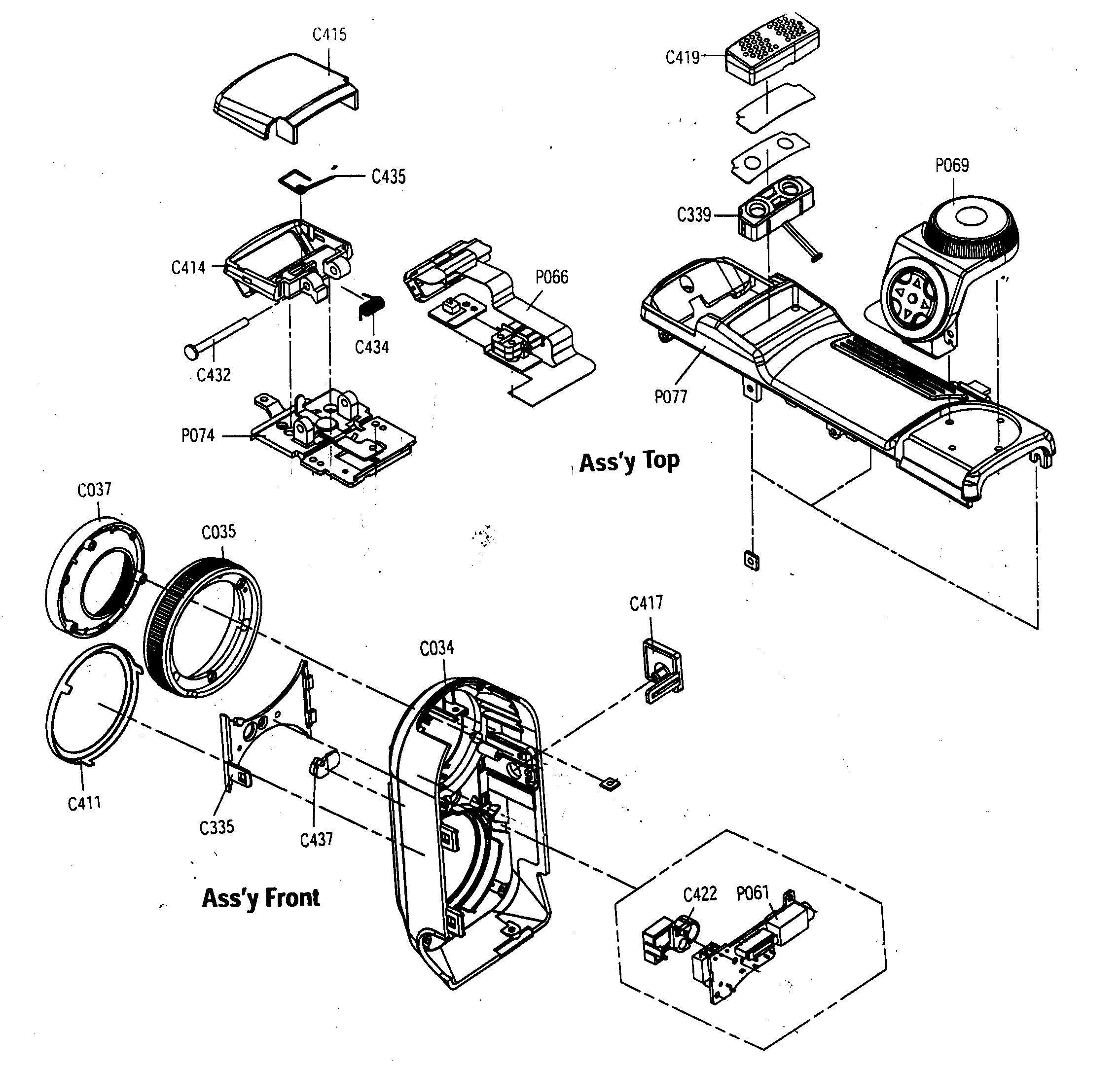

Front/top assy diagram

Spring

Part #AD61-01757A

Replaced by #AD61-01757A

?
Manufacturer substitution
This part replaces AD61-01757A. Substitute parts can look different from the original.
This item is not returnable
$2.50
In Stock
Grille AD64-01235A
#C419

Front/top assy diagram

Grille

Part #AD64-01235A

Replaced by #AD64-01235A

?
Manufacturer substitution
This part replaces AD64-01235A. Substitute parts can look different from the original.
This item is not returnable
$3.23
In Stock
Pcb Assembly AD97-08603B
#P064

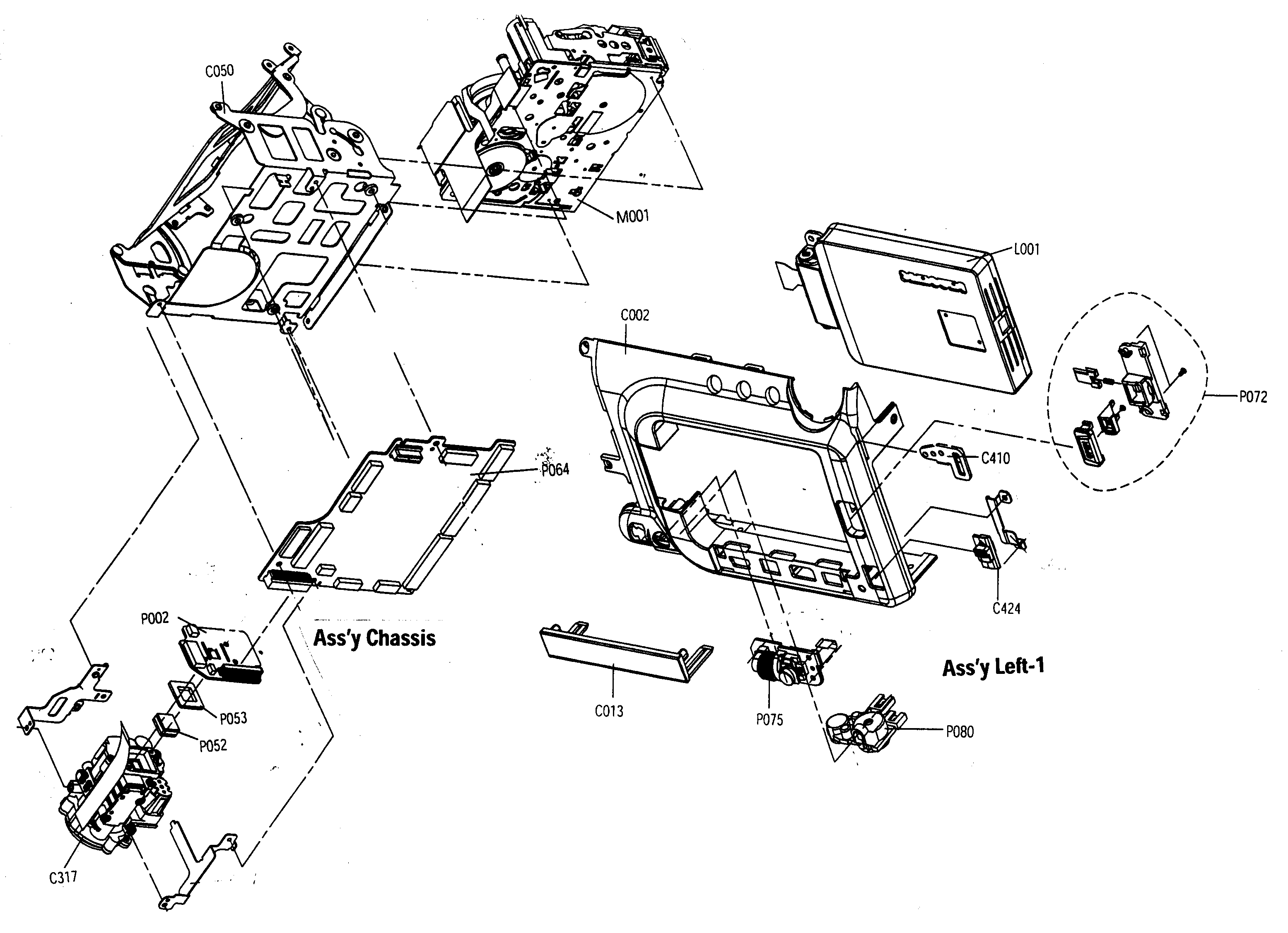

Chassis assy diagram

Pcb assembly

Part #AD97-08603B

Replaced by #AD97-08603B

?
Manufacturer substitution
This part replaces AD97-08603B. Substitute parts can look different from the original.
$286.33
In Stock
Bracket AD61-01779A
#C212

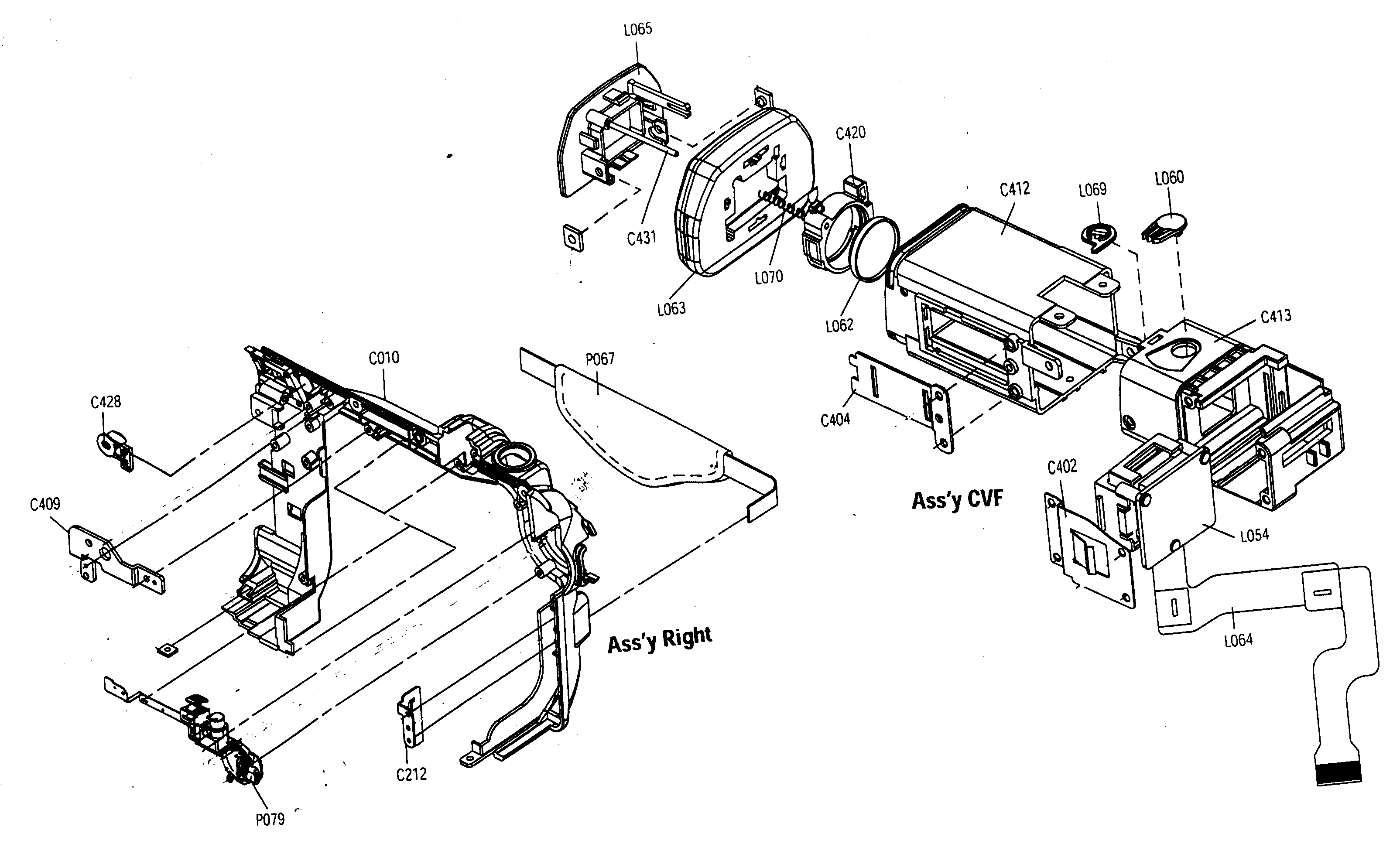

Cvf assy diagram

Bracket

Part #AD61-01779A

Replaced by #AD61-01779A

?
Manufacturer substitution
This part replaces AD61-01779A. Substitute parts can look different from the original.
This item is not returnable
$2.26
In Stock
Shaft AD66-00281B
#C431

Cvf assy diagram

Shaft

Part #AD66-00281B

Replaced by #AD66-00281B

?
Manufacturer substitution
This part replaces AD66-00281B. Substitute parts can look different from the original.
This item is not returnable
$2.26
In Stock
Shaft AD66-00282A
#C432

Front/top assy diagram

Shaft

Part #AD66-00282A

Replaced by #AD66-00282A

?
Manufacturer substitution
This part replaces AD66-00282A. Substitute parts can look different from the original.
This item is not returnable
$2.50
In Stock
Case AD61-01733A
#C413

Cvf assy diagram

Case

Part #AD61-01733A

Replaced by #AD61-01733A

?
Manufacturer substitution
This part replaces AD61-01733A. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Badge AD64-01280A
#C400

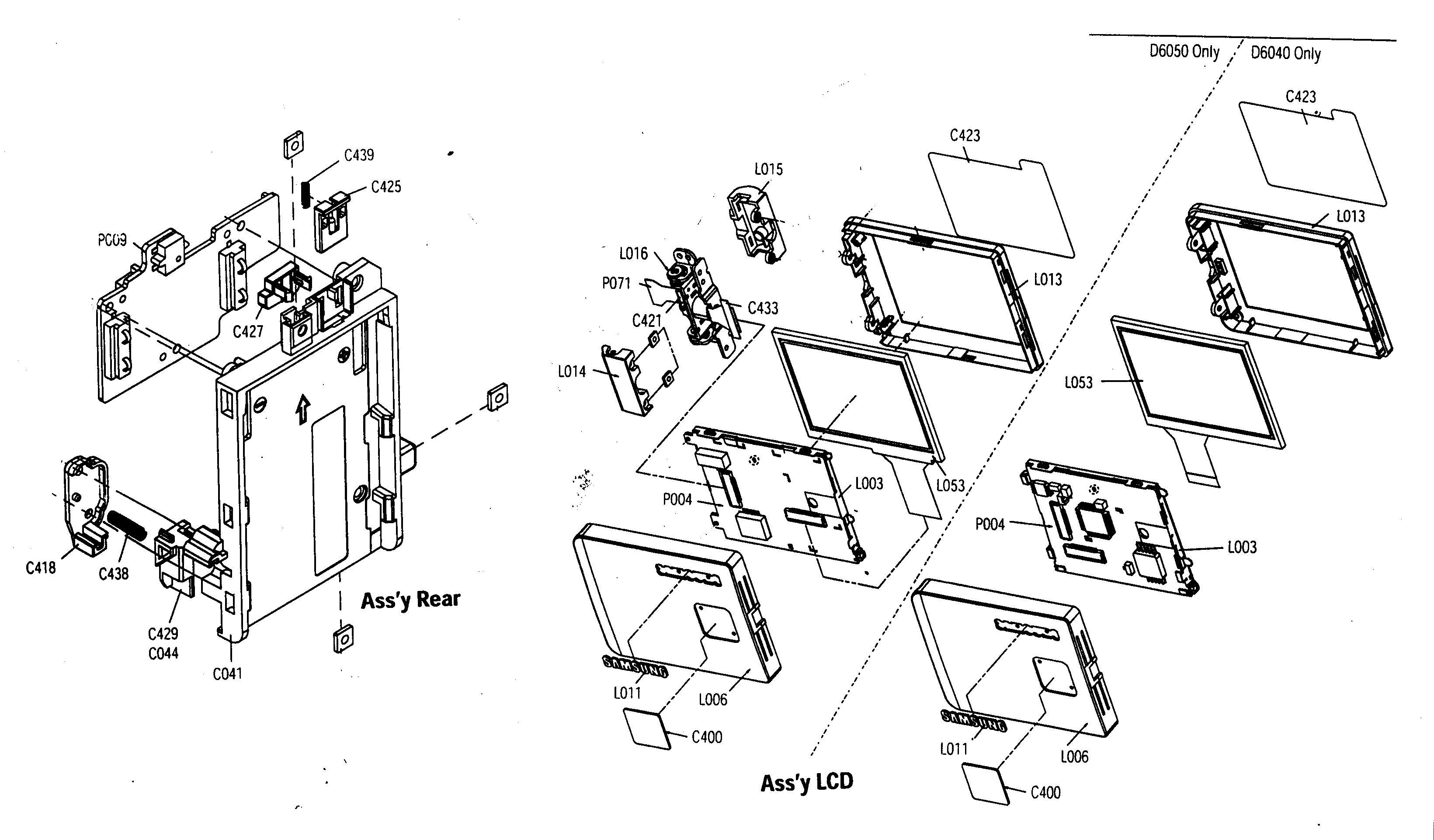

Rear/lcd assy diagram

Badge

Part #AD64-01280A

Replaced by #AD64-01280A

?
Manufacturer substitution
This part replaces AD64-01280A. Substitute parts can look different from the original.
This item is not returnable
$2.26
In Stock
Case AD61-01734A
#C412

Cvf assy diagram

Case

Part #AD61-01734A

Replaced by #AD61-01734A

?
Manufacturer substitution
This part replaces AD61-01734A. Substitute parts can look different from the original.
This item is not returnable
$3.23
In Stock
Cap Silver AD67-00263A
#C411

Front/top assy diagram

Cap silver

Part #AD67-00263A

Replaced by #AD67-00263A

?
Manufacturer substitution
This part replaces AD67-00263A. Substitute parts can look different from the original.
$13.74
In Stock
