KitchenAid KGCV566RMT00 gas counter unit Parts

Name: KitchenAid KGCV566RMT00 Parts | Diagrams | Sears PartsDirect
Brand: KitchenAid
SKU: KGCV566RMT00
Availability: InStock

Here are the diagrams and repair parts for KitchenAid KGCV566RMT00 gas counter unit, as well as links to manuals and error code tables, if available.

Error Codes

KitchenAid KGCV566RMT00 gas counter unit

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for KGCV566RMT00 Cooktops

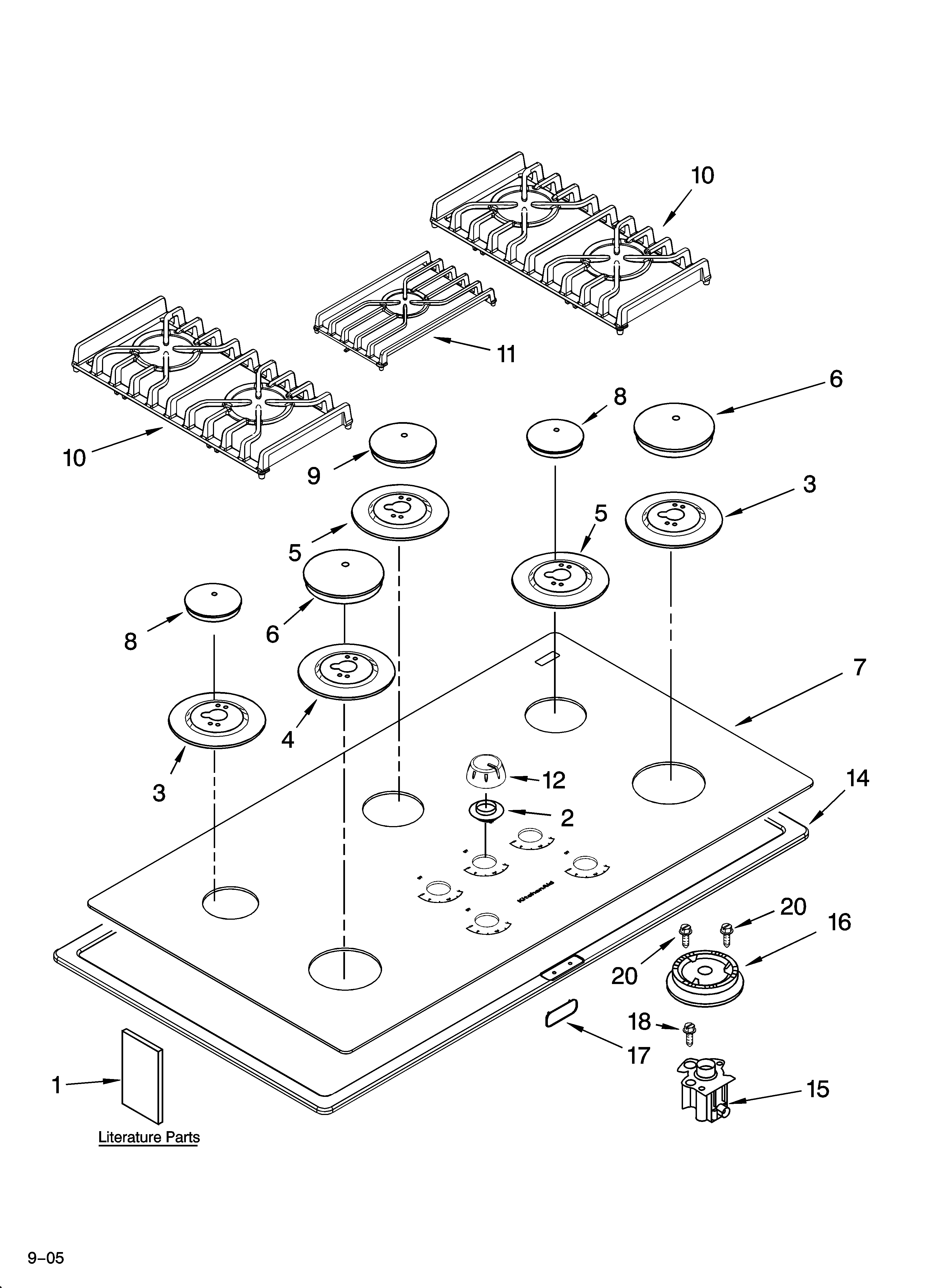

Cooktop, burner and grate parts diagram
Range Screw
Part #3368921
Replaced by #WP3368921
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.10
24% OFF Phone Price : $4.10
Qty
Cooktop, burner and grate parts diagram
Burner Head
Part #8286181
Replaced by #WPW10406243
Manufacturer substitution
This part replaces 8286181. Substitute parts can look different from the original.
This item is not returnable
In Stock
$27.60
18% OFF Phone Price : $33.60
Qty
Cooktop, burner and grate parts diagram
Range Surface Burner Head, 17,000-btu
Part #8286183
The manufacturer no longer makes this part, and there's no substitute part

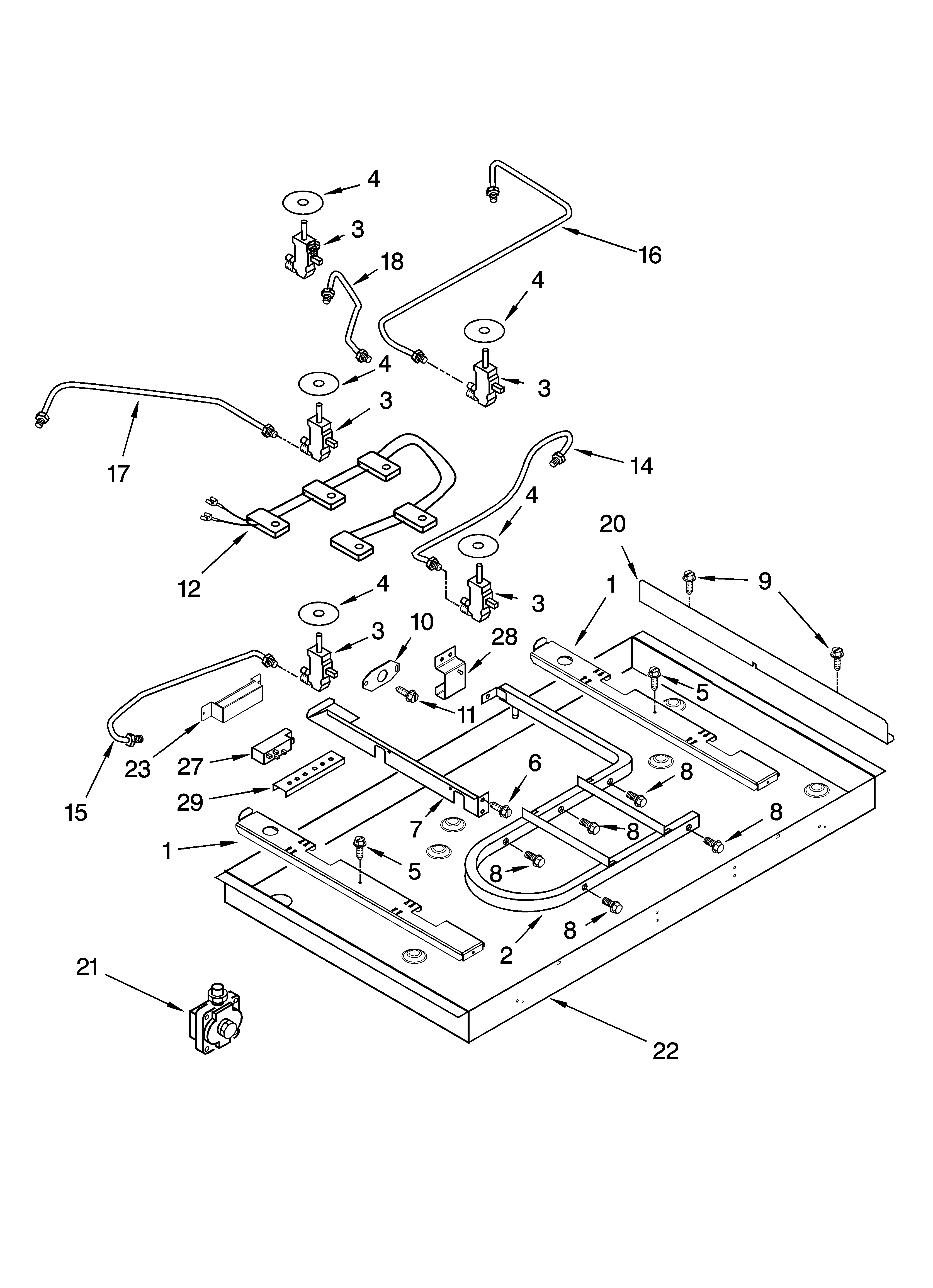

Burner box, gas valves, and switches, optional parts diagram
Cooktop Igniter Switch And Harness Assembly
Part #4456901
Replaced by #WP4456901
Manufacturer substitution
This part replaces 4456901. Substitute parts can look different from the original.
In Stock
$137.70
8% OFF Phone Price : $149.70
Qty
Burner box, gas valves, and switches, optional parts diagram
Spark Module
Part #8522424
Replaced by #WPW10110486
Manufacturer substitution
This part replaces 8522424. Substitute parts can look different from the original.
In Stock
$169.44
7% OFF Phone Price : $181.44
Qty
Range Screw
Part #3177991
Replaced by #WP3177991
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty

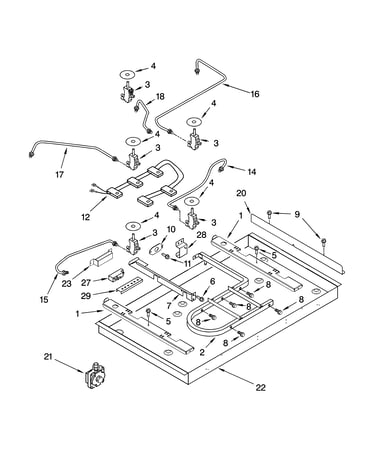

Burner box, gas valves, and switches, optional parts diagram
Range Wire Harness
Part #4456627
In Stock
$118.21
Qty
Burner box, gas valves, and switches, optional parts diagram
Cooktop Igniter Wire Harness, 15-in
Part #4456626
In Stock
$43.99
12% OFF Phone Price : $49.99
Qty
Burner box, gas valves, and switches, optional parts diagram
Gas Tubing
Part #8285768
In Stock
$152.98
Qty
Cooktop, burner and grate parts diagram
Grommet-wh
Part #3180081
Replaced by #WP3180081
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.87
11% OFF Phone Price : $8.87
Qty
