Frigidaire
Wall Oven/Microwave Combo

Model # FGMC2766UFB Official Frigidaire electric oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC2766UFB electric oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

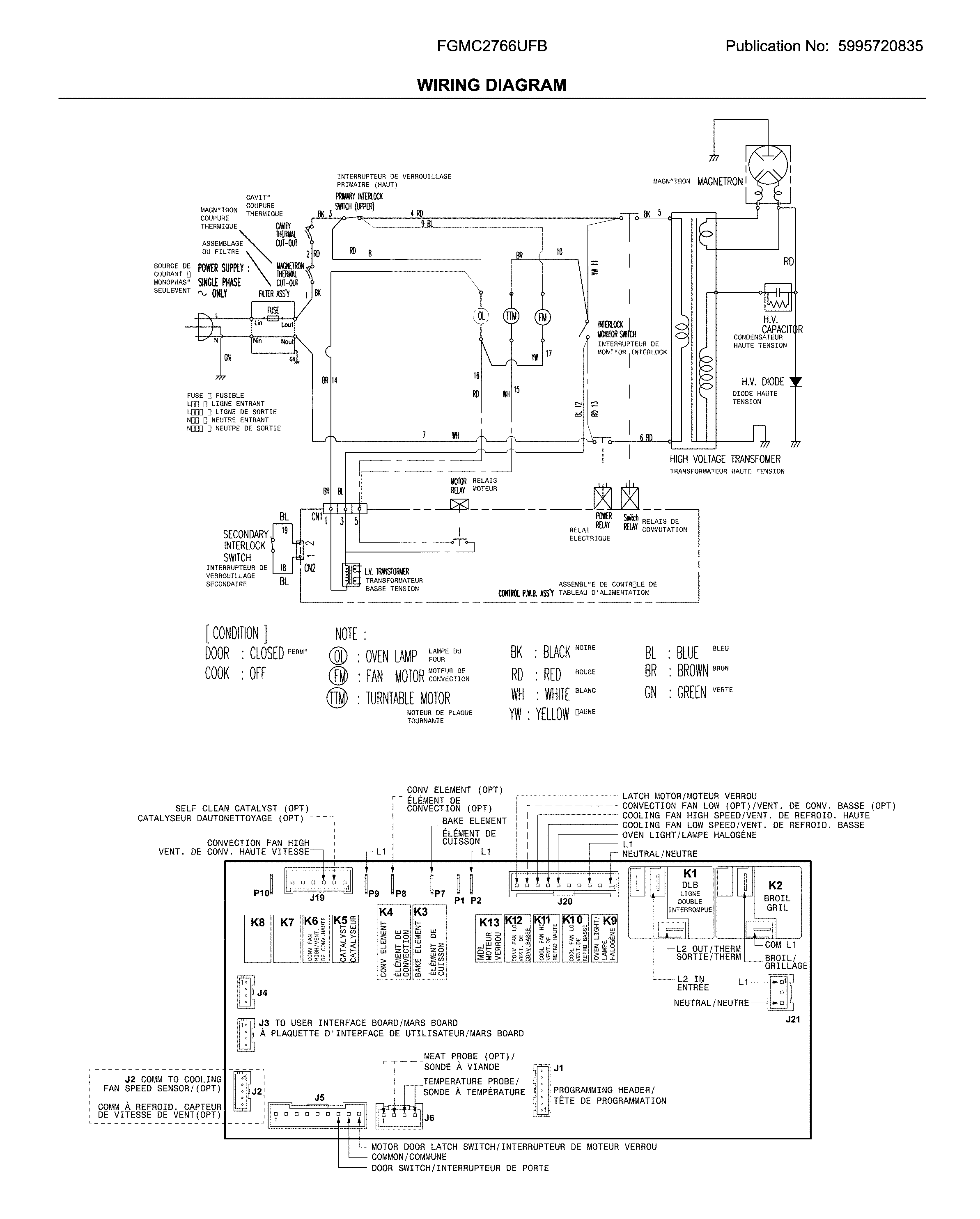

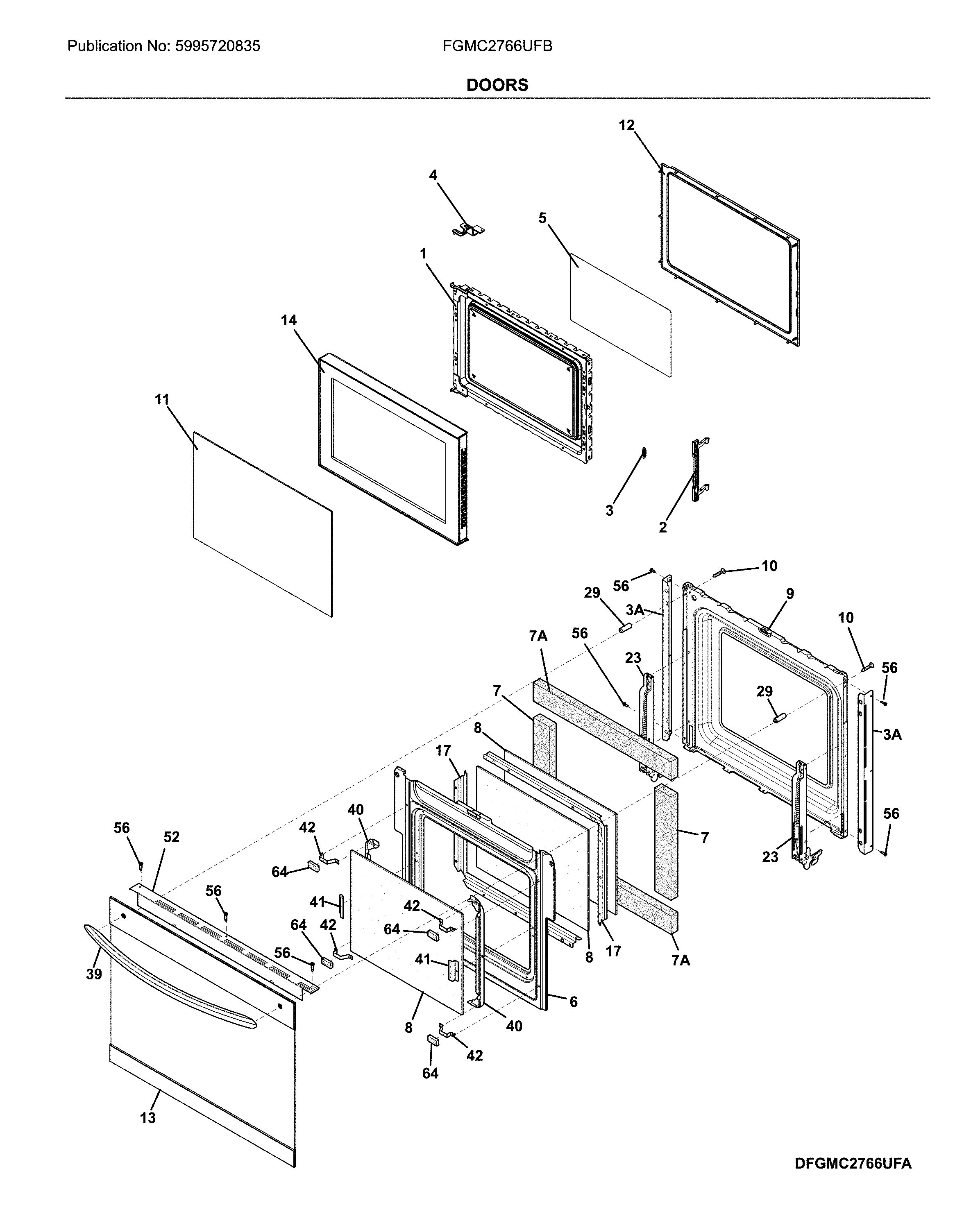

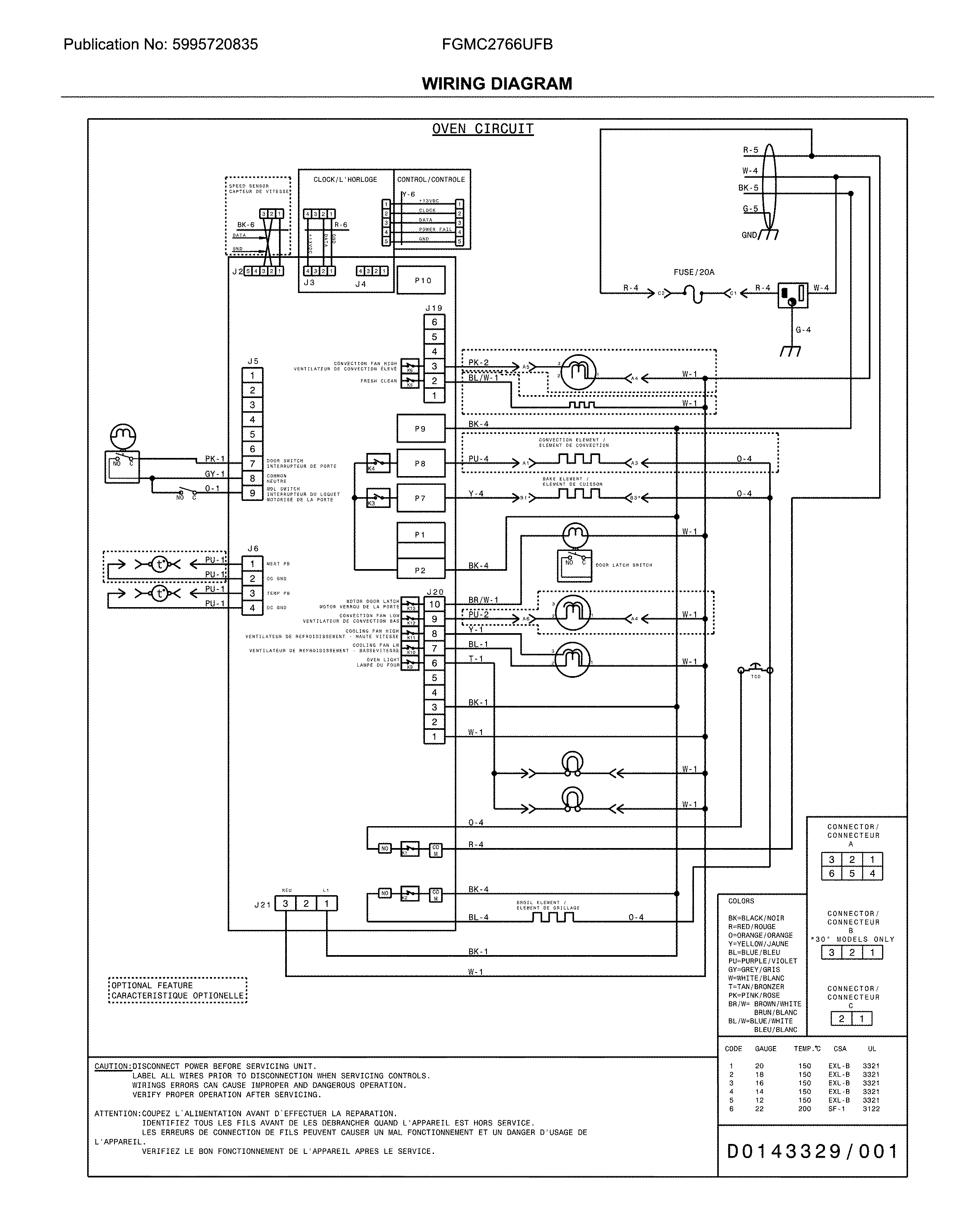

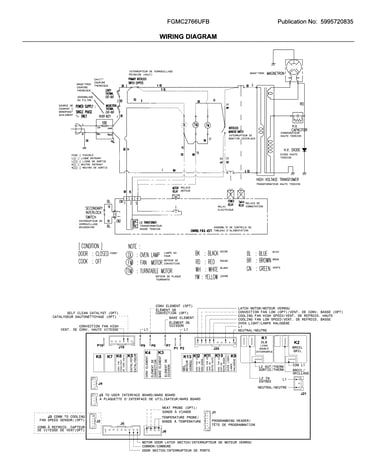

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Microwave Fuse (replaces 5304488359) 5304509451
#34

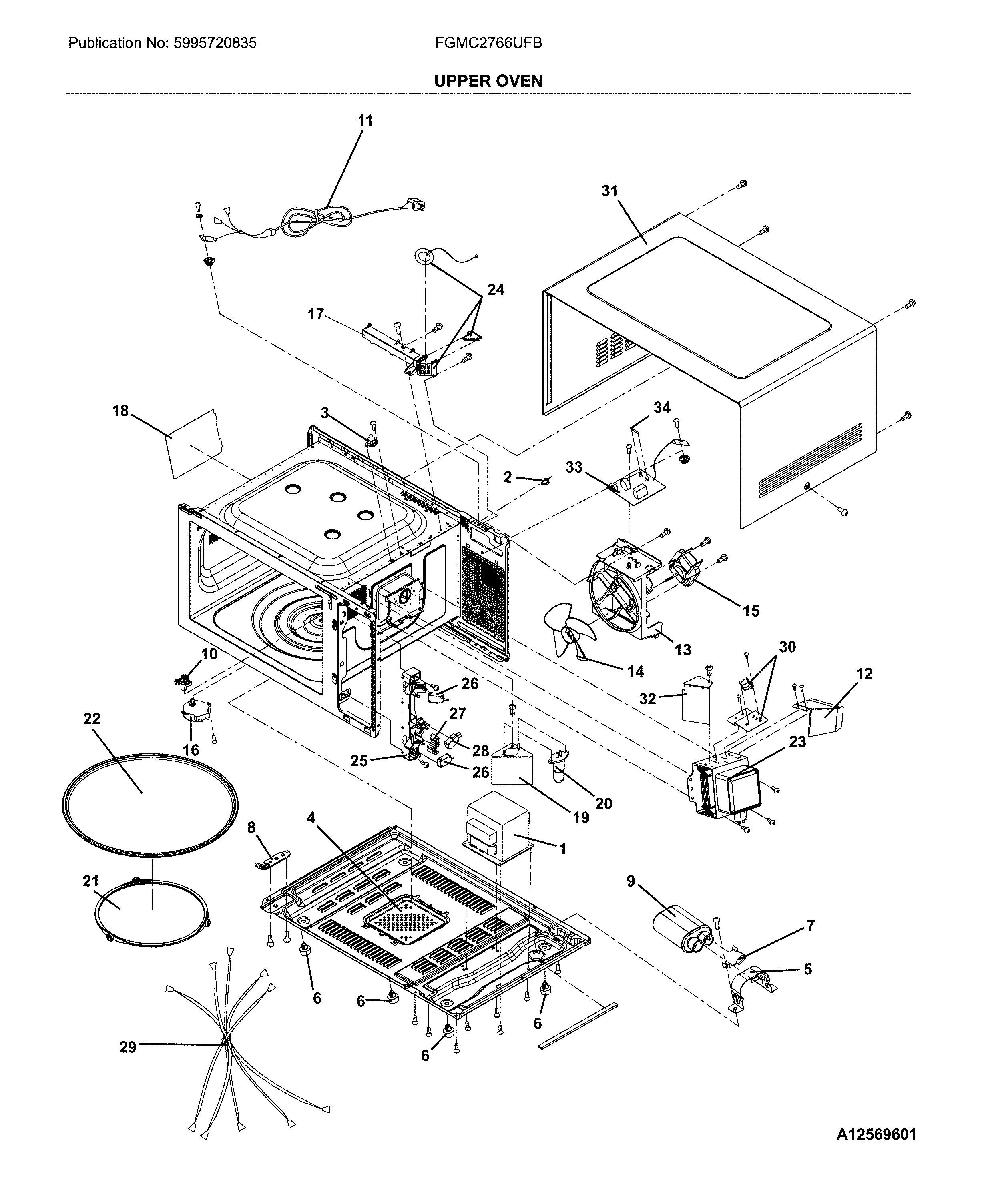

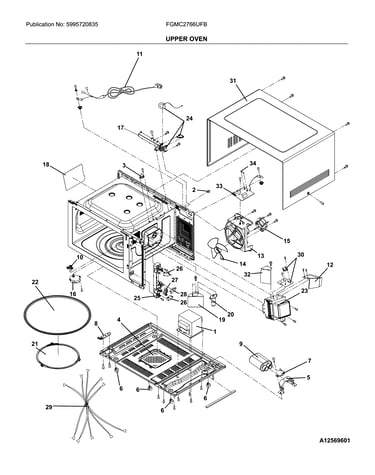

Microwave diagram

Microwave fuse (replaces 5304488359)

Part #5304509451

BEST SELLER
$12.32 |
28% OFF MSRP : $17.00
In Stock
Switch 5304520020
#26

Microwave diagram

Switch

Part #5304520020

Replaced by #5304509460

?
Manufacturer substitution
This part replaces 5304520020. Substitute parts can look different from the original.
BEST SELLER
$33.66 |
20% OFF MSRP : $42.00
In Stock
Range High-limit Thermostat (replaces 318578501) 318578506
#119

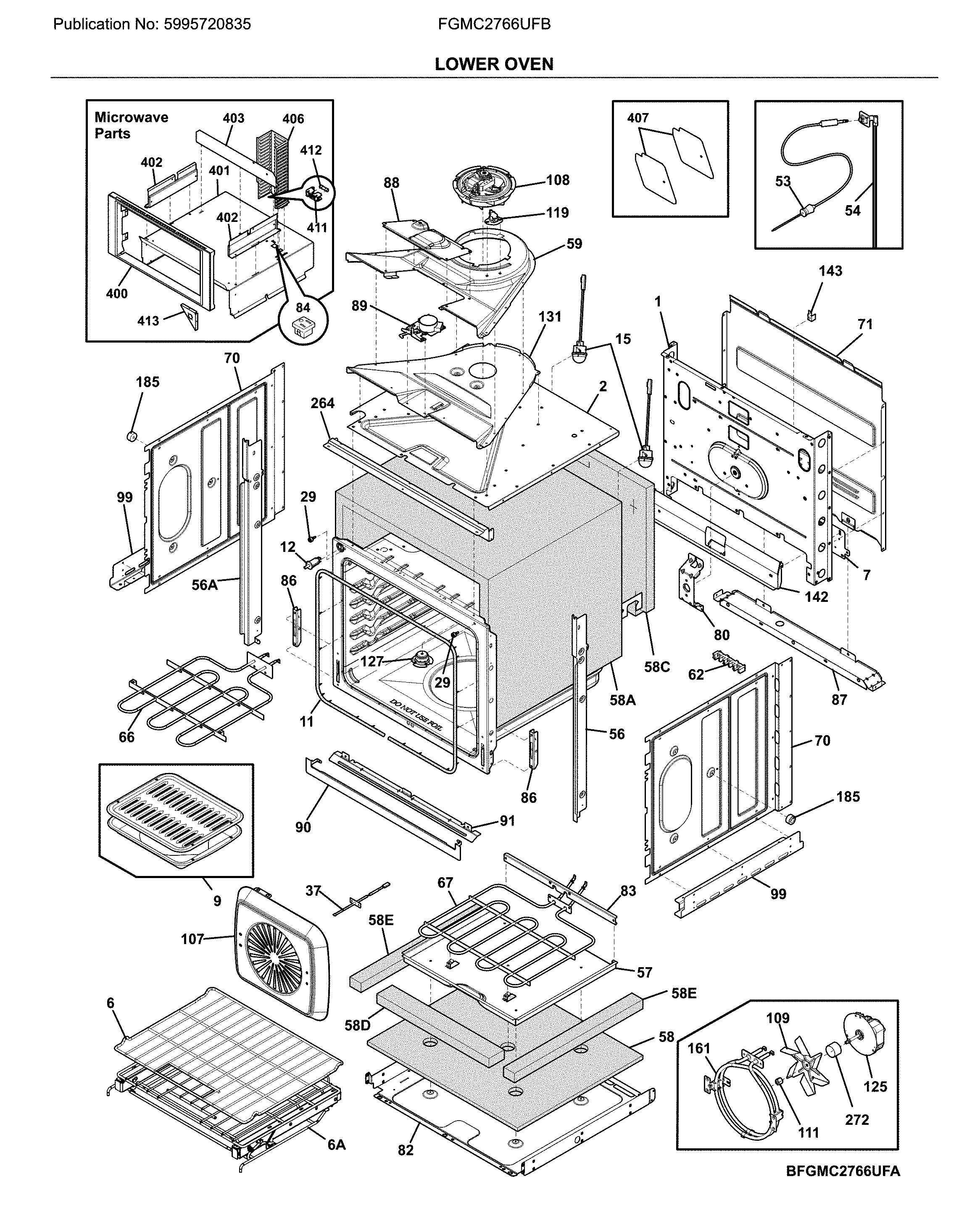

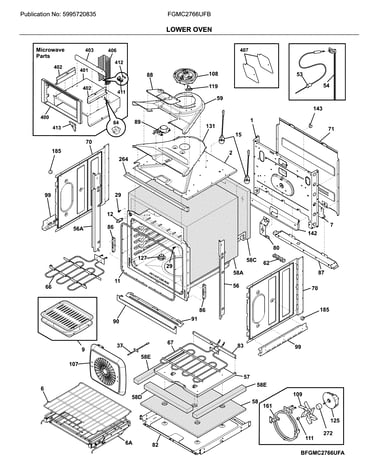

Body diagram

Range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$39.74 |
11% OFF Phone Price : $44.74
In Stock
Terminal Block 316056000
#62

Body diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Body diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
18% OFF MSRP : $40.00
In Stock
Range Oven Control Board (replaces 316472802) 316472807
#97

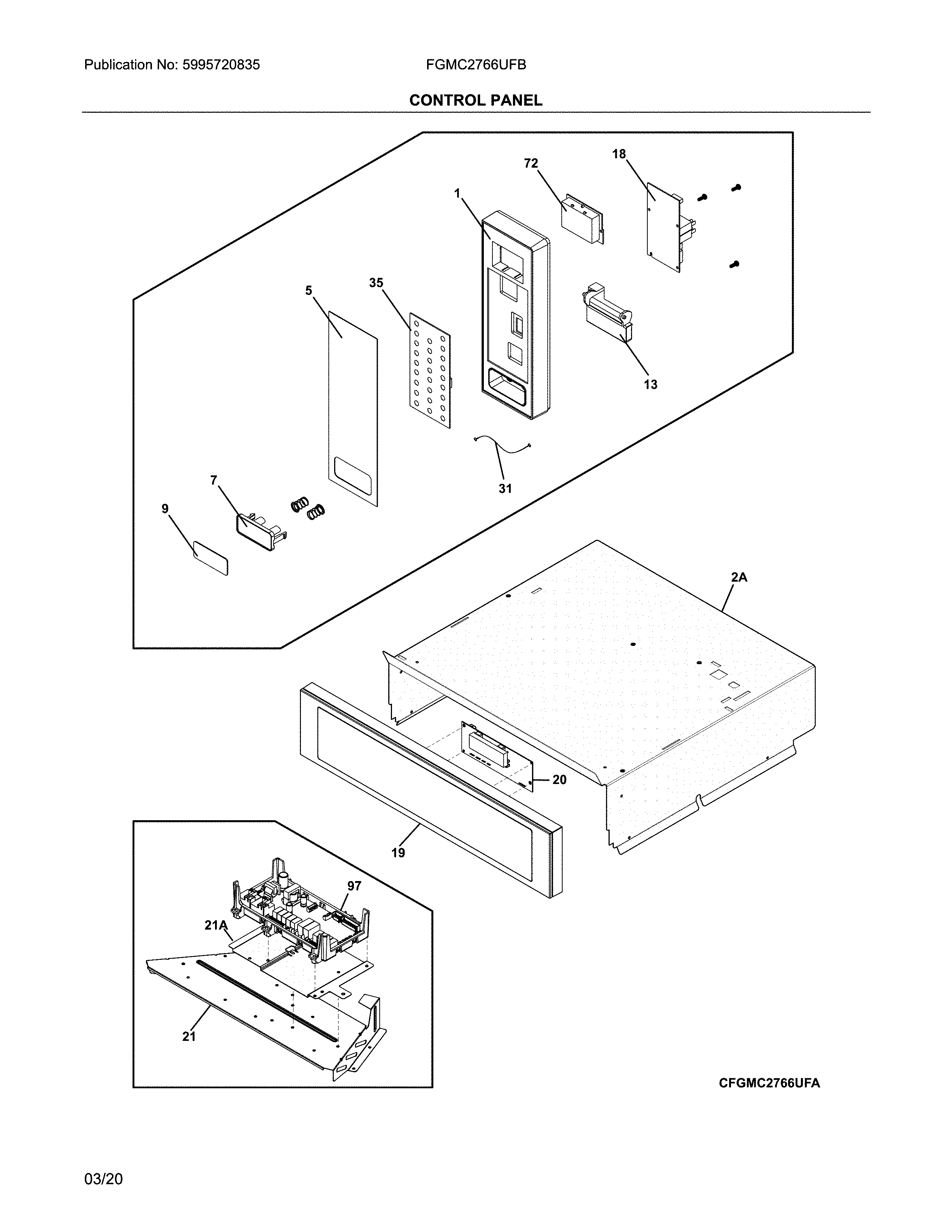

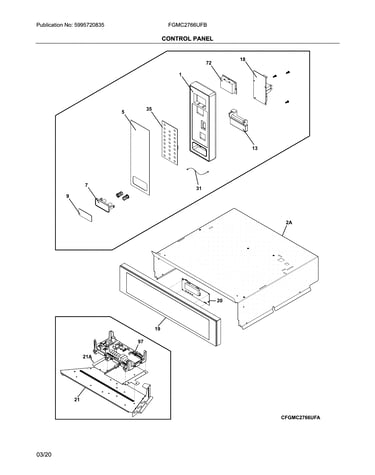

Control diagram

Range oven control board (replaces 316472802)

Part #316472807

BEST SELLER
$268.61 |
$10.00 OFF Phone Price : $278.61
In Stock
Microwave Diode (replaces 5304488358) 5304513459
#7

Microwave diagram

Microwave diode (replaces 5304488358)

Part #5304513459

BEST SELLER
$25.29 |
17% OFF Phone Price : $30.29
In Stock
Blade 139009100
#109

Body diagram

Blade

Part #139009100

Replaced by #318398302

?
Manufacturer substitution
This part replaces 139009100. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
17% OFF Phone Price : $28.89
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
#NI

Body diagram

Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Microwave High-voltage Transformer 5304513457
#1

Microwave diagram

Microwave high-voltage transformer

Part #5304513457

$252.79 |
$10.00 OFF Phone Price : $262.79
In Stock
