Maytag
Microwave/Hood Combo

Model # MMV6190FZ2 Official Maytag microwave/hood combo

Here are the diagrams and repair parts for Official Maytag MMV6190FZ2 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

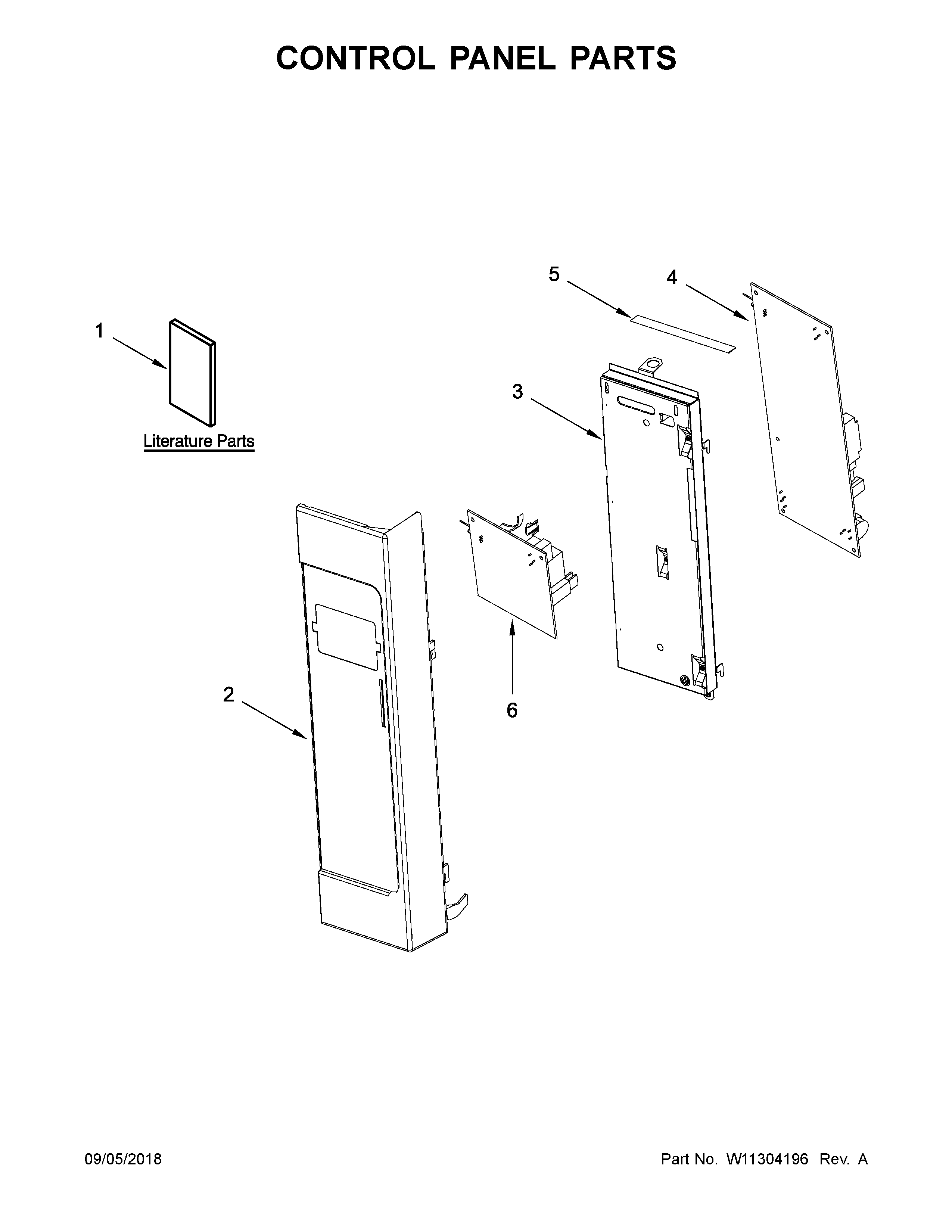

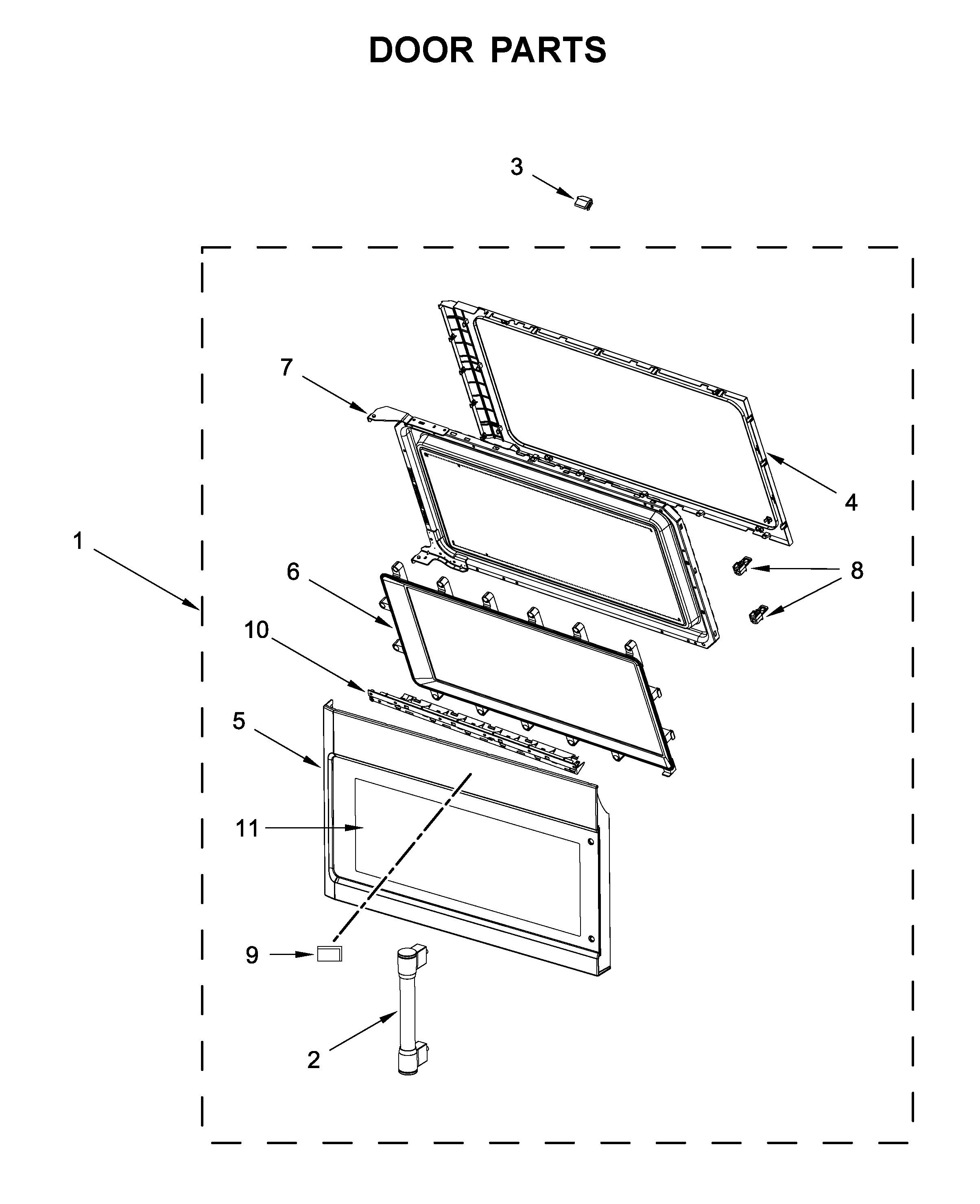

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |

Lamp Assembly 4393681
#3

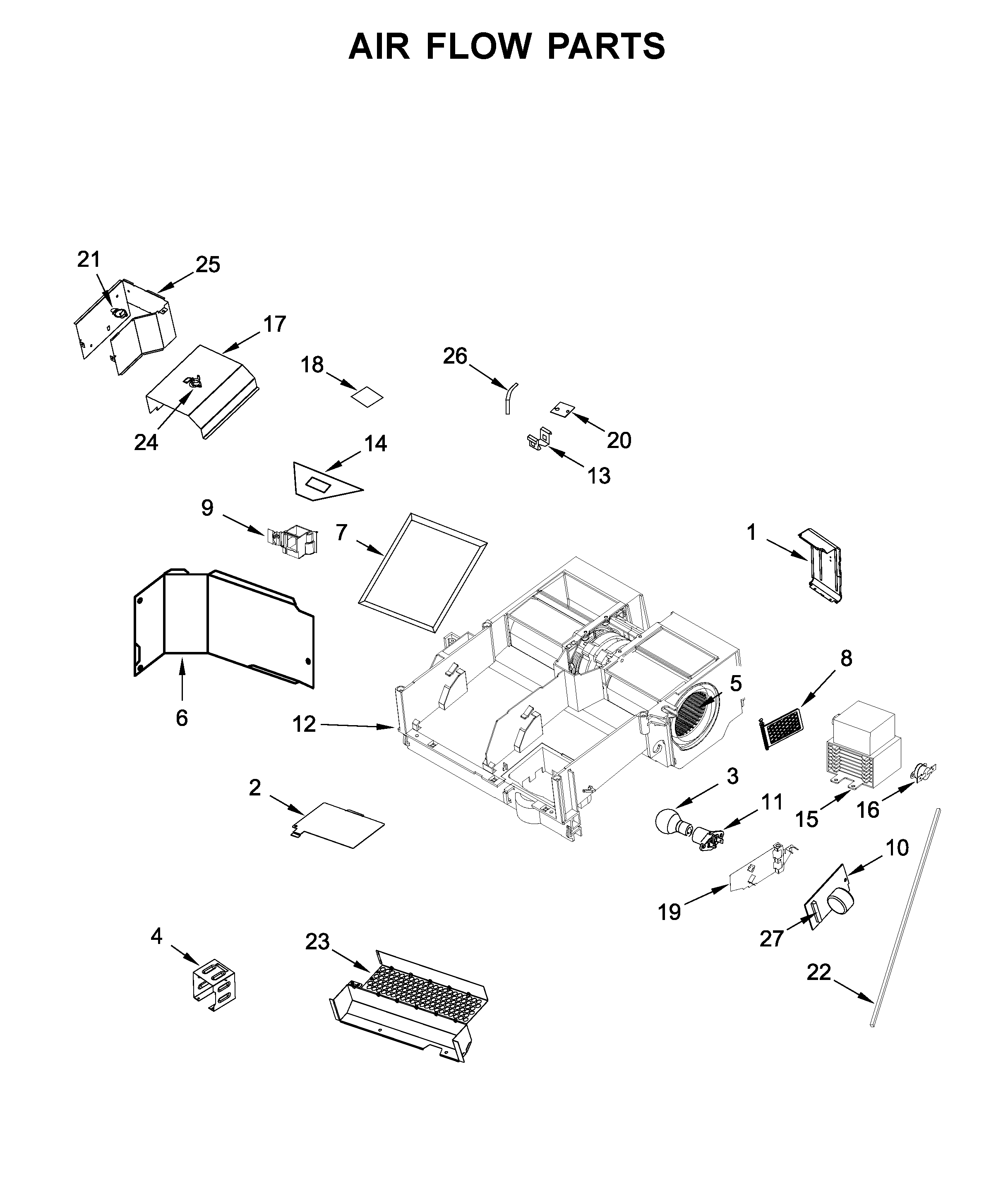

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$9.30
42% OFF MSRP : $16.00
Back Order
Filter 8206230
#7

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14
15% OFF Phone Price : $13.14
In Stock
Microwave Turntable Motor Coupler W10337248
#4

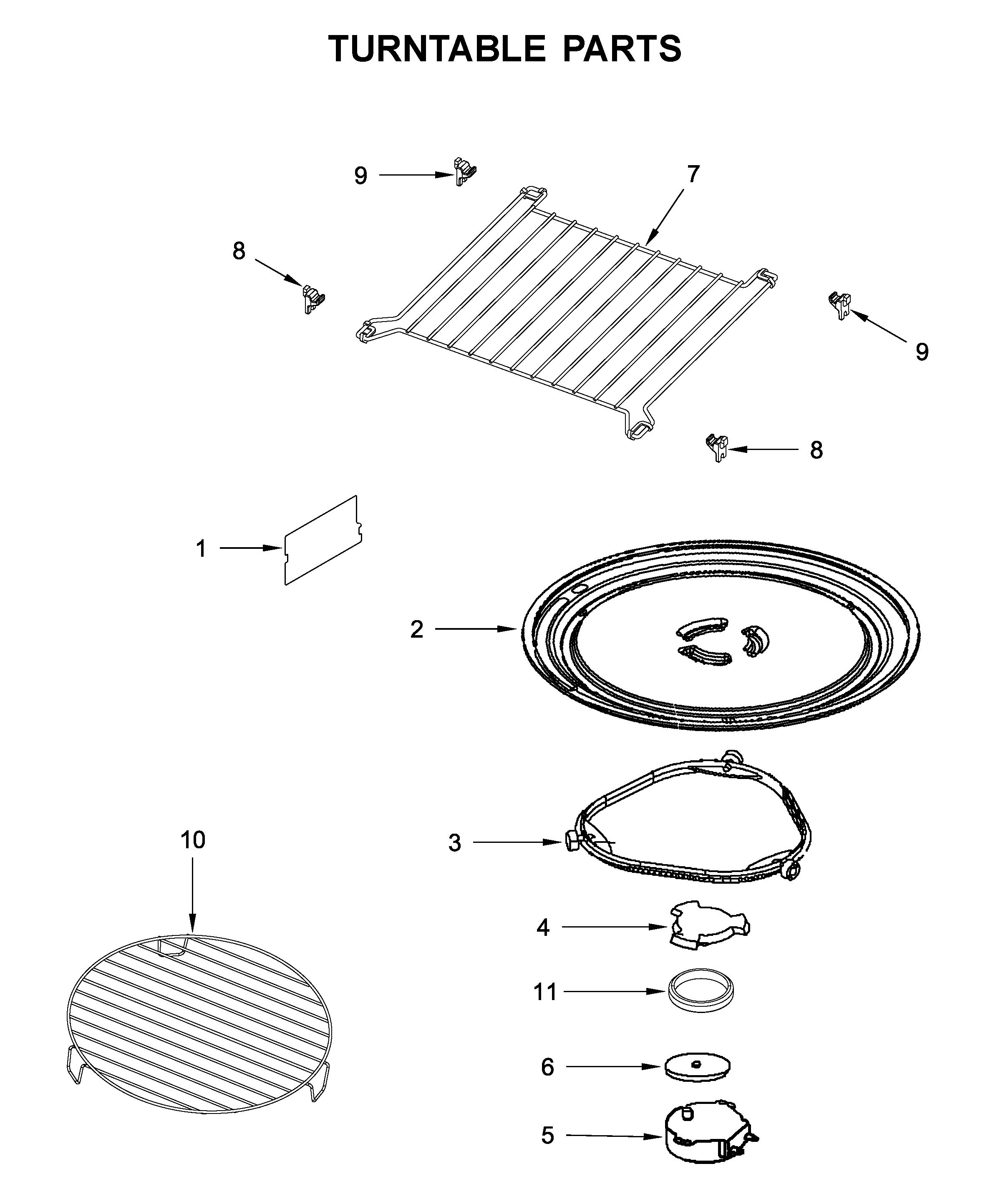

Turntable parts diagram

Microwave turntable motor coupler

Part #W10337248

BEST SELLER
This item is not returnable
$5.69
15% OFF Phone Price : $6.69
In Stock
Microwave Glass Turntable Tray W10531726
#2

Turntable parts diagram

Microwave glass turntable tray

Part #W10531726

Replaced by #W11402532

?
Manufacturer substitution
This part replaces W10531726. Substitute parts can look different from the original.
BEST SELLER
$34.39
13% OFF Phone Price : $39.39
In Stock
Microwave Installation Template W10190018
#NI

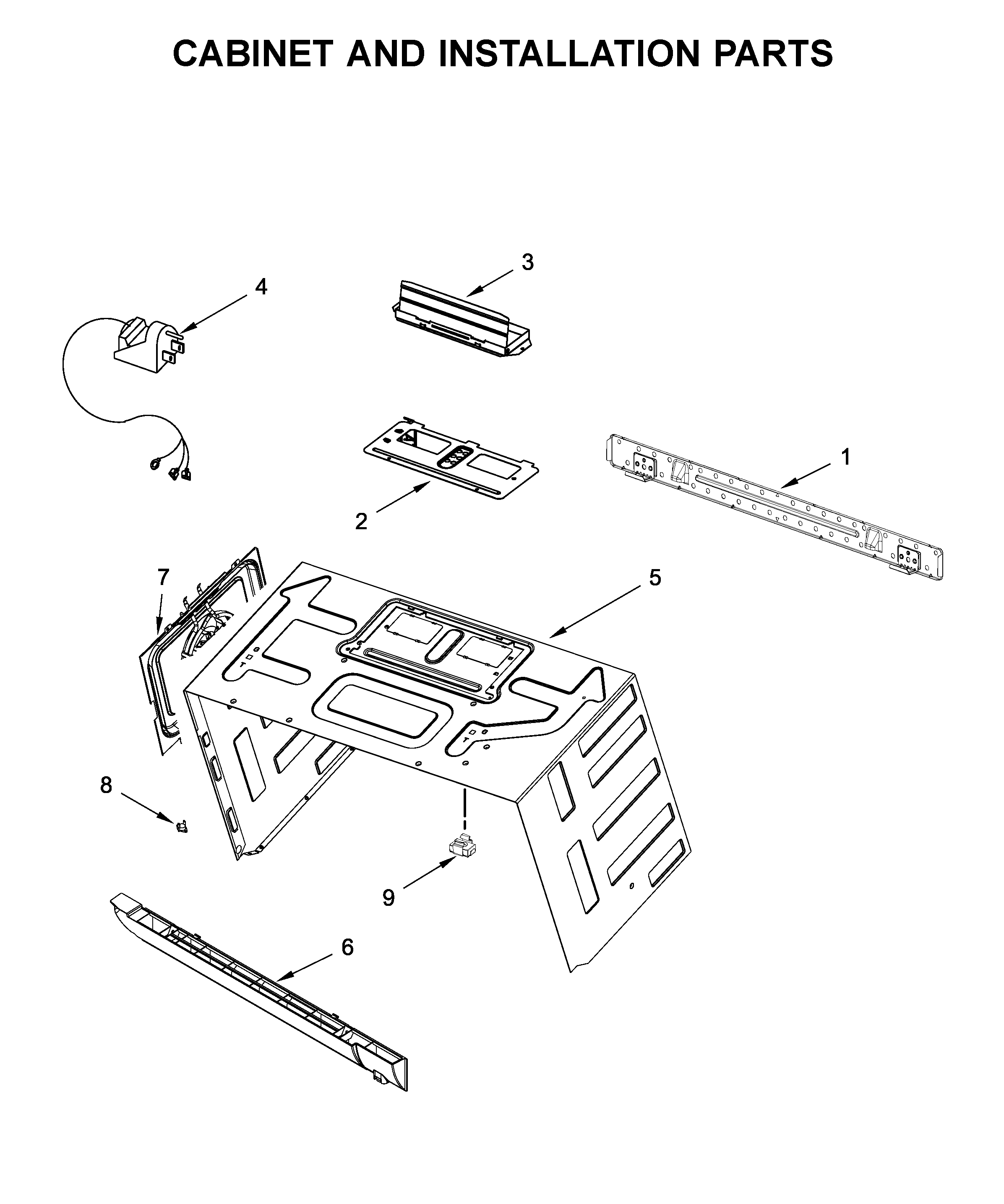

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

BEST SELLER
This item is not returnable
$6.39
14% OFF Phone Price : $7.39
In Stock
Assembly, Interlock (includes Switches) W11187757
#9

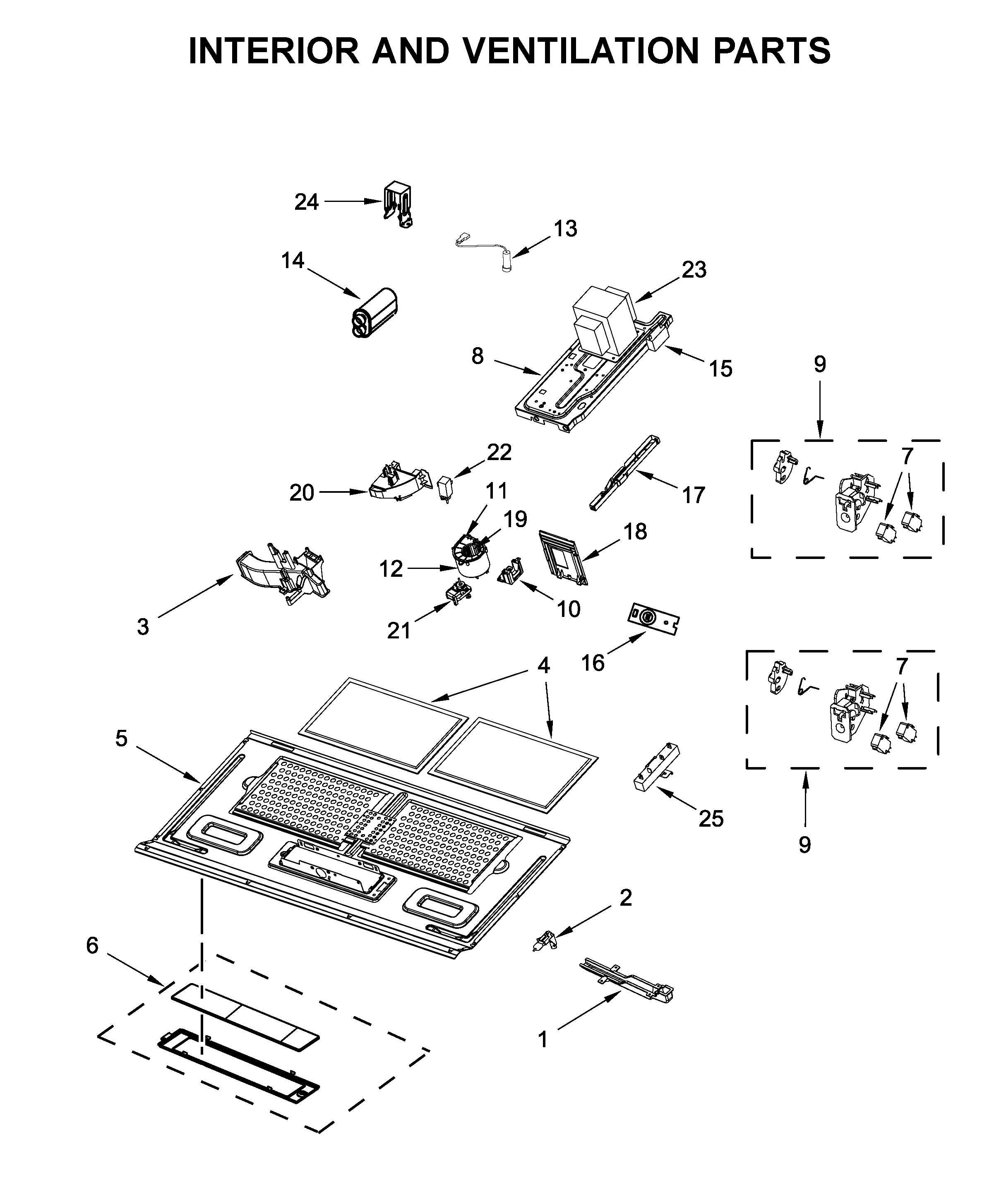

Interior and ventilation parts diagram

Assembly, interlock (includes switches)

Part #W11187757

Replaced by #W11197766

?
Manufacturer substitution
This part replaces W11187757. Substitute parts can look different from the original.
BEST SELLER
$19.97
36% OFF MSRP : $31.00
In Stock
Microwave Mounting Hardware 8206614
#NI

Cabinet and installation parts diagram

Microwave mounting hardware

Part #8206614

Replaced by #W10821385

?
Manufacturer substitution
This part replaces 8206614. Substitute parts can look different from the original.
BEST SELLER
$50.70
23% OFF MSRP : $66.00
In Stock
Microwave Cooking Rack W10637931
#7

Turntable parts diagram

Microwave cooking rack

Part #W10637931

Replaced by #W10860255

?
Manufacturer substitution
This part replaces W10637931. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.49
10% OFF Phone Price : $20.49
In Stock
Microwave Vent Grille (black) (replaces W10533491) W10701697
#6A

Cabinet and installation parts diagram

Microwave vent grille (black) (replaces w10533491)

Part #W10701697

$42.34
12% OFF MSRP : $48.00
In Stock
Microwave Cooking Rack W10440082
#10

Turntable parts diagram

Microwave cooking rack

Part #W10440082

This item is not returnable
$12.69
14% OFF Phone Price : $14.69
In Stock
