Model # AIR-SA10 Official Sony wireless speaker system

Here are the diagrams and repair parts for Official Sony AIR-SA10 wireless speaker system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Frame Assembly X21885881
#1

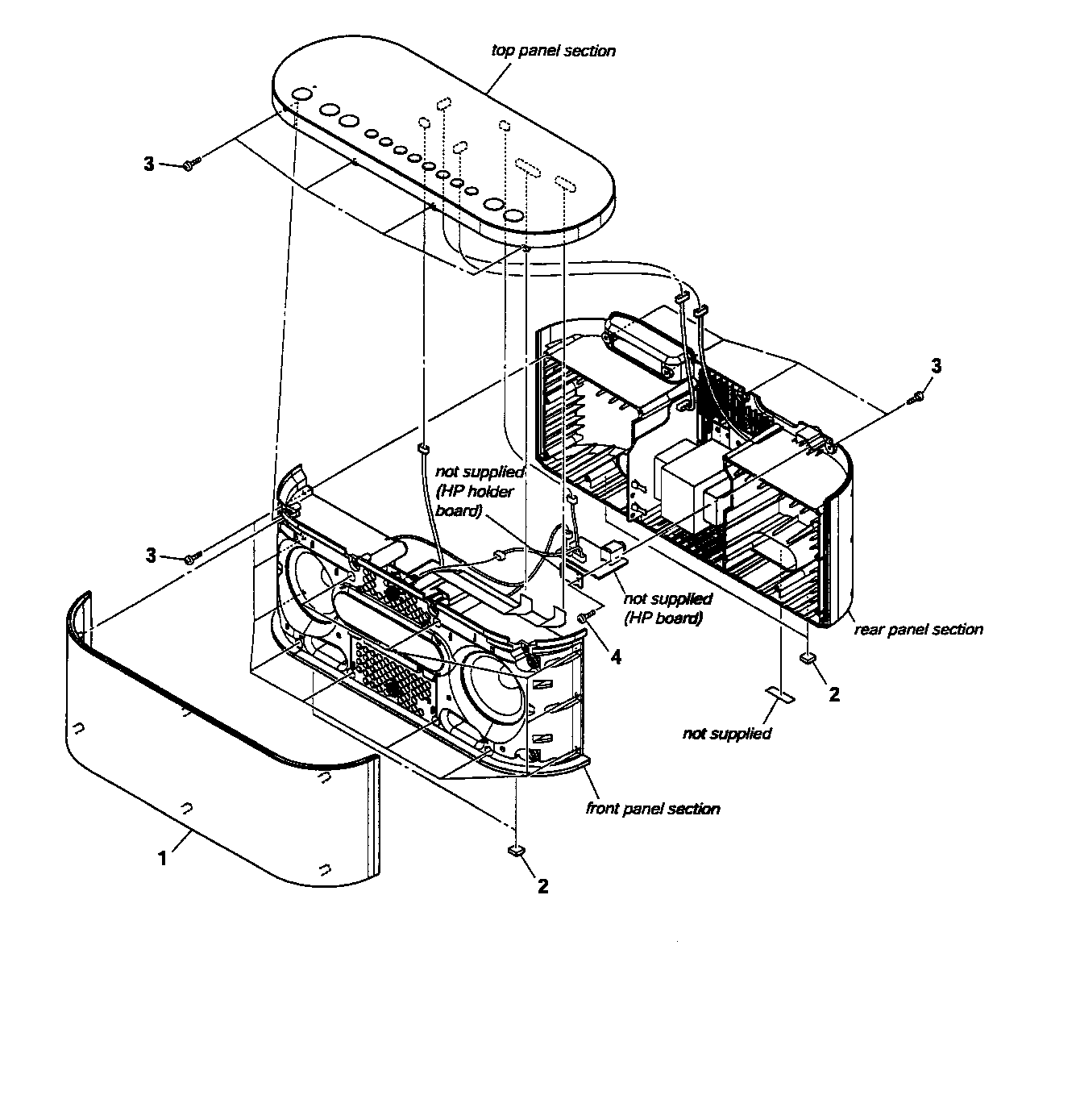

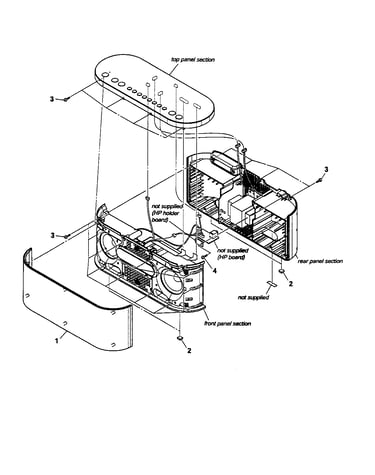

Cabinet parts diagram

Frame assembly

Part #X21885881

The manufacturer no longer makes this part, and there's no substitute part

Panel 328338101
#60

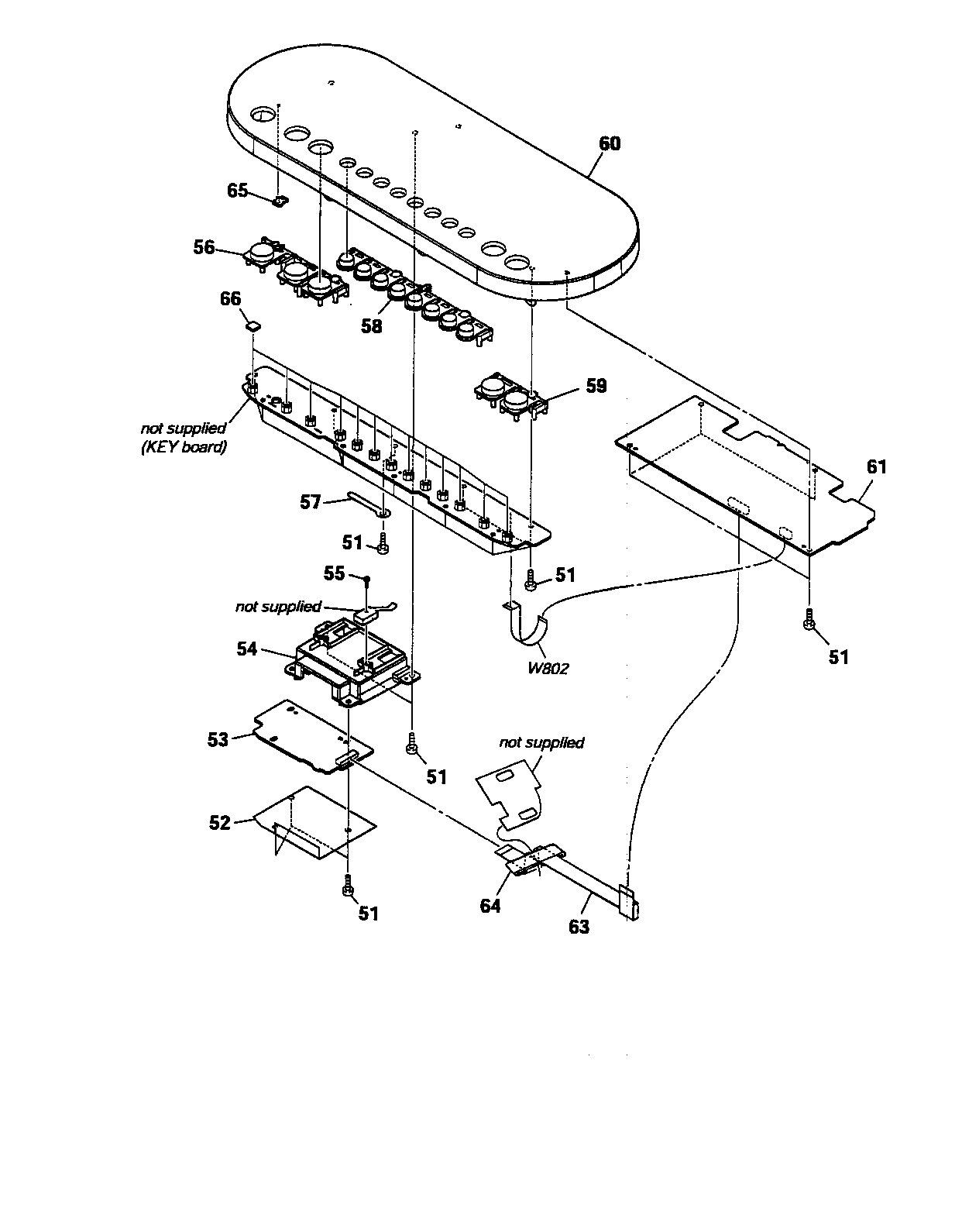

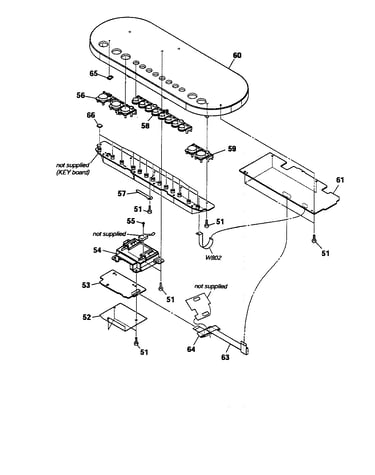

Top panel diagram

Panel

Part #328338101

The manufacturer no longer makes this part, and there's no substitute part

Button 328338501
#58

Top panel diagram

Button

Part #328338501

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 183497821
#152

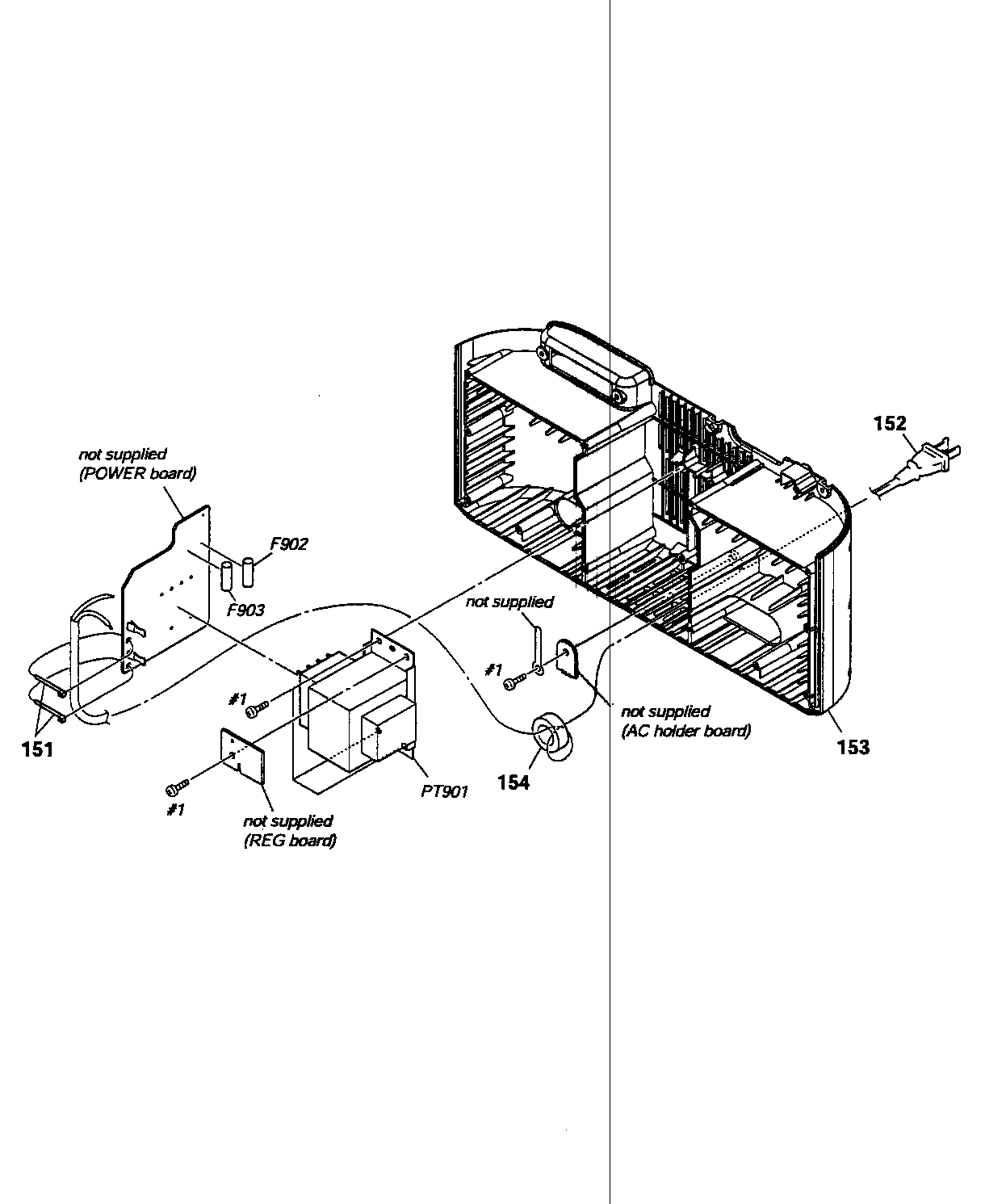

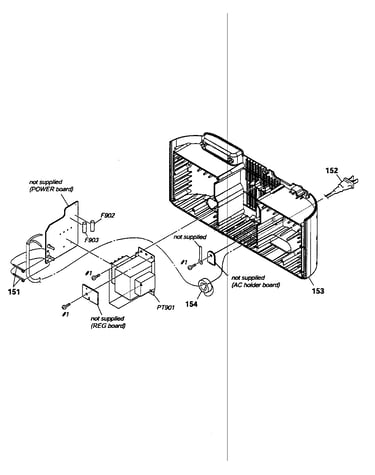

Rear panel diagram

Ac cord

Part #183497821

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670660401
#NI

Cabinet parts diagram

Integrated circuit

Part #670660401

The manufacturer no longer makes this part, and there's no substitute part

Lcd Pcb Ay A1446008A
#103

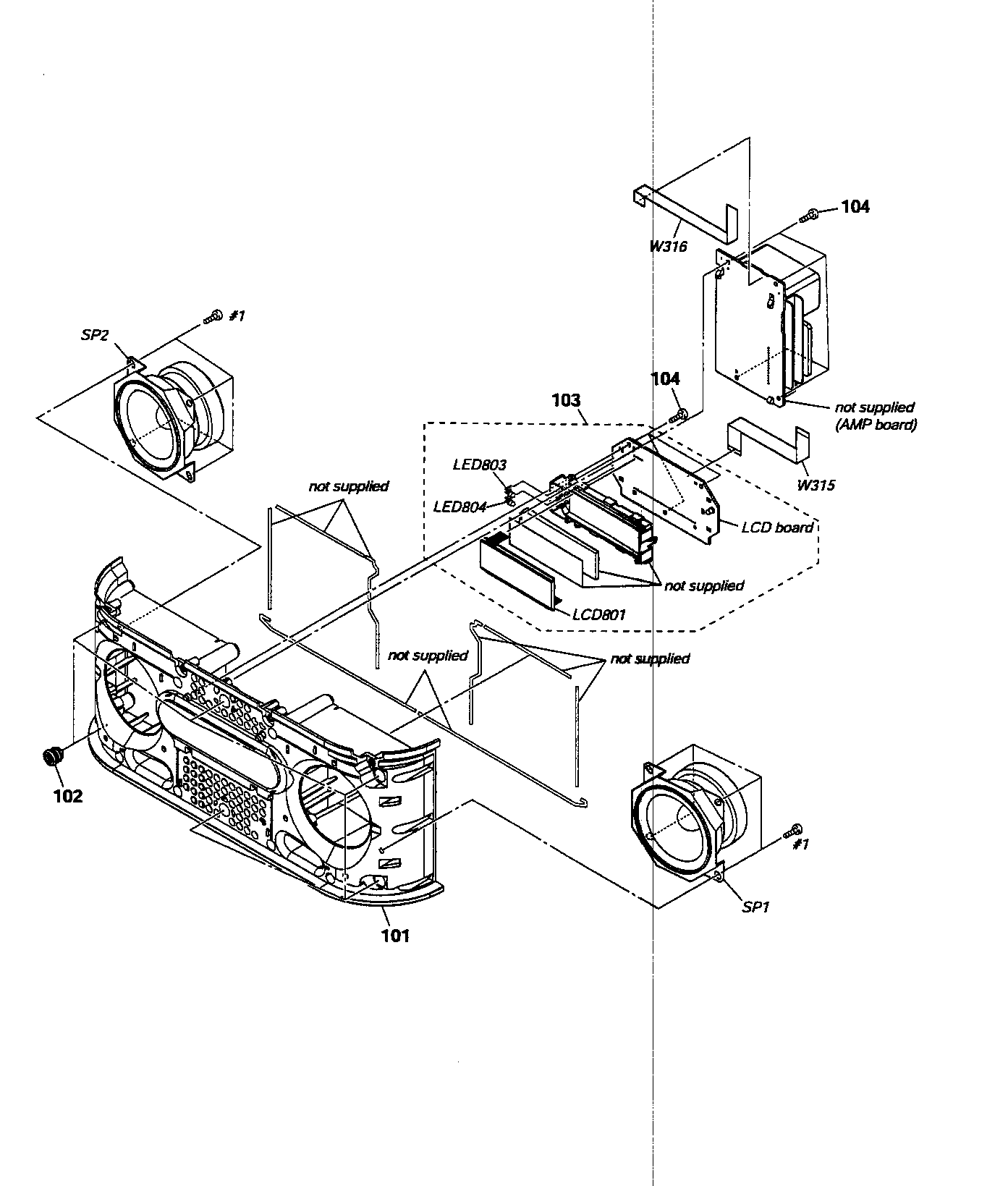

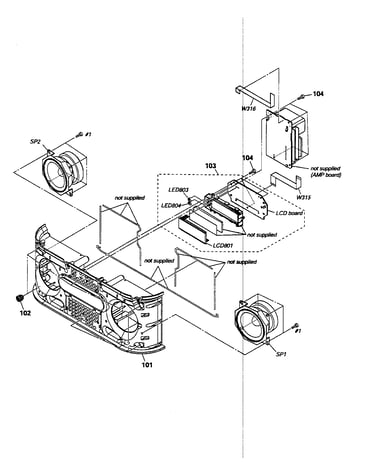

Front panel diagram

Lcd pcb ay

Part #A1446008A

The manufacturer no longer makes this part, and there's no substitute part

Button 328338401
#56

Top panel diagram

Button

Part #328338401

The manufacturer no longer makes this part, and there's no substitute part

Button 328338701
#59

Top panel diagram

Button

Part #328338701

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb A1446002A
#61

Top panel diagram

Main pcb

Part #A1446002A

The manufacturer no longer makes this part, and there's no substitute part

Display Panel 180263411
#NI

Front panel diagram

Display panel

Part #180263411

The manufacturer no longer makes this part, and there's no substitute part
