GE PP962SM3SS electric cooktop Parts

On a GE PP962SM3SS electric cooktop, the “top” is the glass cooktop surface; you typically access components by lifting the cooktop out of the countertop cutout after shutting off power at the breaker. Follow the removal and handling steps in the installation guide to avoid glass damage and electrical shock.

• Turn off the circuit breaker (or remove the fuse) for the cooktop; verify the cooktop is dead.
• Let all surface elements cool completely.
• Protect the countertop with a towel or thick cloth if you will flip or rest the cooktop.
• Have a helper available; glass cooktops are awkward to handle.
• If the cooktop is hard-wired, plan for safe access to the junction box and conduit.

1. Shut off power at the main disconnect for the cooktop.
2. Open the cabinet below the cooktop and locate the hold-down brackets that secure the cooktop to the cabinet sides.
3. Remove the mounting screws holding the brackets to the cabinet.
4. From above, lift the cooktop up and out of the cutout (keep it level to avoid chipping the glass edge).
5. If you need to set it down, place it on a protected surface (towel/tablecloth) as described in the installation instructions.

If your installation has no cabinet opening below, wiring connections are typically handled before the cooktop is fully set into the cutout. In that setup, plan access to the junction box and conduit before lifting the unit.

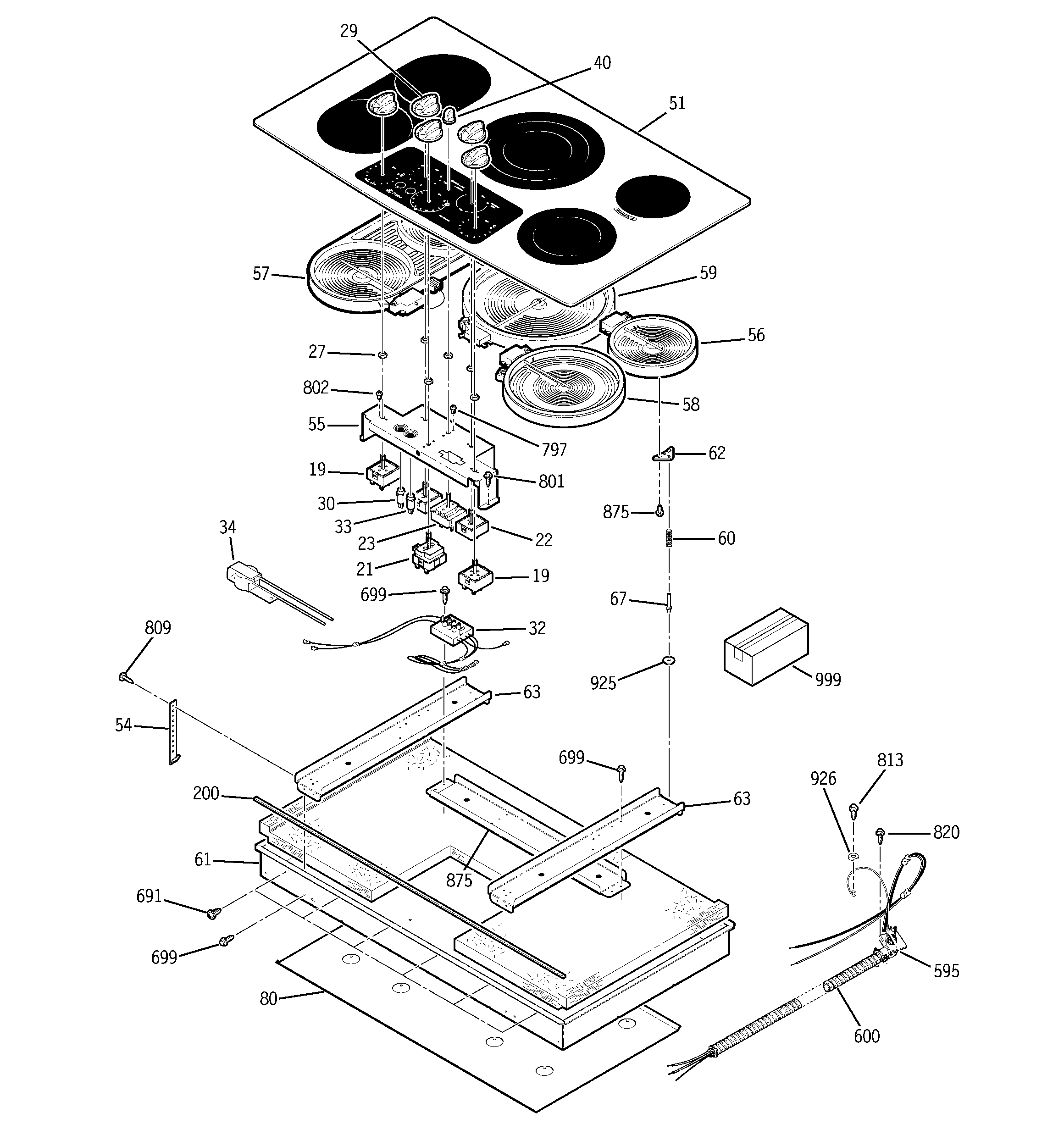

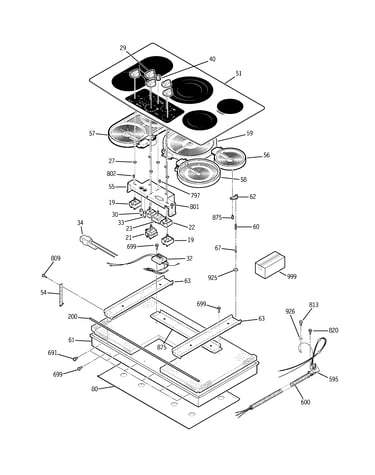

Common service items under the glass include surface elements, switches, and indicator lights.

The PP962SM3SS is designed to be hard-wired into a junction box, and the glass top can crack if it is lifted unevenly or set on an unprotected surface. Removing the hold-down brackets correctly prevents cabinet damage and keeps the cooktop stable when reinstalled.

Last updated: February 2026

If your GE PP962SM3SS electric cooktop is completely dead or none of the elements heat, the most common causes are a tripped breaker, a failed hard-wire connection at the junction box, or a failed control component (element switch, indicator light, or surface element). Start by confirming the cooktop has correct power at its dedicated circuit.

• Reset the dedicated cooktop circuit breaker fully OFF, then back ON.
• Confirm the cooktop is hard-wired into an approved junction box (a plug and receptacle is not permitted for this cooktop type).
• If the cooktop was recently installed or moved, recheck wire-nut connections in the junction box for a loose or burned connection.
• If you have aluminum house wiring, use the correct UL-approved connectors for joining to the cooktop’s copper conduit leads.
• If you are not comfortable working around high voltage, stop and use a qualified service technician.

For wiring location, access, and safety steps, follow the installation guide.

If power is correct and the issue is isolated to one element or control, these model-matched parts are common fixes:

• Range surface element control switch WB24T10134 for a burner that will not regulate heat
• Range dual radiant surface element WB30T10135 for a dual element that will not heat
• Cooktop indicator light WB25T10012 if the cooktop light function is incorrect

This cooktop is hard-wired and uses high voltage; a loose junction box connection can overheat and cause repeated failures. Verifying correct power and solid wiring connections prevents replacing good parts and helps restore safe operation.

Last updated: February 2026

Yes. GE electric cooktops like model PP962SM3SS are a solid, dependable choice for most kitchens, with good day-to-day performance and widely available replacement parts. Long-term satisfaction usually comes down to correct installation, proper electrical supply, and using the right cookware for radiant elements.

A “good” cooktop is one that heats evenly, responds predictably, and stays safe and serviceable over time.

• Stable heat output across all surface elements
• Controls that cycle heat smoothly (low to high)
• Clear hot-surface indication to reduce burn risk
• Parts availability for common wear items (elements, switches, knobs)
• Installation that meets electrical and clearance requirements

For PP962SM3SS, we recommend following the hard-wiring and clearance guidance in the installation guide to avoid nuisance issues and safety problems.

Electric radiant cooktops are straightforward to maintain because the most common failures are usually isolated to a single component.

Many “cooktop problems” are actually power supply or wiring issues. This GE cooktop family is designed to be hard-wired directly into an approved junction box (no plug and receptacle). Correct grounding, breaker sizing, and proper connectors (especially with aluminum house wiring) help prevent overheating, erratic heating, and premature part failure.

• Keep the glass top clean so heat transfers efficiently.
• Use flat-bottom cookware sized to the element.
• Avoid sliding rough cookware to reduce scratching.
• Do not block ventilation or pack items under the cooktop.
• If a control feels loose, check the knob fit (example: cooktop burner knob WB03T10266).

Last updated: February 2026

Yes. On a GE PP962SM3SS electric cooktop, the glass main top can be replaced, but it is a hard-wired appliance and the cooktop must be removed and reinstalled correctly to avoid electrical shock and fitment issues. Use the installation guide for the correct removal and mounting steps.

Replacing the glass top typically means lifting the cooktop out of the countertop cutout, transferring components (like radiant elements and brackets) as needed, then resealing and securing the unit.

Common tasks include:

• Shutting off power at the circuit breaker and verifying power is off
• Removing the cooktop from the cutout and accessing the underside
• Replacing damaged mounting hardware or brackets if needed
• Applying foam tape/seal correctly around the glass edge (per model instructions)
• Reinstalling and securing the cooktop with hold-down brackets

This cooktop is designed to be direct wired into an approved junction box (not plugged into an outlet). Plan for safe access to the junction box and enough slack in the conduit for service.

Before starting:

• Turn off the breaker (or remove the fuse) for the cooktop circuit
• Confirm the cooktop is hard-wired to a junction box
• Avoid working alone if you are not comfortable with electrical wiring
• Use proper connectors if your home wiring includes aluminum conductors

Even when you are replacing only the glass top, it is common to find worn mounting pieces or heat-related damage underneath.

A cracked or loose glass top is more than cosmetic. Proper mounting, sealing, and correct electrical reconnection help prevent heat damage, shifting in the cutout, and shock hazards.
