Bosch HMV3061U/01 microwave Parts

Here are the diagrams and repair parts for Bosch HMV3061U/01 microwave, as well as links to manuals and error code tables, if available.

Bosch HMV3061U/01 microwave
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forHMV3061U/01 Microwave

  • Microwave Door Latch for Bosch HMV3061U/01 - Part 00648909

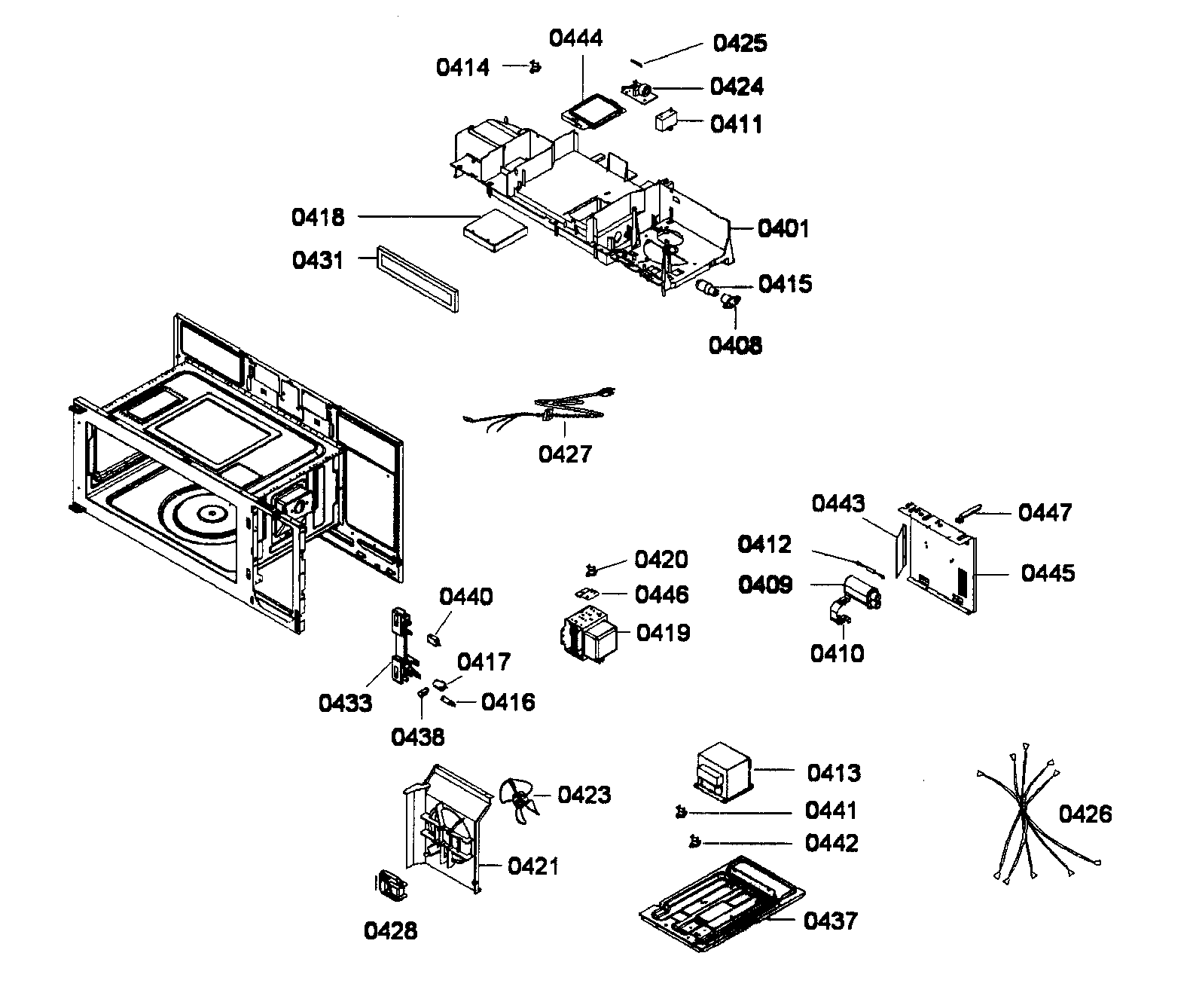

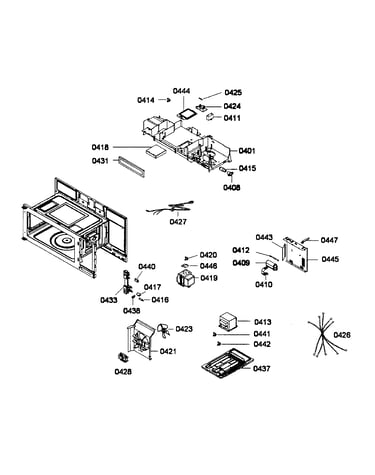

    Cabinet parts diagram

    Latch

    Part #648909

    Replaced by #00648909

    Info Icon
    Manufacturer substitution
    This part replaces 648909. Substitute parts can look different from the original.
    In Stock
    $19.69
    9% OFF Phone Price : $21.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for Bosch HMV3061U/01 - Part 00631389

    Cabinet parts diagram

    Fuse

    Part #617219

    Replaced by #00631389

    Info Icon
    Manufacturer substitution
    This part replaces 617219. Substitute parts can look different from the original.
    In Stock
    $38.44
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Capacitor for Bosch HMV3061U/01 - Part 00617248

    Cabinet parts diagram

    Cap.h.v.

    Part #617248

    Replaced by #00617248

    Info Icon
    Manufacturer substitution
    This part replaces 617248. Substitute parts can look different from the original.
    In Stock
    $34.80
    15% OFF Phone Price : $40.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Control Unit for Bosch HMV3061U/01 - Part 00676173

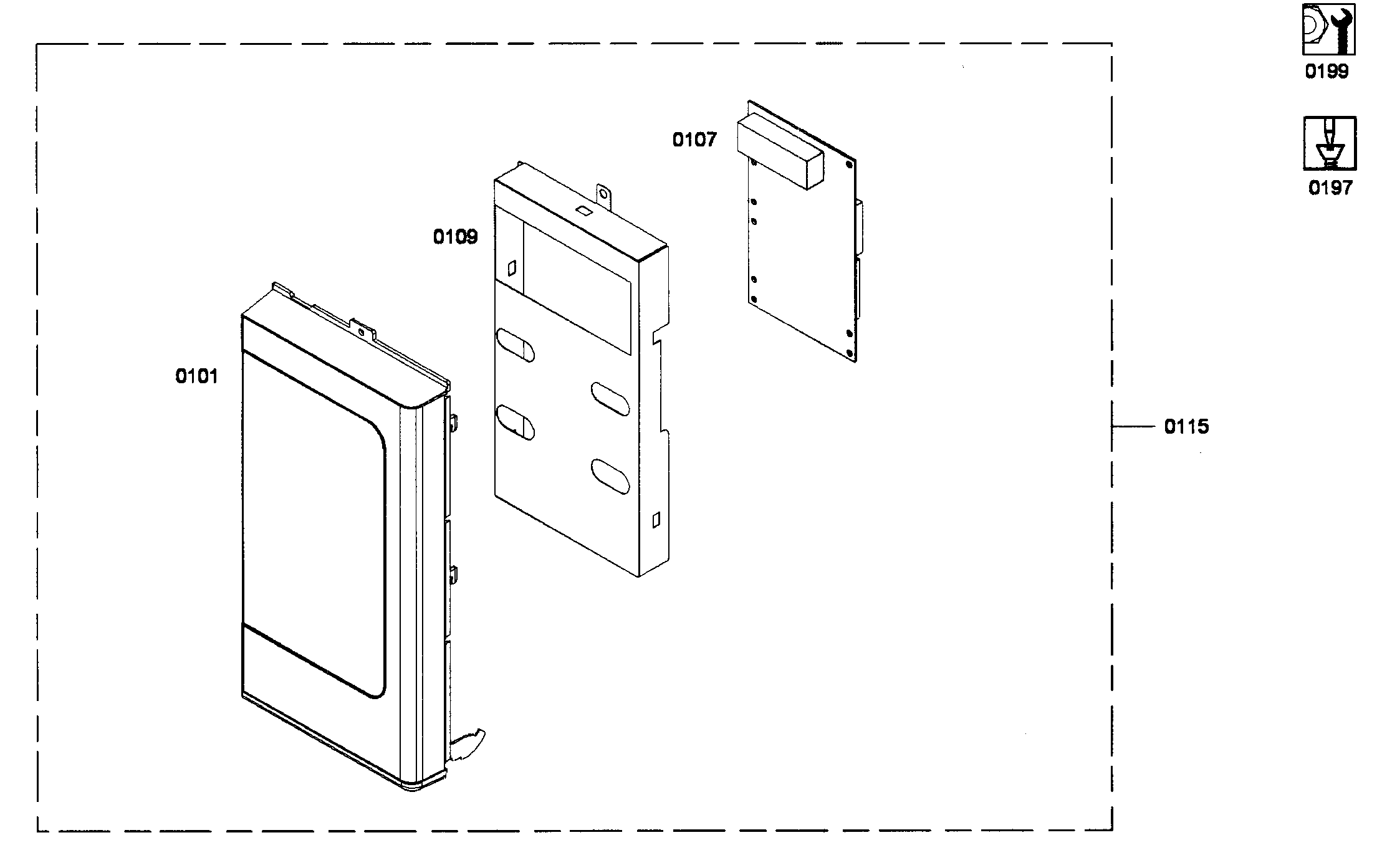

    Control panel diagram

    Control Unit

    Part #676173

    Replaced by #00676173

    Info Icon
    Manufacturer substitution
    This part replaces 676173. Substitute parts can look different from the original.
    In Stock
    $152.82
    Minus Item
    Qty
    Plus Item
  • Thermostat for Bosch HMV3061U/01 - Part 00617233

    Cabinet parts diagram

    Regulator

    Part #617233

    Replaced by #00617233

    Info Icon
    Manufacturer substitution
    This part replaces 617233. Substitute parts can look different from the original.
    In Stock
    $41.28
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Tray Support for Bosch HMV3061U/01 - Part 00648876

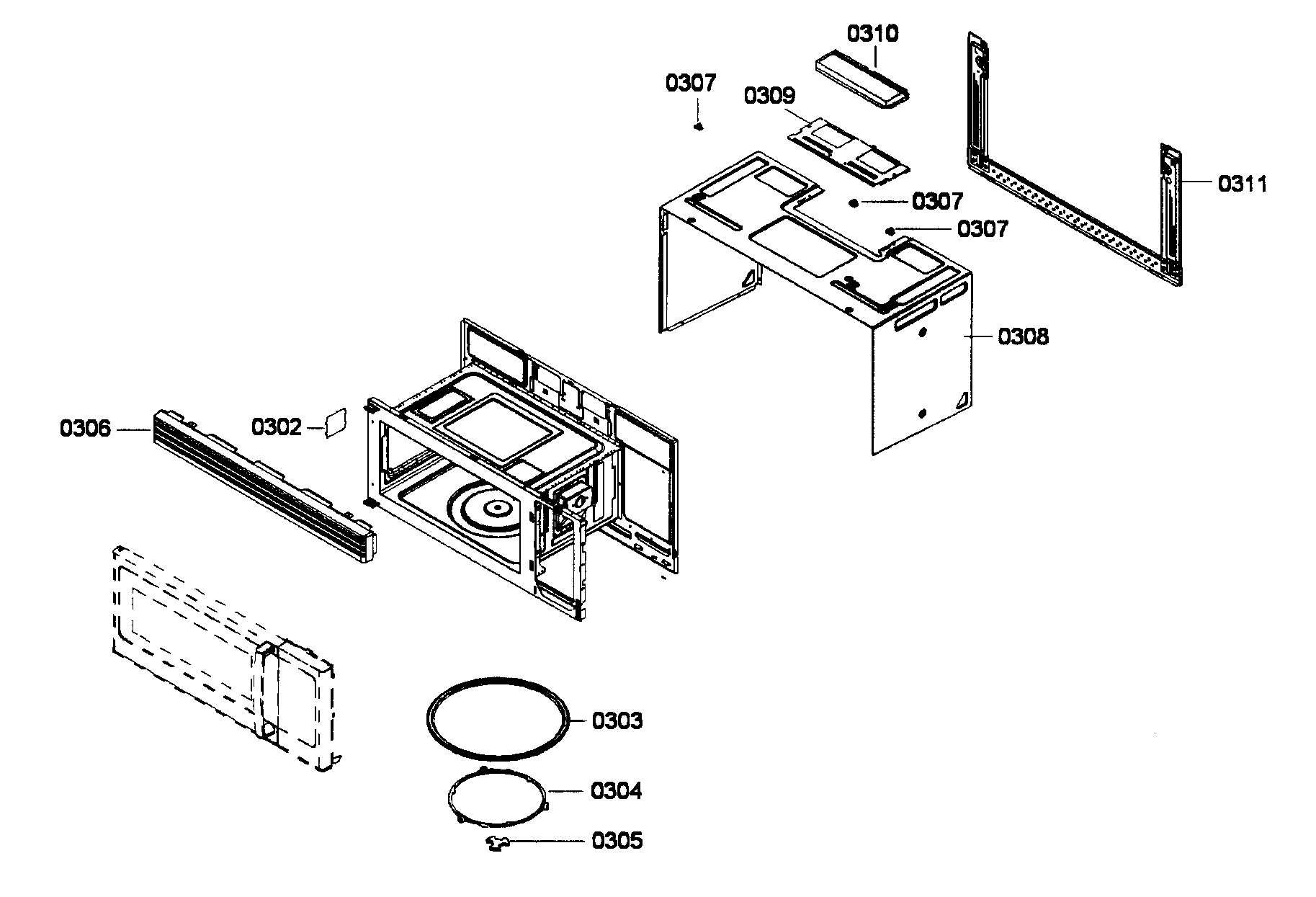

    Cabinet assy diagram

    Microwave Ring

    Part #648876

    Replaced by #00648876

    Info Icon
    Manufacturer substitution
    This part replaces 648876. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $52.73
    Minus Item
    Qty
    Plus Item
  • Microwave Electronic Control Board for Bosch HMV3061U/01 - Part 00648939

    Control panel diagram

    Pcb Assembly

    Part #648939

    Replaced by #00648939

    Info Icon
    Manufacturer substitution
    This part replaces 648939. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $135.80
    8% OFF Phone Price : $147.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for Bosch HMV3061U/01 - Part 00617213

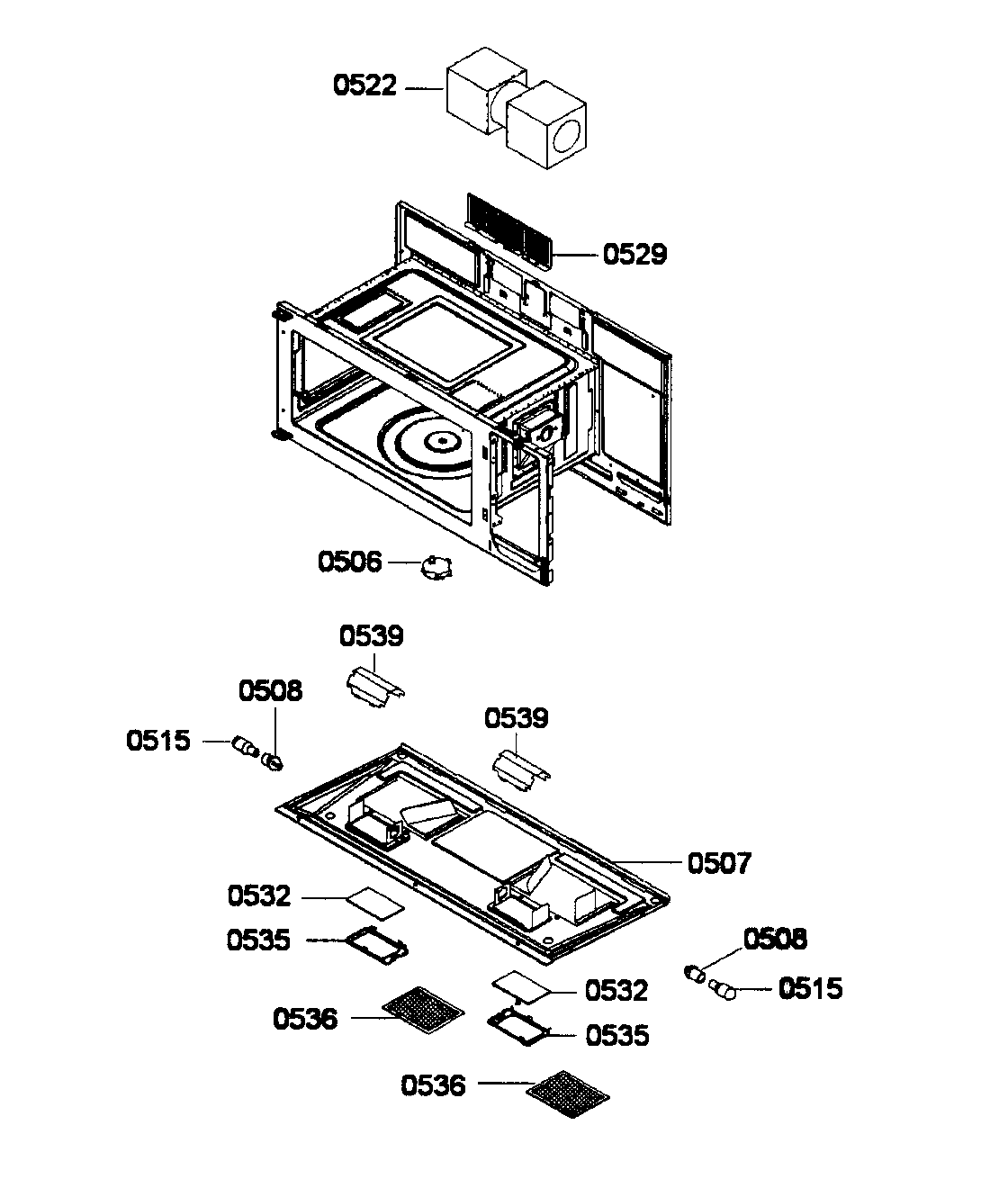

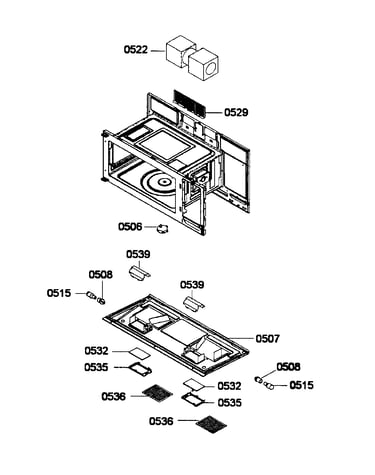

    Lights/vents diagram

    Tray Motor

    Part #617213

    Replaced by #00617213

    Info Icon
    Manufacturer substitution
    This part replaces 617213. Substitute parts can look different from the original.
    In Stock
    $120.74
    9% OFF Phone Price : $132.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Spring for Bosch HMV3061U/01 - Part 10013766

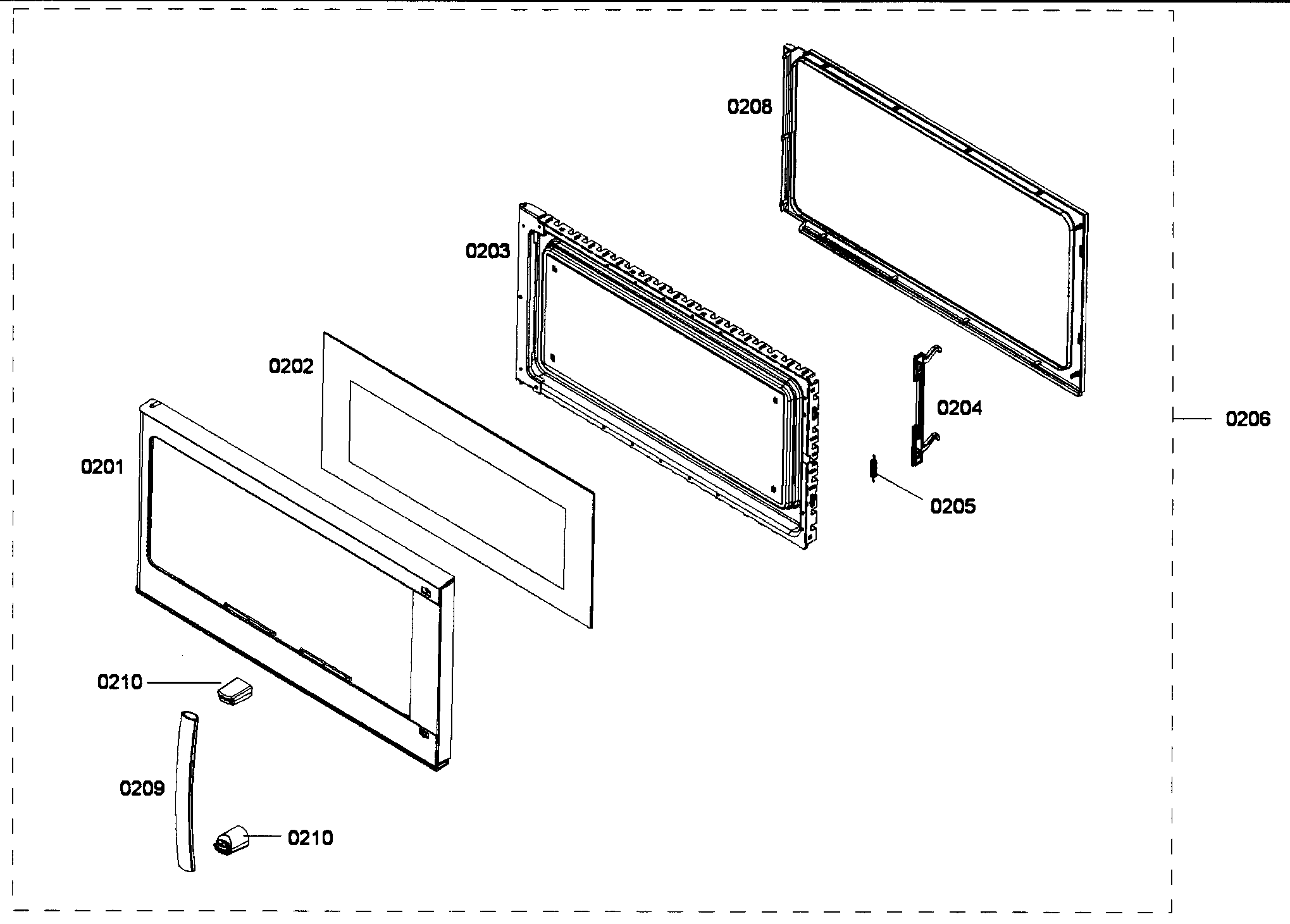

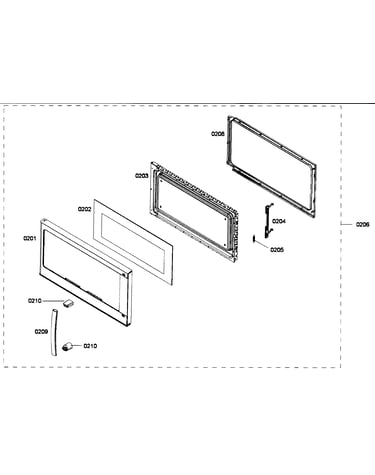

    Door assy diagram

    Spring

    Part #617260

    Replaced by #10013766

    Info Icon
    Manufacturer substitution
    This part replaces 617260. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.53
    Minus Item
    Qty
    Plus Item
  • Motor for Bosch HMV3061U/01 - Part 00676129

    Lights/vents diagram

    Vent Motor

    Part #676129

    Replaced by #00676129

    Info Icon
    Manufacturer substitution
    This part replaces 676129. Substitute parts can look different from the original.
    In Stock
    $313.51
    Minus Item
    Qty
    Plus Item
