Jenn-Air JE3510PRW electric range Parts
Here are the diagrams and repair parts for Jenn-Air JE3510PRW electric range, as well as links to manuals and error code tables, if available.

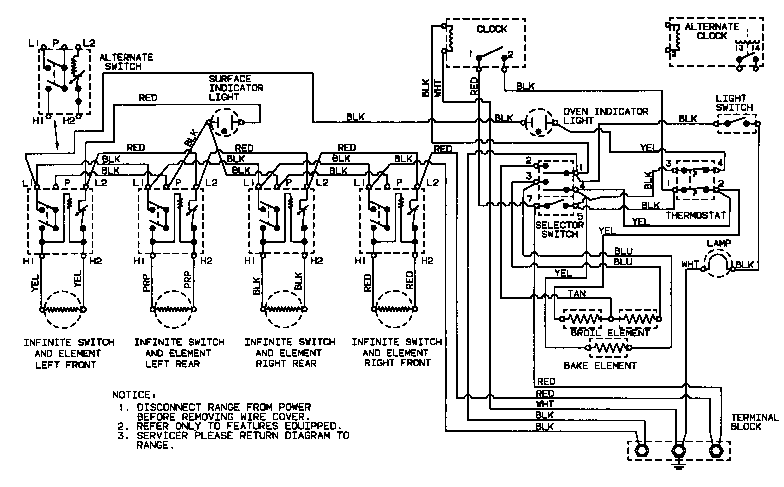

Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JE3510PRW Ranges
Screw
Part #74001530Replaced by #W11233072
Manufacturer substitutionThis part replaces 74001530. Substitute parts can look different from the original.In Stock$17.63
Qty

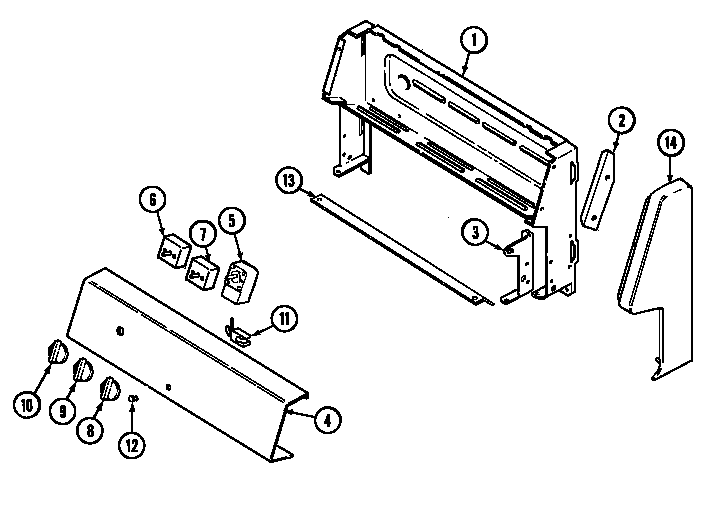

Control panel diagram
Range Surface Element Control Switch
Part #7403P238-60Replaced by #WP7403P238-60
Manufacturer substitutionThis part replaces 7403P238-60. Substitute parts can look different from the original.In Stock$53.6410% OFF Phone Price : $59.64
QtyControl panel diagram
Range Indicator Light Lens
Part #7730P012-60Replaced by #W11690131
Manufacturer substitutionThis part replaces 7730P012-60. Substitute parts can look different from the original.In Stock$28.38QtyTop assembly diagram
Element, 6-in
Part #7406P038-60Replaced by #WPY04000036
Manufacturer substitutionThis part replaces 7406P038-60. Substitute parts can look different from the original.In Stock$77.697% OFF Phone Price : $83.69QtyControl panel diagram
Selector Switch
Part #74002929Replaced by #WP7403P255-60

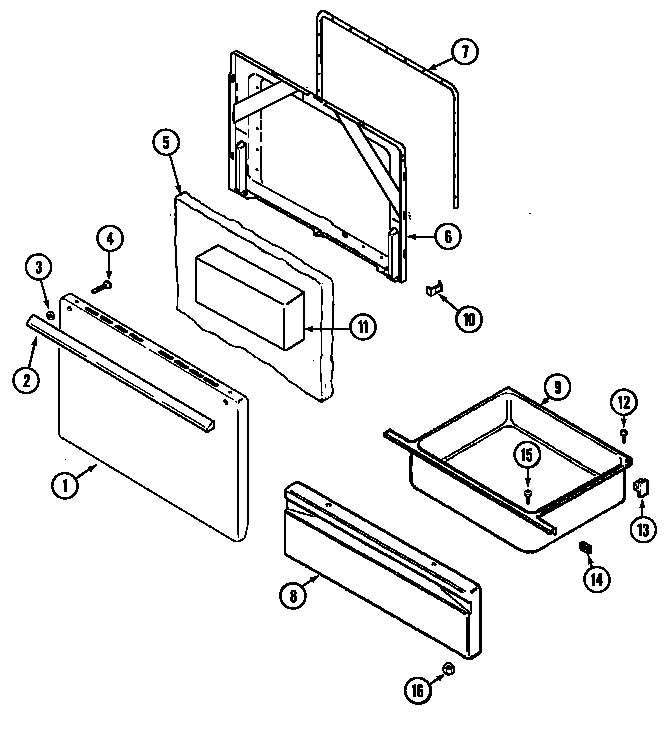

Manufacturer substitutionThis part replaces 74002929. Substitute parts can look different from the original.In Stock$142.88QtyDoor/drawer diagram
Drawer, Stor
Part #3405F019-80
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Support Control
Part #3807F449-45
The manufacturer no longer makes this part, and there's no substitute part

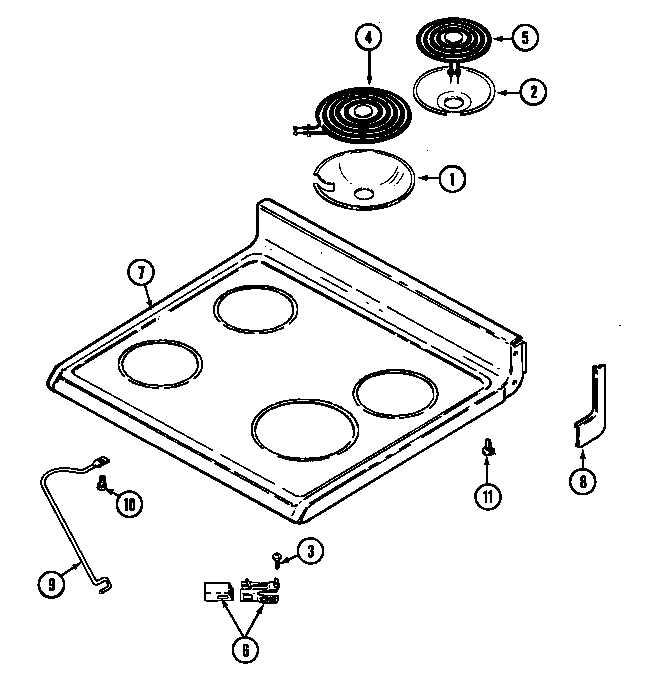

Top assembly diagram
Main Glide
Part #74001663
The manufacturer no longer makes this part, and there's no substitute part

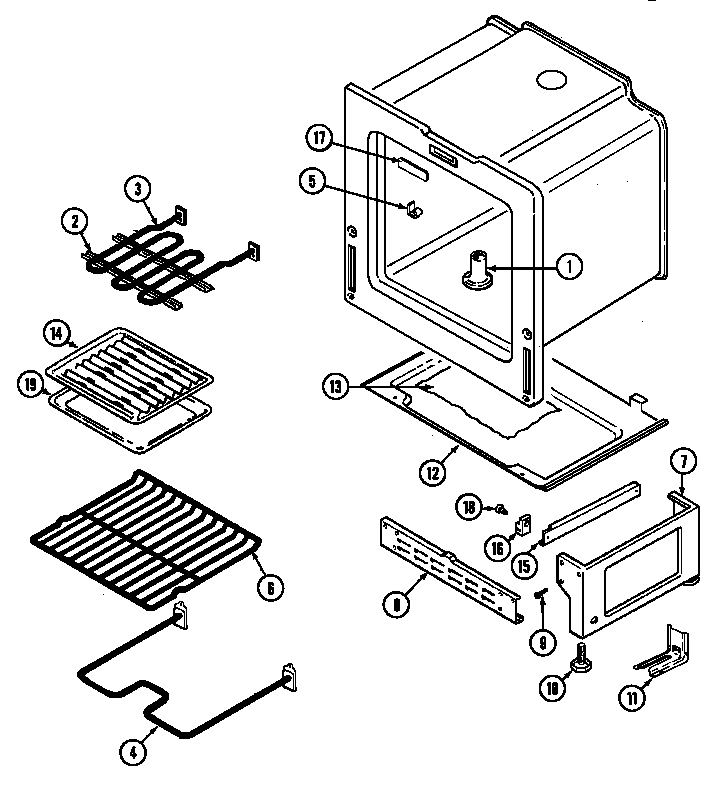

Oven/base diagram
Leveling Leg
Part #74001311
The manufacturer no longer makes this part, and there's no substitute part

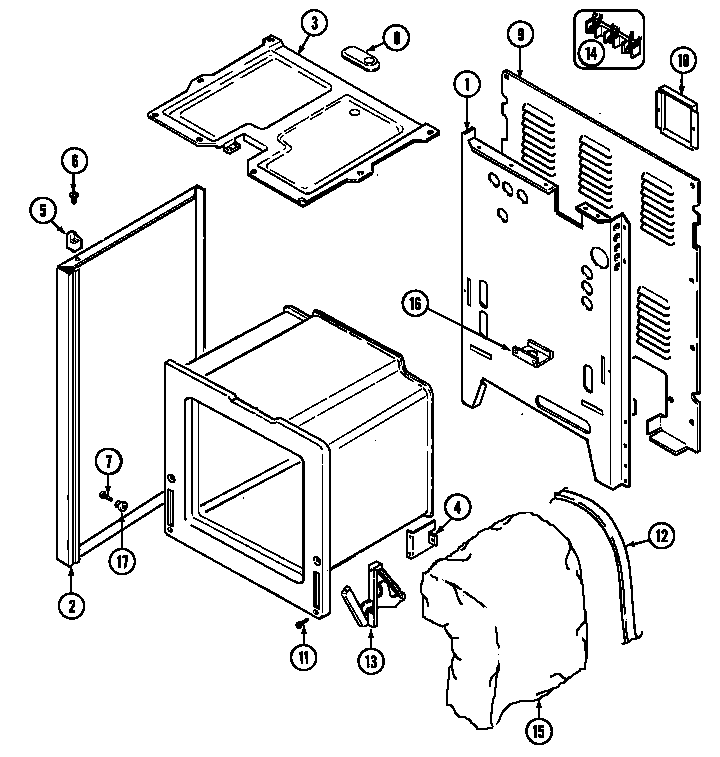

Body diagram
Main Spacer
Part #8010P087-60
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
