Model # KFKU361TSS Official KitchenAid 36" rotisserie kit

Here are the diagrams and repair parts for Official KitchenAid KFKU361TSS 36" rotisserie kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Rotisserie Motor W10134985
#5

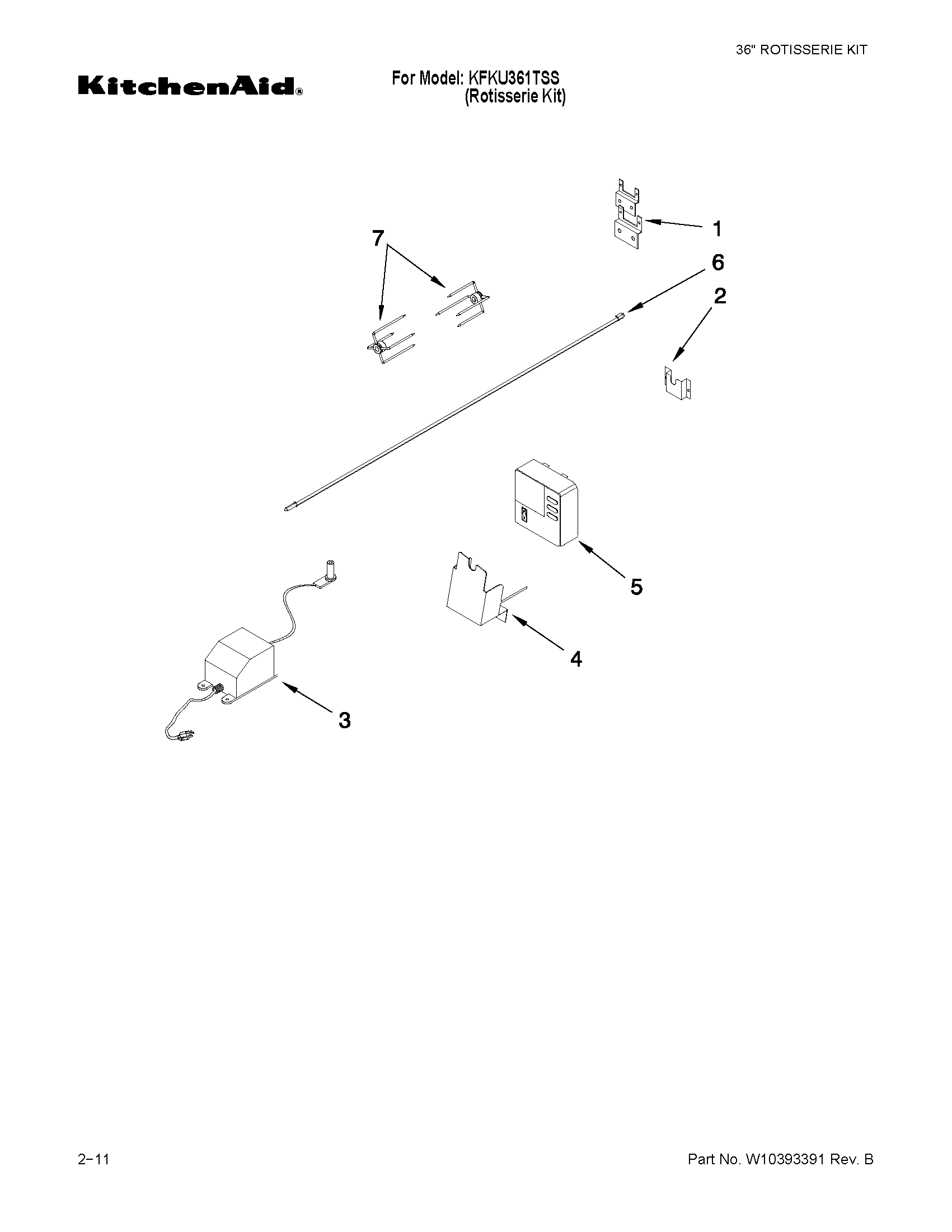

Rotisserie parts diagram

Rotisserie motor

Part #W10134985

Replaced by #WPW10167017

?
Manufacturer substitution
This part replaces W10134985. Substitute parts can look different from the original.
$200.75
In Stock
Transformer W10134987
#3

Rotisserie parts diagram

Transformer

Part #W10134987

Replaced by #WPW10247115

?
Manufacturer substitution
This part replaces W10134987. Substitute parts can look different from the original.
$160.82
In Stock
Bracket Support W10134986
#4

Rotisserie parts diagram

Bracket support

Part #W10134986

The manufacturer no longer makes this part, and there's no substitute part

Skewer Bar W10134981
#7

Rotisserie parts diagram

Skewer bar

Part #W10134981

The manufacturer no longer makes this part, and there's no substitute part

Spit Bar W10134982
#6

Rotisserie parts diagram

Spit bar

Part #W10134982

The manufacturer no longer makes this part, and there's no substitute part

Bracket W10132695
#1

Rotisserie parts diagram

Bracket

Part #W10132695

The manufacturer no longer makes this part, and there's no substitute part

Bracket W10247106
#2

Rotisserie parts diagram

Bracket

Part #W10247106

The manufacturer no longer makes this part, and there's no substitute part
