Craftsman
Router

Model # 315265030 Official Craftsman router table

Here are the diagrams and repair parts for Official Craftsman 315265030 router table, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |

Throat Plate 512574003
#20B

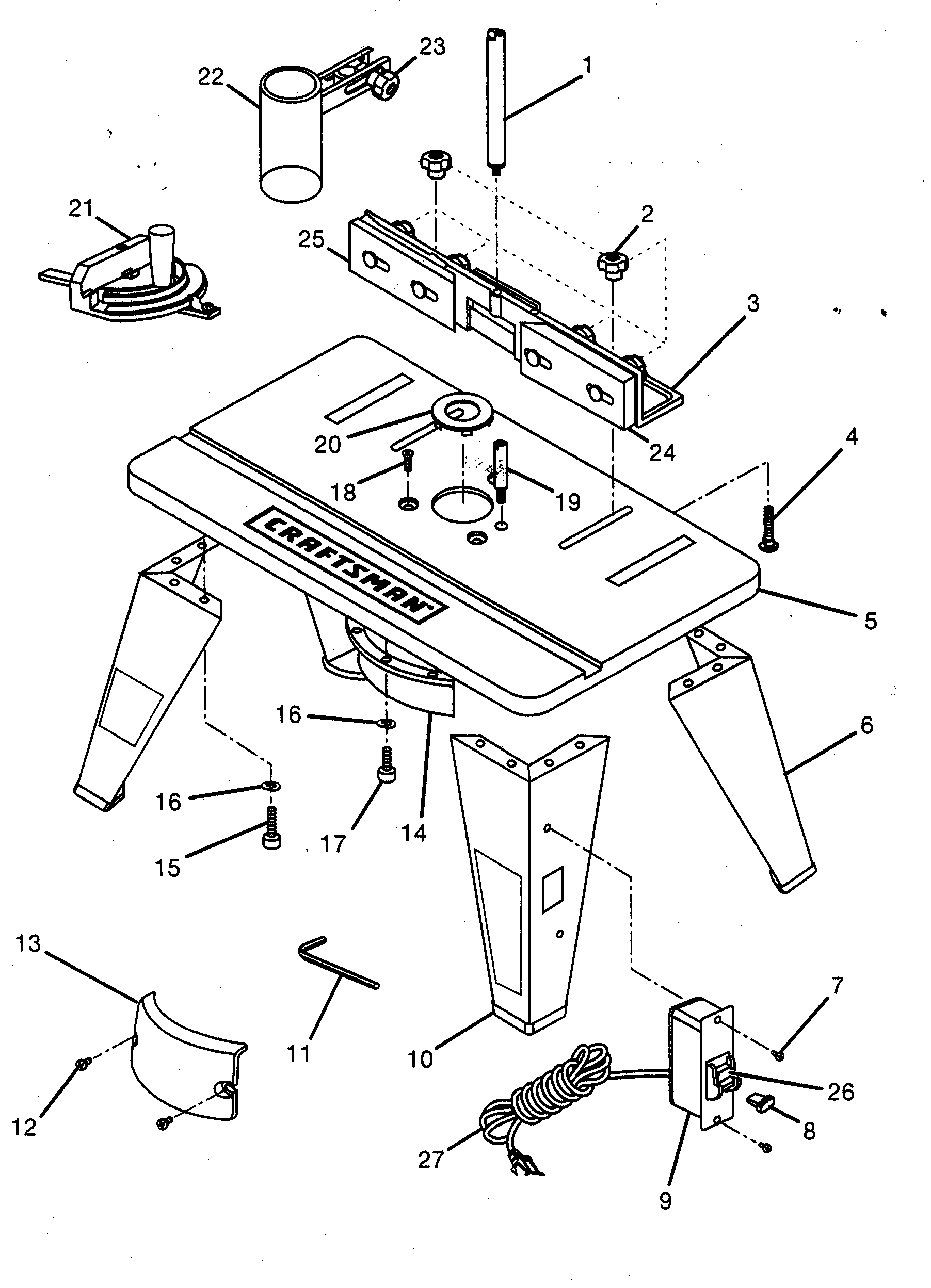

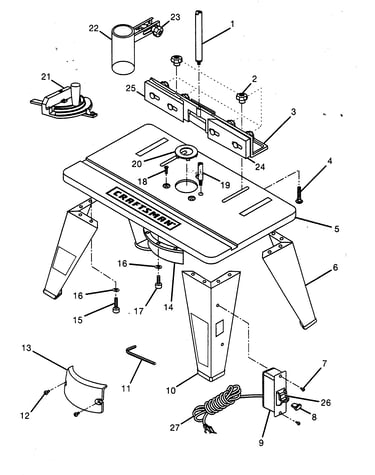

Table diagram

Throat plate

Part #512574003

The manufacturer no longer makes this part, and there's no substitute part

Screw 660206025
#7

Table diagram

Screw

Part #660206025

The manufacturer no longer makes this part, and there's no substitute part

Switch Key 303471000
#8

Table diagram

Switch key

Part #303471000

The manufacturer no longer makes this part, and there's no substitute part

Fence Assembly 310695005
#3

Table diagram

Fence assembly

Part #310695005

The manufacturer no longer makes this part, and there's no substitute part

Throat Plate 512574005
#20D

Table diagram

Throat plate

Part #512574005

The manufacturer no longer makes this part, and there's no substitute part

Lock Knob 5937801
#2

Table diagram

Lock knob

Part #5937801

The manufacturer no longer makes this part, and there's no substitute part

Thin Block 5937701
#25

Table diagram

Thin block

Part #5937701

The manufacturer no longer makes this part, and there's no substitute part

Bolt 6614102
#4

Table diagram

Bolt

Part #6614102

The manufacturer no longer makes this part, and there's no substitute part

Screw 660683001
#12

Table diagram

Screw

Part #660683001

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 6955801
#16

Table diagram

Lock washer

Part #6955801

The manufacturer no longer makes this part, and there's no substitute part
