Craftsman
Power Drill

Model # 315101110 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315101110 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

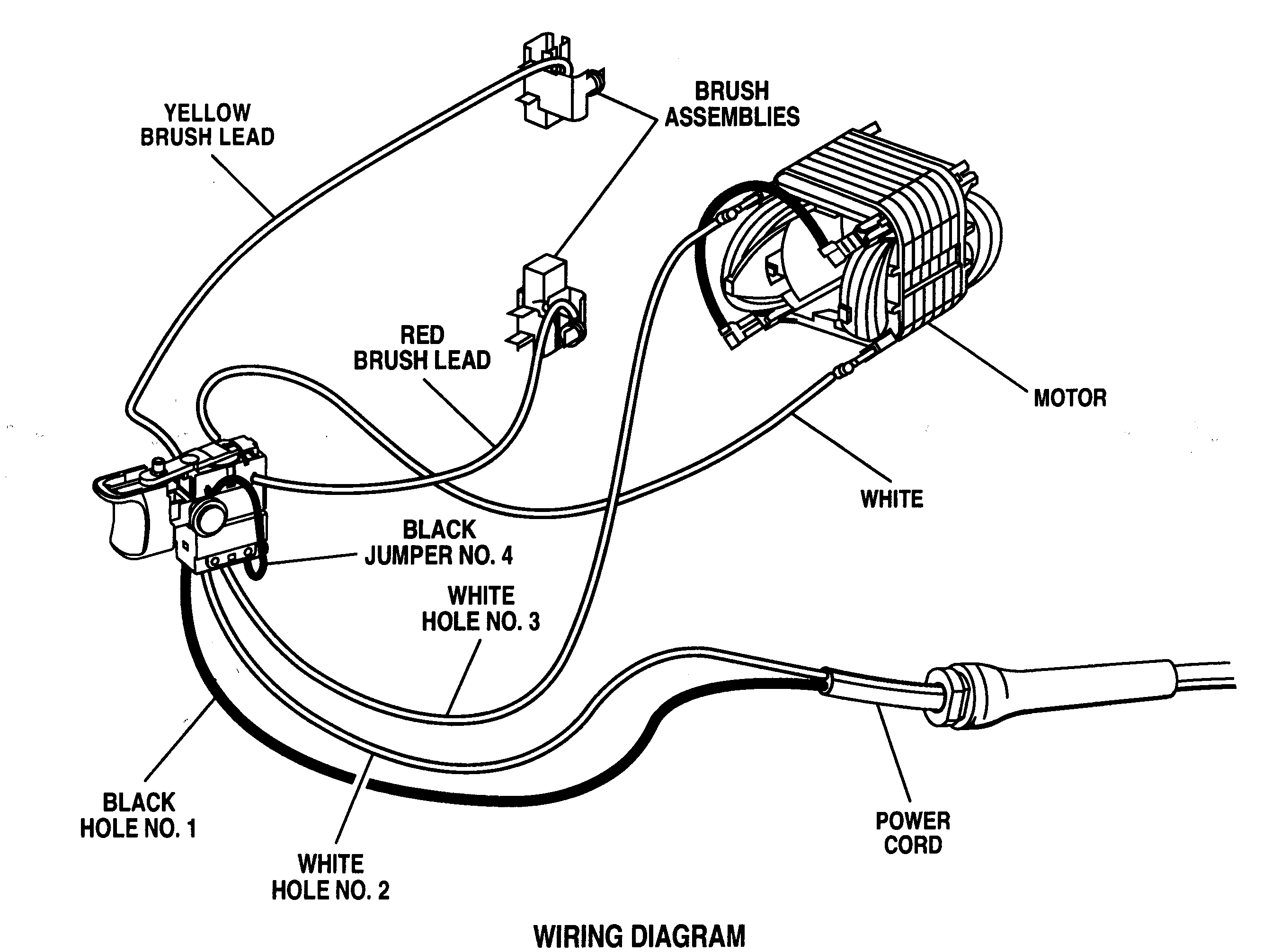

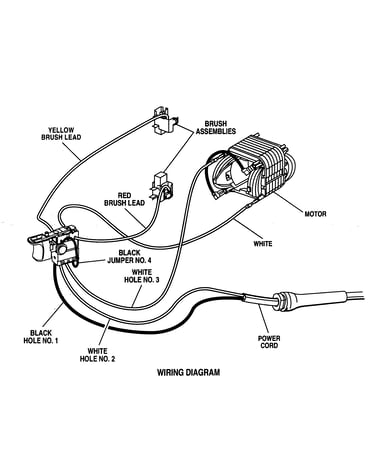

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Rear Level 3048003
#3

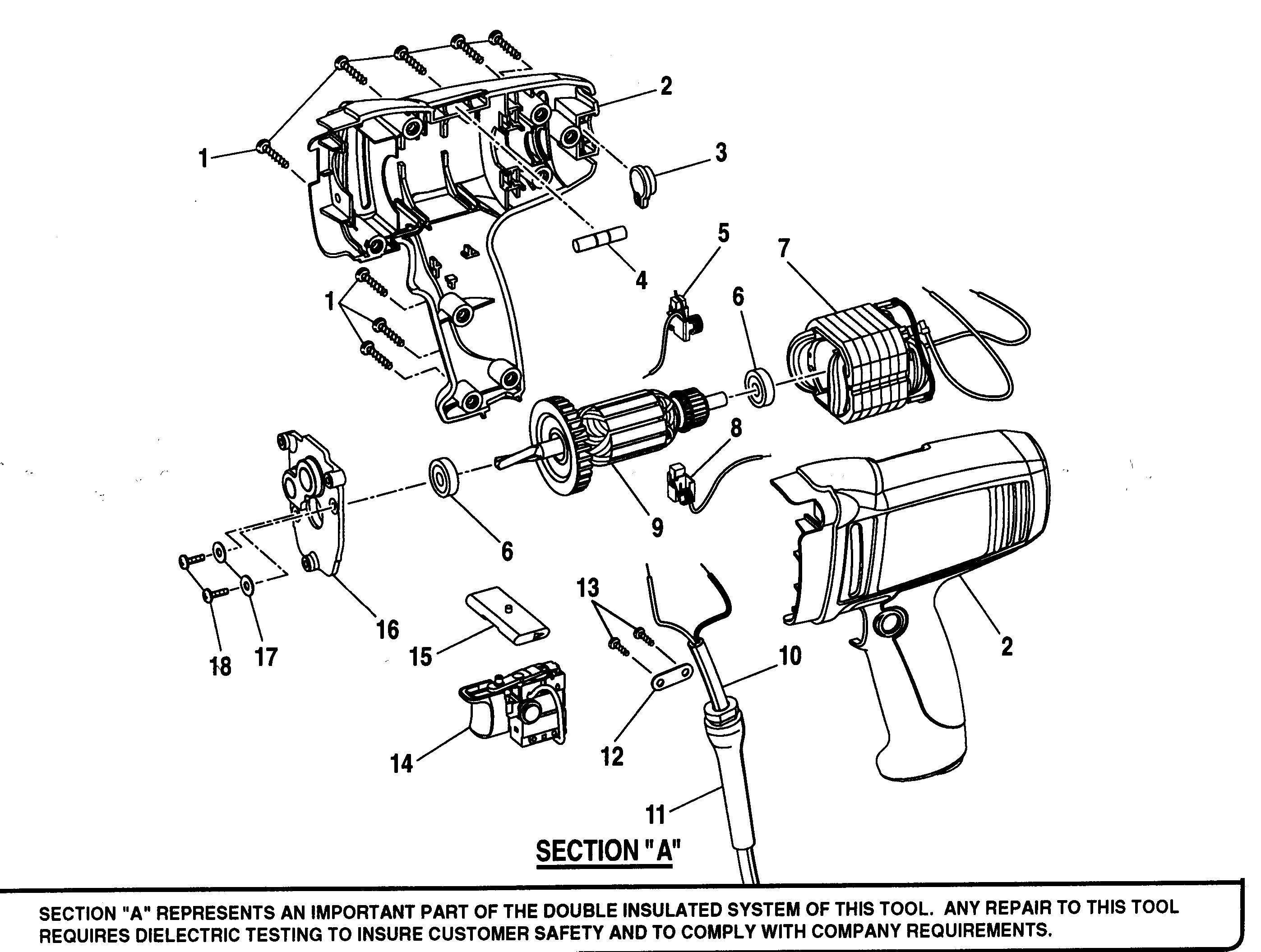

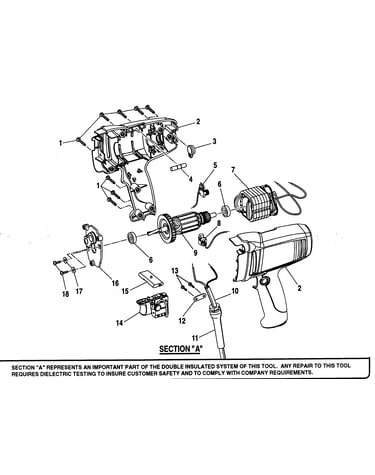

Motor assy diagram

Rear level

Part #3048003

The manufacturer no longer makes this part, and there's no substitute part

Auxiliary Handle 3018808
#6

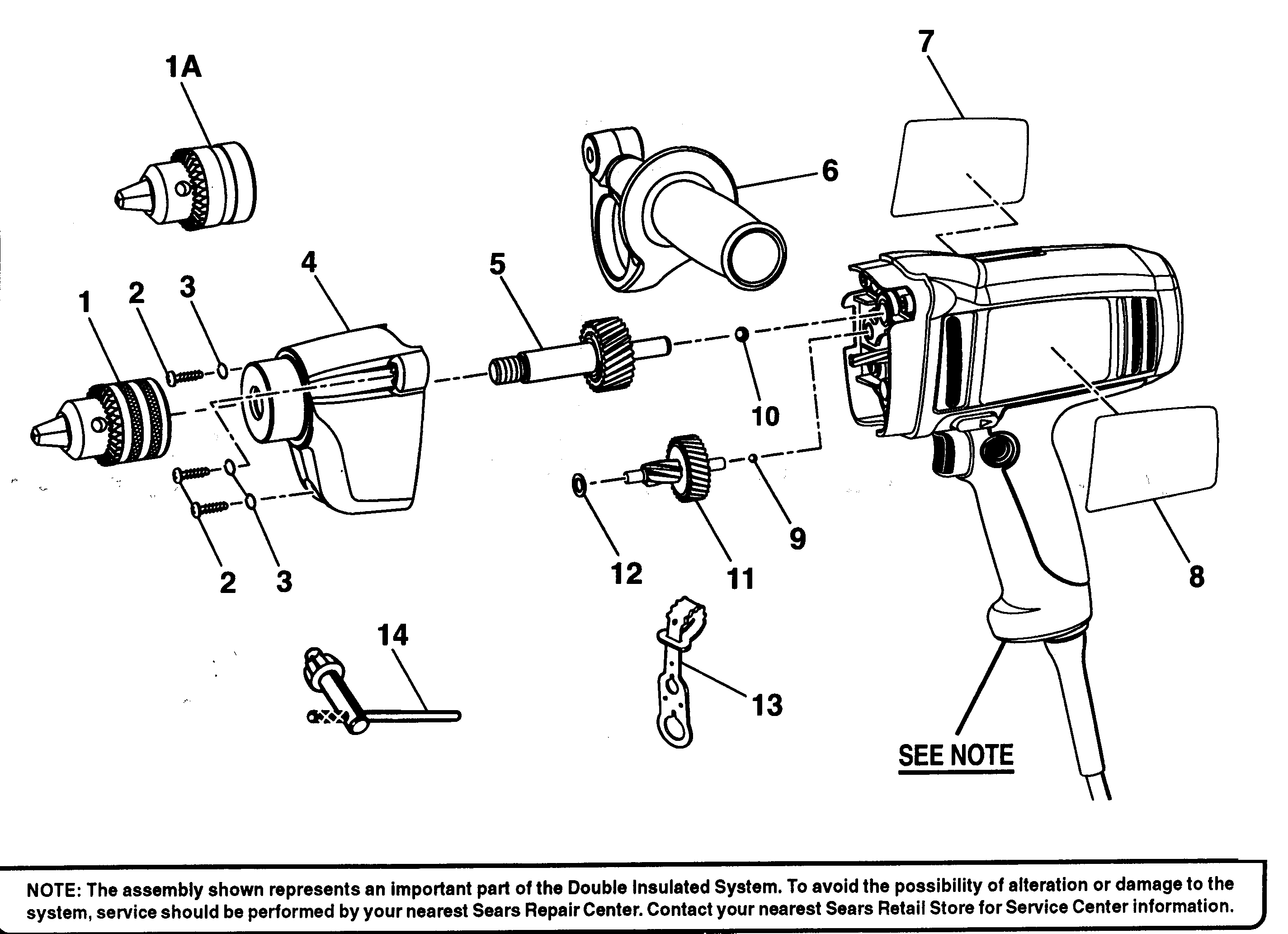

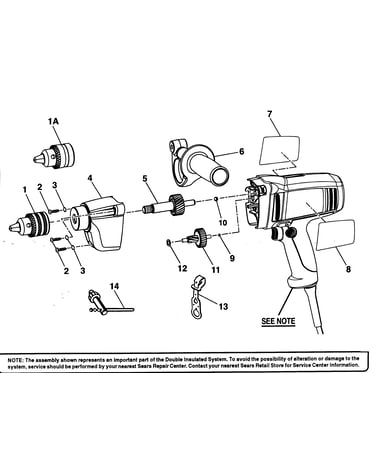

Housing assy diagram

Auxiliary handle

Part #3018808

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 6814101
#6

Motor assy diagram

Ball bearing

Part #6814101

The manufacturer no longer makes this part, and there's no substitute part

Hammer Drill Chuck Key 6917601
#14

Housing assy diagram

Hammer drill chuck key

Part #6917601

The manufacturer no longer makes this part, and there's no substitute part

Armature 200214001
#9

Motor assy diagram

Armature

Part #200214001

The manufacturer no longer makes this part, and there's no substitute part

Gear Housing 984651-001
#4

Housing assy diagram

Gear housing

Part #984651-001

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 9421326
#8A

Housing assy diagram

Logo plate

Part #9421326

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 6935501
#12

Motor assy diagram

Cord clamp

Part #6935501

The manufacturer no longer makes this part, and there's no substitute part

Screw 6631303
#1

Motor assy diagram

Screw

Part #6631303

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Steel Ball 6721901
#10

Housing assy diagram

Power tool steel ball

Part #6721901

The manufacturer no longer makes this part, and there's no substitute part
