Model #91760024 Craftsman chainsaw

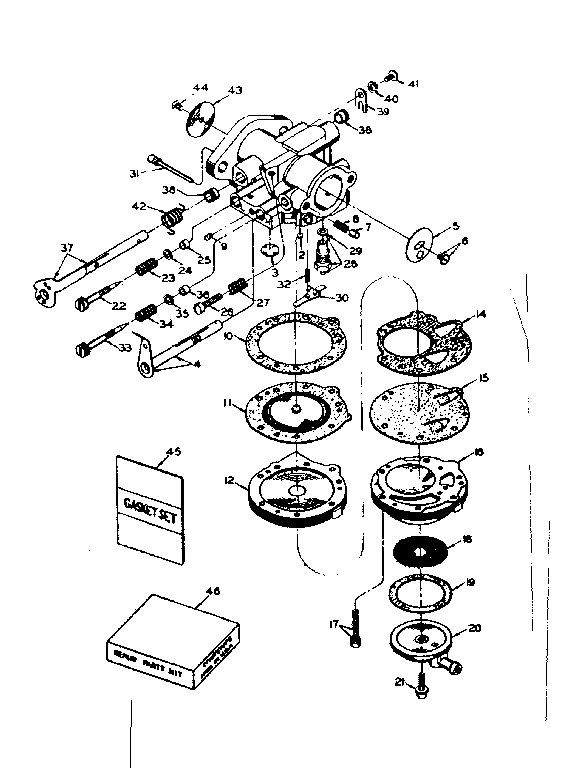

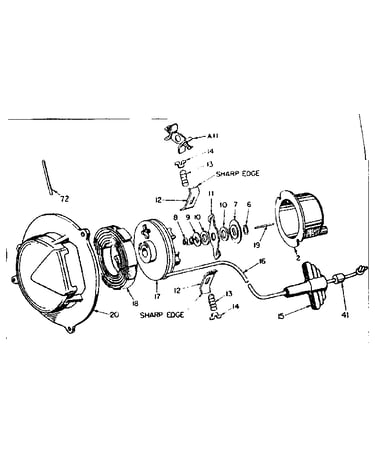

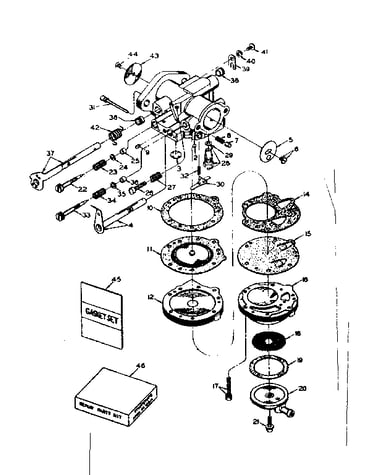

Here are the diagrams and repair parts for Craftsman 91760024 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 253 parts

    Lawn & Garden Equipment Engine Oil Seal

    #11

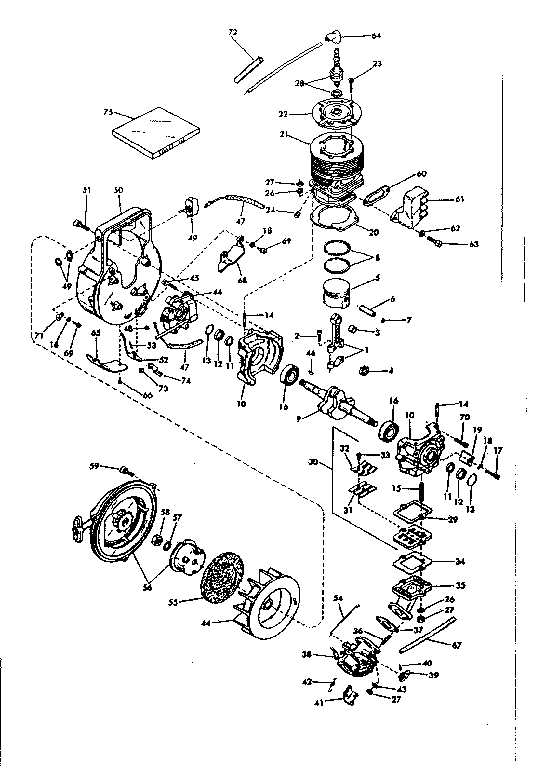

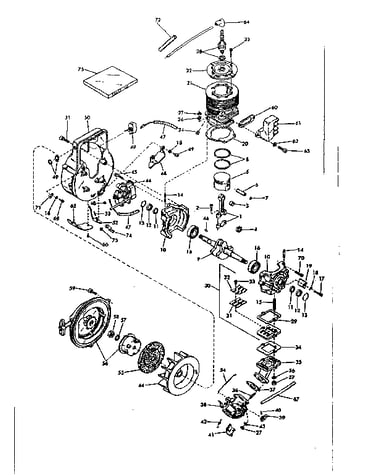

    Engine type 1215 -- model ah58 Diagram

    Lawn & garden equipment engine oil seal

    Part #510319
    ?
    Manufacturer substitution
    This part replaces 510105. Substitute parts can look different from the original.
    This part replaces 510105
    This item is not returnable
    $6.17

    In Stock

    Lawn & Garden Equipment Engine Crankshaft Seal Retainer

    #12

    Engine type 1215 -- model ah58 Diagram

    Lawn & garden equipment engine crankshaft seal retainer

    Part #510106A
    ?
    Manufacturer substitution
    This part replaces 510106. Substitute parts can look different from the original.
    This part replaces 510106
    This item is not returnable
    $2.67

    In Stock

    Spring Retainer

    #13

    Engine type 1215 -- model ah58 Diagram

    Spring retainer

    Part #510109A
    ?
    Manufacturer substitution
    This part replaces 510109. Substitute parts can look different from the original.
    This part replaces 510109
    This item is not returnable
    $2.67

    In Stock

    Bearing

    #3

    Engine type 1215 -- model ah58 Diagram

    Bearing

    Part #530104

    The manufacturer no longer makes this part, and there's no substitute part

    Bearing

    #16

    Engine type 1215 -- model ah58 Diagram

    Bearing

    Part #530110

    The manufacturer no longer makes this part, and there's no substitute part

    Piston Pin Retaining Ring

    #7

    Engine type 1215 -- model ah58 Diagram

    Piston pin retaining ring

    Part #310296
    ?
    Manufacturer substitution
    This part replaces 310167. Substitute parts can look different from the original.
    This part replaces 310167
    This item is not returnable
    $2.16

    In Stock

    Roller Pin

    #63

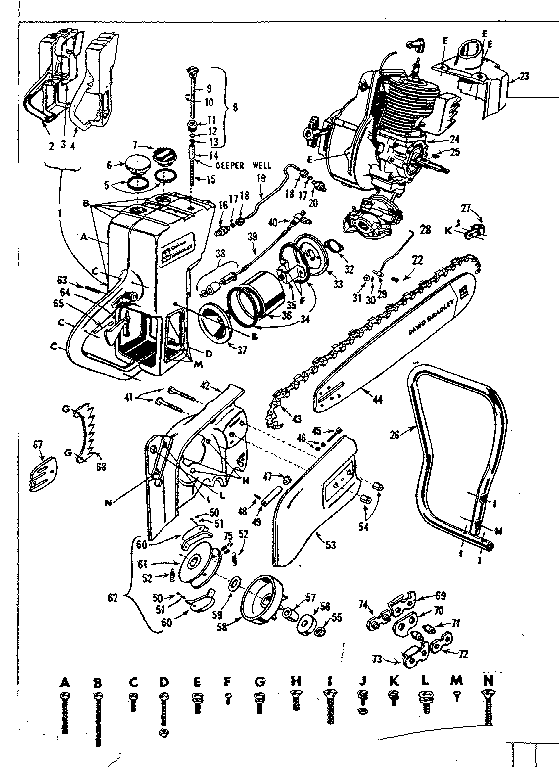

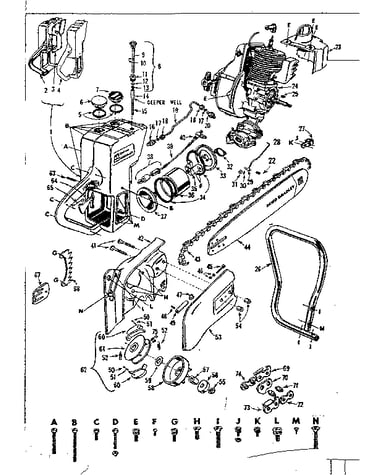

    Unit parts Diagram

    Roller pin

    Part #707H

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #31

    Unit parts Diagram

    Screw

    Part #08070718

    The manufacturer no longer makes this part, and there's no substitute part

    Point

    #4

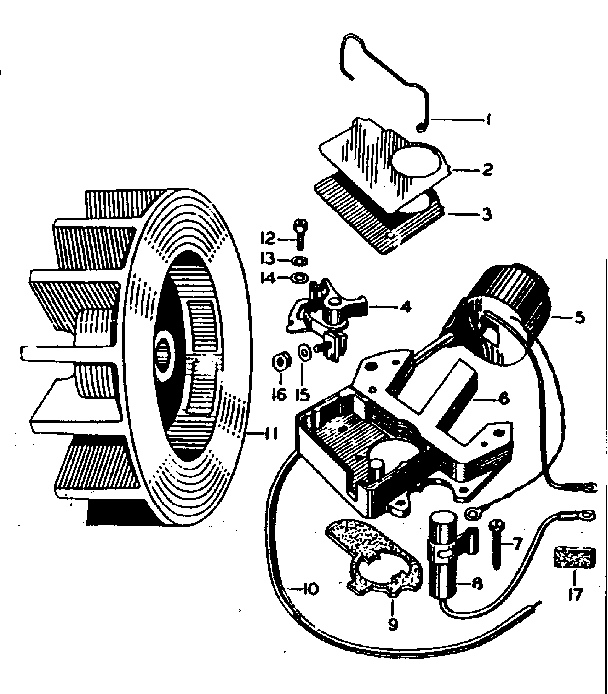

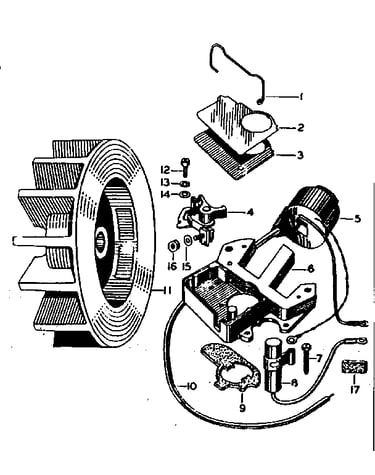

    Magneto 610582 Diagram

    Point

    Part #610587
    ?
    Manufacturer substitution
    This part replaces 610587. Substitute parts can look different from the original.
    This part replaces 610587
    $22.24

    In Stock

    Nut

    #16

    Magneto 610582 Diagram

    Nut

    Part #610408

    The manufacturer no longer makes this part, and there's no substitute part
