Model # R-1874 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-1874 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

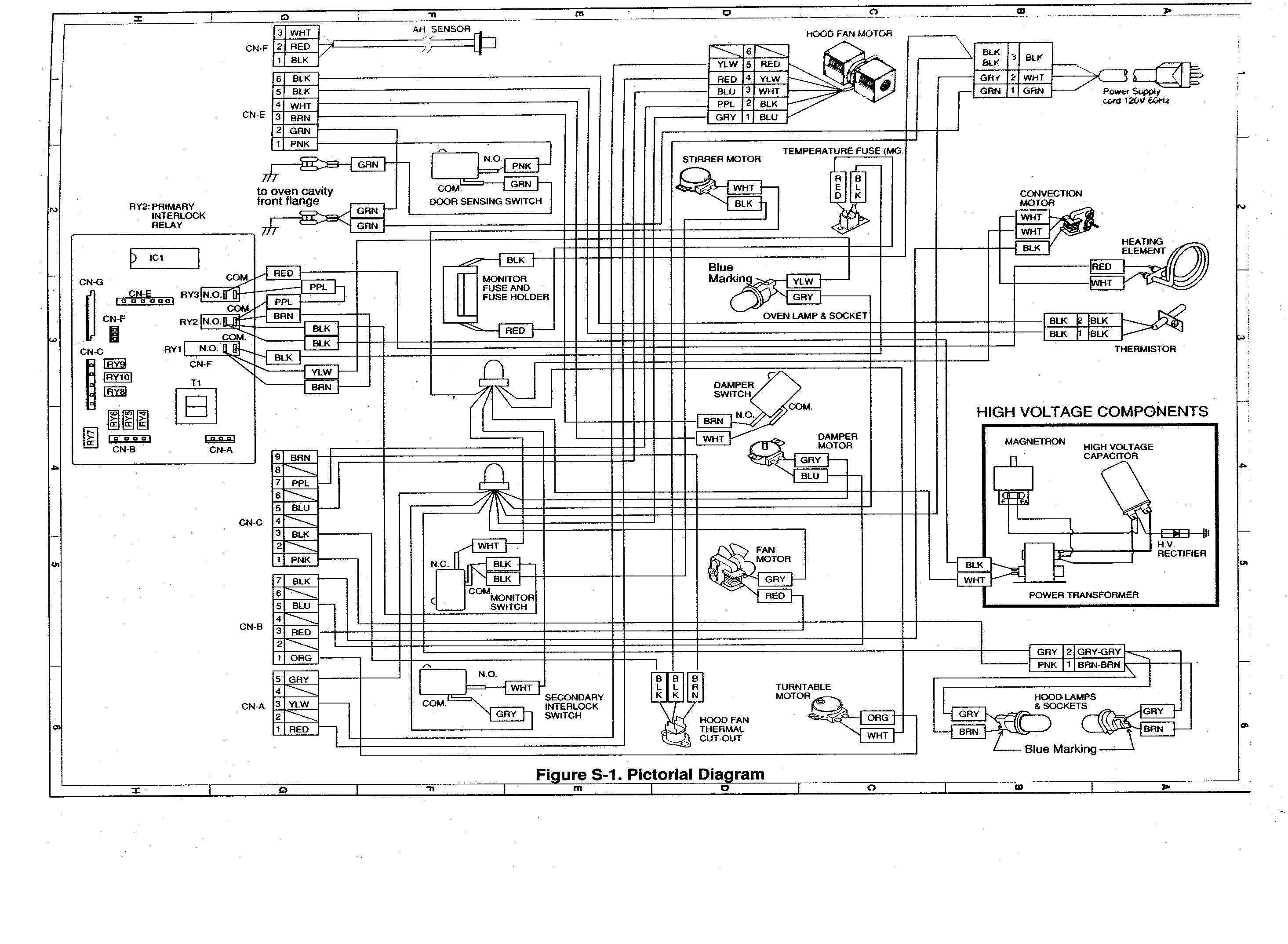

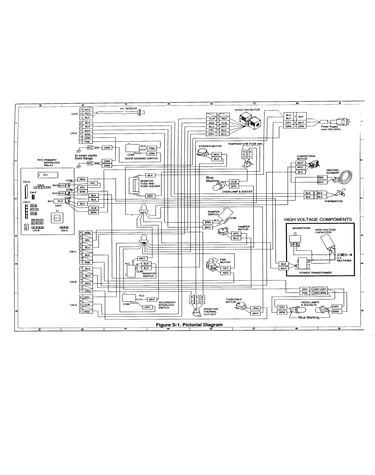

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Switch QSW-MA085WRE0
#1-11

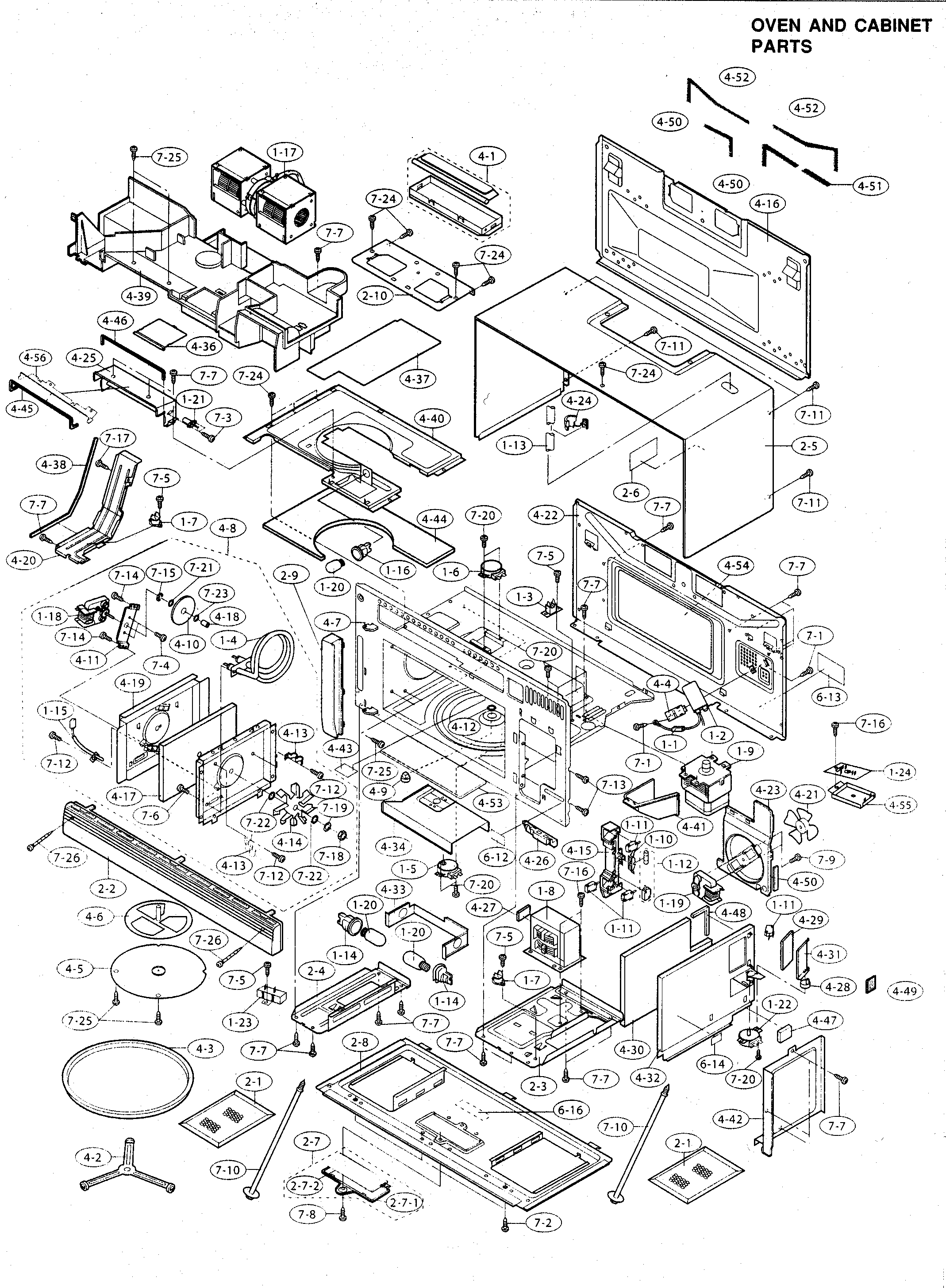

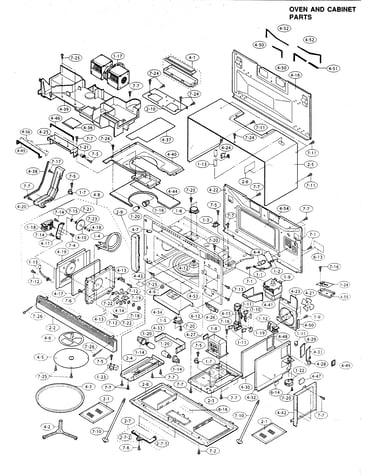

Oven/cabinet parts diagram

Switch

Part #QSW-MA085WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Control Panel FPNLCB407MRK0
#3-2

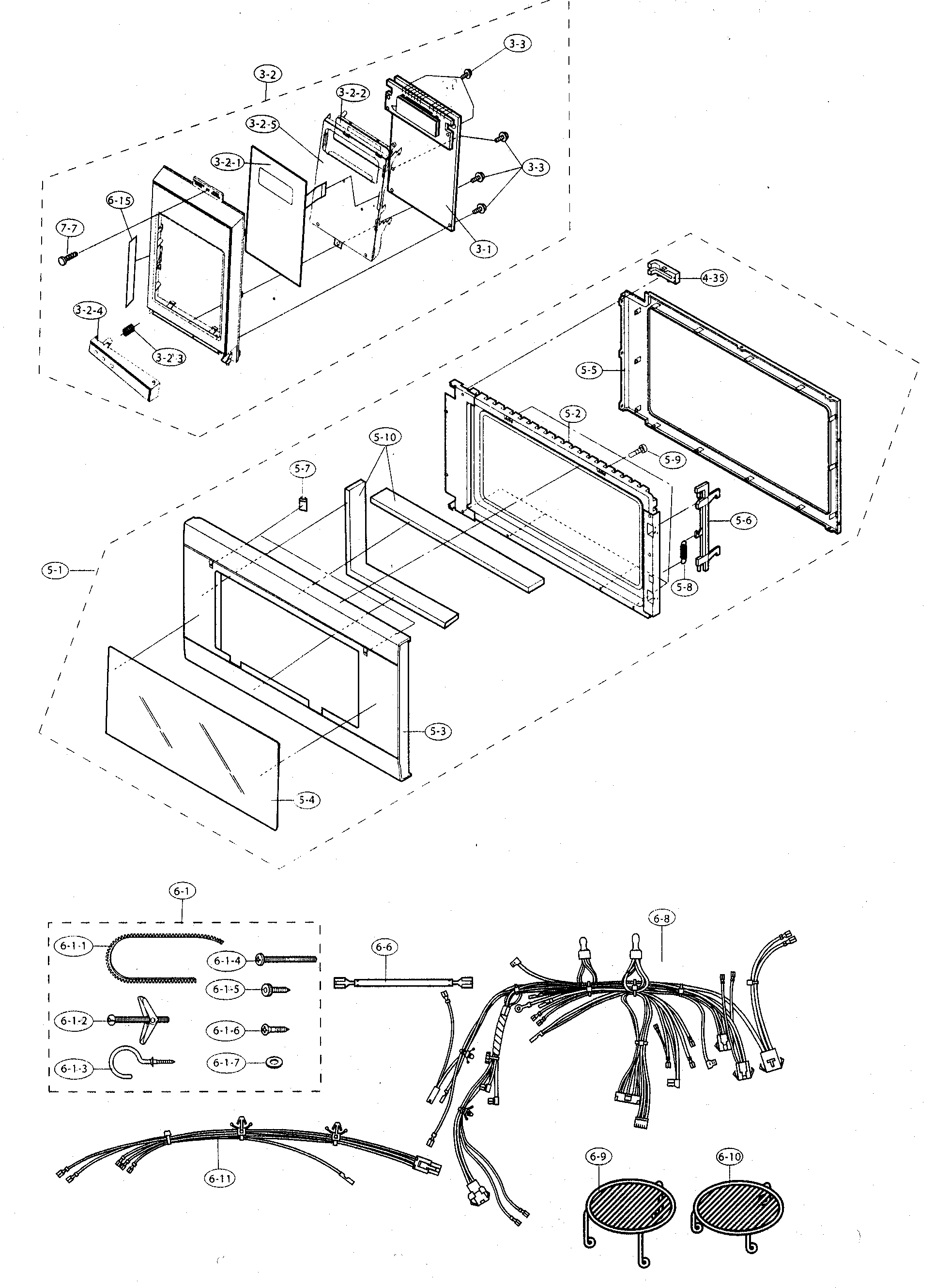

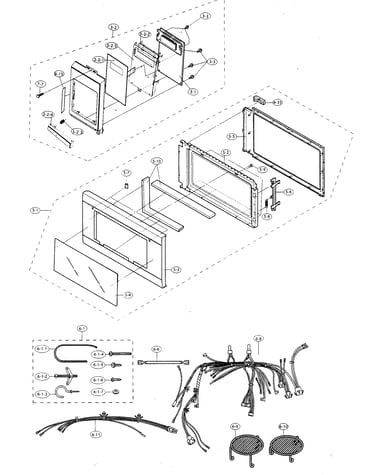

Control panel/door/miscellaneous diagram

Microwave control panel

Part #FPNLCB407MRK0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA234WRE0
#1-2

Oven/cabinet parts diagram

Capacitor

Part #RC-QZA234WRE0

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover FCOVPB002MRY0
#4-5

Oven/cabinet parts diagram

Stirrer cover

Part #FCOVPB002MRY0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Power Control Board Assembly DPWBFB061MRU0
#3-1

Control panel/door/miscellaneous diagram

Microwave power control board assembly

Part #DPWBFB061MRU0

The manufacturer no longer makes this part, and there's no substitute part

Fan FFAN-B008MRK0
#4-6

Oven/cabinet parts diagram

Fan

Part #FFAN-B008MRK0

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-B013MRF0
#4-15

Oven/cabinet parts diagram

Latch hook

Part #PHOK-B013MRF0

The manufacturer no longer makes this part, and there's no substitute part

Convection DHET-B002MRK0
#4-10

Oven/cabinet parts diagram

Convection

Part #DHET-B002MRK0

The manufacturer no longer makes this part, and there's no substitute part

Coupling NCPL-B007MRF0
#4-9

Oven/cabinet parts diagram

Coupling

Part #NCPL-B007MRF0

The manufacturer no longer makes this part, and there's no substitute part

Microwave/hood Lamp Cover PCOVPB047MRP0
#4-36

Oven/cabinet parts diagram

Microwave/hood lamp cover

Part #PCOVPB047MRP0

The manufacturer no longer makes this part, and there's no substitute part
