Maytag
Countertop Microwave

Model # DM16H-10B Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM16H-10B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

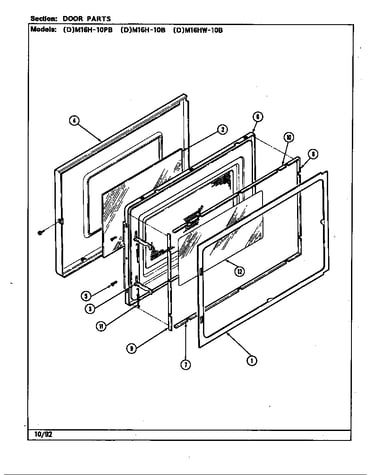

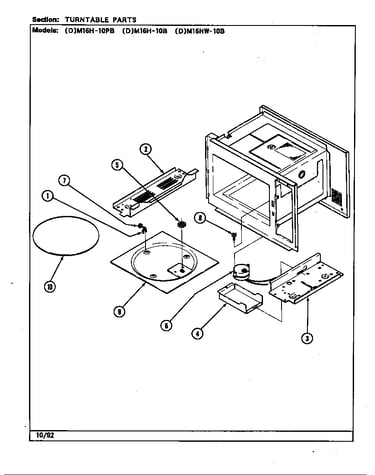

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Capacitor 01020020
#8

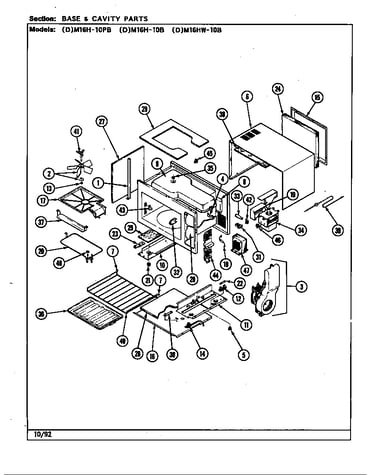

Base & cavity diagram

Capacitor

Part #01020020

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 01020020. Substitute parts can look different from the original.
$85.65 |
14% OFF MSRP : $100.00
In Stock
Screw 03020068
#48G

Base & cavity diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Microwave Blower Housing 02170131
#3D

Base & cavity diagram

Microwave blower housing

Part #02170131

The manufacturer no longer makes this part, and there's no substitute part

Temperature Switch 01180016
#46A

Base & cavity diagram

Temperature switch

Part #01180016

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 02100229
#2A

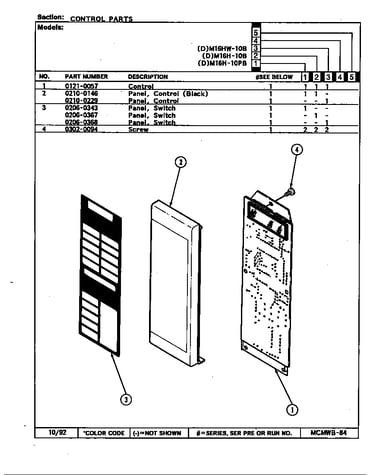

Control panel diagram

Control panel

Part #02100229

The manufacturer no longer makes this part, and there's no substitute part

Bushing 03140008
#5

Base & cavity diagram

Bushing

Part #03140008

The manufacturer no longer makes this part, and there's no substitute part

Microwave Broiler Element 01270002
#20

Base & cavity diagram

Microwave broiler element

Part #01270002

The manufacturer no longer makes this part, and there's no substitute part

1/2x1/2x18 F 8270P005-60
#46C

Base & cavity diagram

1/2x1/2x18 f

Part #8270P005-60

The manufacturer no longer makes this part, and there's no substitute part

Transformer 01130033
#47

Base & cavity diagram

Transformer

Part #01130033

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 02130004
#48F

Base & cavity diagram

Mounting bracket

Part #02130004

The manufacturer no longer makes this part, and there's no substitute part
