Kenmore 1105901300 washer Parts
Here are the diagrams and repair parts for Kenmore 1105901300 washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 1105901300 Washer

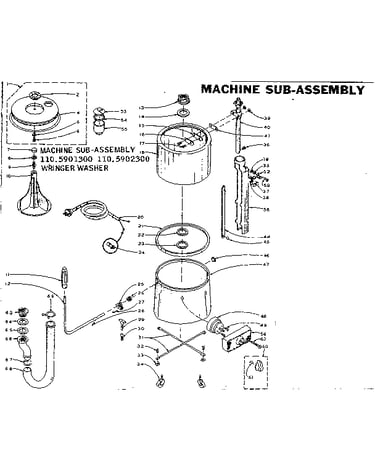

Machine sub-assembly diagram
Clamp
Part #272853Replaced by #WP285655
Manufacturer substitutionThis part replaces 272853. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21
Qty

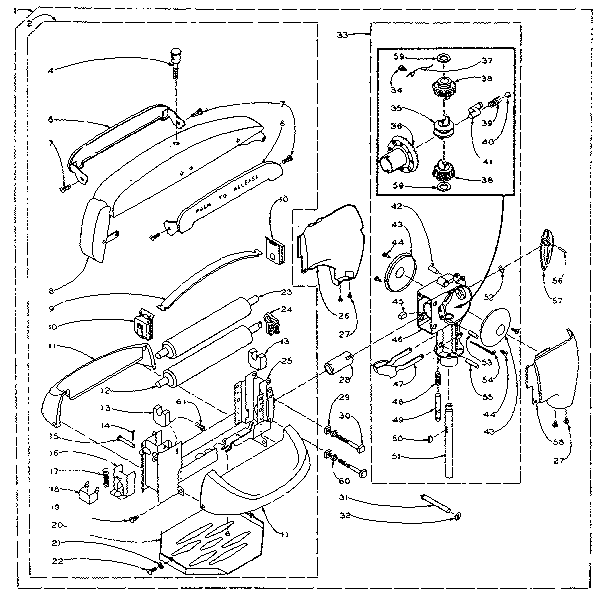

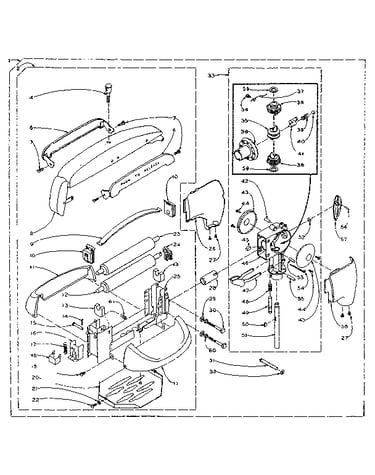

Worm gear case and motor assembly diagram
Nut
In Stock$18.0710% OFF Phone Price : $20.07QtyMachine sub-assembly diagram
Washer
Part #12035Replaced by #W11089212
Manufacturer substitutionThis part replaces 12035. Substitute parts can look different from the original.In Stock$29.24QtyWorm gear case and motor assembly diagram
Clamp
Part #232402Replaced by #WP660658
Manufacturer substitutionThis part replaces 232402. Substitute parts can look different from the original.This item is not returnableIn Stock$7.4312% OFF Phone Price : $8.43QtyPump assembly diagram
Hose Clamp
Part #52269Replaced by #WP356138
Manufacturer substitutionThis part replaces 52269. Substitute parts can look different from the original.In Stock$36.09QtyPump assembly diagram
Cut Screw
Part #90497Replaced by #WPW10141625
Manufacturer substitutionThis part replaces 90497. Substitute parts can look different from the original.This item is not returnableIn Stock$18.6110% OFF Phone Price : $20.61QtyPump assembly diagram
Bushing
Part #8427
The manufacturer no longer makes this part, and there's no substitute part

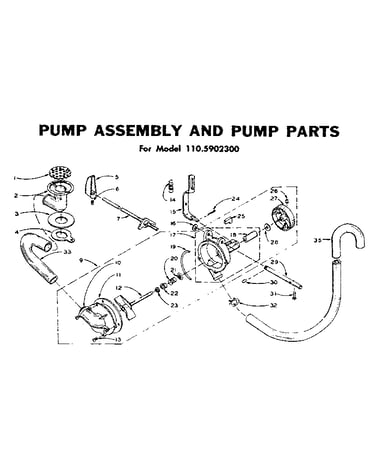

Pump assembly diagram
Retainer
Part #1614
The manufacturer no longer makes this part, and there's no substitute part
Machine sub-assembly diagram
Drive Bar
Part #51725
The manufacturer no longer makes this part, and there's no substitute part
Pump assembly diagram
Wick Oil
Part #1656
The manufacturer no longer makes this part, and there's no substitute part
