Kenmore
Upright Vacuum

Model # 20862171-80 Official Kenmore first mate vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 20862171-80 first mate vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |

Filter, 1-pack 63607
#8

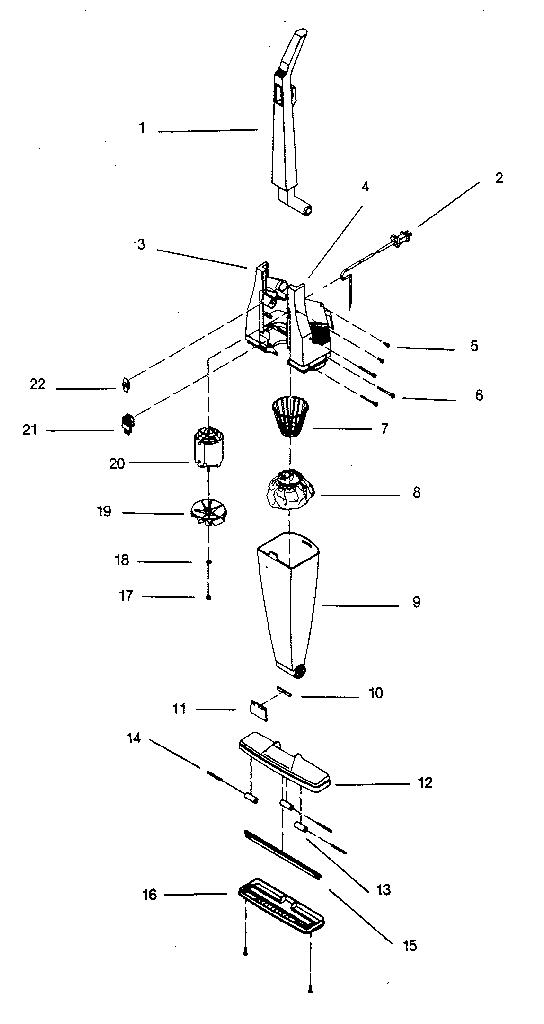

Unit parts diagram

Filter, 1-pack

Part #63607

The manufacturer no longer makes this part, and there's no substitute part

Strip Brush 80275
#15

Unit parts diagram

Strip brush

Part #80275

The manufacturer no longer makes this part, and there's no substitute part

Release Button 63615A
#21

Unit parts diagram

Release button

Part #63615A

The manufacturer no longer makes this part, and there's no substitute part

Handle 63602A
#1

Unit parts diagram

Handle

Part #63602A

The manufacturer no longer makes this part, and there's no substitute part

Floor Tool 63608A
#12

Unit parts diagram

Floor tool

Part #63608A

The manufacturer no longer makes this part, and there's no substitute part

Dust Cup Assembly 91080A
#9

Unit parts diagram

Dust cup assembly

Part #91080A

The manufacturer no longer makes this part, and there's no substitute part

Short Screw 63604
#5

Unit parts diagram

Short screw

Part #63604

The manufacturer no longer makes this part, and there's no substitute part

R&l Housing 91079A
#3

Unit parts diagram

R&l housing

Part #91079A

The manufacturer no longer makes this part, and there's no substitute part

C/u Manual 63601A

#NI

All parts diagram

C/u manual

Part #63601A

The manufacturer no longer makes this part, and there's no substitute part

Roller 63610
#13

Unit parts diagram

Roller

Part #63610

The manufacturer no longer makes this part, and there's no substitute part
