GE JVM1190AY03 microwave Parts

Here are the diagrams and repair parts for GE JVM1190AY03 microwave, as well as links to manuals and error code tables, if available.

GE JVM1190AY03 microwave
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JVM1190AY03 Microwave

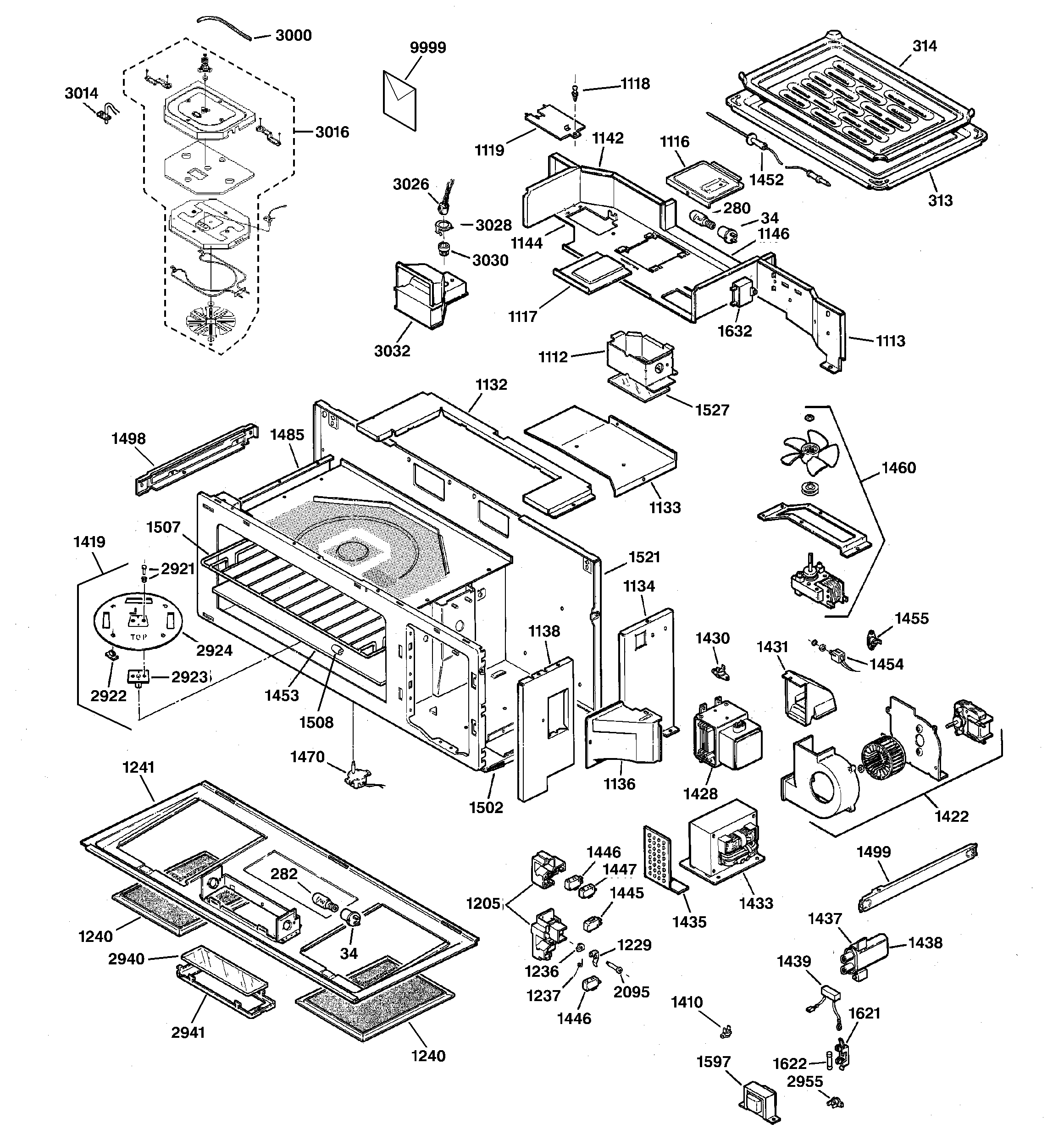

  • Microwave High-voltage Diode for GE JVM1190AY03 - Part WB27X1160

    Body parts diagram

    Rectifier

    Part #WB27X0286

    Replaced by #WB27X1160

    Info Icon
    Manufacturer substitution
    This part replaces WB27X0286. Substitute parts can look different from the original.
    In Stock
    $101.05
    11% OFF Phone Price : $113.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Gas Sensor for GE JVM1190AY03 - Part WB24X799

    Body parts diagram

    Gas Sensor

    Part #WB24X0799

    Replaced by #WB24X799

    Info Icon
    Manufacturer substitution
    This part replaces WB24X0799. Substitute parts can look different from the original.
    In Stock
    $202.74
    6% OFF Phone Price : $214.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Thermal Cut-off for GE JVM1190AY03 - Part WB27X1127

    Body parts diagram

    Microwave Thermal Cut-off

    Part #WB27X1127
    In Stock
    $40.71
    13% OFF Phone Price : $46.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Thermal Cut-off for GE JVM1190AY03 - Part WB27X1127

    Body parts diagram

    Therm-hood

    Part #WB21X0535

    Replaced by #WB27X1127

    Info Icon
    Manufacturer substitution
    This part replaces WB21X0535. Substitute parts can look different from the original.
    In Stock
    $40.71
    13% OFF Phone Price : $46.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Magnetron for GE JVM1190AY03 - Part WB27X0706

    Body parts diagram

    Magnetron

    Part #WB27X0706

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Fuse for GE JVM1190AY03 - Part WB27X7

    Body parts diagram

    Fuse

    Part #WB27X0007

    Replaced by #WB27X7

    Info Icon
    Manufacturer substitution
    This part replaces WB27X0007. Substitute parts can look different from the original.
    In Stock
    $13.64
    13% OFF Phone Price : $15.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Motor Capacitor for GE JVM1190AY03 - Part WB27X10170

    Body parts diagram

    Motor Capacitor

    Part #WB27X0583

    Replaced by #WB27X10170

    Info Icon
    Manufacturer substitution
    This part replaces WB27X0583. Substitute parts can look different from the original.
    In Stock
    $16.34
    11% OFF Phone Price : $18.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Capacitor for GE JVM1190AY03 - Part WB27X10240

    Body parts diagram

    High-voltage Capacitor

    Part #WB27X0598

    Replaced by #WB27X10240

    Info Icon
    Manufacturer substitution
    This part replaces WB27X0598. Substitute parts can look different from the original.
    In Stock
    $111.10
    10% OFF Phone Price : $123.10Info Icon
    Minus Item
    Qty
    Plus Item

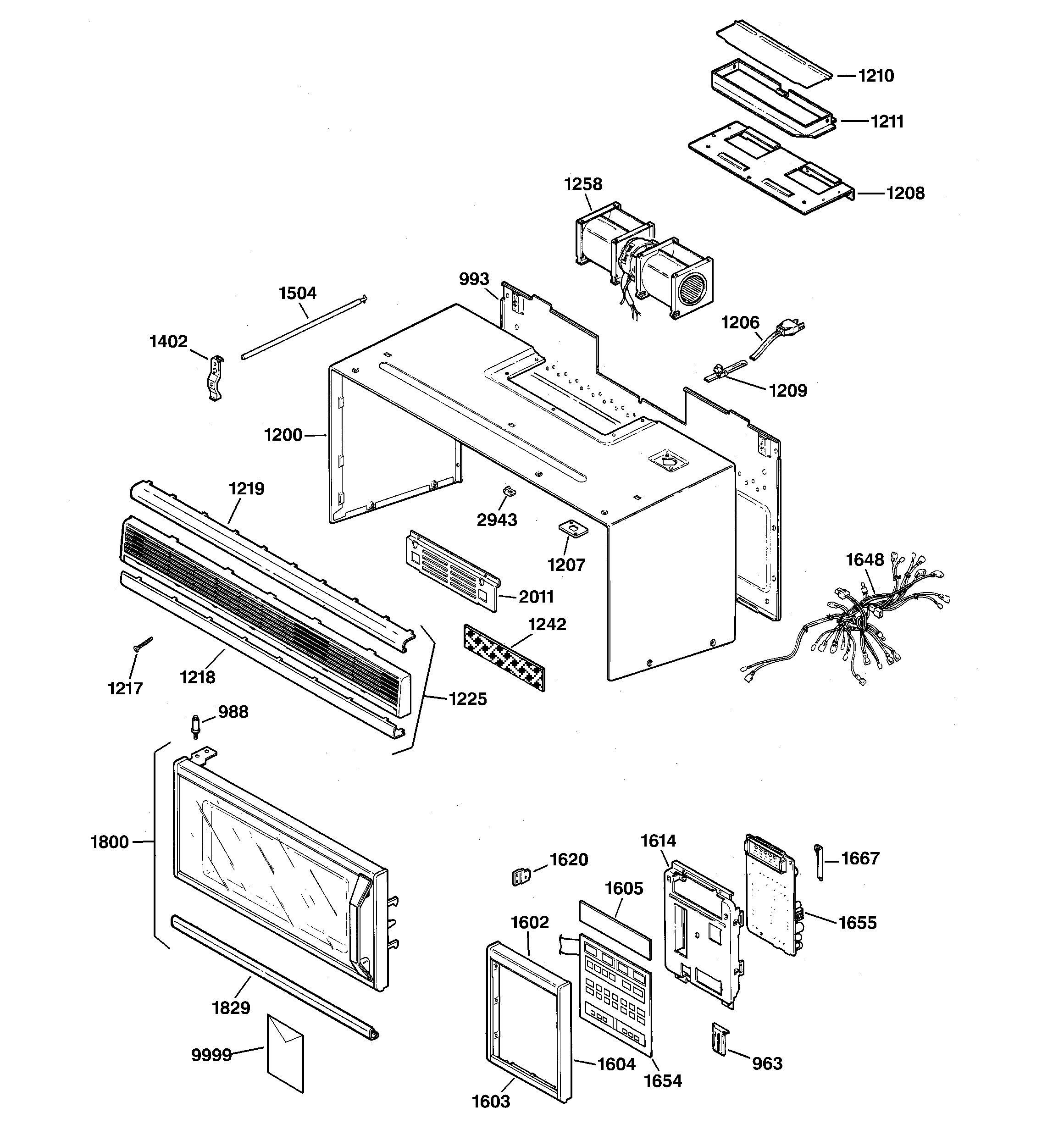

  • Outer Case for GE JVM1190AY03 - Part WB56X10141

    Control panel , door & case diagram

    Outer Case

    Part #WB56X10141
    In Stock
    $120.46
    Minus Item
    Qty
    Plus Item
  • Outer Case for GE JVM1190AY03 - Part WB56X10142

    Control panel , door & case diagram

    Outer Case

    Part #WB56X10142
    In Stock
    $118.32
    Minus Item
    Qty
    Plus Item
