Craftsman 917389151 gas walk-behind lawn mower

Craftsman 917389151 gas walk-behind lawn mower Parts

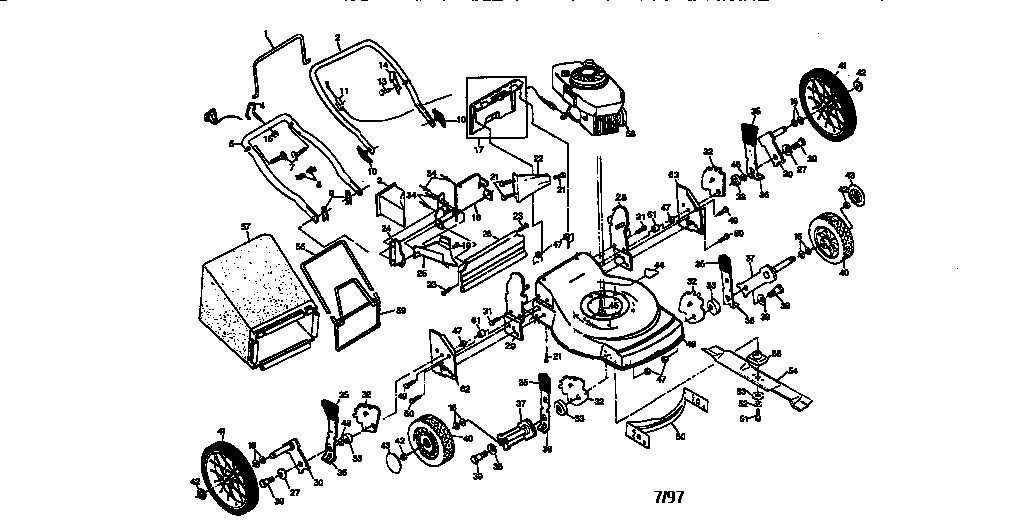

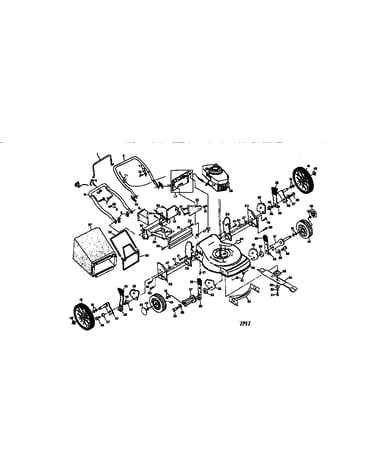

Here are the diagrams and repair parts for Craftsman 917389151 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 917389151 Walk-Behind Mowers

  • Husqvarna Lawn Mower Lock Nut, 3/8-in for Craftsman 917389151 - Part 532409149

    Replacement parts diagram

    Lock Nut

    Part #83923

    Replaced by #532409149

    Info Icon
    Manufacturer substitution
    This part replaces 83923. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.08
    25% OFF Phone Price : $4.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Deck Mulching Blade, 22-in for Craftsman 917389151 - Part 532406713

    Replacement parts diagram

    Lawn Mower Mulching Blade

    Part #157101

    Replaced by #532406713

    Info Icon
    Manufacturer substitution
    This part replaces 157101. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $40.04
    13% OFF Phone Price : $46.04Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn Mower Rear Skirt for Craftsman 917389151 - Part 532413160

    Replacement parts diagram

    Skirt

    Part #140540

    Replaced by #532413160

    Info Icon
    Manufacturer substitution
    This part replaces 140540. Substitute parts can look different from the original.
    In Stock
    $19.61
    9% OFF Phone Price : $21.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Handle Knob for Craftsman 917389151 - Part 532185577

    Replacement parts diagram

    Handle Knob

    Part #136376

    Replaced by #532185577

    Info Icon
    Manufacturer substitution
    This part replaces 136376. Substitute parts can look different from the original.
    In Stock
    $13.84
    13% OFF Phone Price : $15.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn Mower Bolt for Craftsman 917389151 - Part 532191574

    Replacement parts diagram

    Handle Bolt

    Part #131959

    Replaced by #532191574

    Info Icon
    Manufacturer substitution
    This part replaces 131959. Substitute parts can look different from the original.
    In Stock
    $9.50
    10% OFF Phone Price : $10.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Engine Zone Control Cable, Replaces 532168552 for Craftsman 917389151 - Part 532168552

    Replacement parts diagram

    Control Cable

    Part #156577

    Replaced by #532168552

    Info Icon
    Manufacturer substitution
    This part replaces 156577. Substitute parts can look different from the original.
    In Stock
    $34.70
    15% OFF Phone Price : $40.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Washer for Craftsman 917389151 - Part 532851074

    Replacement parts diagram

    Husqvarna Lawn & Garden Equipment Washer

    Part #851074

    Replaced by #532851074

    Info Icon
    Manufacturer substitution
    This part replaces 851074. Substitute parts can look different from the original.
    In Stock
    $8.63
    10% OFF Phone Price : $9.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Screw for Craftsman 917389151 - Part 532088652

    Replacement parts diagram

    Lawn & Garden Equipment Hinge Screw

    Part #88652

    Replaced by #532088652

    Info Icon
    Manufacturer substitution
    This part replaces 88652. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.03
    17% OFF Phone Price : $6.03Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Screw, Hex Head 3/8-24 X 1-3/8 for Craftsman 917389151 - Part 532851084

    Replacement parts diagram

    Lawn & Garden Equipment Screw

    Part #851084

    Replaced by #532851084

    Info Icon
    Manufacturer substitution
    This part replaces 851084. Substitute parts can look different from the original.
    In Stock
    $33.49
    15% OFF Phone Price : $39.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Wheel Adjusting Bracket for Craftsman 917389151 - Part 532700325

    Replacement parts diagram

    Bracket

    Part #700325X007

    Replaced by #532700325

    Info Icon
    Manufacturer substitution
    This part replaces 700325X007. Substitute parts can look different from the original.
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item

Craftsman Gas Walk-Behind Lawn Mower 917389151 FAQs

A gas walk-behind lawn mower like the Craftsman 917389151 typically lasts 8 to 15 years with normal homeowner use; 10+ years is common when you follow the maintenance schedule (oil, air filter, spark plug, blade checks) in the 917389151 owner's manual.

Typical lifespan (what to expect)

Most walk-behind mowers wear out from engine neglect, deck corrosion, or repeated impacts, not from “hours” alone.

  • 8 to 15 years: typical homeowner lifespan for a gas walk-behind mower
  • Shorter lifespan: heavy loads, dusty conditions, sandy soil, frequent wet mowing
  • Longer lifespan: regular tune-ups, clean storage, prompt replacement of wear items

Maintenance that extends life the most

The manual calls out routine checks before each use and seasonal service items that help the engine run better and last longer.

  • Check engine oil level before each use
  • Tighten loose fasteners (nuts, bolts, screws, pins)
  • Clean or replace the air filter on schedule
  • Replace the spark plug about once a year
  • Inspect the blade for wear; replace when bent, cracked, or badly worn (a worn blade also stresses the engine)

Quick reference: what wears out vs. what lasts

Item Typical role Replace/Service frequency
Engine oil Lubrication and cooling Regularly (more often in heat/heavy load)
Air filter Protects engine from dirt More often in dusty mowing
Spark plug Reliable ignition About yearly
Blade and adapter Cutting and blade mounting As needed for wear/impact

Why it matters

A mower can “seem fine” while internal engine wear is accelerating. Clean oil, clean air flow, and a sharp, balanced blade reduce heat and vibration, which directly increases engine life and protects parts like the blade mount.

Parts that commonly affect longevity

If you are refreshing the cutting system on this model, these are common wear-related parts to check:

Last updated: January 2026

For Craftsman model 917389151, use regular unleaded gasoline with a minimum of 87 octane. Using 91 octane is not required for normal mowing; it will not add power or improve reliability in a properly running engine. See the fuel guidance in the 917389151 owner's manual.

The manual calls for fresh, clean, regular unleaded gasoline (87 octane minimum). For best results, focus on fuel freshness and storage habits more than higher octane.

  • Use 87 octane (regular unleaded) for everyday operation
  • Buy fuel in small quantities so it stays fresh
  • Do not mix oil with gasoline (this is a 4-cycle mower)
  • Wipe up spilled fuel and let the engine cool before refueling
  • Avoid storing old gas from one season to the next

87 vs 91: what changes and what does not

Fuel choice Works in 917389151? What you gain What to watch for
87 octane (regular) Yes (recommended) Correct fuel for normal mowing Keep it fresh; stale fuel causes starting issues
91 octane (premium) Yes (acceptable) No performance benefit in typical mower engines Costs more; does not fix fuel, carburetor, or ignition problems

If you are having starting or running problems

Higher octane usually is not the solution. These fuel-related issues are more common:

  • Stale fuel or water in fuel
  • Dirty air filter
  • Bad spark plug or disconnected spark plug wire
  • Old gas left in the tank over the off-season

For seasonal storage steps, follow the 917389151 owner's manual.

Why it matters

Using the correct octane (87 minimum) and keeping gasoline fresh helps prevent hard starting, rough running, and carburetor varnish. That saves wear on the recoil starter and reduces downtime during mowing season.

Last updated: January 2026

The model number is 917.389151 (often written without the dot as 917389151). It’s printed on the mower’s model tag and on the cover pages of the 917389151 owner's manual.

Where to find the model number on the mower

Check the model tag (sticker or metal plate) in these common spots:

  • Rear of the mower deck near the discharge opening
  • Top of the deck near the engine mounting area
  • Handle mounting brackets
  • Back plate behind the grass bag area (if equipped)
  • Near the rear wheel height adjuster

917.389151 vs 917389151: both are correct

Craftsman often prints a dot in the model number in manuals, but parts lookups frequently drop it.

You might see it as What it means Where it’s common
917.389151 Same model number Owner’s manual, some ID tags
917389151 Same model number Parts diagrams, online search

Why using the exact model number matters for parts

Using the exact model number helps us match the correct diagrams and hardware for your Craftsman gas walk-behind mower.

  • Blade mounting parts can vary by adapter style
  • Control cables and handle hardware can differ by configuration
  • Bagging and mulching components are model-specific

If you’re servicing the cutting system, confirm the blade and adapter style in the parts diagram. Common wear items you may see listed for this model include the lawn mower mulching blade 532406713 and the lawn mower blade adapter 581547901.

Why it matters

A single digit off in a Craftsman model number can point to a different deck, handle, or engine setup; that can lead to ordering the wrong blade, cable, or fasteners and delaying your repair.

Last updated: January 2026

Most common symptoms to help you fix your walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…

Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…

Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…

Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…

Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…
