Model # 217586340 Official Craftsman outboard motor

Here are the diagrams and repair parts for Official Craftsman 217586340 outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

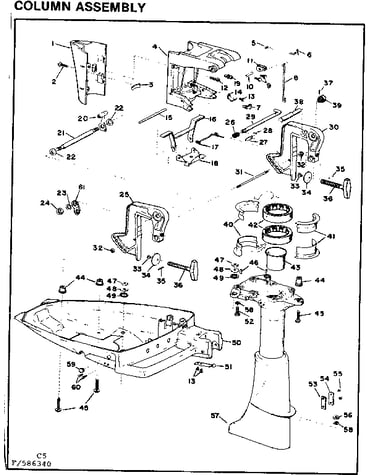

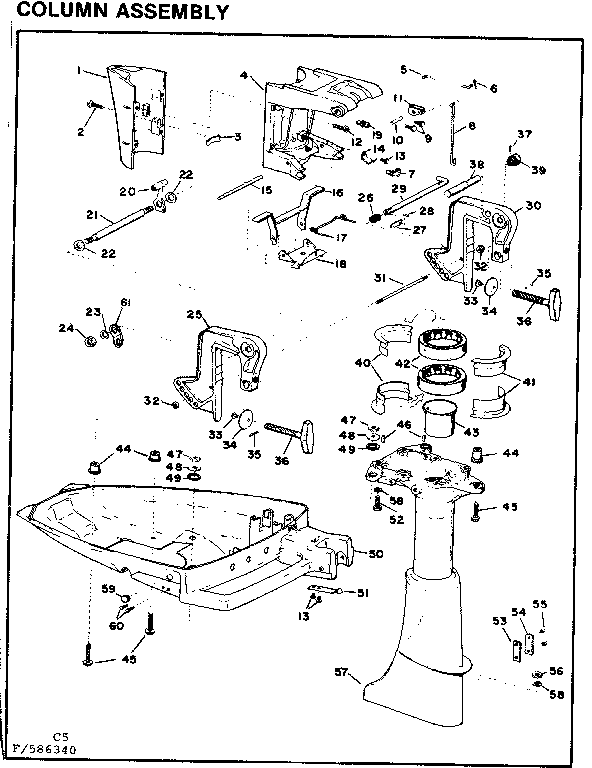

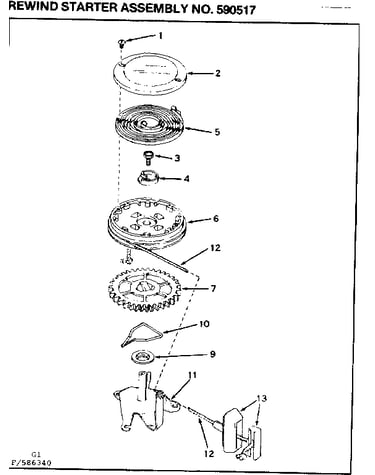

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 318 parts  |

Gasket 631028
#25

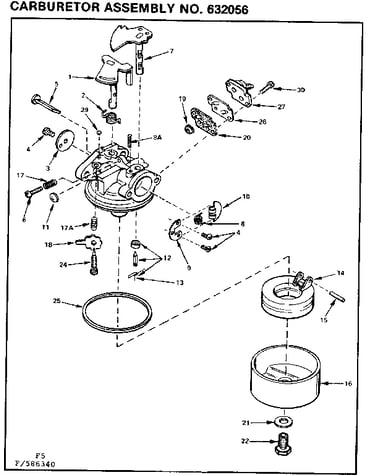

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Inlet Needle 631021
#12

Carburetor assembly diagram

Inlet needle

Part #631021

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#50

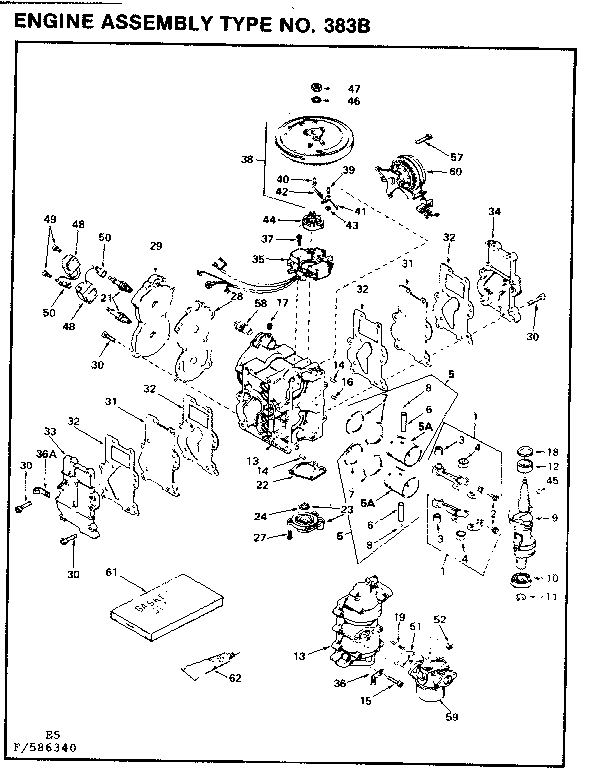

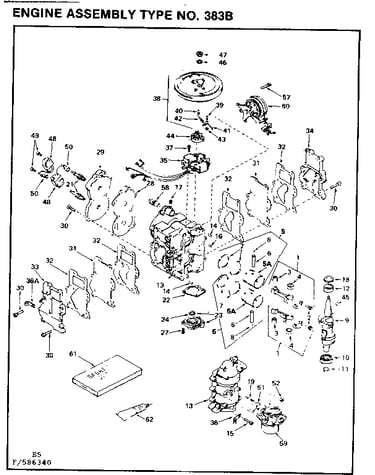

Engine assembly diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#8A

Carburetor assembly diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Screw 699
#21

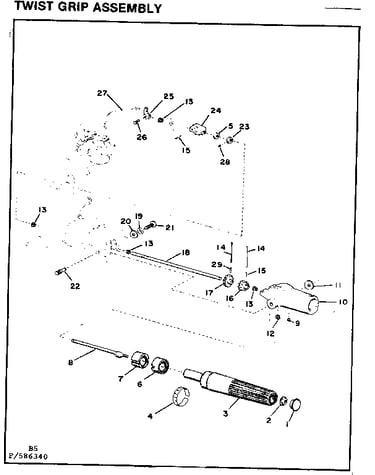

Twist grip assembly diagram

Screw

Part #699

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Propeller Shaft Oil Seal 96679
#7

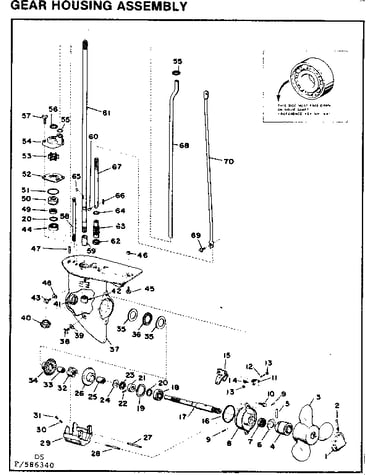

Gear housing assembly diagram

Boat motor propeller shaft oil seal

Part #96679

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Fuel Line Coupler CAT1859
#51A

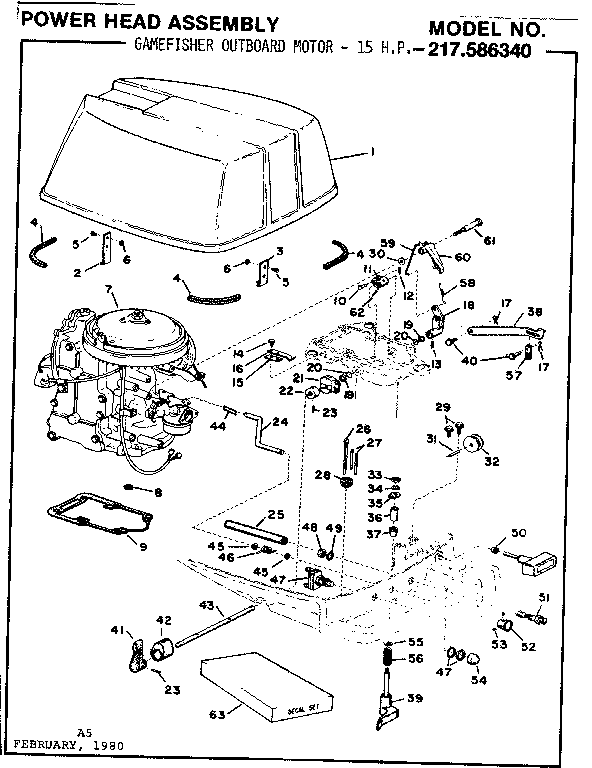

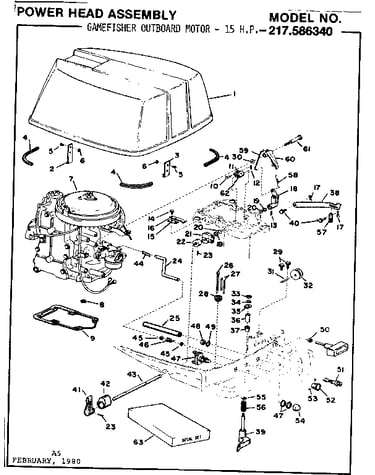

Power head assembly diagram

Boat motor fuel line coupler

Part #CAT1859

The manufacturer no longer makes this part, and there's no substitute part

Shift Lever Handle 76130
#41

Power head assembly diagram

Shift lever handle

Part #76130

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor 3-blade Propeller 190011
#3

Gear housing assembly diagram

Boat motor 3-blade propeller

Part #190011

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 26290
#44

Gear housing assembly diagram

Ball bearing

Part #26290

The manufacturer no longer makes this part, and there's no substitute part
