GE
Room Air Conditioner

Model # AZ31H09D3DV6 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ31H09D3DV6 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Room Air Conditioner Rotary Switch WP28X56
#86

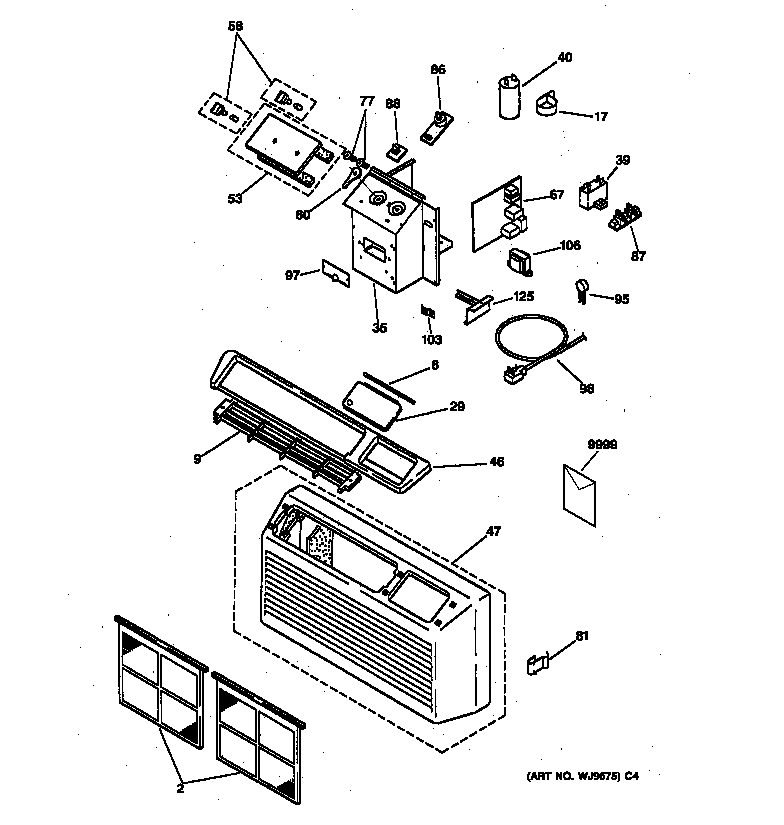

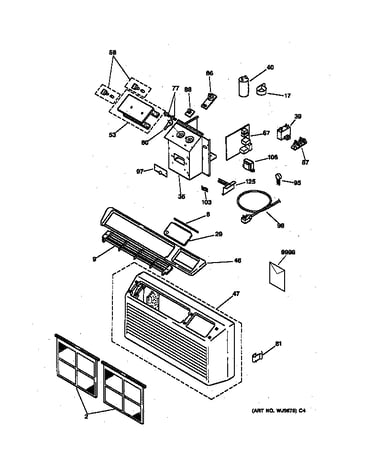

Controls & grill assembly diagram

Room air conditioner rotary switch

Part #WP28X56

$88.34 |
5% OFF Phone Price : $93.34
In Stock
Zoneline 310 49-7284
#9999B

Controls & grill assembly diagram

Zoneline 310

Part #49-7284

Replaced by #49-7366

?
Manufacturer substitution
This part replaces 49-7284. Substitute parts can look different from the original.
$8.49
In Stock
Transformer WP27X43
#106

Controls & grill assembly diagram

Transformer

Part #WP27X43

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin Drain Door WP4X05
#7

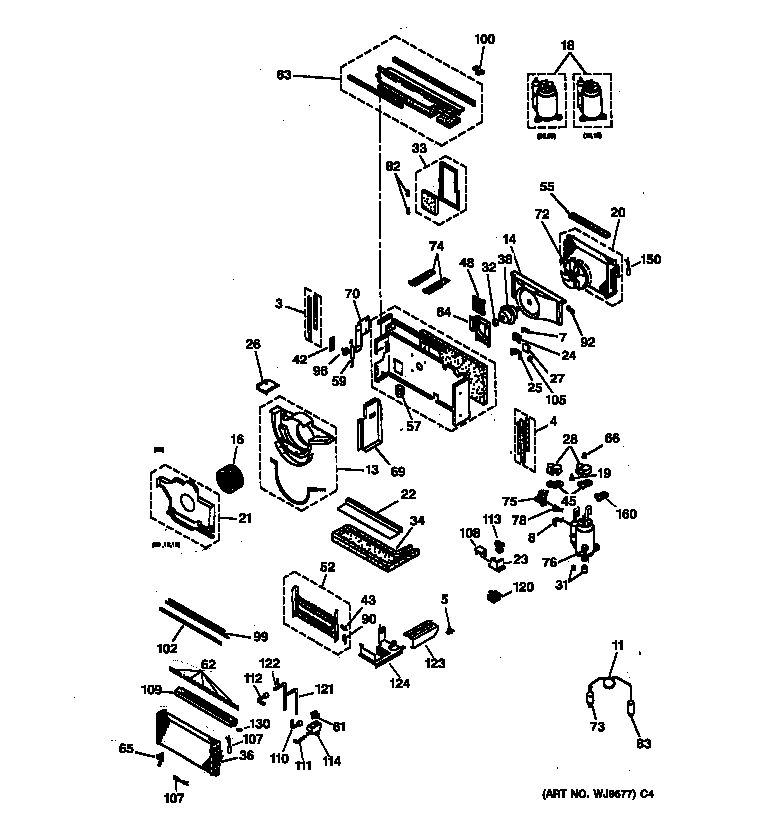

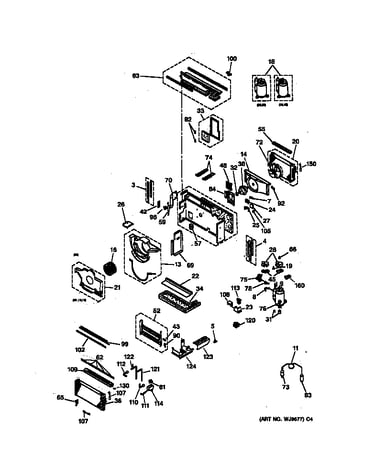

Motor, compressor & system components diagram

Hinge pin drain door

Part #WP4X05

The manufacturer no longer makes this part, and there's no substitute part

Damp Dr Asm WP71X47
#33

Motor, compressor & system components diagram

Damp dr asm

Part #WP71X47

The manufacturer no longer makes this part, and there's no substitute part

Panel Side R WP82X19
#4

Motor, compressor & system components diagram

Panel side r

Part #WP82X19

The manufacturer no longer makes this part, and there's no substitute part

Mounting Tube WP65X19
#92

Motor, compressor & system components diagram

Mounting tube

Part #WP65X19

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Thermostat WP26X42
#88

Controls & grill assembly diagram

Room air conditioner thermostat

Part #WP26X42

The manufacturer no longer makes this part, and there's no substitute part

Cap Clamp WP3X13
#17

Controls & grill assembly diagram

Cap clamp

Part #WP3X13

The manufacturer no longer makes this part, and there's no substitute part

Terminal Nut WJ1X884
#66

Motor, compressor & system components diagram

Terminal nut

Part #WJ1X884

The manufacturer no longer makes this part, and there's no substitute part
