Model # 32MD311B/F7 Official Magnavox lcd television with dvd

Here are the diagrams and repair parts for Official Magnavox 32MD311B-F7 lcd television with dvd, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Pcb Funct/ A1DF2M1V-001-FNIR
#P4B

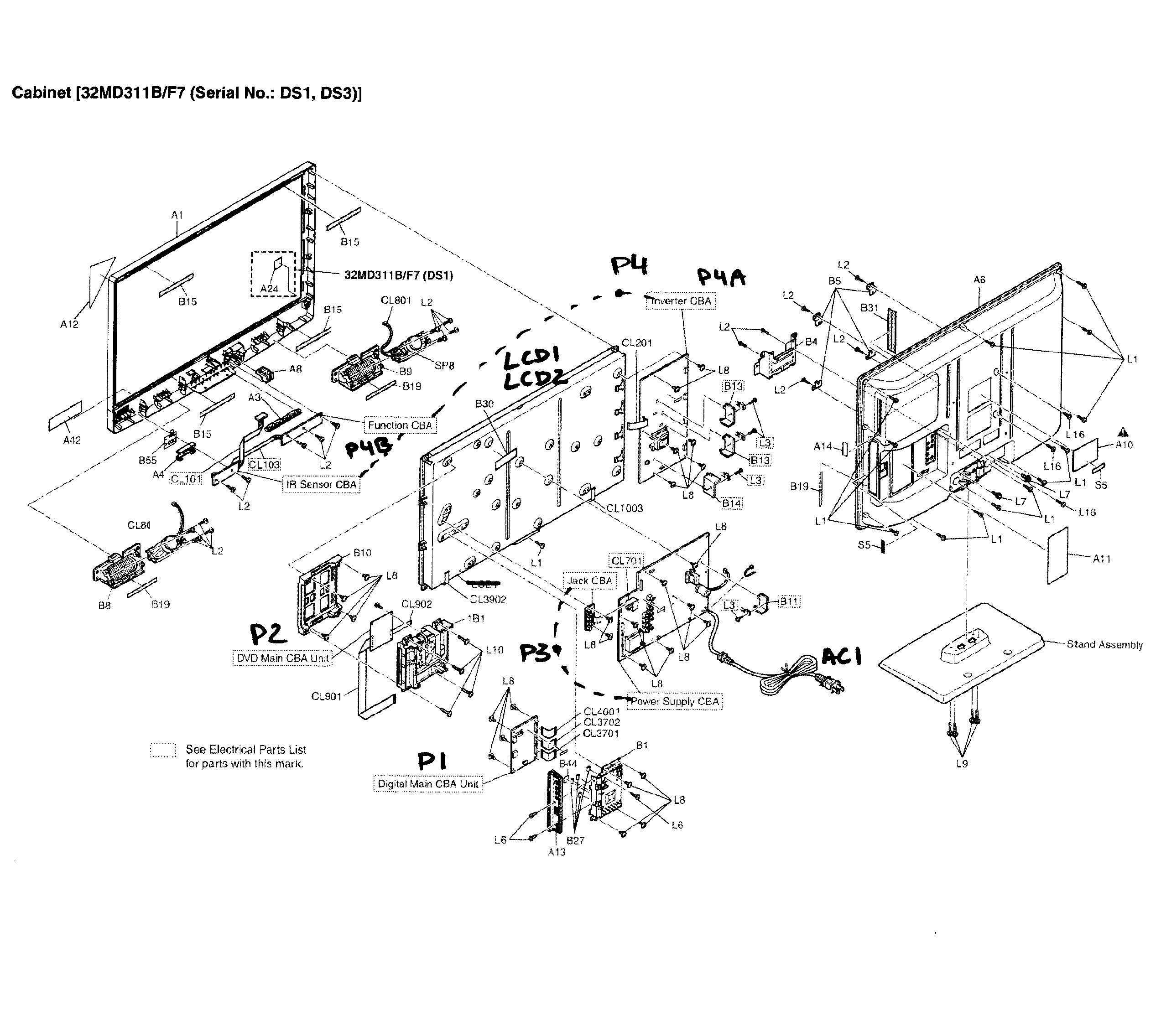

Cabinet parts diagram

Pcb funct/

Part #A1DF2M1V-001-FNIR

The manufacturer no longer makes this part, and there's no substitute part

Pcb Digita A1DF0MMA-001
#P1

Cabinet parts diagram

Pcb digita

Part #A1DF0MMA-001

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb A1DF2MP1-001
#P3

Cabinet parts diagram

Power pcb

Part #A1DF2MP1-001

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit NPECLTV817MF
#NI

Cabinet parts diagram

Integrated circuit

Part #NPECLTV817MF

The manufacturer no longer makes this part, and there's no substitute part

Holder Stand 1EM222763
#B4

Cabinet parts diagram

Holder stand

Part #1EM222763

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit QSZBA0TRM032
#NI

Cabinet parts diagram

Integrated circuit

Part #QSZBA0TRM032

The manufacturer no longer makes this part, and there's no substitute part

Television Ir Sensor USESJRSKK044
#NI

Cabinet parts diagram

Television ir sensor

Part #USESJRSKK044

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit NSZBA0TTY115
#NI

Cabinet parts diagram

Integrated circuit

Part #NSZBA0TTY115

The manufacturer no longer makes this part, and there's no substitute part

Bracket 1EM323797
#B5

Cabinet parts diagram

Bracket

Part #1EM323797

The manufacturer no longer makes this part, and there's no substitute part

Cable 24p/ WX1A91F6-102
#NI

Cabinet parts diagram

Cable 24p/

Part #WX1A91F6-102

The manufacturer no longer makes this part, and there's no substitute part
