How do I find the model number on my JGBS86SP3SS?
The model number for your GE free standing gas range is printed on the appliance’s rating label. On the JGBS86SP3SS, you will typically find that label around the oven door frame area when you open the door, or on a frame edge behind the storage or warming drawer.
Where to look on the range
Check these common spots in this order:
- Open the oven door; look along the front frame (left or right side) for a sticker or metal tag
- Pull out the bottom storage drawer; look on the frame behind the drawer opening
- Check the lower side trim near the drawer opening
- Look on the back panel if the range is accessible
What the label looks like
Most GE range model labels include:
- Model number (example: JGBS86SP3SS)
- Serial number
- Gas type and electrical rating information
| What you need | Why you need it | Example |
|---|---|---|
| Model number | Ensures parts fit your exact range | JGBS86SP3SS |
| Serial number | Helps match production version | Varies |
Why it matters
GE ranges can use different igniters, burner caps, knobs, or control parts across similar-looking models. Using the exact model number helps us match the correct parts diagram and the right replacement part the first time.
If the label is missing or unreadable
Use a part you can identify on the range to cross-check fit:
- Oven light: compare to the oven lamp 40A15
- Burner knob style: compare to the range surface burner knob WB03X24818
- Oven won’t heat: common suspects include the range bake igniter WB28X28781
Last updated: March 2026
What is the average lifespan of JGBS86SP3SS?
The average lifespan of a GE free standing gas range like the JGBS86SP3SS is 15 years. With normal use and basic maintenance, many ranges reach that mark; wear items like igniters, knobs, and oven lights are the parts most often replaced along the way.
What typically wears out first
These parts commonly need replacement during the life of a gas range:
- Bake igniter (weak ignition, slow preheat)
- Surface burner parts (uneven flame, poor ignition)
- Spark module (clicking or no spark)
- Oven light and lamp holder
- Temperature sensor (temperature swings)
Typical lifespan by component
| Component | Typical service life | Common symptom when failing |
|---|---|---|
| Bake igniter | 3 to 7 years | Oven won’t heat or takes too long |
| Spark module | 5 to 10 years | No spark or constant clicking |
| Oven temperature sensor | 8 to 15 years | Overheats or underheats |
| Oven light | 1 to 3 years | Light out |
Why it matters
Knowing the expected lifespan helps you decide whether a repair is worth it. On a 15-year appliance, replacing a single wear part is usually practical; multiple major failures at once can change the value equation.
Parts that often restore performance
If your JGBS86SP3SS is acting up, these model-matched parts are common fixes:
- Oven not heating: range bake igniter WB28X28781
- Temperature inaccurate: range oven temperature sensor WB24X25557
- Surface ignition issues: range spark module WB13X24741
Last updated: March 2026
What replacement parts are most commonly needed for the JGBS86SP3SS?
For the GE JGBS86SP3SS gas range, the most commonly needed replacement parts are ignition and wear items: the bake igniter, surface burner components (caps, burners, valves, knobs), the spark module, the oven temperature sensor, and the oven light. These parts address the most frequent heat and ignition complaints.
Most common parts and what they fix
- Oven won’t heat or heats slowly: range bake igniter WB28X28781

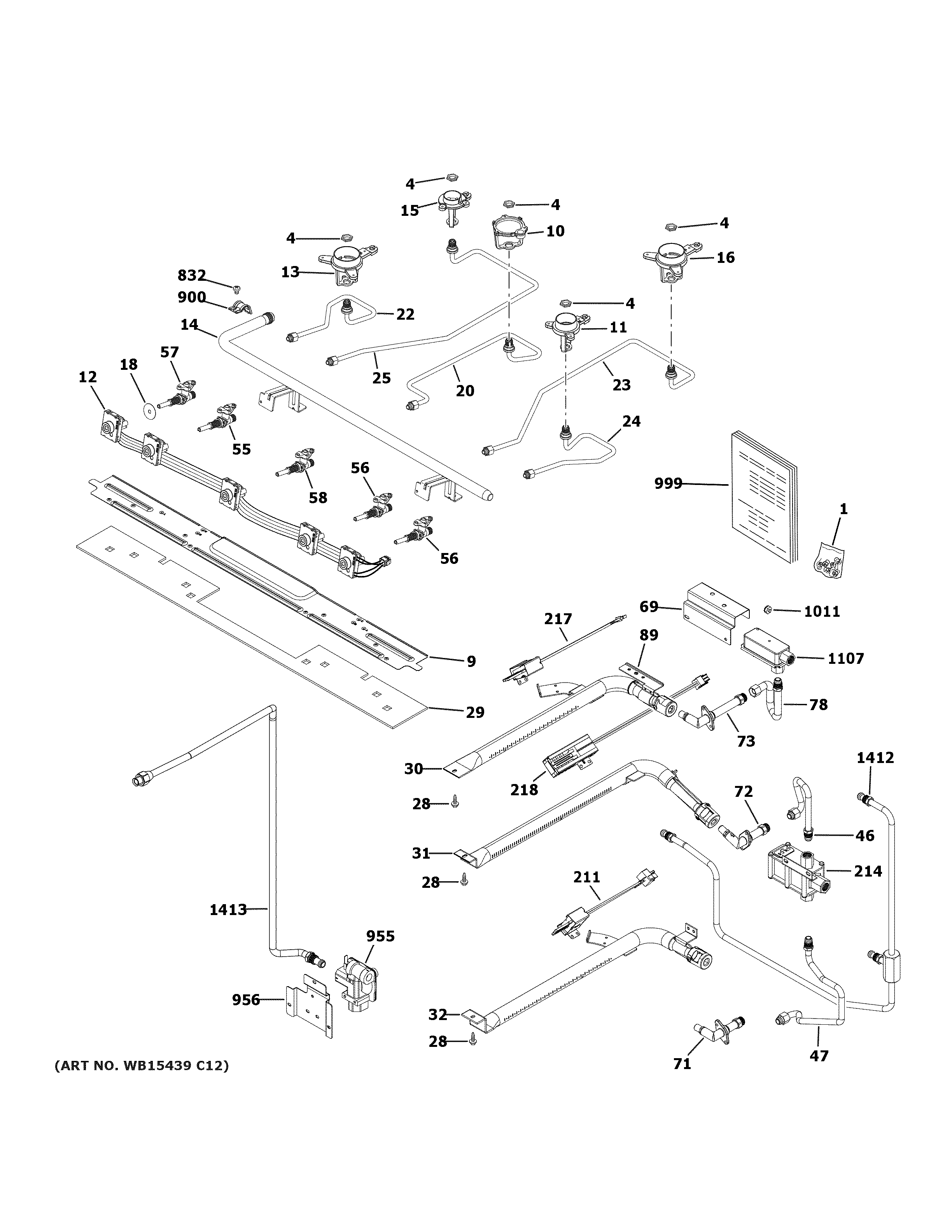

- Surface burner won’t light or flame is uneven: range surface burner cap WB28K10222 and burner assemblies
- Clicking or no spark at burners: range spark module WB13X24741
- Oven temperature off: range oven temperature sensor WB24X25557

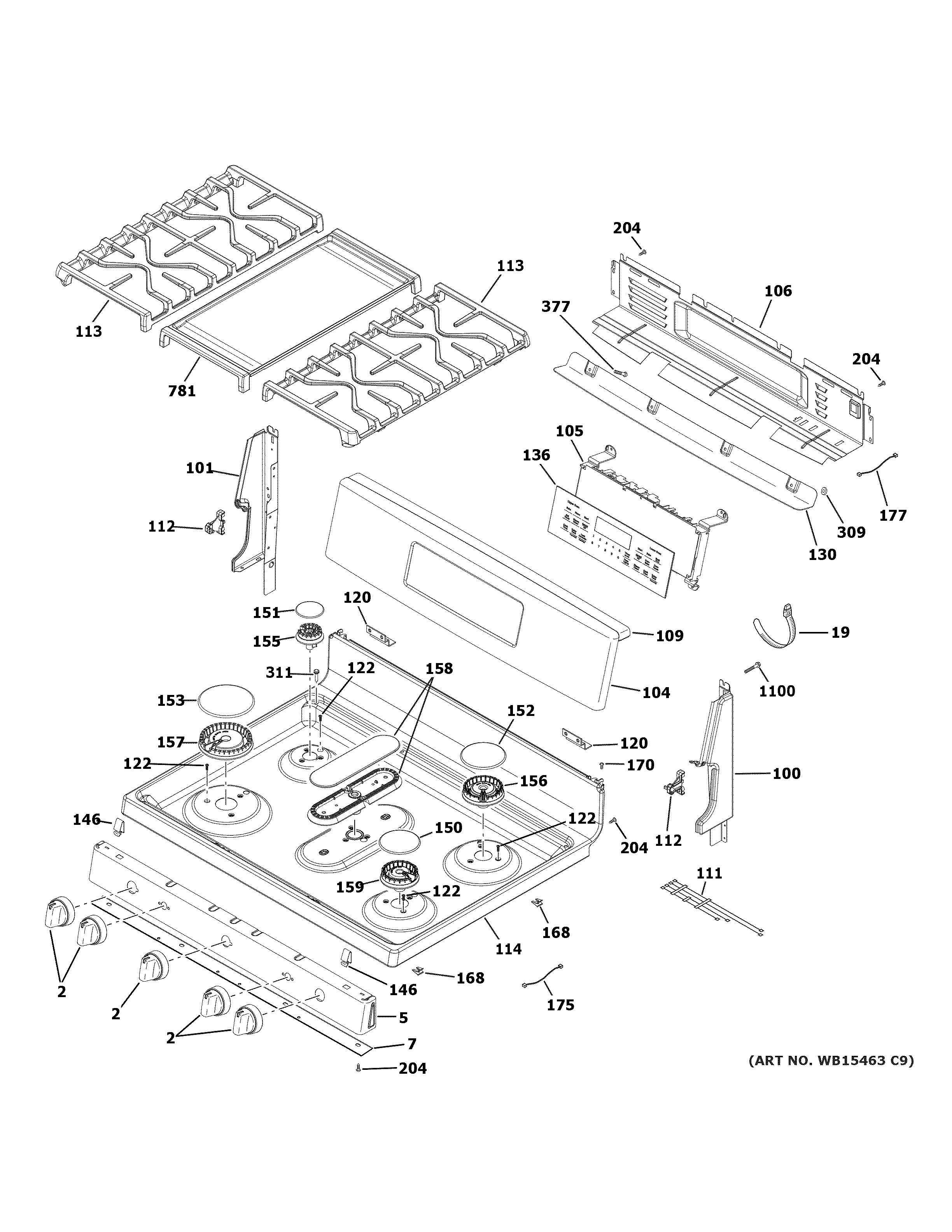

- Knob cracked or slipping: range surface burner knob WB03X24818
- Oven light out: oven lamp 40A15
Quick symptom-to-part guide
| Symptom | Likely area | Part example for JGBS86SP3SS |
|---|---|---|
| No bake heat | Oven ignition | WB28X28781 |
| Burner won’t ignite | Surface ignition | WB13X24741 |
| Weak/uneven flame | Burner cap or burner | WB28K10222 |
| Overheats/underheats | Temperature sensing | WB24X25557 |
Why it matters
Using model-specific parts prevents fit issues and repeat repairs. Gas ranges also rely on correct ignition timing and gas flow, so the right igniter, burner parts, and valves make a direct difference in safety and performance.
Before you order
We recommend these checks to avoid buying the wrong part:
- Match the part by model number JGBS86SP3SS and by the diagram location
- Compare your old part’s markings and connector style
- If you are replacing burner parts, clean ports and verify the cap is seated correctly
Last updated: March 2026
