Kenmore
Room Air Conditioner

Model # 25371055000 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25371055000 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

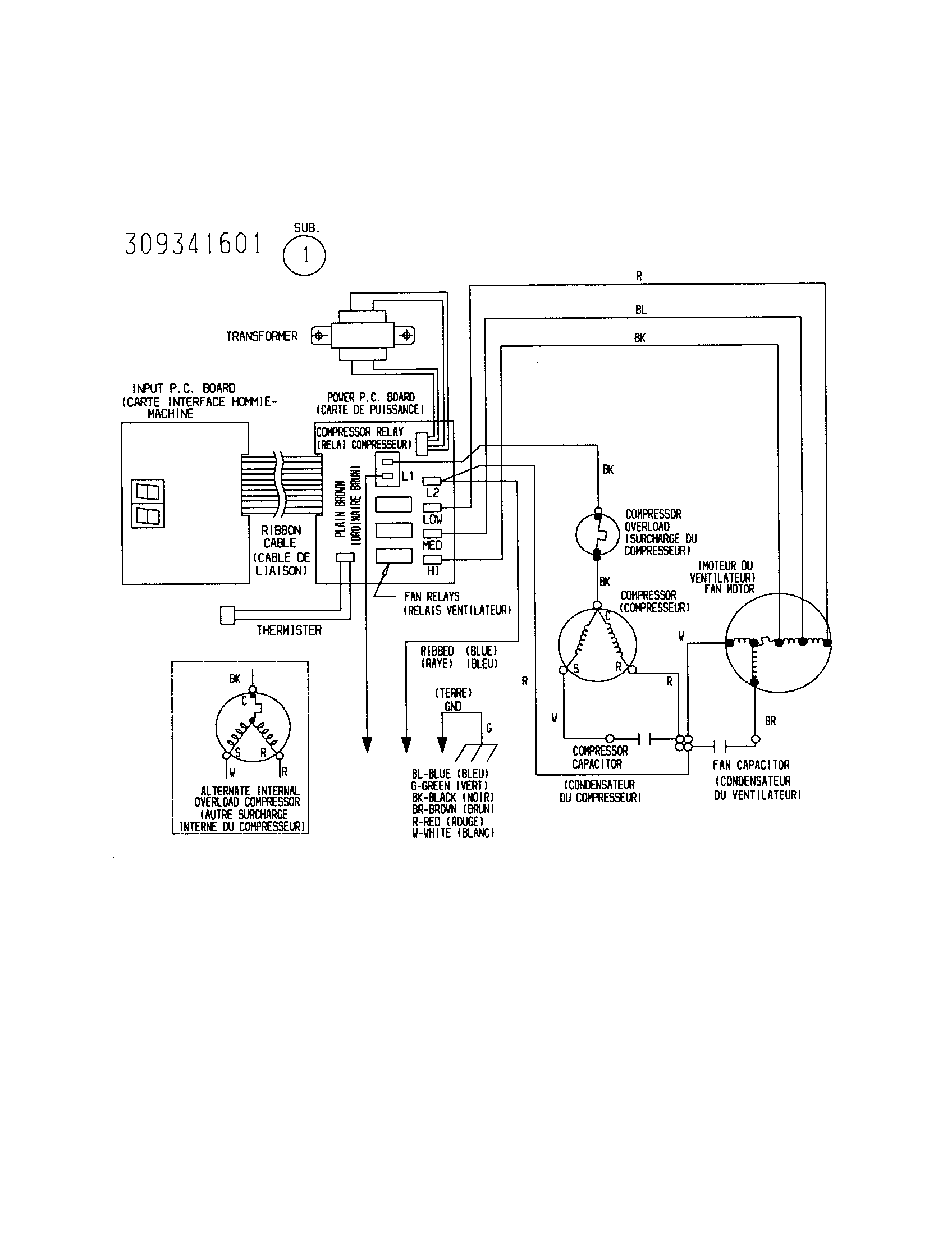

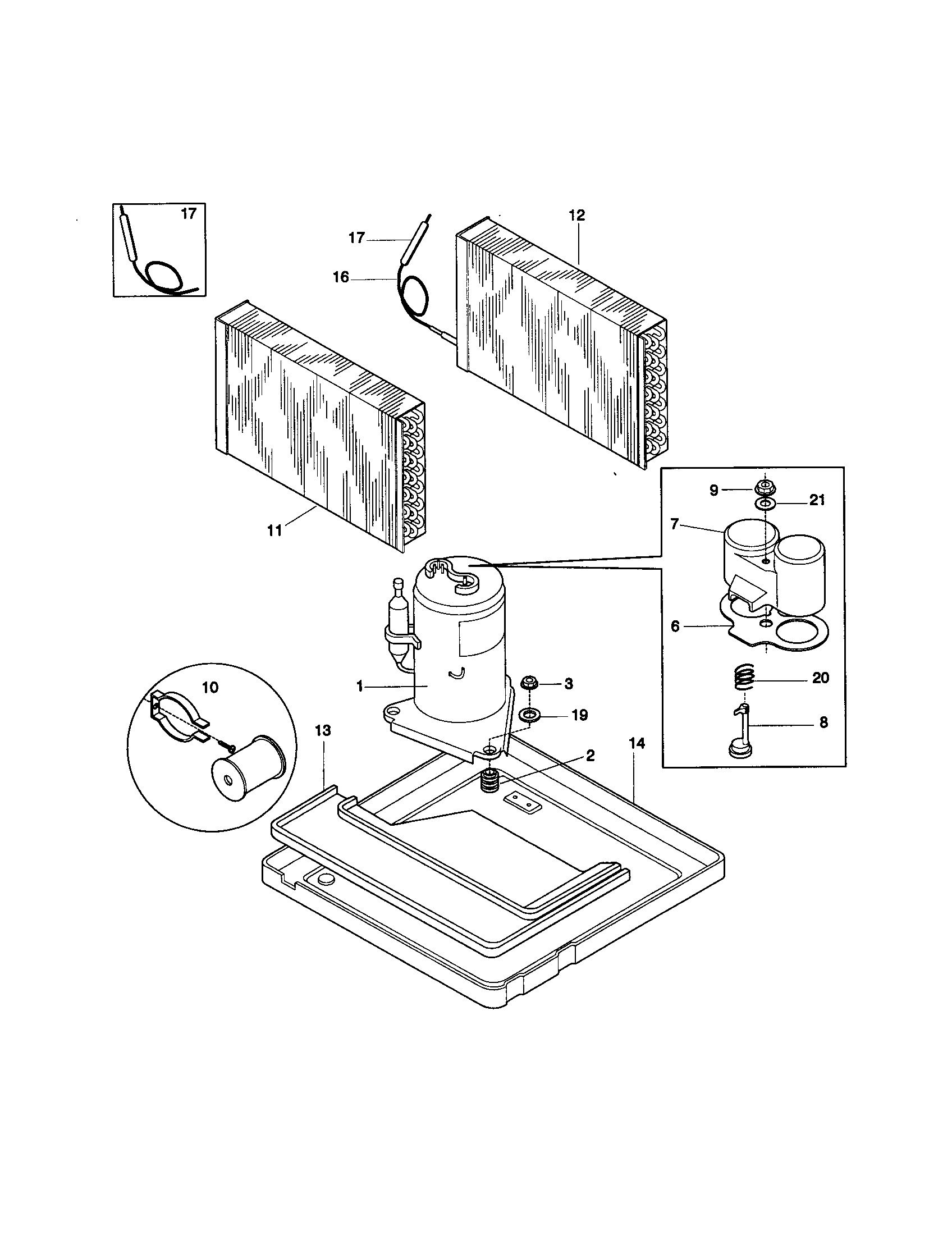

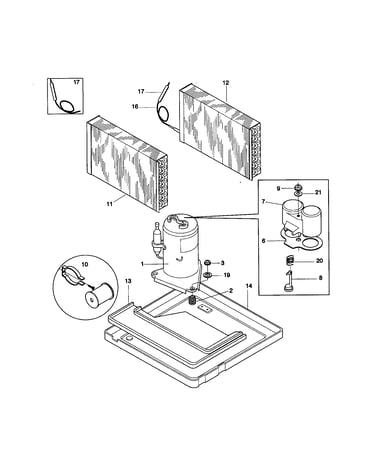

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Cover Capacitor 5303302855
#19

Control diagram

Cover capacitor

Part #5303302855

In Stock
Bulkhead 309602403
Bulkhead

Part #309602403

In Stock
Bracket Screw 5303301590
#74

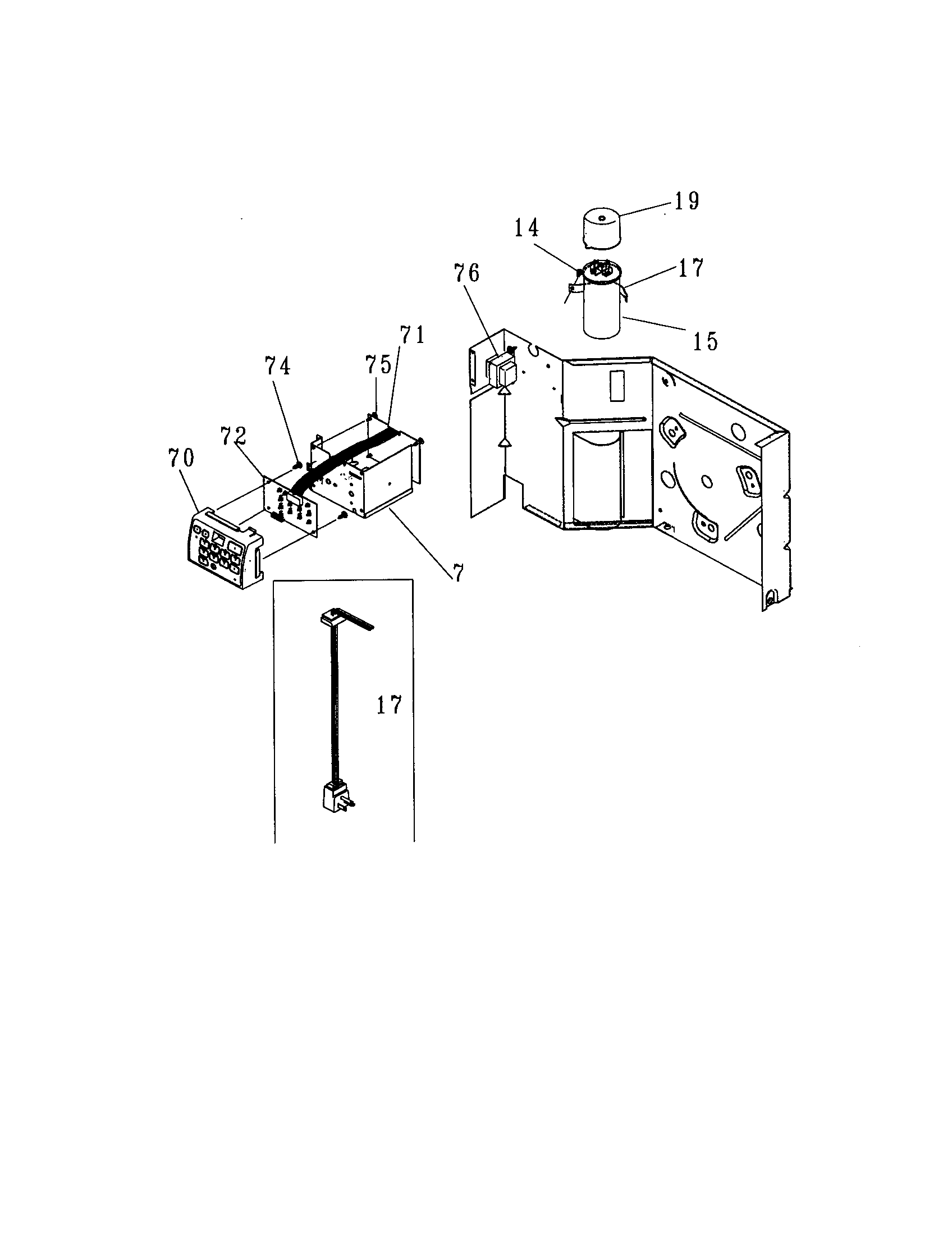

Control diagram

Bracket screw

Part #5303301590

This item is not returnable
In Stock
Room Air Conditioner Lock Nut 08007481
#2A

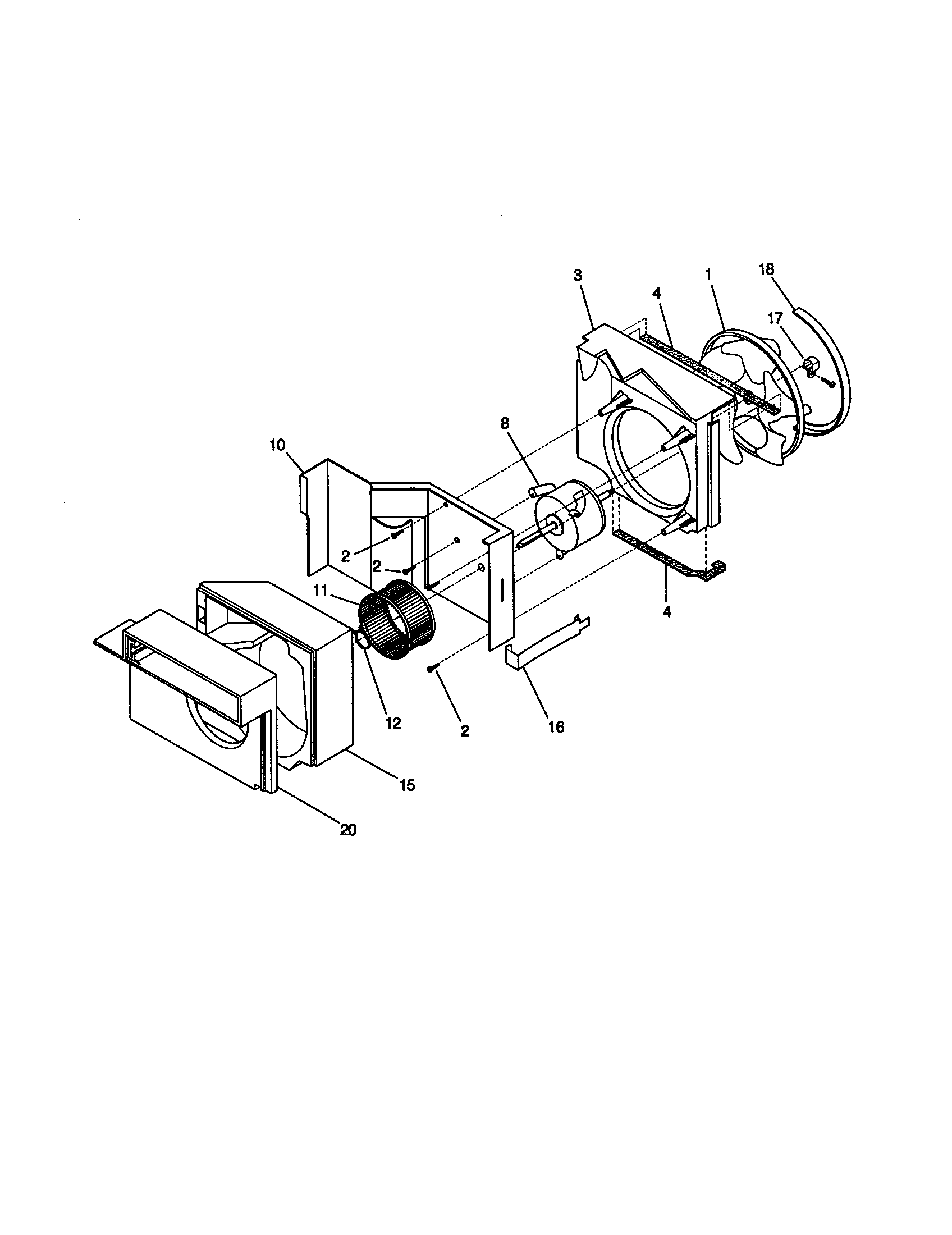

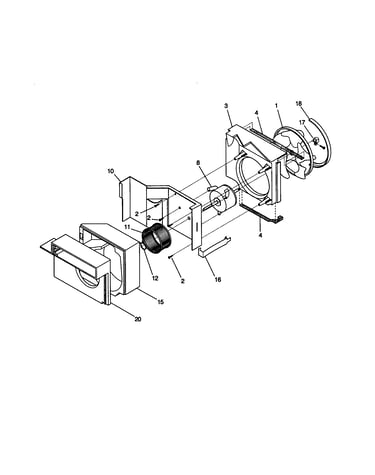

Air handling diagram

Room air conditioner lock nut

Part #08007481

This item is not returnable
In Stock
Foam Strip 5304407729
#1

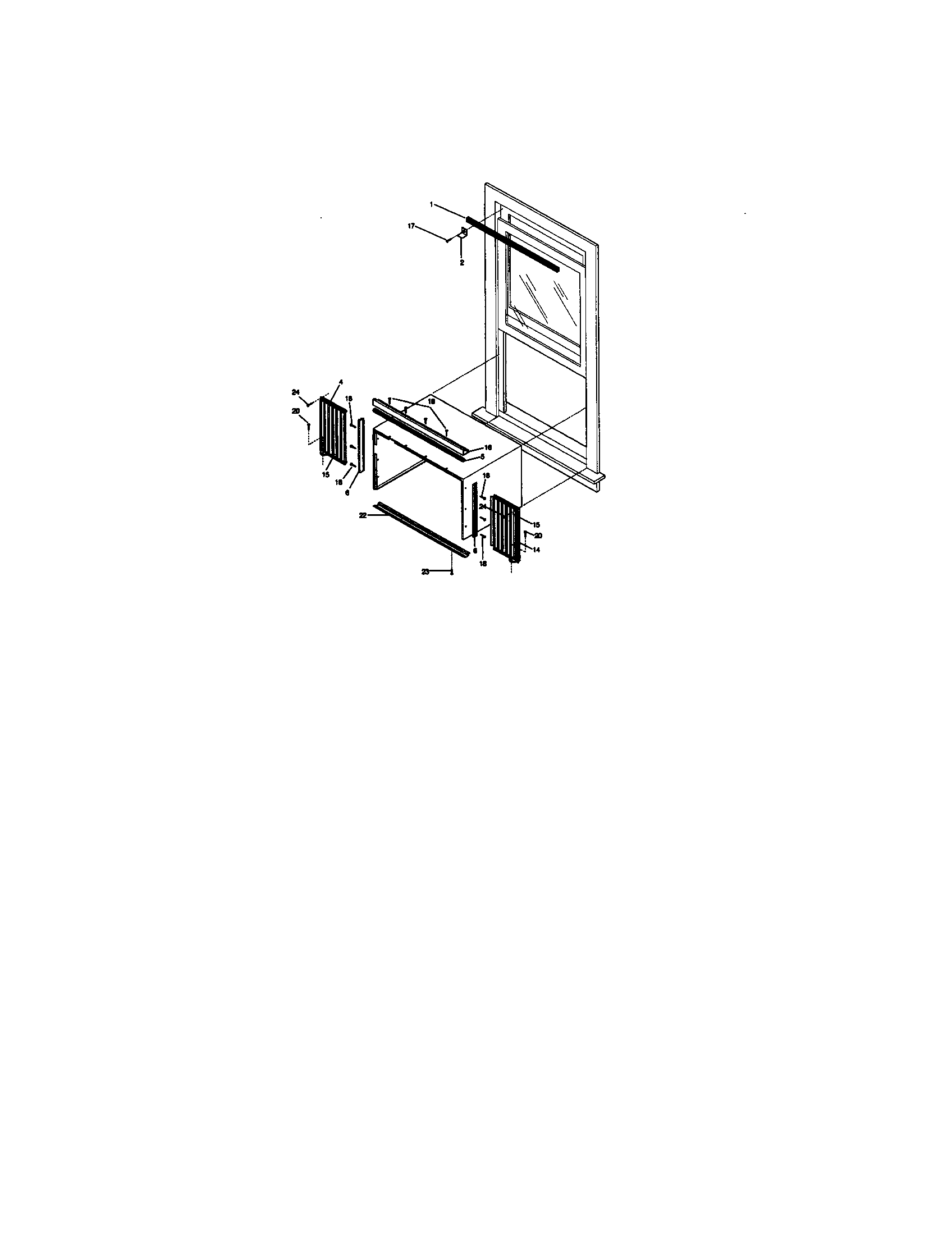

Window mounting diagram

Foam strip

Part #5304407729

In Stock
Screw 3202975
#2

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 5303303691
Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
In Stock
Overlay 309340801
#19

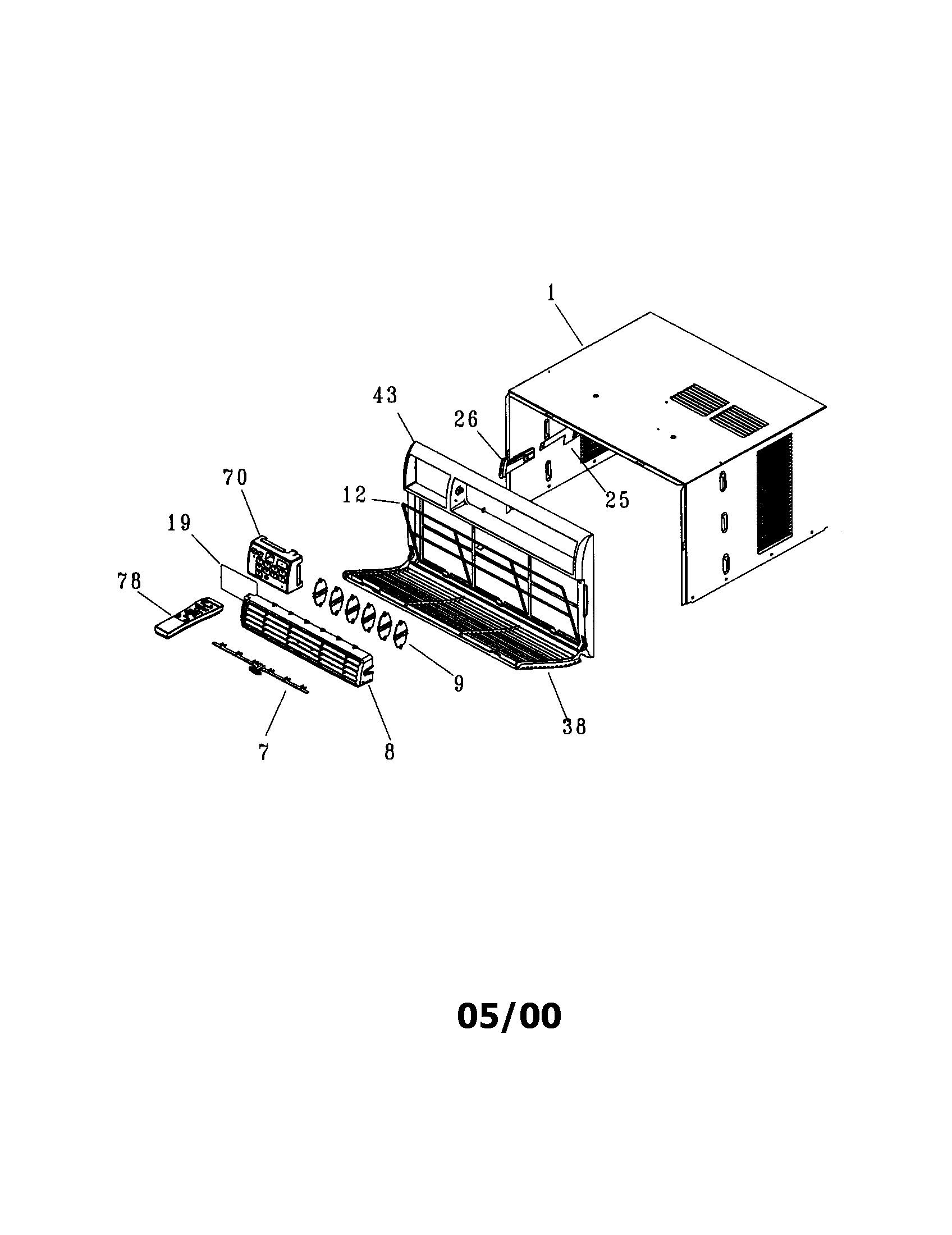

Cabinet front and wrapper diagram

Overlay

Part #309340801

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Grille Front 309637701
#43

Cabinet front and wrapper diagram

Air conditioner grille front

Part #309637701

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Fan Blade Clamp 5303012110
#12

Air handling diagram

Room air conditioner fan blade clamp

Part #5303012110

The manufacturer no longer makes this part, and there's no substitute part
