Gas Cooktop

Model # GC901 Official Fisher & Paykel cooktop

Here are the diagrams and repair parts for Official Fisher & Paykel GC901 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Fisher & Paykel Cooktop Burner Igniter (replaces 530486) 531606
Fisher & paykel cooktop burner igniter (replaces 530486)

Part #531606

$24.76
17% OFF Phone Price : $29.76
In Stock
Fisher & Paykel Cooktop Wok Burner Base 530228
#13

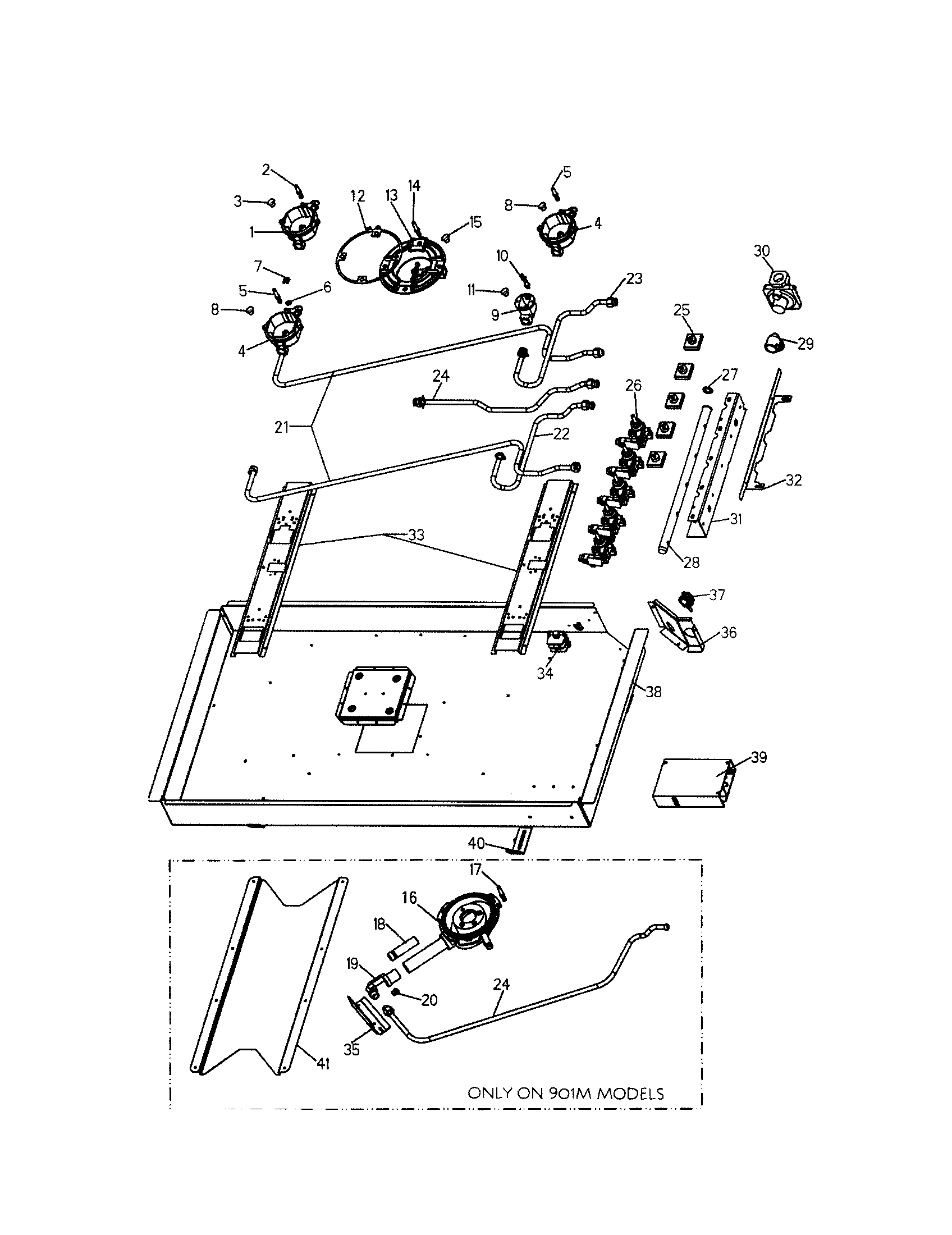

Basepan diagram

Fisher & paykel cooktop wok burner base

Part #530228

$86.80
5% OFF Phone Price : $91.80
In Stock
Fisher & Paykel Cooktop Screw, 10-pack 556099P

#NI02

All parts diagram

Fisher & paykel cooktop screw, 10-pack

Part #556099P

In Stock
Fisher & Paykel Electrode 531591P
#10

Basepan diagram

Fisher & paykel electrode

Part #531591P

$39.90
11% OFF Phone Price : $44.90
In Stock
Fisher & Paykel Cooktop Burner Head 531505
#14

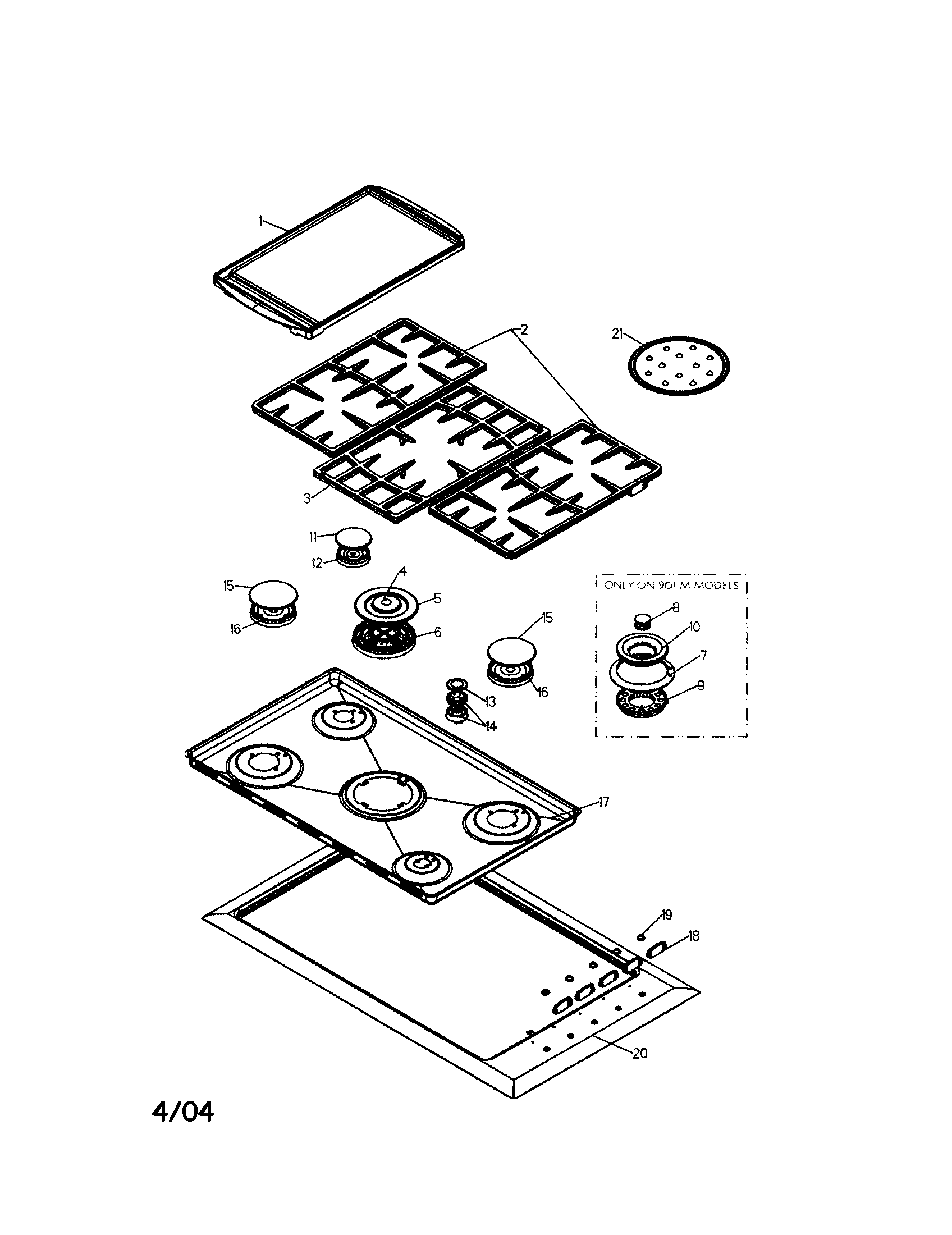

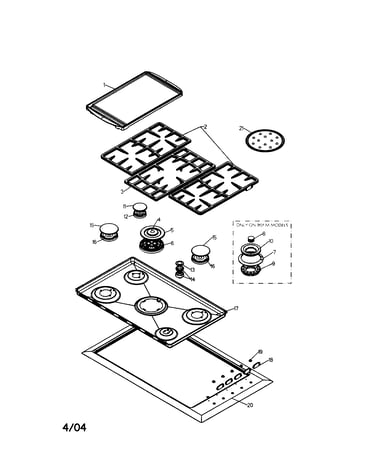

Hob top - gc901m diagram

Fisher & paykel cooktop burner head

Part #531505

$51.04
9% OFF Phone Price : $56.04
In Stock
Fisher & Paykel Cooktop Control Knob 531802
#18

Hob top - gc901m diagram

Fisher & paykel cooktop control knob

Part #531802

$22.52
18% OFF Phone Price : $27.52
In Stock
Burner Cap 531696
#15A

Hob top - gc901m diagram

Burner cap

Part #531696

Replaced by #531411

?
Manufacturer substitution
This part replaces 531696. Substitute parts can look different from the original.
$42.48
11% OFF Phone Price : $47.48
Back Order
Burner Cap 531697
#11A

Hob top - gc901m diagram

Burner cap

Part #531697

Replaced by #531410

?
Manufacturer substitution
This part replaces 531697. Substitute parts can look different from the original.
$43.67
10% OFF Phone Price : $48.67
Back Order
Burner Cap 531698
#13A

Hob top - gc901m diagram

Burner cap

Part #531698

Replaced by #531409

?
Manufacturer substitution
This part replaces 531698. Substitute parts can look different from the original.
Back Order
Fisher & Paykel Cooktop Burner Igniter (replaces 530244) 531679P
Fisher & paykel cooktop burner igniter (replaces 530244)

Part #531679P

$71.27
7% OFF Phone Price : $76.27
In Stock
