No. Snowblower belts are not universal; the correct belt depends on the exact belt length, width/profile, and how it routes around the pulleys and belt keepers on your Craftsman snowblower attachment model 486248374. This model specifically uses different drive belt lengths depending on your tractor clutch setup, so matching the specified belt is critical for reliable engagement and belt life.

What “not universal” means for model 486248374

The manual for this attachment calls out that two different drive belt lengths may be used, and using the wrong one can cause premature belt or bearing failure. Use the belt selection and routing details in the 486248374 owner’s manual.

Common reasons belts are not interchangeable:

• Length differences (even 1 inch matters for tension and engagement)
• Width/profile differences (V-belt shape must match pulley grooves)
• Clutch type differences (manual attachment clutch vs electric attachment clutch)
• Belt keeper and idler layout (routing must match the frame and pulleys)
• Material/construction differences (duty rating affects stretch and slip)

Which belt should you use on this attachment?

For Craftsman 486248374, the manual identifies these drive belt options:

Belt option	Typical use case on this attachment	Sears PartsDirect part page
55-inch drive belt	Used on certain manual attachment clutch setups (the belt is identified by the number printed on it)	Drive belt, 1/2 x 55-in 46989
56-inch drive belt	Used on tractors with manual attachment clutches in specific configurations (the belt is identified by the number printed on it)	Drive belt, 1/2 x 56-in 48138

How we recommend confirming the correct belt (fast checklist)

Use this process before ordering:

• Confirm your attachment model is 486248374.
• Identify your tractor’s attachment clutch type (manual vs electric).
• Check whether your tractor setup matches any special bracket/suspension configuration noted in the manual.
• Verify the number printed on the outside of the belt (when available).
• Compare belt routing to the diagrams so the belt runs inside all belt keepers.

Why it matters

A “close enough” belt can slip, overheat, or run misaligned. On a snowblower attachment, that shows up as weak throwing performance, squealing, frequent belt breakage, or premature idler/bearing wear.

Last updated: February 2026

To attach the discharge chute on your Craftsman snowblower attachment model 486248374, we align the chute on the greased discharge ring, install the anti-rotation bracket, then fasten the chute keepers and spacers so the chute rotates freely without binding. Use the steps and hardware callouts in the 486248374 owner's manual.

Step-by-step: attaching the chute (model 486248374)

• Coat the top of the ring around the discharge opening with general-purpose grease.
• Set the discharge chute on the ring facing forward.
• Place the anti-rotation bracket on top of the chute flange and align the holes.
• Install the chute spacers and chute keepers under the flange.
• Fasten with the specified bolts, flat washers, and flanged lock nuts.
• Tighten until snug, but do not crush or gouge the plastic chute keepers.
• Turn the crank rod to confirm the chute rotates smoothly; if it binds, back each fastener off about 1/4 turn.

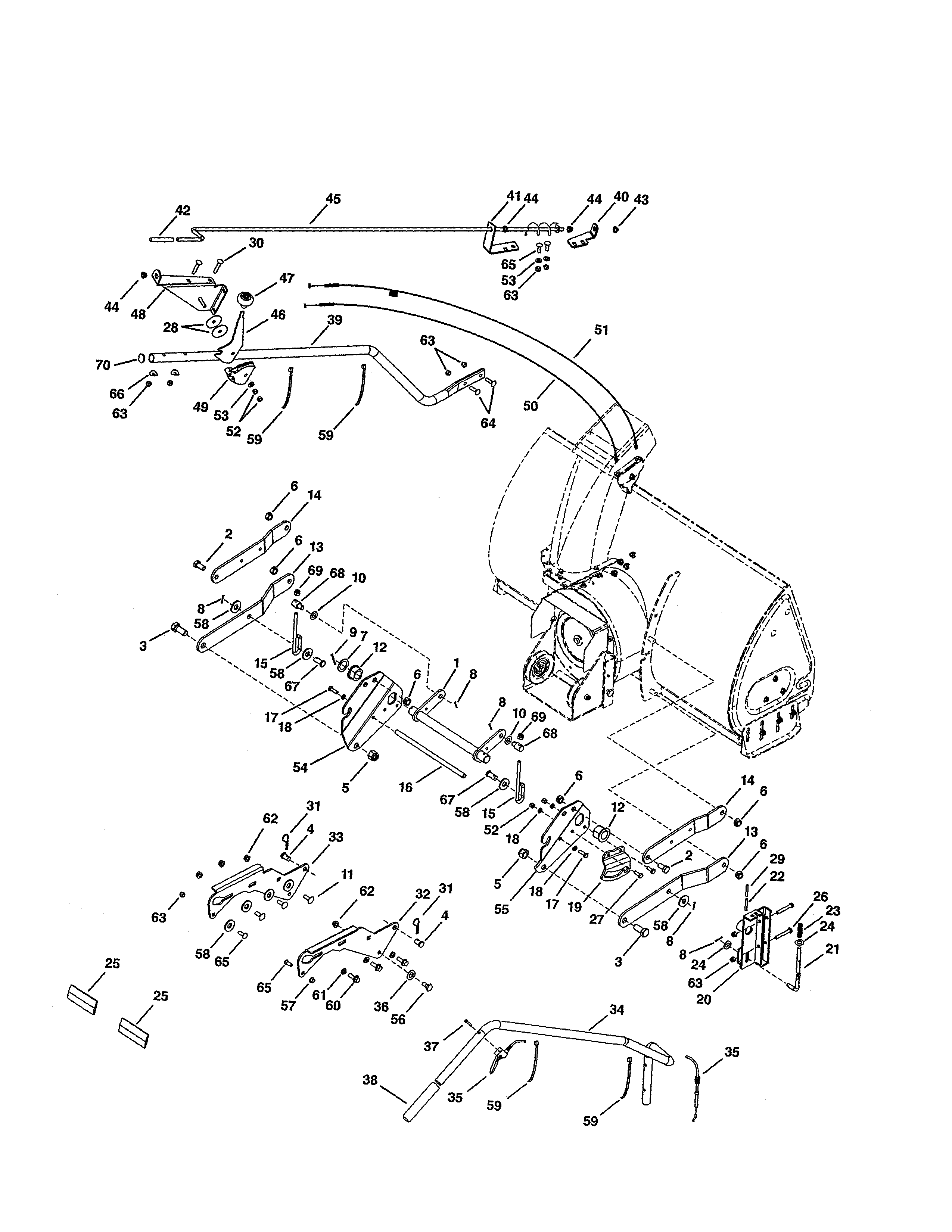

Cable and crank rod checks (so it turns and tilts correctly)

After the chute is secured, we verify the controls:

• Confirm the crank rod spiral does not rub the notches in the chute flange.
• Route and secure control cables to the crank rod support tube (a nylon tie is commonly used).
• Check full rotation (up to about 180 degrees) using the crank rod.
• Check the upper chute tilt using the chute tilt handle.

Quick troubleshooting if the chute will not rotate

Symptom	Most common cause	What to do
Chute is stiff or stuck	Keepers tightened too much	Loosen keeper fasteners slightly (about 1/4 turn) and retest
Chute wobbles	Keepers too loose or missing spacers	Re-seat spacers/keepers and snug hardware evenly
Grinding or rubbing	Crank rod spiral contacting flange	Reposition spiral and re-tighten hardware

Why it matters

A properly installed chute keeps snow discharge controlled and prevents premature wear on the chute keepers, spacers, and crank components. It also helps the attachment throw snow consistently without the chute drifting out of position.

Last updated: February 2026

For the Craftsman snow thrower attachment model 486248374, the serial number label identifies your specific unit, but the year is not read from one universal Craftsman serial-number code. The reliable way is to use the serial number plus your purchase date and documentation in the 486248374 operator’s manual.

Where to find the serial number on model 486248374

The operator’s manual states the model and serial numbers are on a decal attached to the snow thrower (not the tractor).

• Look for the decal on the snow thrower frame or housing
• Write down the full serial number exactly as printed
• Record the date of purchase (often the best “year” reference)
• Keep a photo of the decal for parts matching

How to determine the year in a way that works

Because serial formats vary by manufacturer and production run, we use practical identifiers that consistently narrow the year.

Best methods (in order)

• Proof of purchase: receipt, invoice, or delivery date
• Manual/form date: the manual’s form/revision date helps establish the era of production
• Parts configuration match: compare your unit to the parts list and diagrams in the manual
• Dealer or service records: installation or service paperwork often lists the year

What you have	What it tells you	How to use it
Serial number	Identifies the exact unit	Use it when ordering parts or requesting support
Purchase date	The most accurate “year owned”	Treat as the unit’s in-service year
Manual form/revision date	Production era	Confirms the attachment generation

Why it matters

The “year” is mainly useful for correct parts fit on a Craftsman tractor attachment. Matching by model 486248374 and the exact serial number helps avoid wrong belts, bearings, and hardware.

Last updated: February 2026

Yes; for the Craftsman 486248374 snow blower attachment, a light spray lubricant on key moving points and a slick coating inside the chute can help reduce sticking and improve operation. Focus on the discharge chute and pivot points, and avoid soaking belts, pulleys, or friction surfaces. See the 486248374 owner's manual for the lubrication points and maintenance schedule.

Where to spray (and where not to)

Use lubricant to prevent binding, reduce corrosion, and help snow slide through the housing.

Good places to apply a light coat

• Inside the discharge chute (to reduce snow sticking)
• Inside the housing surfaces where snow contacts (a light coat of wax is also commonly used)
• Pivot points on the snow thrower
• Pivot points of the idler arms on the clutch/idler assembly
• Control cables for the discharge chute (use penetrating oil)
• Trigger assembly and chute tilt control assembly (use a spray lubricant)

Avoid spraying directly on

• Drive belts (including the auger drive belt 42992)
• Pulleys (including the pulley 47044)
• Any clutch or belt contact surfaces where slip would cause poor performance

Quick product comparison: what to use

Goal	Best choice	Notes
Reduce chute clogging	Silicone spray or a light wax coat	Helps snow slide; reapply as needed during wet snow
Free up sticky pivots	General spray lubricant	Wipe off excess to avoid attracting grit
Protect exposed bare metal	Light oil film	Useful before storage after cleaning off salt
Free up chute cables	Penetrating oil	Apply lightly, then cycle the control to work it in

Why it matters

Over-spraying can create belt slip and reduce throwing distance, while under-lubricating can make chute controls stiff and increase wear. Keeping the chute slick and the pivot points lubricated helps the attachment run smoother and reduces clogging during heavy or wet snow.

Last updated: February 2026

Common problems on the Craftsman snowblower attachment model 486248374 include a clogged discharge chute, spiral augers that will not turn, and the attachment stalling the tractor engine. Most issues trace back to belt tension, broken belts, sheared shear bolts, or snow conditions and operating speed; the troubleshooting chart in the 486248374 owner's manual walks through the fixes.

Most common symptoms and what usually causes them

• Clogged discharge chute: wet, heavy snow; chute icing; running at low throttle.
• Spiral augers do not turn: V-belt too loose, V-belt broken, or shear bolts sheared.
• Snow thrower stalls tractor engine: ground speed too fast, throttle too low, snow too deep.
• Attachment rides up over snow: hard-packed snow, incorrect skid shoe setup, or trying to take too wide a bite.
• Front wheels slide instead of steering: low traction; tire chains or wheel weights often help.

Quick checks we recommend before replacing parts

1. Shut down safely: shut off engine, disengage the attachment clutch, set parking brake, remove key, and disconnect spark plug wire(s).
2. Inspect belts for glazing, cracking, fraying, or slack.
3. Check for sheared shear bolts if the auger stopped suddenly after hitting packed snow or debris.
4. Clear jams correctly: unclog the chute with a wooden stick, not your hands.
5. Confirm operating setup: full throttle, lower tractor gear, and smaller passes in deep snow.

Parts that commonly solve “won’t throw” or “auger won’t turn” complaints

Symptom	What to inspect	Example part for this model
Auger not turning	Auger belt condition and tension	Auger drive belt 42992
Poor throwing distance	Drive belt, pulley wear, belt slip	Drive belt, 1/2 x 55-in 46989
Rides up or scrapes	Skid shoe wear and adjustment	Snowblower attachment skid shoe 24279BL1

Why it matters

Catching belt slack, shear-bolt failures, and chute clogs early prevents repeated stalling, reduces wear on pulleys and bearings, and helps the attachment throw snow consistently without overloading the tractor.

Last updated: February 2026

A snowblower typically lasts 10 to 20 years with normal residential use and consistent maintenance. For the Craftsman 486248374 snowblower attachment, lifespan depends most on belt condition, lubrication, storage practices, and avoiding impacts with hidden objects; follow the 486248374 owner's manual maintenance and safety guidance.

Typical lifespan by use and care

• Light use (few storms per year, stored indoors): 15 to 20 years
• Moderate use (regular storms, mixed conditions): 10 to 15 years
• Heavy use (deep, wet snow; frequent gravel contact): 7 to 12 years

What wears first	What you notice	Common fix
Drive and auger belts	Slipping, slow auger/impeller, burning rubber smell	Replace belt(s) such as the auger drive belt 42992
Skid shoes	Scraping, poor height control, uneven clearing	Replace the snowblower attachment skid shoe 24279BL1
Bearings and pulleys	Squealing, wobble, vibration	Inspect pulleys/bearings; replace as needed
Gearbox components	Grinding, loss of drive to auger	Inspect and service gearbox

Maintenance that extends life the most

• Inspect and replace belts before they glaze, crack, or stretch (belt slip accelerates wear elsewhere).
• Set the scraper height correctly for your surface; use skid shoes to avoid digging into gravel.
• Clear foreign objects (sticks, stones, wires) from the path before blowing snow.
• Stop the tractor and disengage the attachment before clearing clogs; use a wooden stick, not hands.
• Store clean and dry; a light protective coating (such as wax inside the housing/chute) helps reduce corrosion.

Why it matters

Most “snowblower failures” are really wear issues (belts, skid shoes, bearings) or damage from impacts and clogs. Staying ahead of those items keeps your Craftsman 486248374 attachment throwing snow efficiently and helps prevent bigger repairs like gearbox or auger damage.

Last updated: February 2026

For the Craftsman snow thrower attachment model 486248374, the model number and serial number are printed on a decal attached to the snow thrower. We recommend writing both down (plus your purchase date) so you can match parts like belts, skid shoes, and gearbox components correctly.

Where to look on the attachment

Check these common decal locations on the snow thrower attachment:

• On the snow thrower frame (outer side panels of the housing)
• Near the auger housing area (side of the frame close to the auger)
• On the main housing assembly where the attachment mounts to the tractor
• On a flat, easy-to-read surface that is not directly in the snow discharge path

If the decal is dirty or iced over, wipe it clean and let it dry before reading.

What information to record (and why)

The decal typically includes more than just the model number. Record these items:

• Model number (for this unit: 486248374)
• Serial number (unique to your attachment)
• Date of purchase
• Any additional numbers printed near the model and serial fields

Why it matters

Parts can vary by model and production run. Having the correct model and serial helps us match the right components the first time, especially for wear items like the agri-fab lawn tractor snowblower attachment auger drive belt 42992 and drive pulleys.

Quick checklist if you cannot read the decal

Use this process to make the decal readable again:

• Clean with mild soap and water; avoid harsh solvents that can remove printing
• Use a flashlight at an angle to make faint text stand out
• Take a close-up photo and zoom in
• If the decal is damaged, compare your attachment to diagrams in the 486248374 owner's manual

Model number vs. serial number

Item	What it tells us	Example for this attachment
Model number	The exact product design	486248374
Serial number	The specific unit built	(varies by unit)

Last updated: February 2026

For a Craftsman snow blower attachment like model 486248374, repairs are typically handled by small-engine and lawn-and-garden equipment service shops, plus some tractor/attachment dealers. For the fastest results, we recommend using the service network tied to your tractor brand and bringing your 486248374 operator’s manual so the shop can confirm setup and parts.

What to look for in a repair shop

A good shop for this Craftsman 42-inch, 2-stage snow thrower attachment is one that routinely services tractor attachments (not just walk-behind snow blowers).

• Works on tractor-mounted snow throwers and PTO/belt-driven attachments
• Can diagnose belt, pulley, gearbox, auger, and chute issues
• Stocks common hardware (shear bolts, nuts, washers) and can order model-specific parts
• Has experience with Craftsman series 917 and Husqvarna tractor compatibility
• Offers off-season turnaround or winter priority service

Quick triage before you schedule service

These checks help you describe the problem clearly and avoid an unnecessary trip.

• Inspect shear bolts for breakage (auger/impeller stops but drive continues)
• Check belt condition and tension (slipping, squealing, weak throwing distance)
• Listen for gearbox grinding or binding (possible internal gear damage)
• Verify auger spins freely by hand with the tractor off and spark plug wire disconnected
• Confirm skid shoes are set evenly so the housing is not digging in

Common repairs and the parts usually involved

Symptom	Most common area	Example part for this model
Auger does not turn	Shear bolts, auger drive	Agri-fab lawn tractor snowblower attachment bolt 42849
Poor throwing distance	Belt slip, pulley wear	Agri-fab lawn tractor snowblower attachment drive belt, 1/2 x 55-in 46989
Loud grinding or no drive	Gearbox	Agri-fab snowblower gearbox 71464

Why it matters

This attachment is designed to fit Craftsman series 917 and Husqvarna tractors, so the “right” repair shop is one that understands both the attachment and the tractor interface (mounting, lift linkage, belt routing, and engagement). Using the correct parts and adjustments prevents repeat belt failures and protects the auger/gearbox.

Last updated: February 2026

On the Craftsman 486248374 snow blower attachment, repeatedly breaking shear pins (shear bolts) means the auger is being shock-loaded: you are striking a foreign object, the auger is ice-jammed, or the auger is binding. The attachment is designed to shear the bolts to protect the auger shaft and gearbox.

What to check first (fast, high-impact)

• Shut the tractor off, remove the spark plug wire, and wait for all moving parts to stop before inspecting.
• Inspect the intake area for hidden obstructions (rocks, chunks of ice, wood, gravel).
• Verify you are using the correct shear bolts and matching nylock nuts (not standard hardware-store bolts).
• Spin the auger by hand (with power off) to confirm it turns freely without scraping or binding.
• Check belt tension and engagement so the auger is not partially engaged or slipping under load.

Common causes and the fix

What’s happening	Why it breaks shear pins	What we do to fix it
You hit a foreign object	Instant shock load shears the bolt by design	Clear the path; stop immediately after impact and inspect for damage
Ice jams the auger	Auger cannot rotate but drive force continues	Clear the jam; let the attachment cool to outdoor temp before use if snow is melting on contact
Auger binds from wear/misalignment	Extra drag overloads the shear point	Inspect bearings, auger alignment, and housing clearance; correct rubbing before replacing bolts
Wrong bolt type/fit	Bolts that are too hard or wrong diameter fail unpredictably	Use the specified shear bolt and nylock nut; install snug, not over-tight

Parts that are often involved

If you are breaking pins frequently, also inspect the wear items that can cause binding or impact with the ground:

• Snowblower attachment skid shoe 24279BL1 for correct scraper height and ground clearance
• Auger bearings and flange bearings for roughness or play
• Auger shaft and pulley components for wobble or misalignment

Why it matters

Shear pins are a protective “fuse.” If you replace them with the wrong fastener or keep running with a binding auger, you can damage higher-cost components like the auger shaft or gearbox.

For model-specific procedures (including auger shear bolt details and troubleshooting), follow the 486248374 owner’s manual.

Last updated: February 2026
