Model # UC-32 Official Goodman upflow & downflow evaporator coil

Here are the diagrams and repair parts for Official Goodman UC-32 upflow & downflow evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

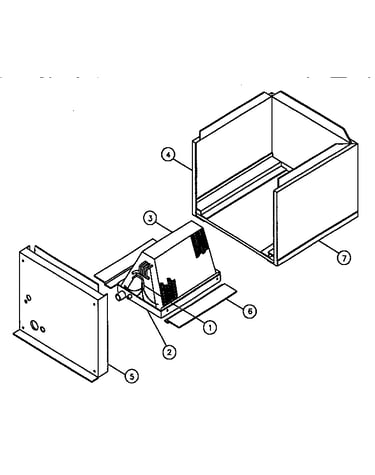

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Plastic Pan 17559-13N
#2

Functional replacement parts diagram

Plastic pan

Part #17559-13N

Replaced by #B1755913HDF

?
Manufacturer substitution
This part replaces 17559-13N. Substitute parts can look different from the original.
$80.11 |
6% OFF Phone Price : $85.11
In Stock
Coil Pan Asy 1585428-32NS
#3

Functional replacement parts diagram

Coil pan asy

Part #1585428-32NS

The manufacturer no longer makes this part, and there's no substitute part

Upflow Cabin 15777-06
#4

Functional replacement parts diagram

Upflow cabin

Part #15777-06

The manufacturer no longer makes this part, and there's no substitute part

Front Panel 15777-19
#5

Functional replacement parts diagram

Front panel

Part #15777-19

The manufacturer no longer makes this part, and there's no substitute part

Zee Coil Sup 17253-00
#6

Functional replacement parts diagram

Zee coil sup

Part #17253-00

The manufacturer no longer makes this part, and there's no substitute part

Filler Plate 15775-08
#7

Functional replacement parts diagram

Filler plate

Part #15775-08

The manufacturer no longer makes this part, and there's no substitute part

Flowrator B13136-68
#1

Functional replacement parts diagram

Flowrator

Part #B13136-68

The manufacturer no longer makes this part, and there's no substitute part
