Model # AJCM08ACEQ2 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCM08ACEQ2 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Room Air Conditioner Ambient Thermistor WJ27X10139
#55

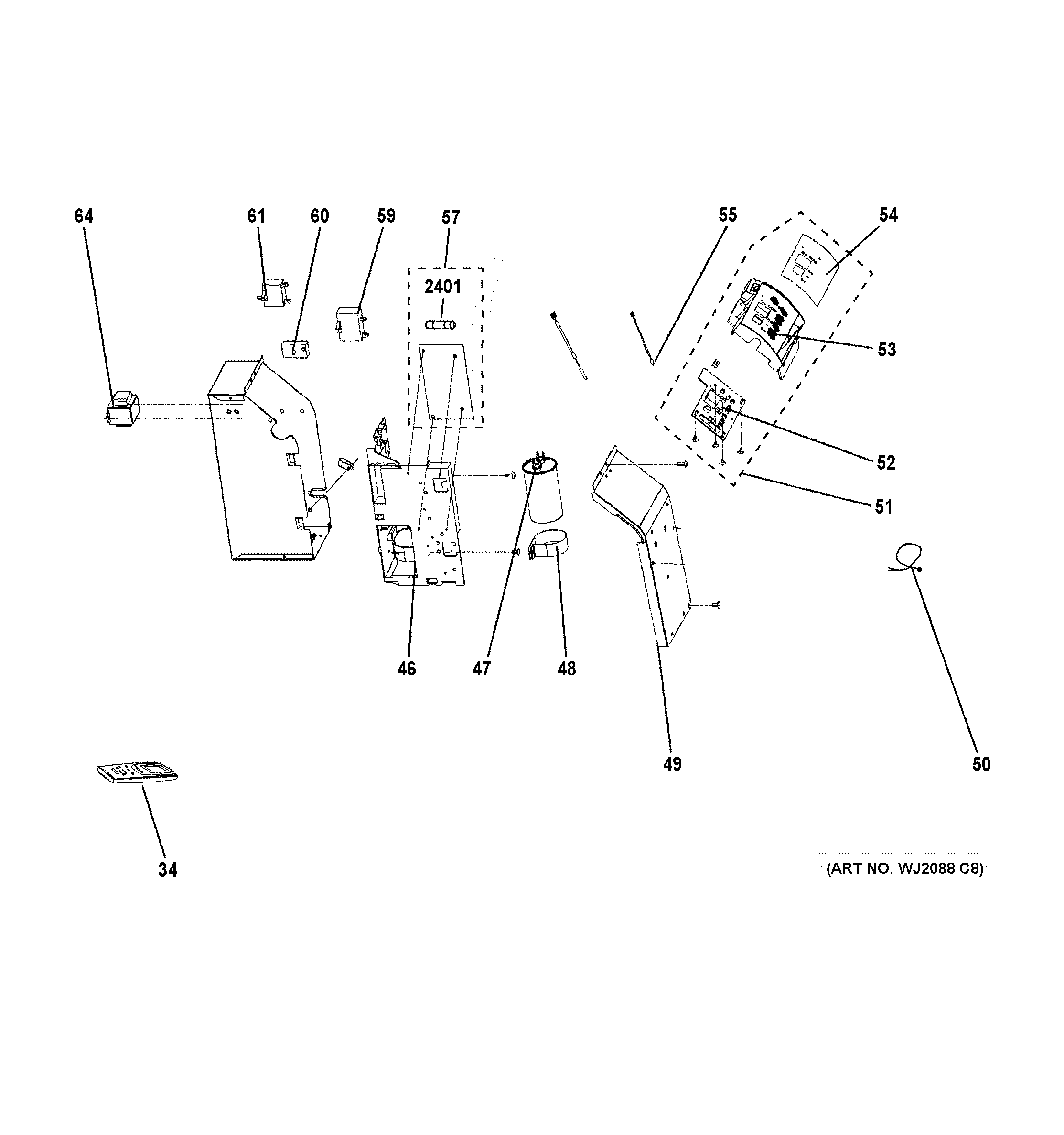

Control parts diagram

Room air conditioner ambient thermistor

Part #WJ27X10139

Replaced by #WJ26X25108

?
Manufacturer substitution
This part replaces WJ27X10139. Substitute parts can look different from the original.
This item is not returnable
$17.00 |
11% OFF Phone Price : $19.00
In Stock
Capacitor Clamp WJ02X10034
#48

Control parts diagram

Capacitor clamp

Part #WJ02X10034

This item is not returnable
$5.00
In Stock
Nut With Was WJ01X10314
#4

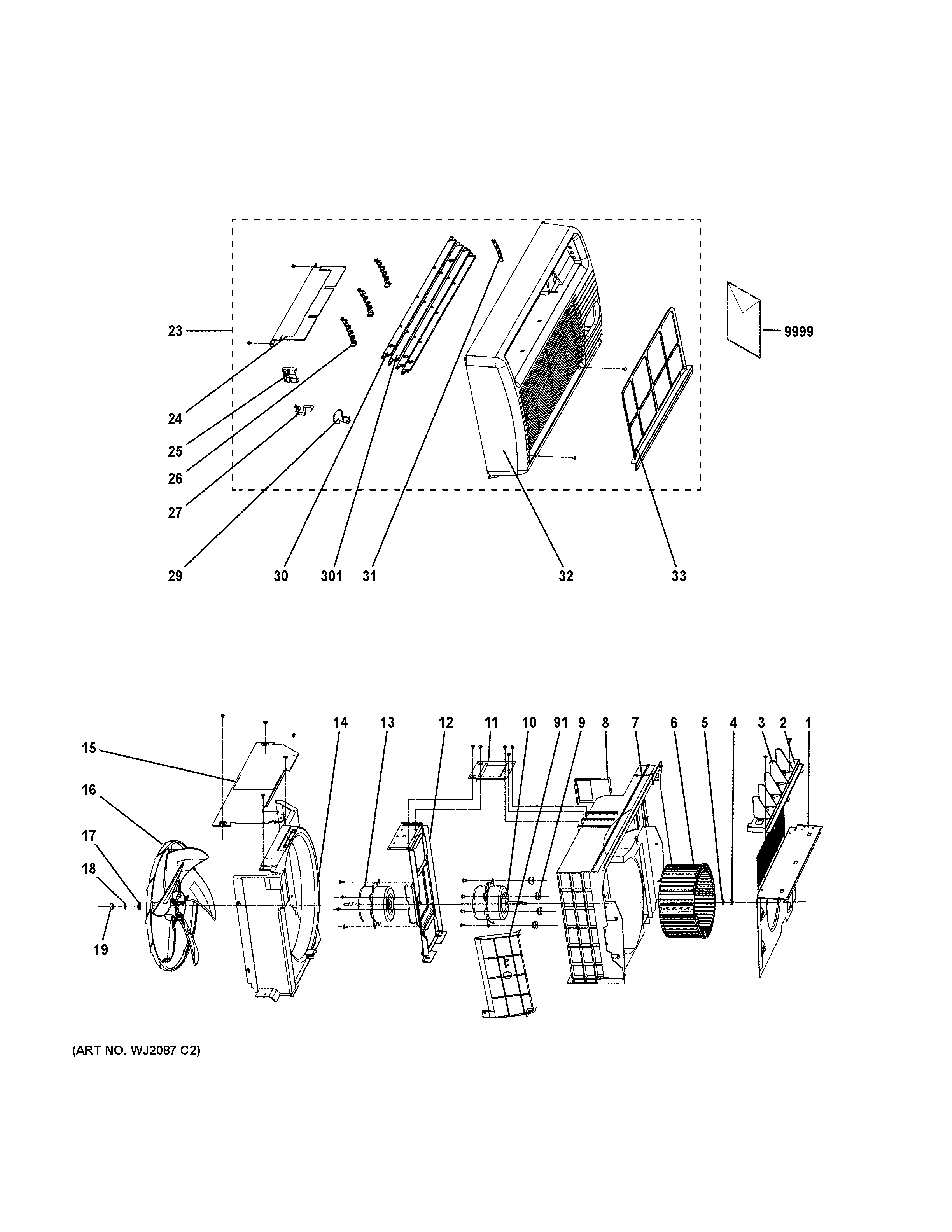

Grille & chassis parts diagram

Nut with was

Part #WJ01X10314

This item is not returnable
$5.00
In Stock
Notch Spring WJ02X10039
#27

Grille & chassis parts diagram

Notch spring

Part #WJ02X10039

This item is not returnable
$4.35
In Stock
Orifice WJ78X10060
#1

Grille & chassis parts diagram

Orifice

Part #WJ78X10060

$65.71
In Stock
Capacitor WJ20X10206
#47

Control parts diagram

Capacitor

Part #WJ20X10206

$72.87 |
6% OFF Phone Price : $77.87
In Stock
Plate WJ80X10019
#24

Grille & chassis parts diagram

Plate

Part #WJ80X10019

$14.81
In Stock
Condenser Assembly WJ87X10292
#35

Base pan & unit parts diagram

Condenser assembly

Part #WJ87X10292

$208.29
In Stock
Capillary Su WJ53X10276
#41

Base pan & unit parts diagram

Capillary su

Part #WJ53X10276

$100.80
In Stock
Sleeve Washer WJ01X10445
#9

Grille & chassis parts diagram

Sleeve washer

Part #WJ01X10445

$11.40
In Stock
