GE
Range/Microwave Combo

Model # JHP70GN5WH Official GE 30" electric range/microwave combo

Here are the diagrams and repair parts for Official GE JHP70GN5WH 30" electric range/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

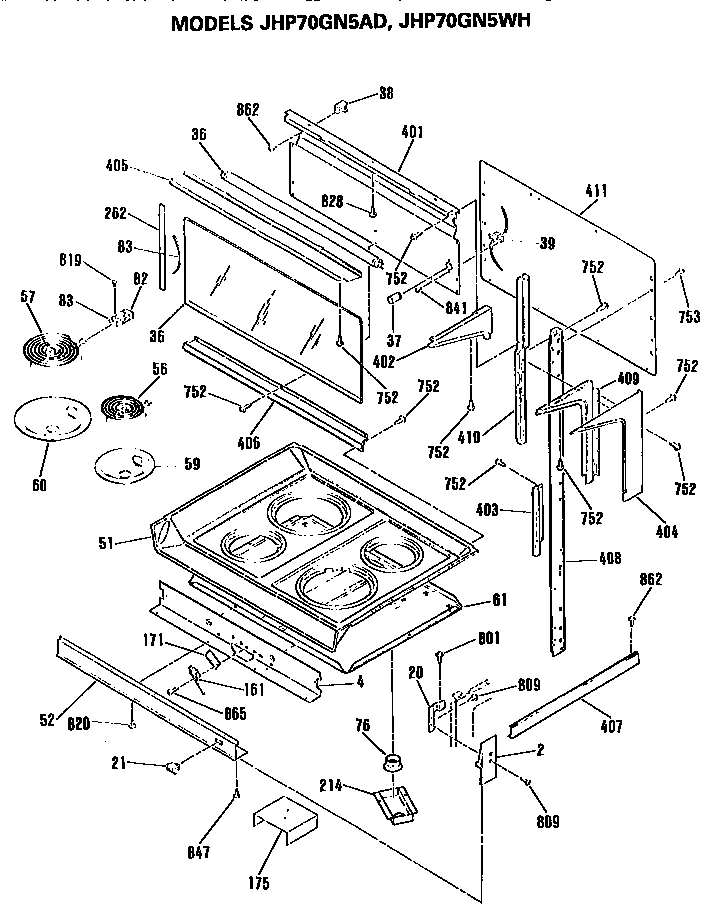

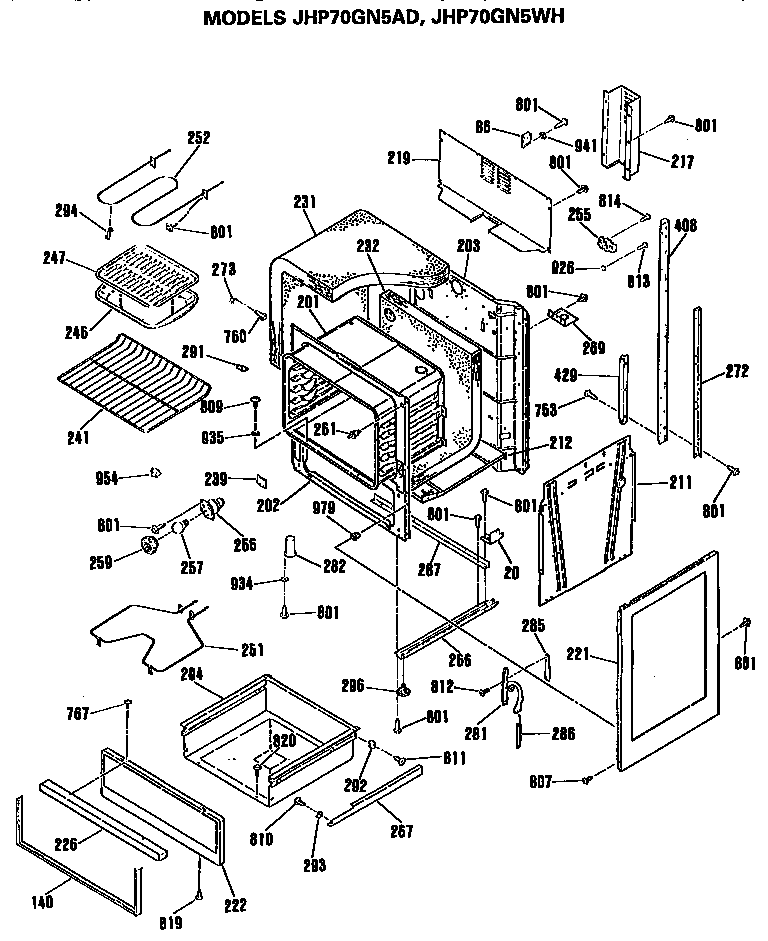

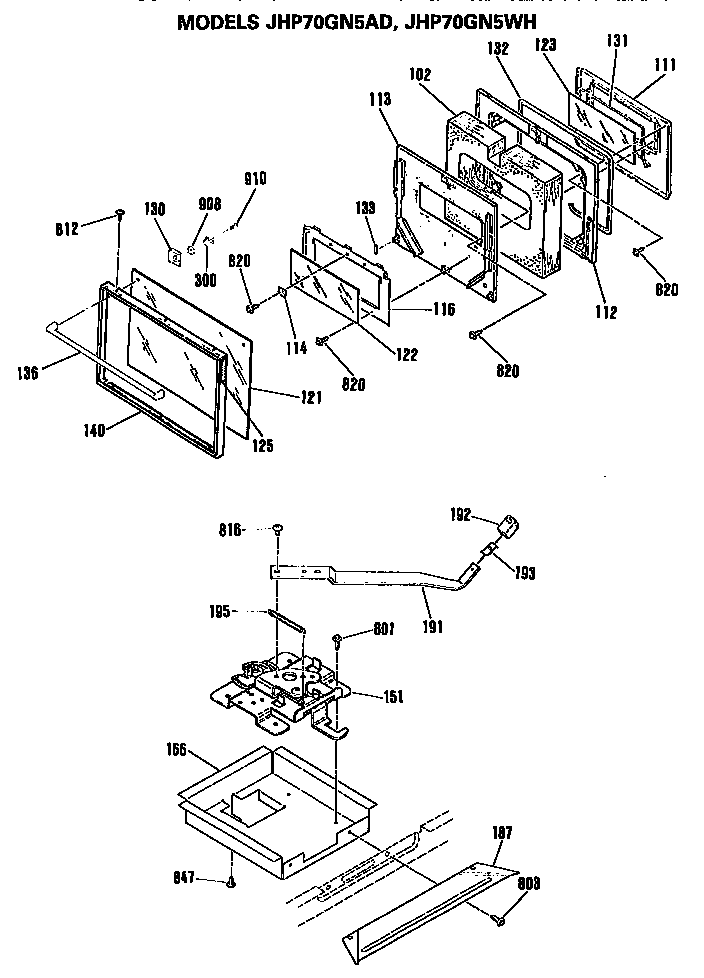

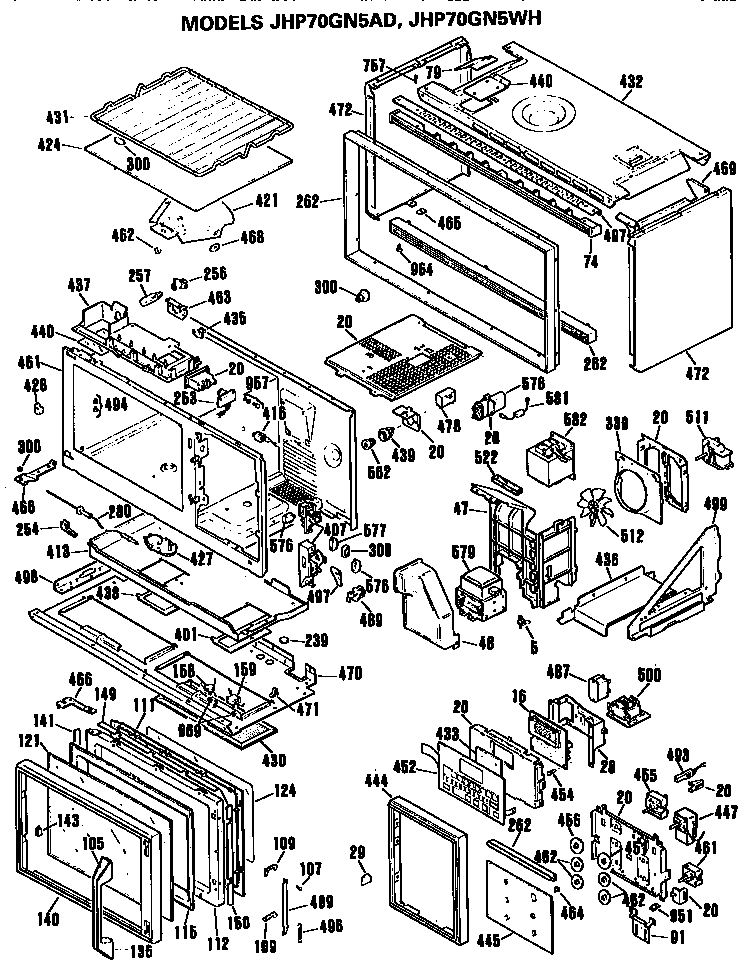

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 309 parts  |

Range Bake Element (replaces 325883, 340521, 8029, Wb44k5012e) WB44K5012

#251

All parts diagram

Range bake element (replaces 325883, 340521, 8029, wb44k5012e)

Part #WB44K5012

BEST SELLER
$52.65
9% OFF Phone Price : $57.65
In Stock
Diode WB27X5333

#1439

All parts diagram

Diode

Part #WB27X5333

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5333. Substitute parts can look different from the original.
BEST SELLER
$84.28
6% OFF Phone Price : $89.28
In Stock
Magnetron WB27X5410

#769

All parts diagram

Magnetron

Part #WB27X5410

The manufacturer no longer makes this part, and there's no substitute part

Range Broil Element (replaces Wb44x0232) WB44X232

#252

All parts diagram

Range broil element (replaces wb44x0232)

Part #WB44X232

BEST SELLER
$63.59
7% OFF Phone Price : $68.59
In Stock
Range Burner Control Switch WB21X5219

#3

All parts diagram

Range burner control switch

Part #WB21X5219

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB21X5219. Substitute parts can look different from the original.
BEST SELLER
$62.20
7% OFF Phone Price : $67.20
In Stock
Range Oven Door Hinge, Right (replaces Wb14x0104, Wb14x114) WB14X104

#281

All parts diagram

Range oven door hinge, right (replaces wb14x0104, wb14x114)

Part #WB14X104

$32.83
13% OFF Phone Price : $37.83
In Stock
Screw-4-pk WB1M01

#801

All parts diagram

Screw-4-pk

Part #WB1M01

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Range Oven Door Gasket (replaces Wb02x9168, Wb2x9381) WB2X9168

#131

All parts diagram

Range oven door gasket (replaces wb02x9168, wb2x9381)

Part #WB2X9168

This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock
Range Screw WB1X1137

#809

All parts diagram

Range screw

Part #WB1X1137

$7.88
11% OFF Phone Price : $8.88
In Stock
Screw WB1K5028

#760

All parts diagram

Screw

Part #WB1K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1K5028. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
