Whirlpool AC1854XS0 air conditioner heat pump Parts

Here are the diagrams and repair parts for Whirlpool AC1854XS0 air conditioner heat pump, as well as links to manuals and error code tables, if available.

Whirlpool AC1854XS0 air conditioner heat pump
By Schematic
By Part

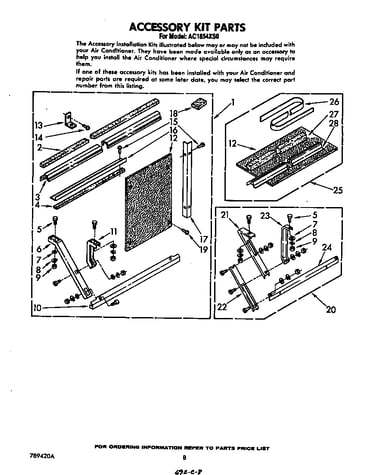

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AC1854XS0 Air Conditioner Heat Pump

  • Filter-air for Whirlpool AC1854XS0 - Part 649958

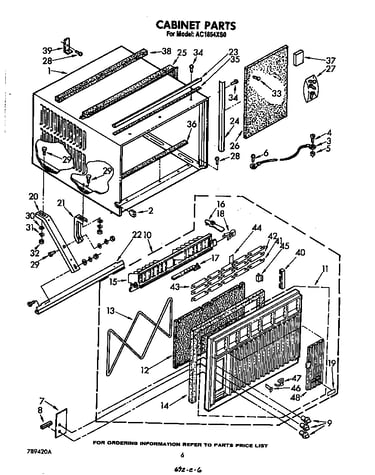

    Cabinet diagram

    Filter-air

    Part #649958

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool AC1854XS0 - Part 488854

    Cabinet diagram

    Screw

    Part #488854

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover for Whirlpool AC1854XS0 - Part 997269

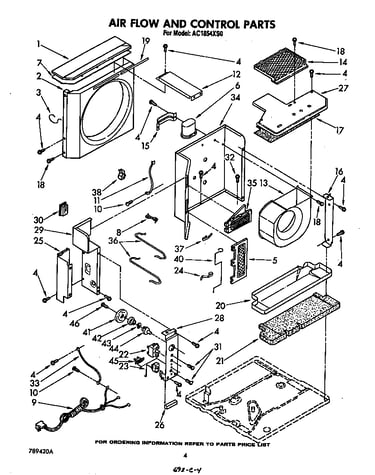

    Airflow and control diagram

    Cover

    Part #997269

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket Nut for Whirlpool AC1854XS0 - Part 950037

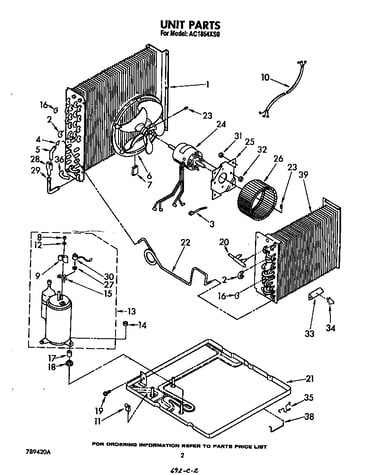

    Unit diagram

    Gasket Nut

    Part #950037

    The manufacturer no longer makes this part, and there's no substitute part

  • Tube for Whirlpool AC1854XS0 - Part 484230

    Unit diagram

    Tube

    Part #484230

    The manufacturer no longer makes this part, and there's no substitute part

  • Retainer for Whirlpool AC1854XS0 - Part 813610

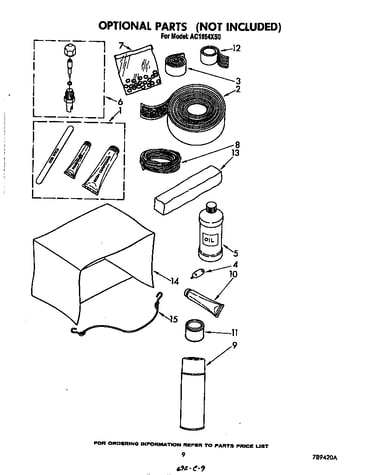

    Lit/optional diagram

    Retainer

    Part #813610

    The manufacturer no longer makes this part, and there's no substitute part

  • Actuator for Whirlpool AC1854XS0 - Part 997223

    Airflow and control diagram

    Actuator

    Part #997223

    The manufacturer no longer makes this part, and there's no substitute part

  • Adapter for Whirlpool AC1854XS0 - Part 997397

    Airflow and control diagram

    Adapter

    Part #997397

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool AC1854XS0 - Part 488624

    Airflow and control diagram

    Screw

    Part #488624

    The manufacturer no longer makes this part, and there's no substitute part

  • Louver-vt for Whirlpool AC1854XS0 - Part 649957

    Cabinet diagram

    Louver-vt

    Part #649957

    The manufacturer no longer makes this part, and there's no substitute part
