GE FUF17DTFRWH freezer Parts
Here are the diagrams and repair parts for GE FUF17DTFRWH freezer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for FUF17DTFRWH Freestanding Freezers

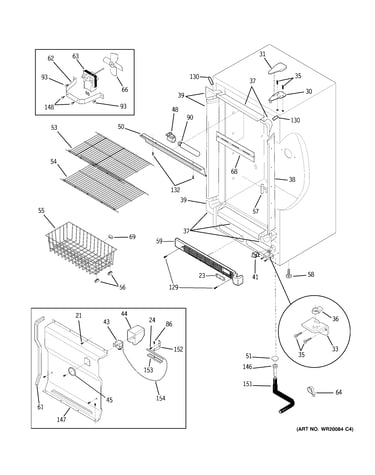

Cabinet diagram
Trim-cabinet Corner,whit
Part #WR02X12717
The manufacturer no longer makes this part, and there's no substitute part

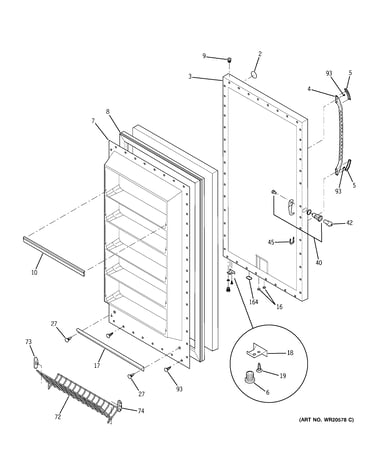

Freezer door diagram
Rack-door,(6
Part #WR17X11913
The manufacturer no longer makes this part, and there's no substitute part

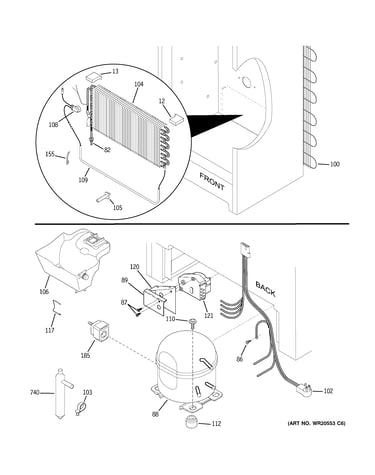

Unit parts diagram
Freezer Defrost Heater
Part #WR51X10060
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Clamp Cover
Part #WR02X12247
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Switch Light
Part #WR23X10516
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Bumper Basket
Part #WR02X6361
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Refrigerator Evaporator
Part #WR85X10033
The manufacturer no longer makes this part, and there's no substitute part
Freezer door diagram
Trim-handle,white
Part #WR38X10392
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Shelf Bottom Wh
Part #WR71X10075
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Motor,fan ,115 V
Part #WR60X10267
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer electronic control board
The electronic control board manages the compressor to control freezer temperature. Replace the control board using the…
Repair time and Difficulty
45 minutes or less
How to replace a freezer thermistor
When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follo…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
