Model # 15813190 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 15813190 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

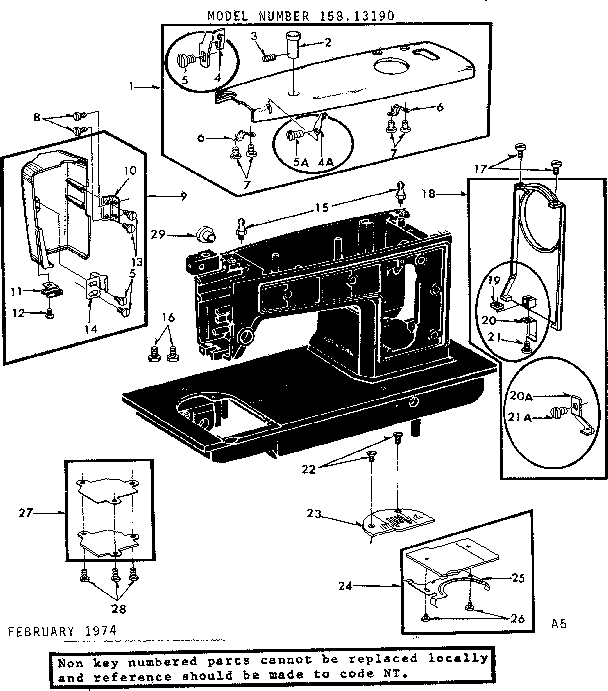

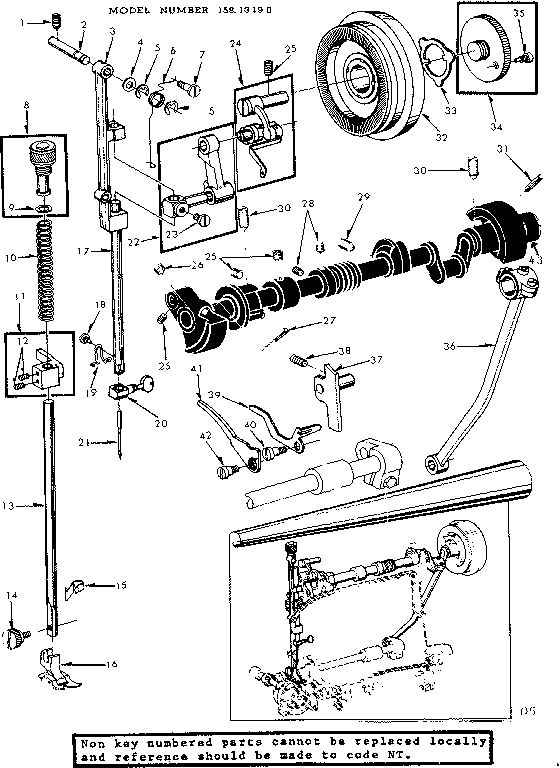

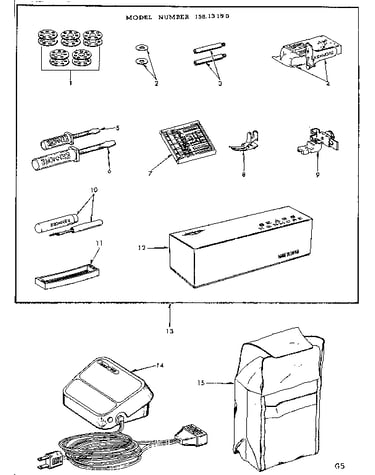

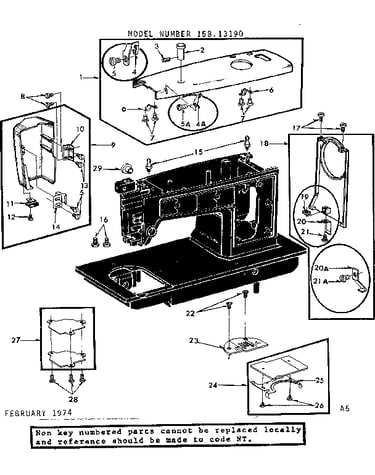

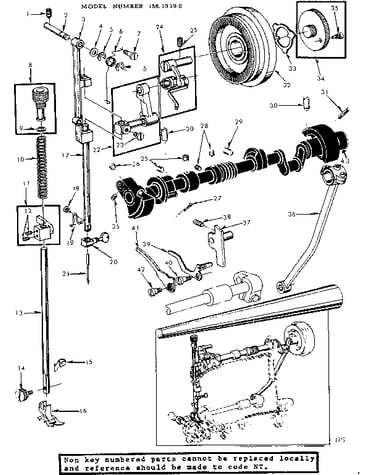

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |

Spring 8576
#14

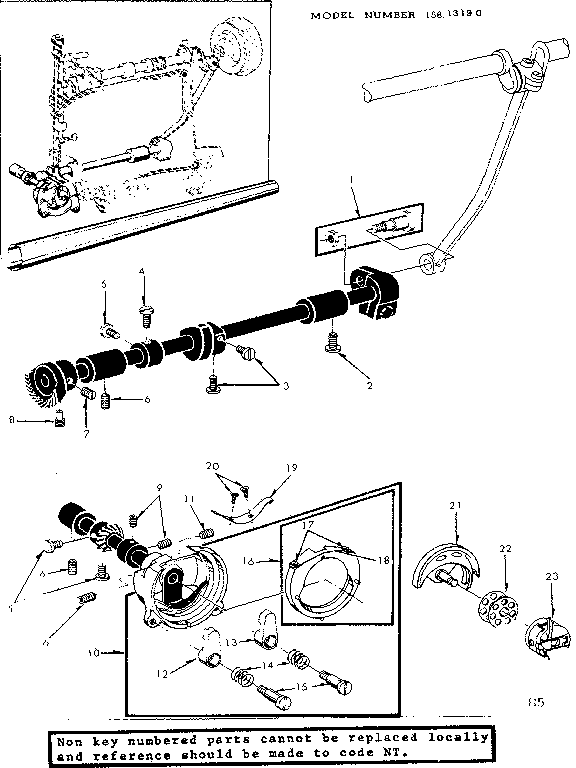

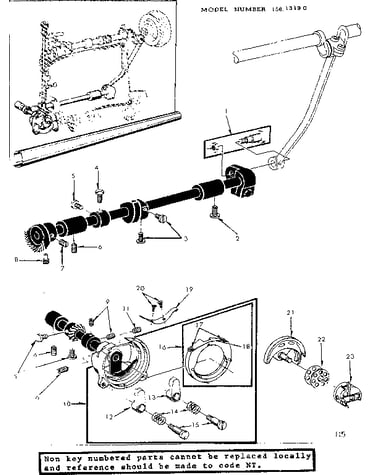

Shuttle assembly diagram

Spring

Part #8576

The manufacturer no longer makes this part, and there's no substitute part

Spring 32307
#47

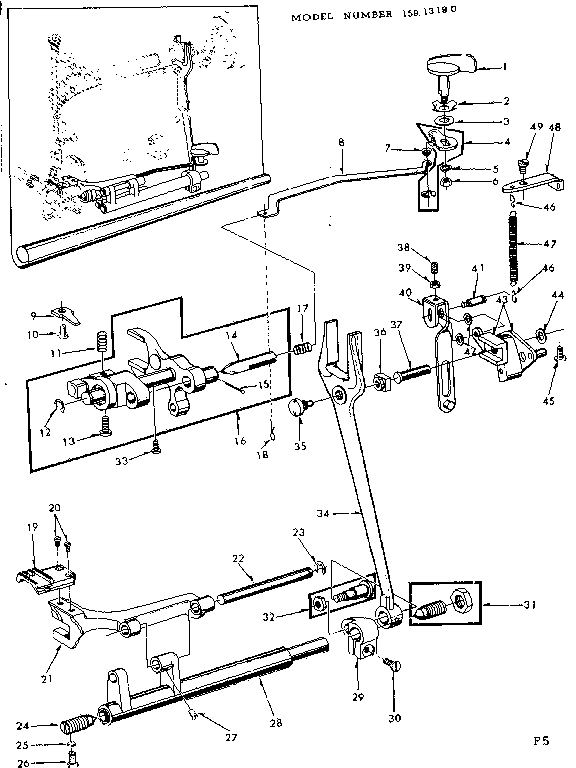

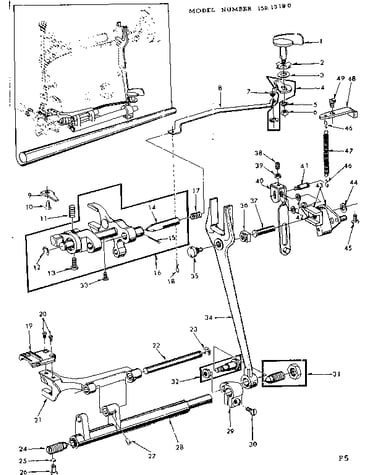

Feed regulator assembly diagram

Spring

Part #32307

The manufacturer no longer makes this part, and there's no substitute part

Hook 8700
#46

Feed regulator assembly diagram

Hook

Part #8700

The manufacturer no longer makes this part, and there's no substitute part

Bracket Set 36575
#4

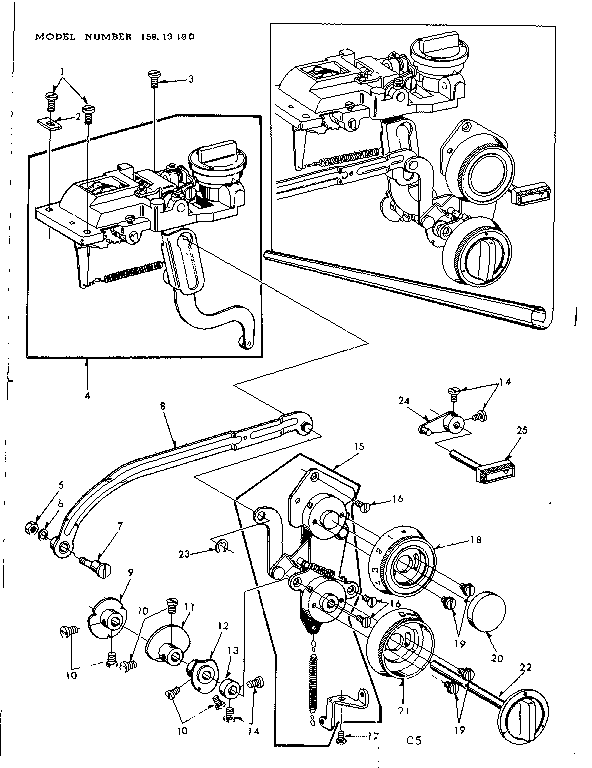

Zigzag guide assembly diagram

Bracket set

Part #36575

The manufacturer no longer makes this part, and there's no substitute part

Snap Pin 37076
#18

Feed regulator assembly diagram

Snap pin

Part #37076

The manufacturer no longer makes this part, and there's no substitute part

Washer 9100
#3

Feed regulator assembly diagram

Washer

Part #9100

The manufacturer no longer makes this part, and there's no substitute part

Connect Bar 26794
#8

Feed regulator assembly diagram

Connect bar

Part #26794

The manufacturer no longer makes this part, and there's no substitute part

Buttonhole Cam 36974
#11

Zigzag guide assembly diagram

Buttonhole cam

Part #36974

The manufacturer no longer makes this part, and there's no substitute part

Cam 33913
#12

Zigzag guide assembly diagram

Cam

Part #33913

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 37118
#32

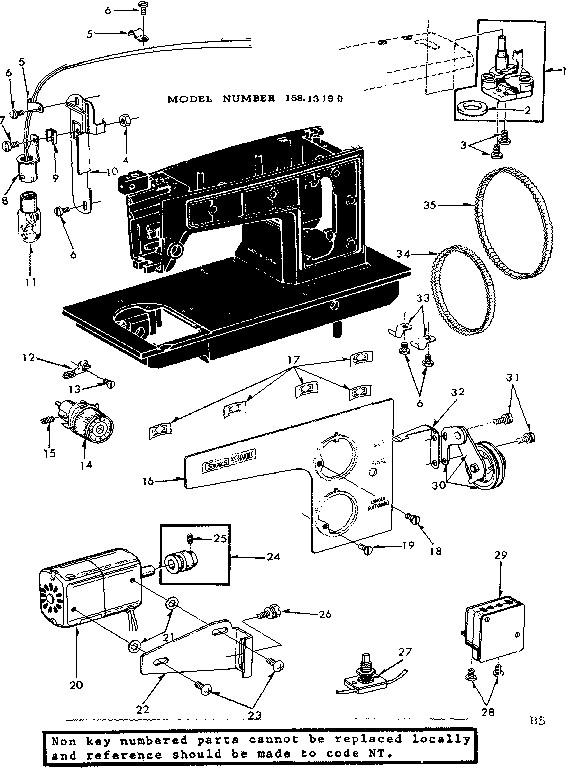

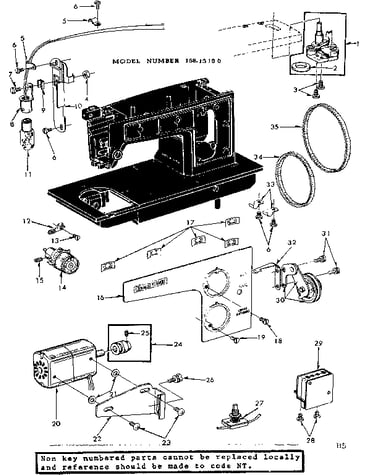

Motor assembly diagram

Spring plate

Part #37118

The manufacturer no longer makes this part, and there's no substitute part
