MTD
Gas Walk-Behind Mower

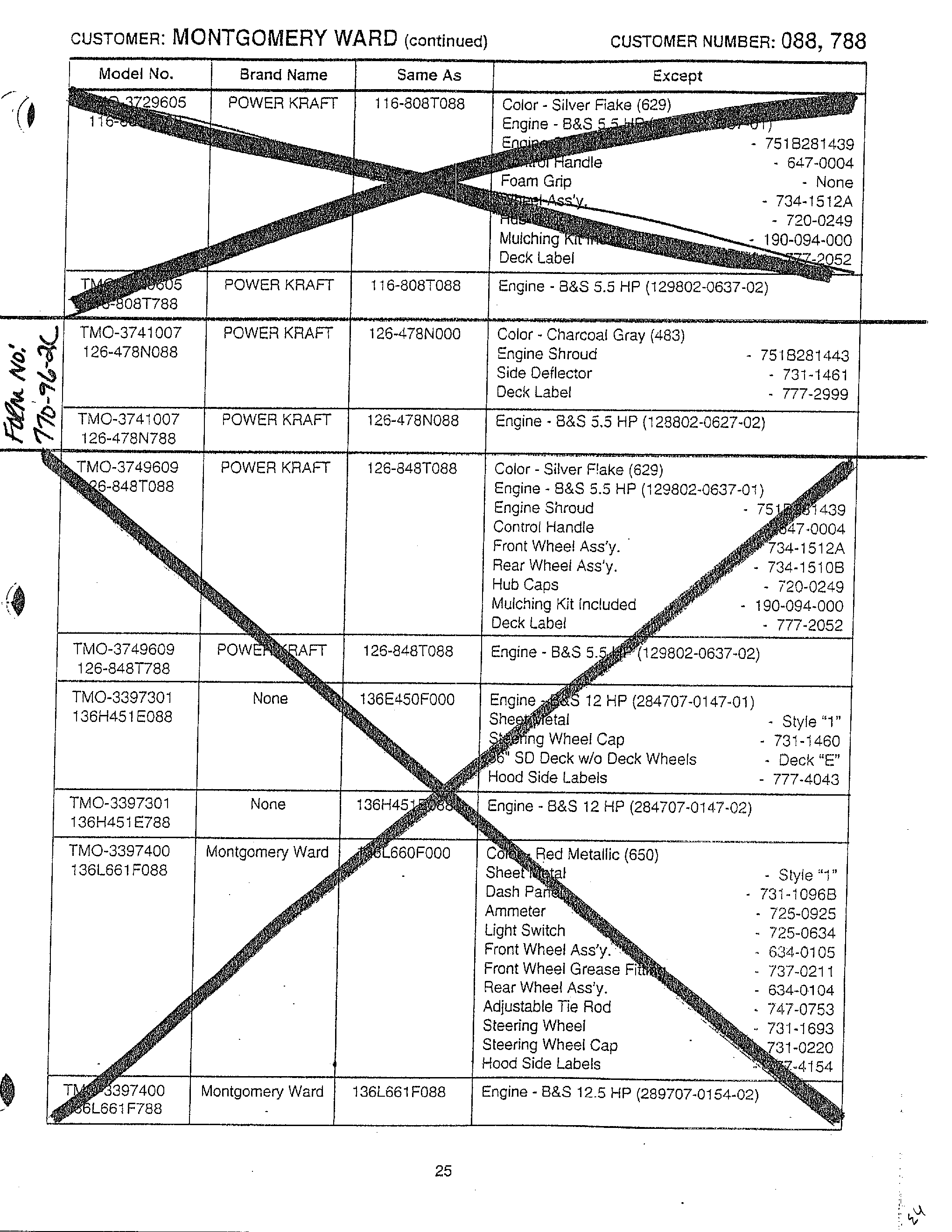

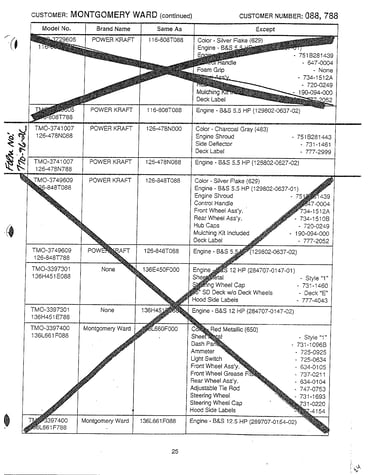

Model #126-478N000 MTD lawn mower

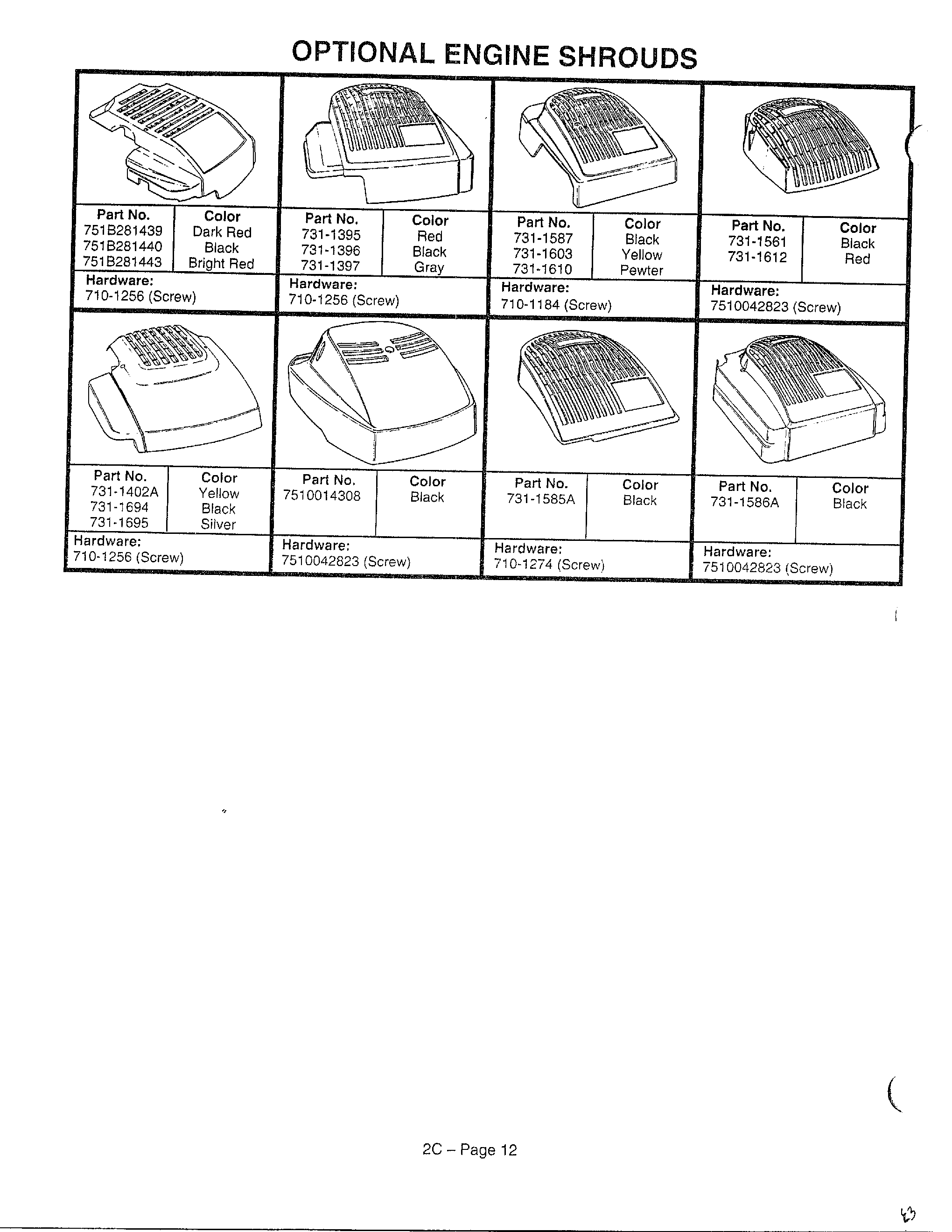

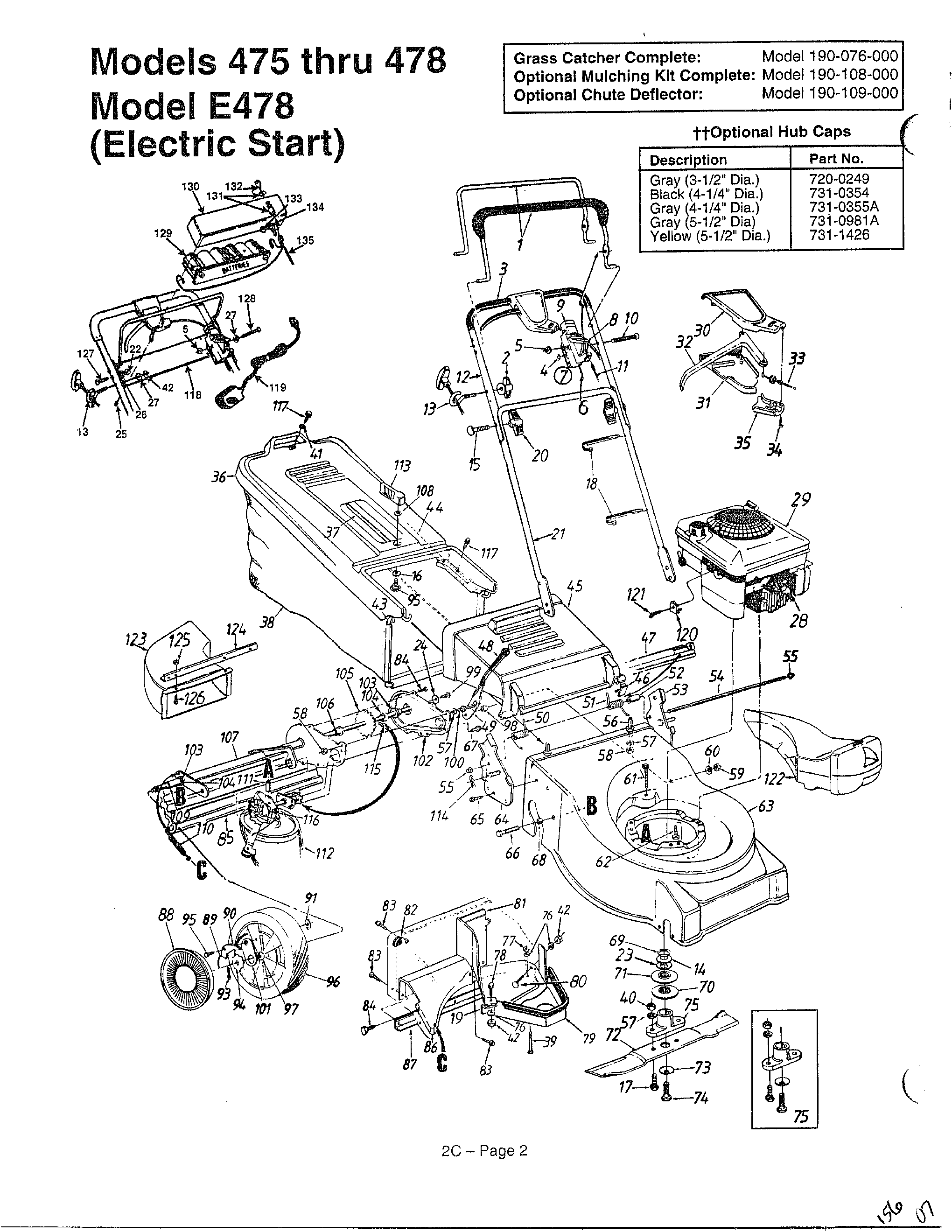

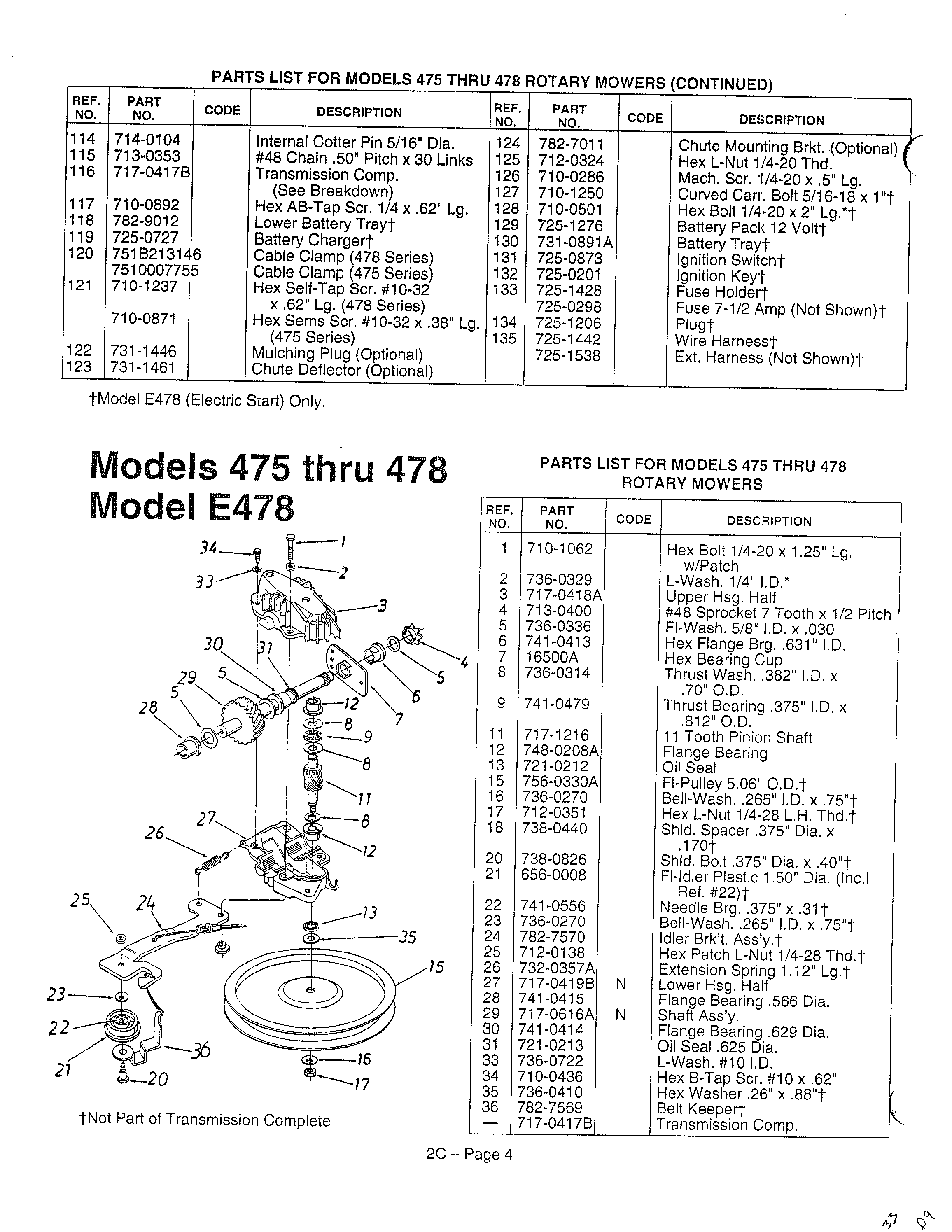

Here are the diagrams and repair parts for MTD 126-478N000 lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

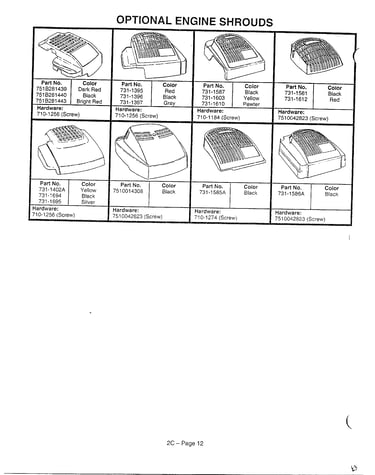

Showing 10 of 248 parts

Lawn & Garden Equipment Wing Nut

#17

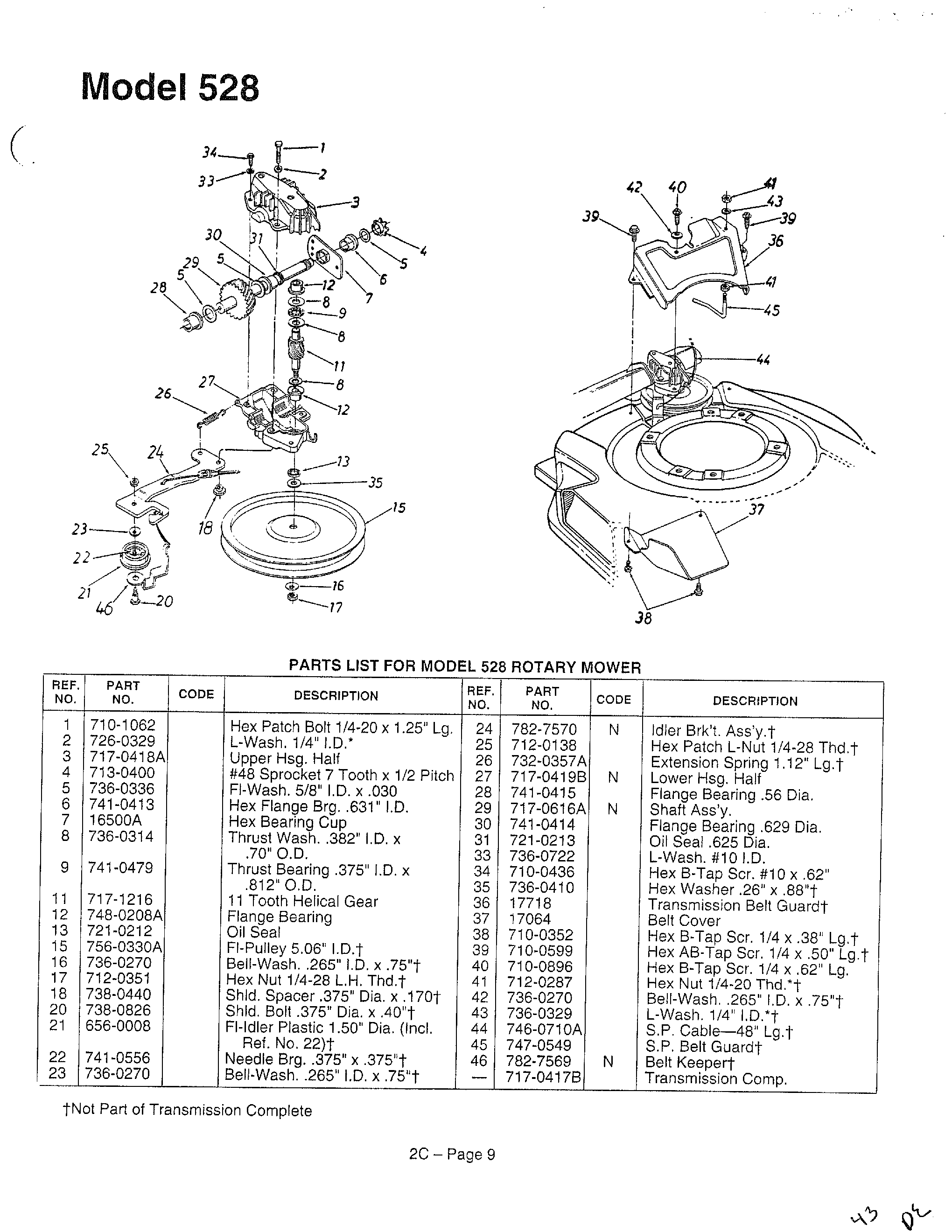

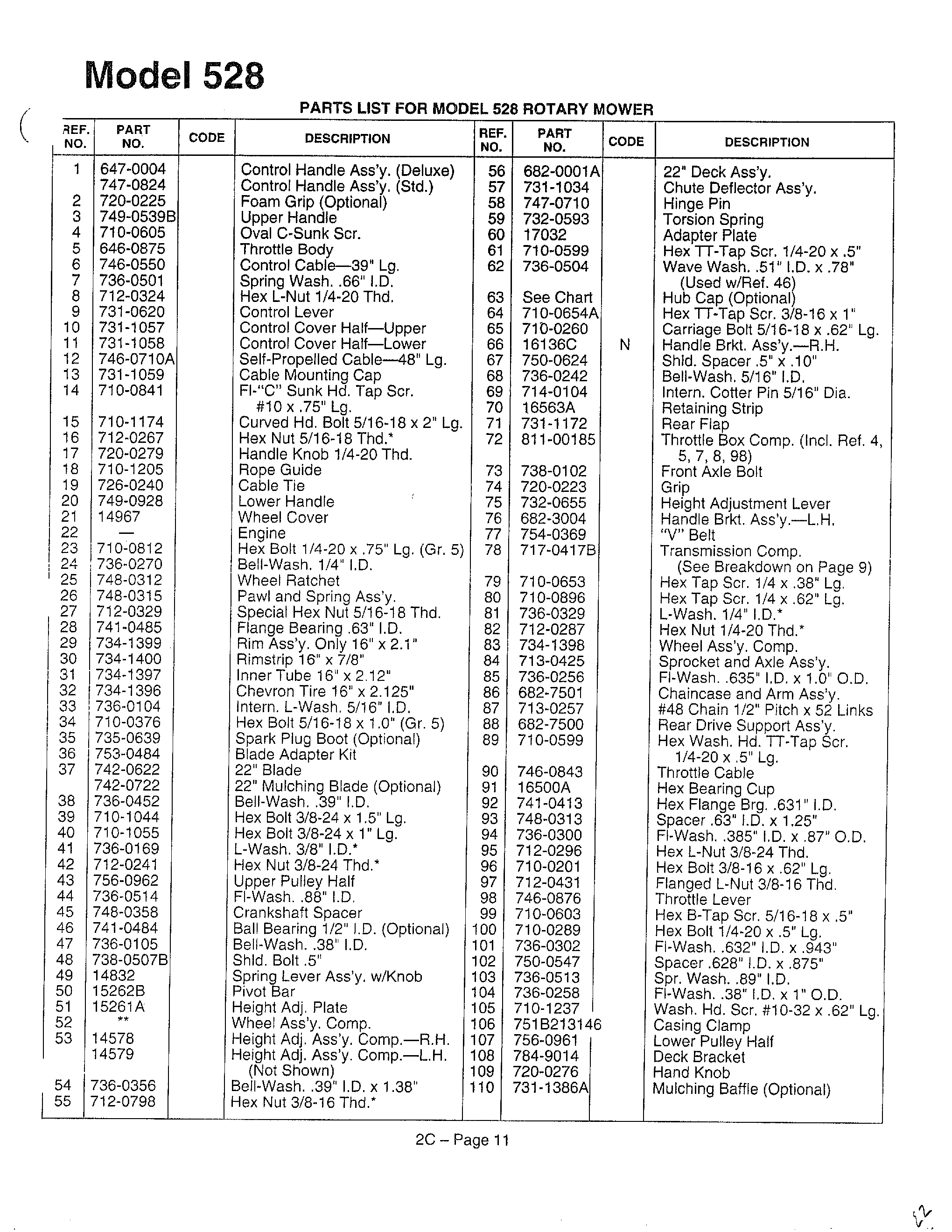

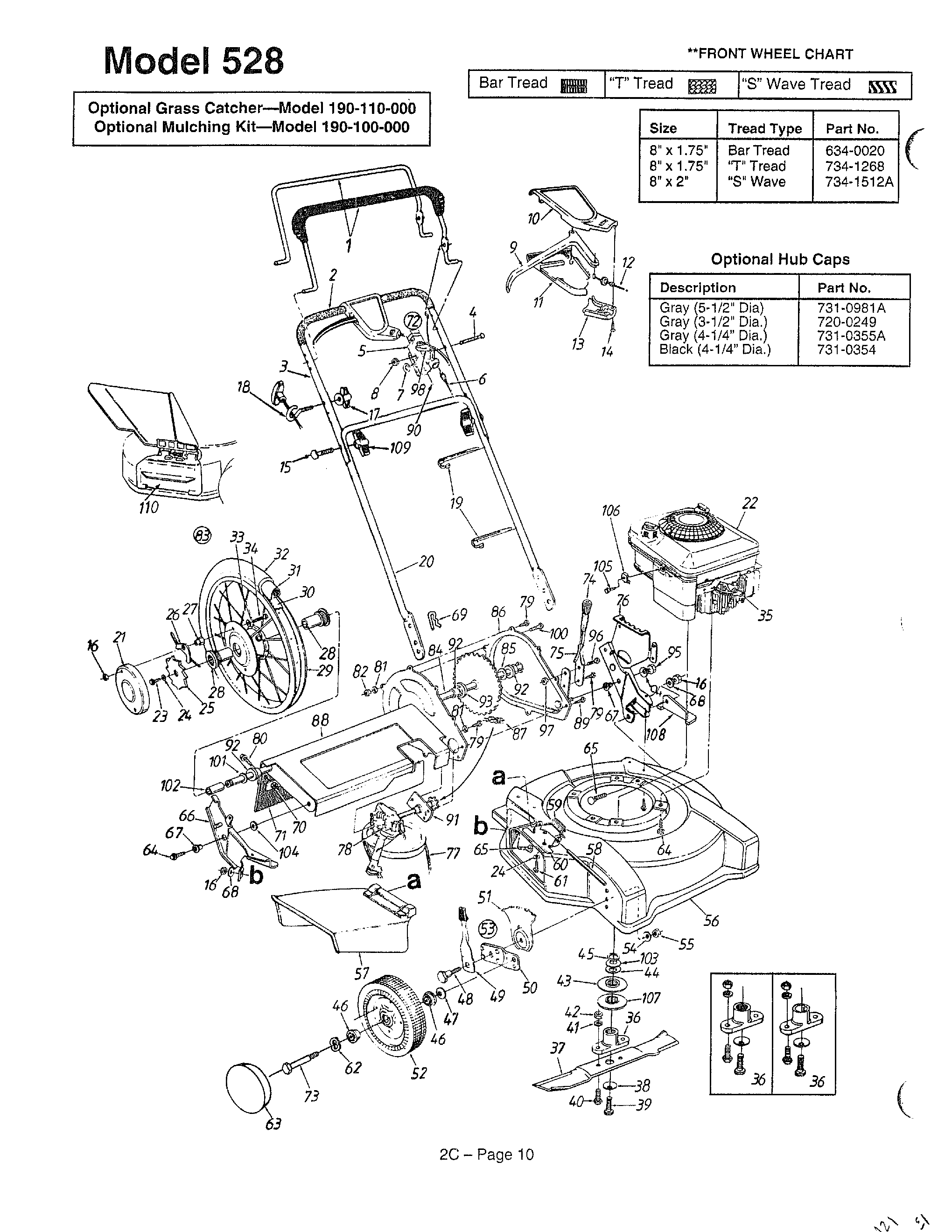

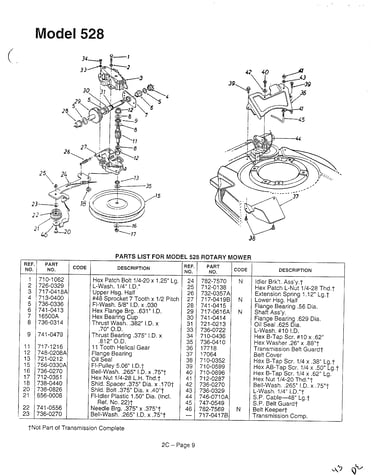

Parts list model 528- text only Diagram

Lawn & garden equipment wing nut

Part #720-0279
This item is not returnable
$2.84 |
16% OFF MSRP:$3.40

In Stock

Lawn & Garden Equipment Hex Cap Screw

#99

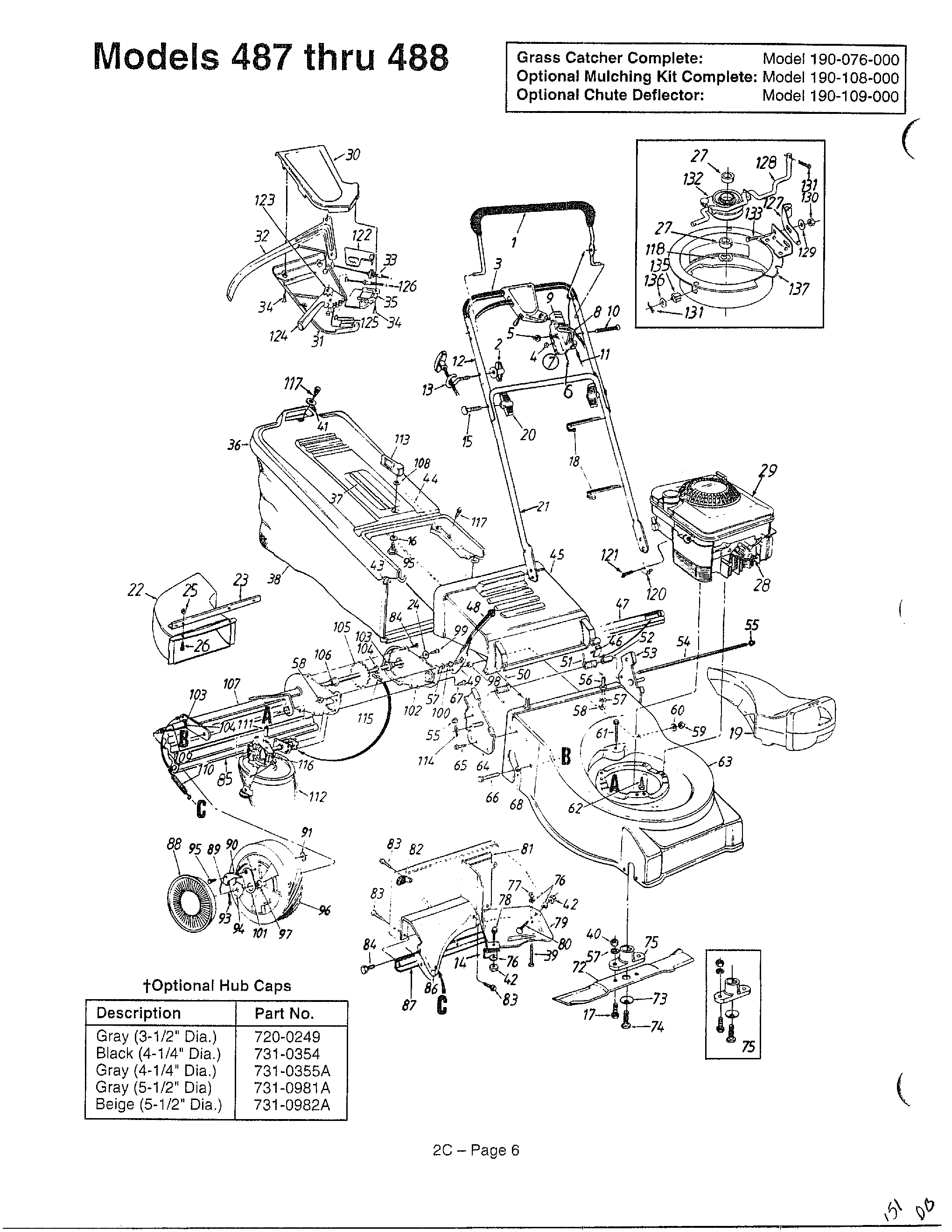

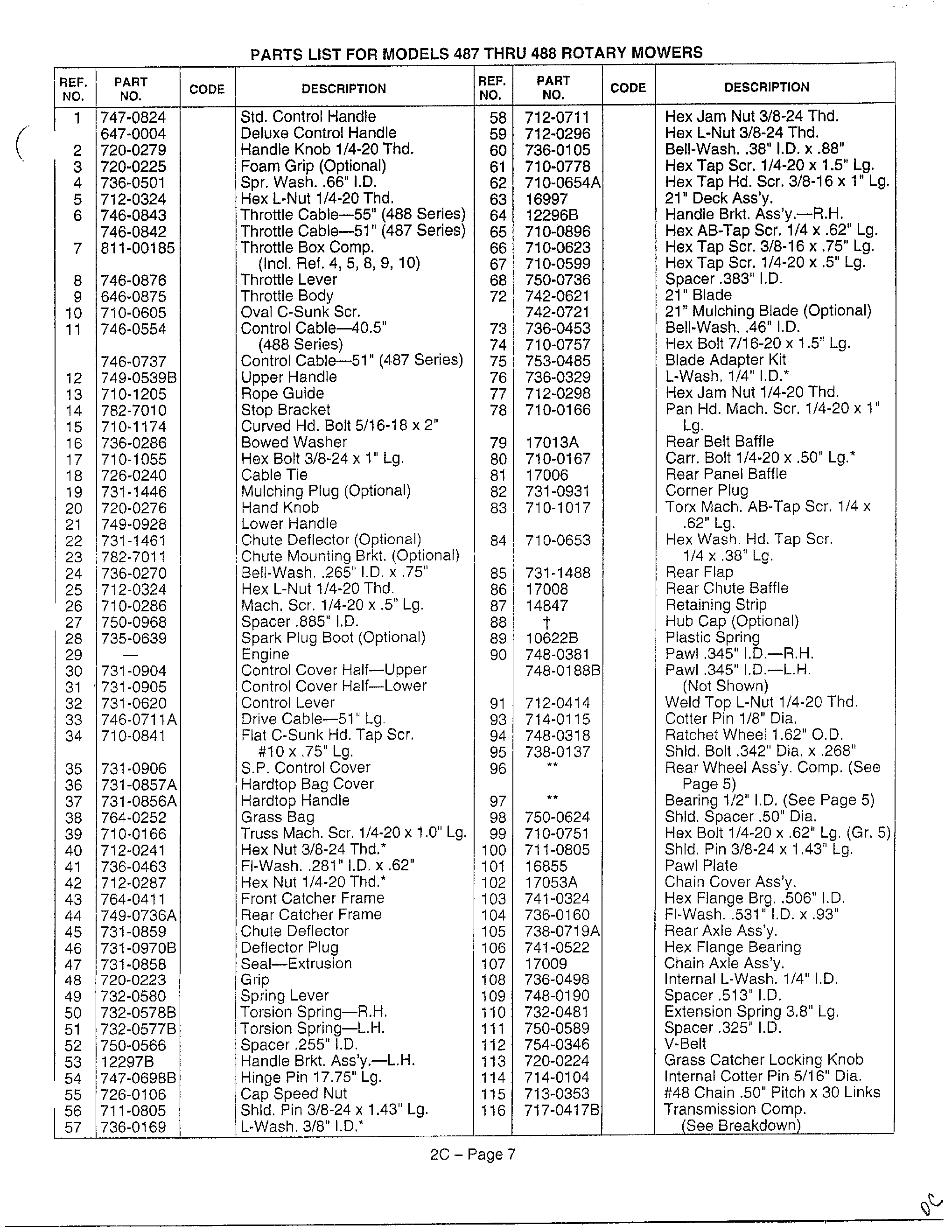

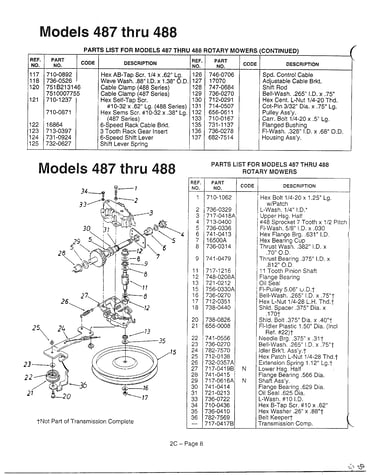

Main frame model 487-488 Diagram

Lawn & garden equipment hex cap screw

Part #710-0751
This item is not returnable
$2.71 |
13% OFF MSRP:$3.10

In Stock

Lawn & Garden Equipment Bolt

#15

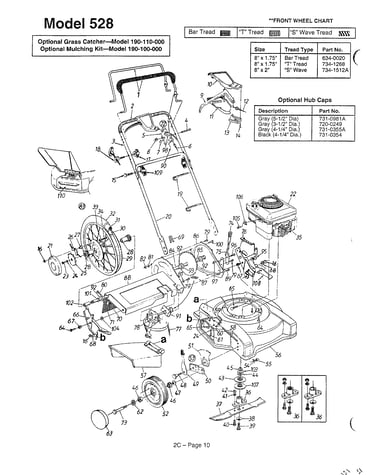

Parts list model 528- text only Diagram

Lawn & garden equipment bolt

Part #710-1174
This item is not returnable
$4.86 |
10% OFF MSRP:$5.40

In Stock

Lawn Mower Pawl Plate

#101

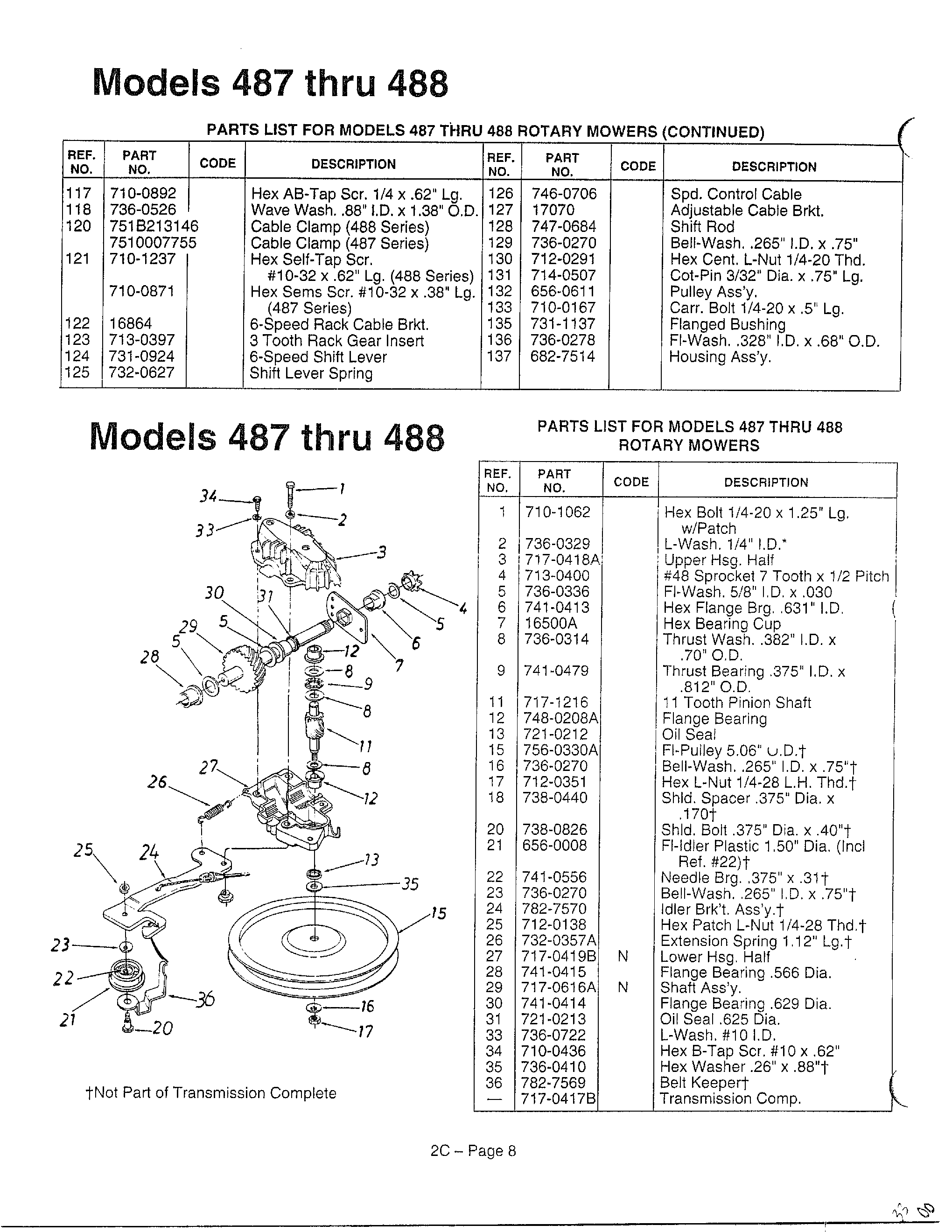

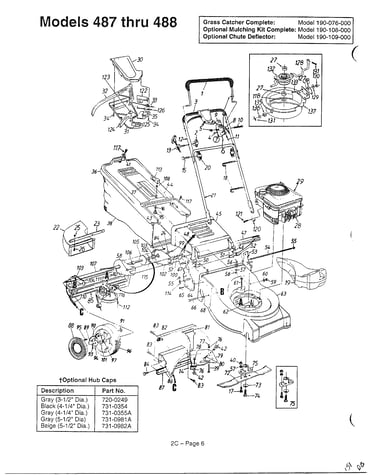

Main frame model 487-488 Diagram

Lawn mower pawl plate

Part #16855
This item is not returnable
$5.41

In Stock

Lawn & Garden Equipment Engine Recoil Starter Pawl

#90

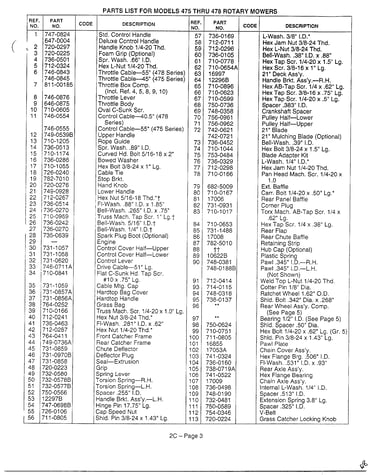

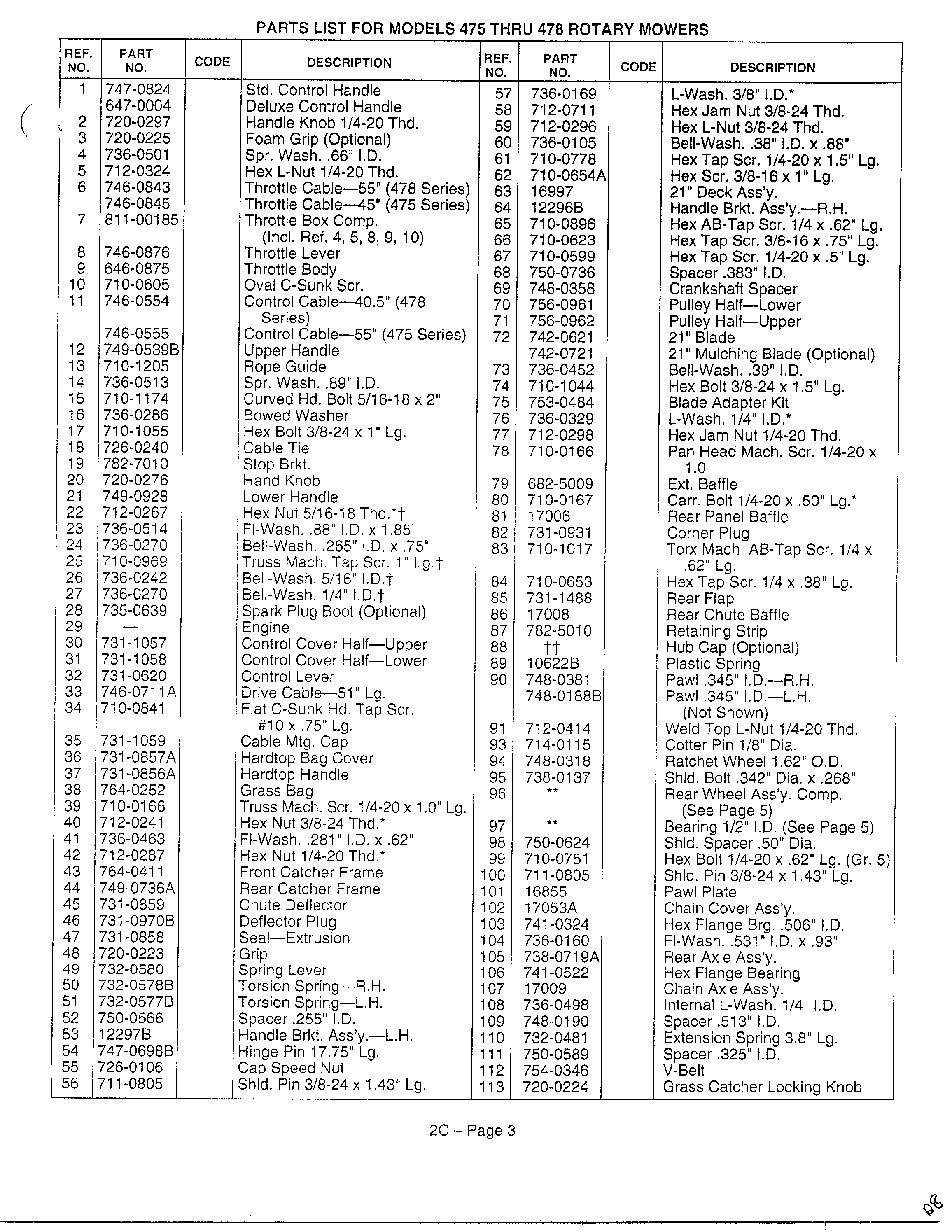

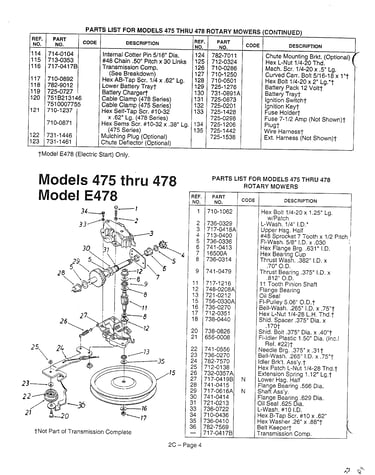

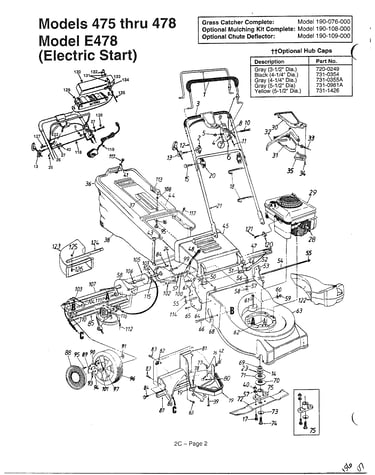

Parts list model 475/476 text only Diagram

$7.83

In Stock

Lawn & Garden Equipment Hex Cap Screw

#66

Main frame model 487-488 Diagram

Lawn & garden equipment hex cap screw

Part #710-0623
This item is not returnable
$3.09

In Stock

Lawn Tractor Hex Screw

#64

Parts list model 528- text only Diagram

Lawn tractor hex screw

Part #710-0654A
This item is not returnable
$2.50 |
19% OFF MSRP:$3.10

In Stock

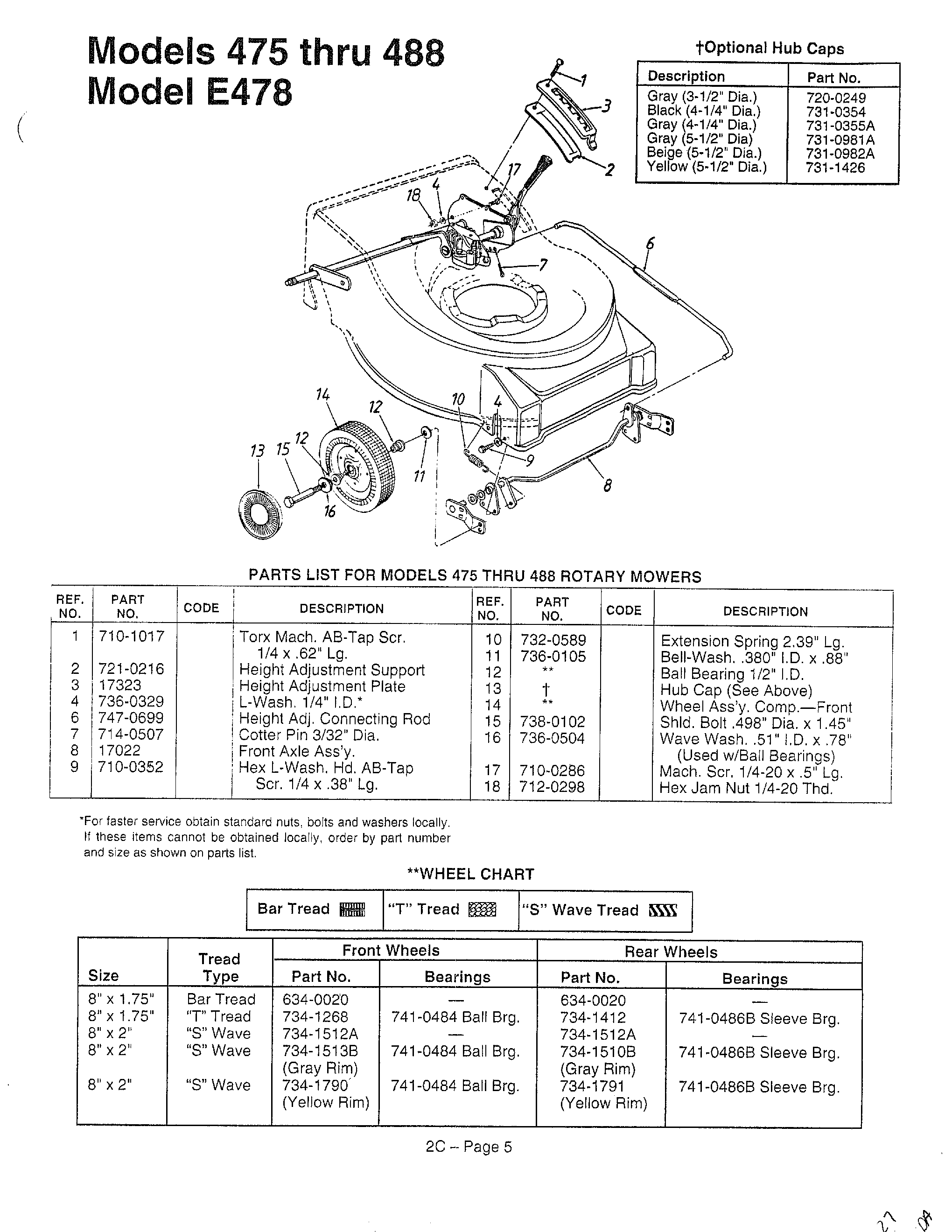

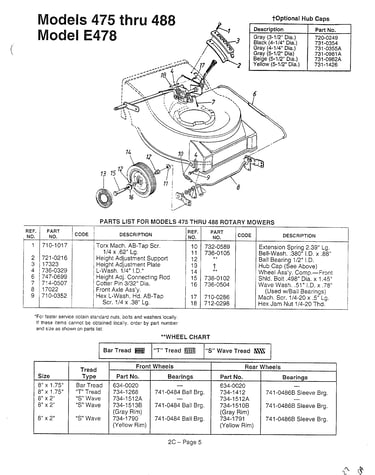

Lawn Mower Wheel

#52

Parts list model 528- text only Diagram

Lawn mower wheel

Part #734-1268
$42.77 |
11% OFF MSRP:$48.00

In Stock

Lawn & Garden Equipment Hex Washer Head Screw

#99

Parts list model 528- text only Diagram

Lawn & garden equipment hex washer head screw

Part #710-0603
This item is not returnable
$2.73 |
22% OFF MSRP:$3.50

In Stock

Pawl Spring

#26

Parts list model 528- text only Diagram

Pawl spring

Part #748-0315
$10.72

In Stock
