Model # B36CL80ENS/01 Official Bosch refrigerator

Here are the diagrams and repair parts for Official Bosch B36CL80ENS-01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Leveling Feet & Rollers

Screws

ALL PARTS

Showing 10 of 207 parts |

#121

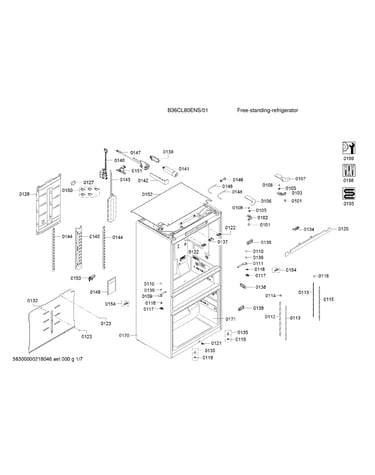

Cabinet parts diagram

Door switch

Part #10007559

$26.89

In Stock

Qty

#135

Cabinet parts diagram

Foot screw

Part #00612791

$15.20

In Stock

Qty

Display Module Ed710 Fdbm Bo Vf Na E 12028340

#329

Refrigerator drawers diagram

Display module ed710 fdbm bo vf na e

Part #12028340

$99.45

In Stock

Qty

Tf1 Thermal Fuse 320mm (fdbm Rc) 11030588

#519

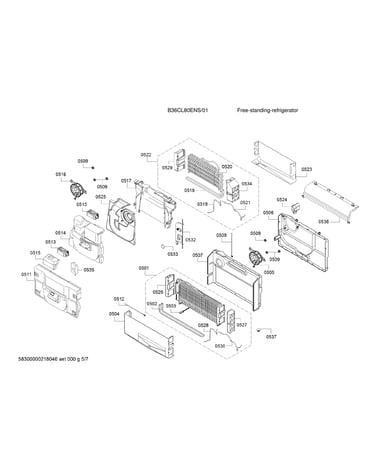

Evaporator parts diagram

Tf1 thermal fuse 320mm (fdbm rc)

Part #11030588

$20.54

In Stock

Qty

#442

Freezer door & drawer diagram

Flap holder for ice maker

Part #11032859

$14.14

In Stock

Qty

Guide-heavy Duty Rail W/s Assy. L380 Pow-c-r 11032684

#415

Freezer door & drawer diagram

Guide-heavy duty rail w/s assy. l380 pow-c-r

Part #11032684

$167.22

In Stock

Qty

Adjust Top Hinge Right Complete 10007047

#103

Cabinet parts diagram

Adjust top hinge right complete

Part #10007047

$25.96

In Stock

Qty

#440

Freezer door & drawer diagram

Water nozzle complete im only

Part #12028327

$39.42

In Stock

Qty

Evaporator temperature sensor rast 2,5 + shrinking tube

Part #12024918

$23.83

In Stock

Qty

Control Module-programmed Board; Home Connect Coding Required After Install., Svc Kit B36cl80ens Only; Pseudo Coding Info Added 12029338

#613

Compressor & condenser parts diagram

Control module-programmed board; home connect coding required after install., svc kit b36cl80ens only; pseudo coding info added

Part #12029338

$435.20

In Stock

Qty
