KitchenAid 7KCDB250T1 garbage disposal Parts
Here are the diagrams and repair parts for KitchenAid 7KCDB250T1 garbage disposal, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 7KCDB250T1 Garbage Disposal

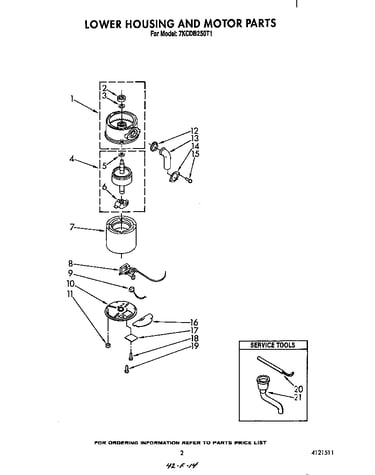

Lower housing and motor diagram
Tailpipe
Part #4211445
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
End Bell Assembly, Upper
Part #4211313
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Actuator Assembly, Centrifugal
Part #4211446
The manufacturer no longer makes this part, and there's no substitute part

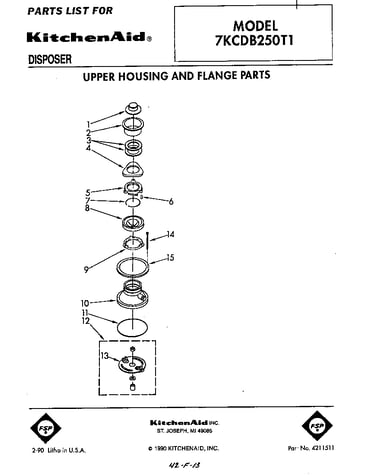

Upper housing and flange diagram
Bolt, Thru
Part #4211518
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Seal, Water & Oil
Part #4211314
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Installation Instructions
Part #LIT4211522
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Stator Assembly
Part #4211448
The manufacturer no longer makes this part, and there's no substitute part
Upper housing and flange diagram
Kit, Sleeve & Seal (includes Plug, Nut, Washer, Slinger,and Sleeve)
Part #4211311
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Switch Assembly, Start
Part #4211520
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Repair Parts List
Part #LIT4211511
The manufacturer no longer makes this part, and there's no substitute part
