Kenmore 1106109807 gas combination washer/dryer Parts
Here are the diagrams and repair parts for Kenmore 1106109807 gas combination washer/dryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

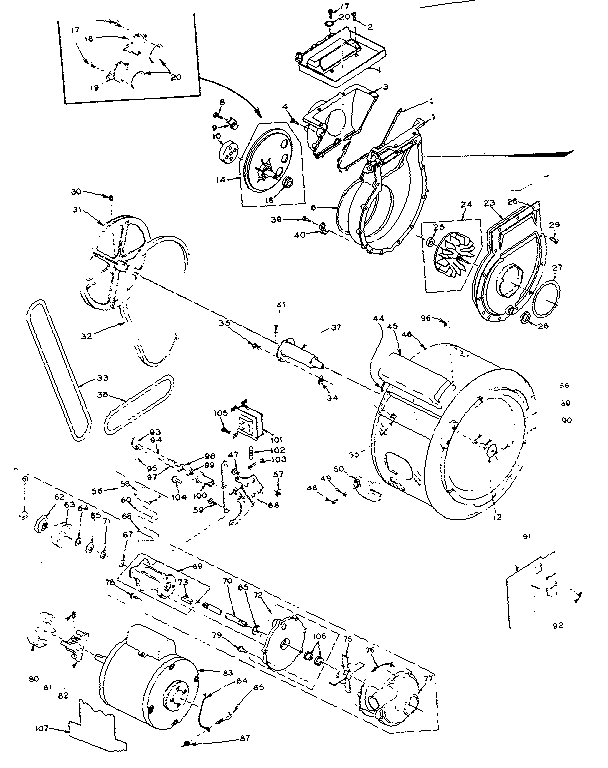

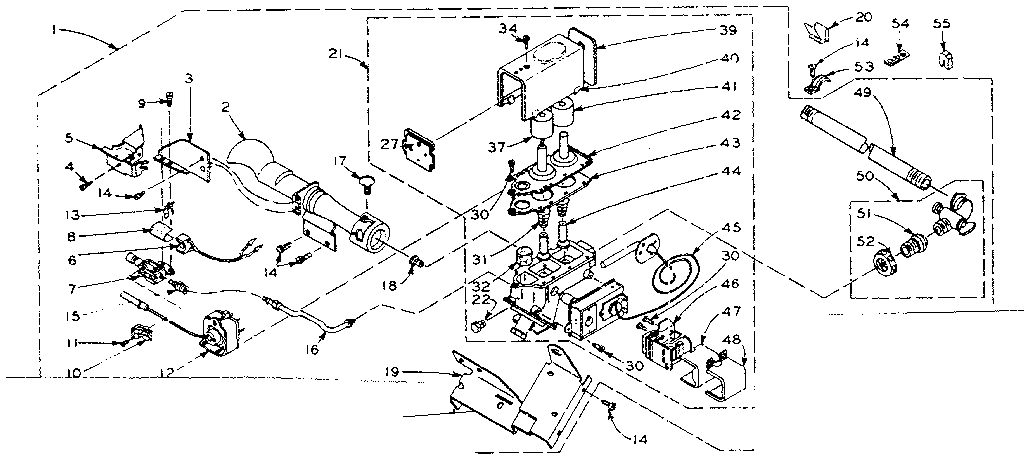

Browse Parts for 1106109807 Gas Combination Washer/Dryer

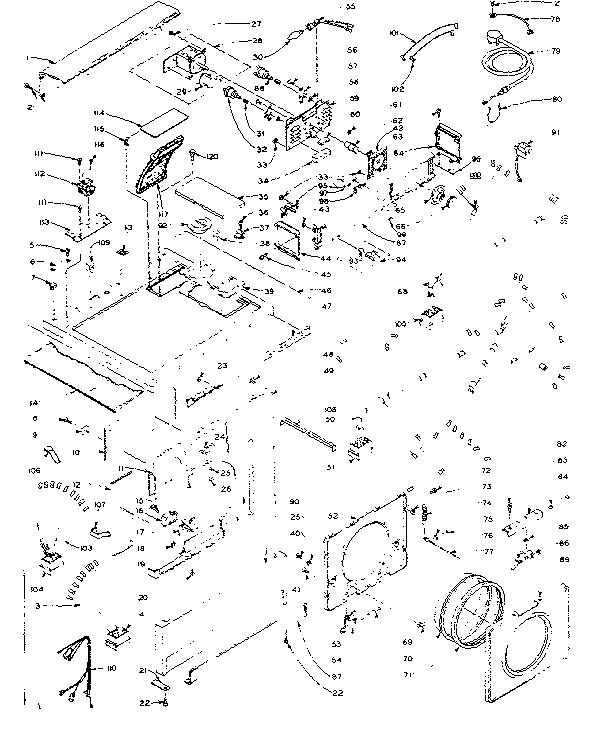

Top and front assembly diagram
10-watt Bulb
Part #17512Replaced by #WP22002263
Manufacturer substitutionThis part replaces 17512. Substitute parts can look different from the original.In Stock$12.6214% OFF Phone Price : $14.62
Qty

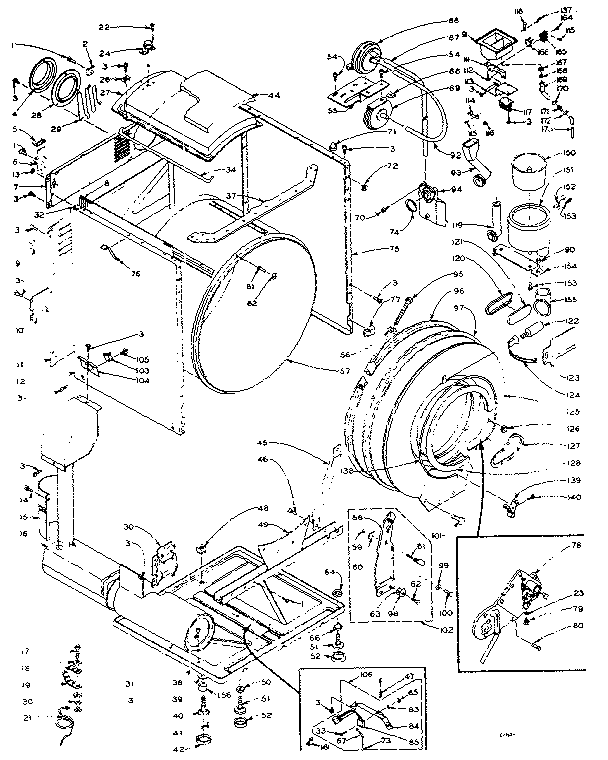

Base and tank assembly diagram
Dispenser Tube
Part #21503Replaced by #WP353244
Manufacturer substitutionThis part replaces 21503. Substitute parts can look different from the original.In Stock$49.7511% OFF Phone Price : $55.75QtyBase and tank assembly diagram
Hose
Part #286091Replaced by #WP353244
Manufacturer substitutionThis part replaces 286091. Substitute parts can look different from the original.In Stock$49.7511% OFF Phone Price : $55.75QtyHose Clamp
Part #272846Replaced by #WP596669

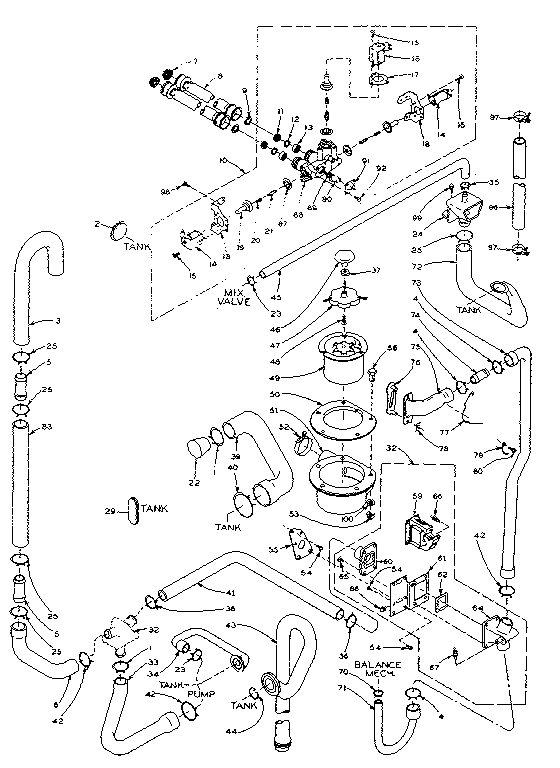

Manufacturer substitutionThis part replaces 272846. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7317% OFF Phone Price : $5.73QtyWater system diagram
Hose Clamp
Part #272845Replaced by #WP596669
Manufacturer substitutionThis part replaces 272845. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7317% OFF Phone Price : $5.73QtyWater system diagram
Clamp
Part #98292Replaced by #WP596669
Manufacturer substitutionThis part replaces 98292. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7317% OFF Phone Price : $5.73QtyClamp
Part #272847Replaced by #WP596669
Manufacturer substitutionThis part replaces 272847. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7317% OFF Phone Price : $5.73QtyTop and front assembly diagram
Dryer Top Panel Clip
Part #18776Replaced by #WP18776
Manufacturer substitutionThis part replaces 18776. Substitute parts can look different from the original.This item is not returnableIn Stock$9.2710% OFF Phone Price : $10.27QtyWater system diagram
Washing Machine Washer
Part #16123Replaced by #WP16123

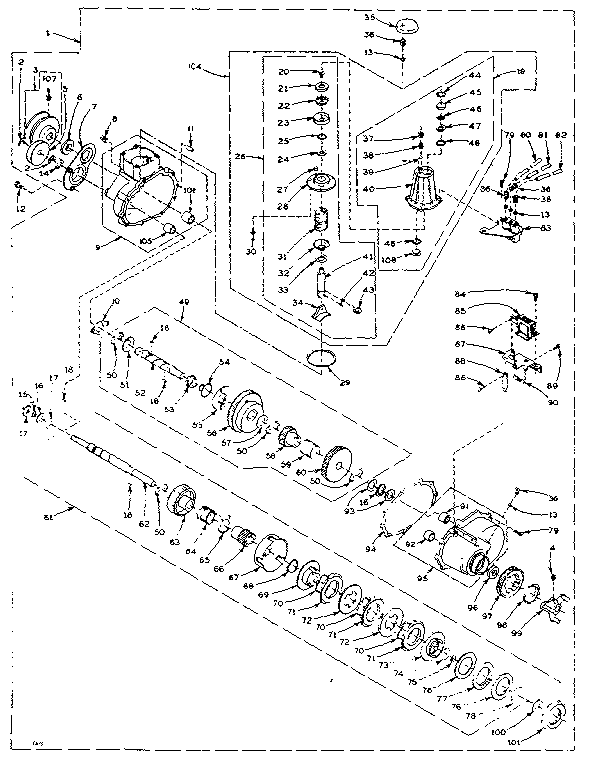

Manufacturer substitutionThis part replaces 16123. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtySpeed changer assembly diagram
Seal
Part #286108Replaced by #285352
Manufacturer substitutionThis part replaces 286108. Substitute parts can look different from the original.In Stock$29.8034% OFF Was : $44.95Qty
