Countertop Microwave

Model # JES1142SP1SS Official GE microwave

Here are the diagrams and repair parts for Official GE JES1142SP1SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Microwave Wire Harness WB18X10463
#9

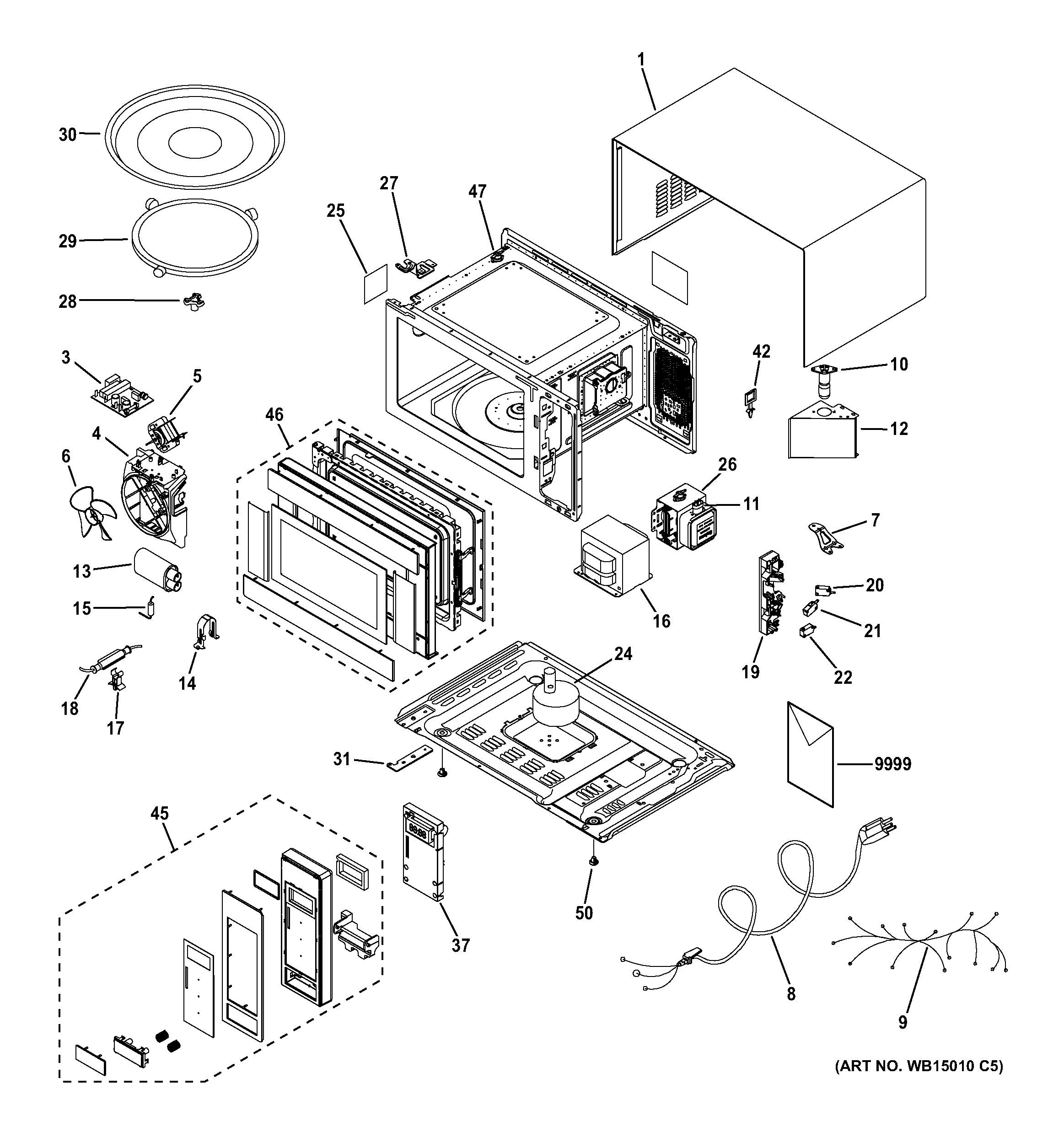

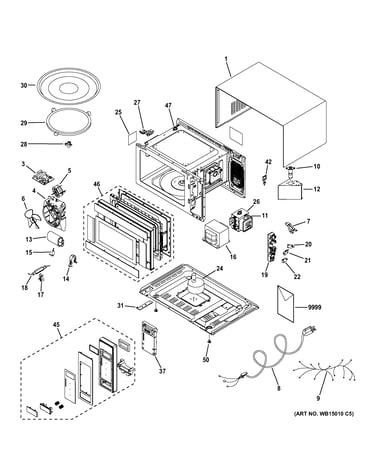

Microwave diagram

Microwave wire harness

Part #WB18X10463

$21.63
In Stock
Fan Motor WB26X10250
#5

Microwave diagram

Fan motor

Part #WB26X10250

$32.22
In Stock
Thermostat WB20X10050
#26

Microwave diagram

Thermostat

Part #WB20X10050

$7.59
In Stock
Smartboard WB27X11153
#37

Microwave diagram

Smartboard

Part #WB27X11153

Replaced by #WB27X21611

?
Manufacturer substitution
This part replaces WB27X11153. Substitute parts can look different from the original.
$59.99
In Stock
Owner's Manual 49-40646-1
#9999

Microwave diagram

Owner's manual

Part #49-40646-1

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-voltage Diode WB27X11128
#15

Microwave diagram

Microwave high-voltage diode

Part #WB27X11128

The manufacturer no longer makes this part, and there's no substitute part

Outer Case WB56X10944
#1

Microwave diagram

Outer case

Part #WB56X10944

The manufacturer no longer makes this part, and there's no substitute part

Lamp WB08X10063
#10

Microwave diagram

Lamp

Part #WB08X10063

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade WB06X10851
#6

Microwave diagram

Fan blade

Part #WB06X10851

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch WB24X10188
#21

Microwave diagram

Micro-switch

Part #WB24X10188

The manufacturer no longer makes this part, and there's no substitute part
