Amana
Chest Freezer

Model #AQC2213TEW04 Amana chest freezer

Here are the diagrams and repair parts for Amana AQC2213TEW04 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 50 parts

    Freezer Drain Cap

    #12

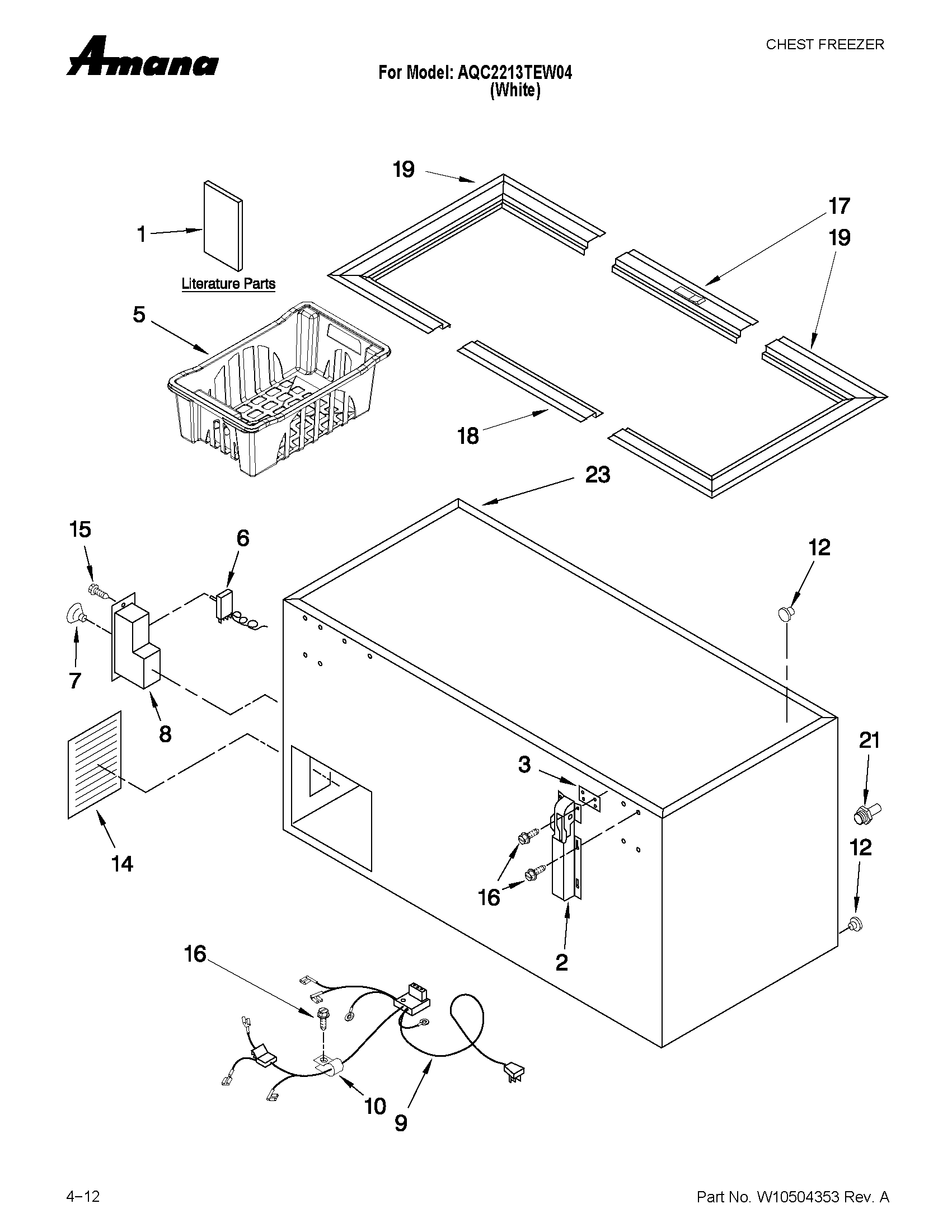

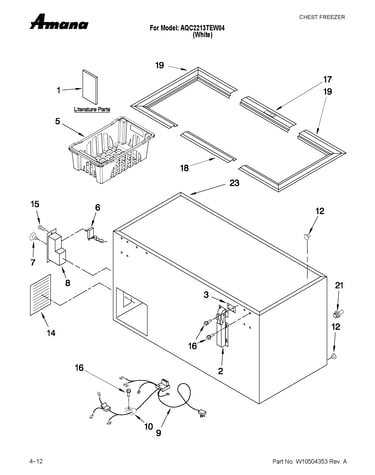

    Cabinet parts Diagram

    Freezer drain cap

    Part #3-33211-001
    This item is not returnable
    $6.22 |
    31% OFF
    MSRP: $8.97

    In Stock

    Hose Adapter

    #21

    Cabinet parts Diagram

    Hose adapter

    Part #1-33178
    This item is not returnable
    $6.79

    In Stock

    Lock Clip

    #18

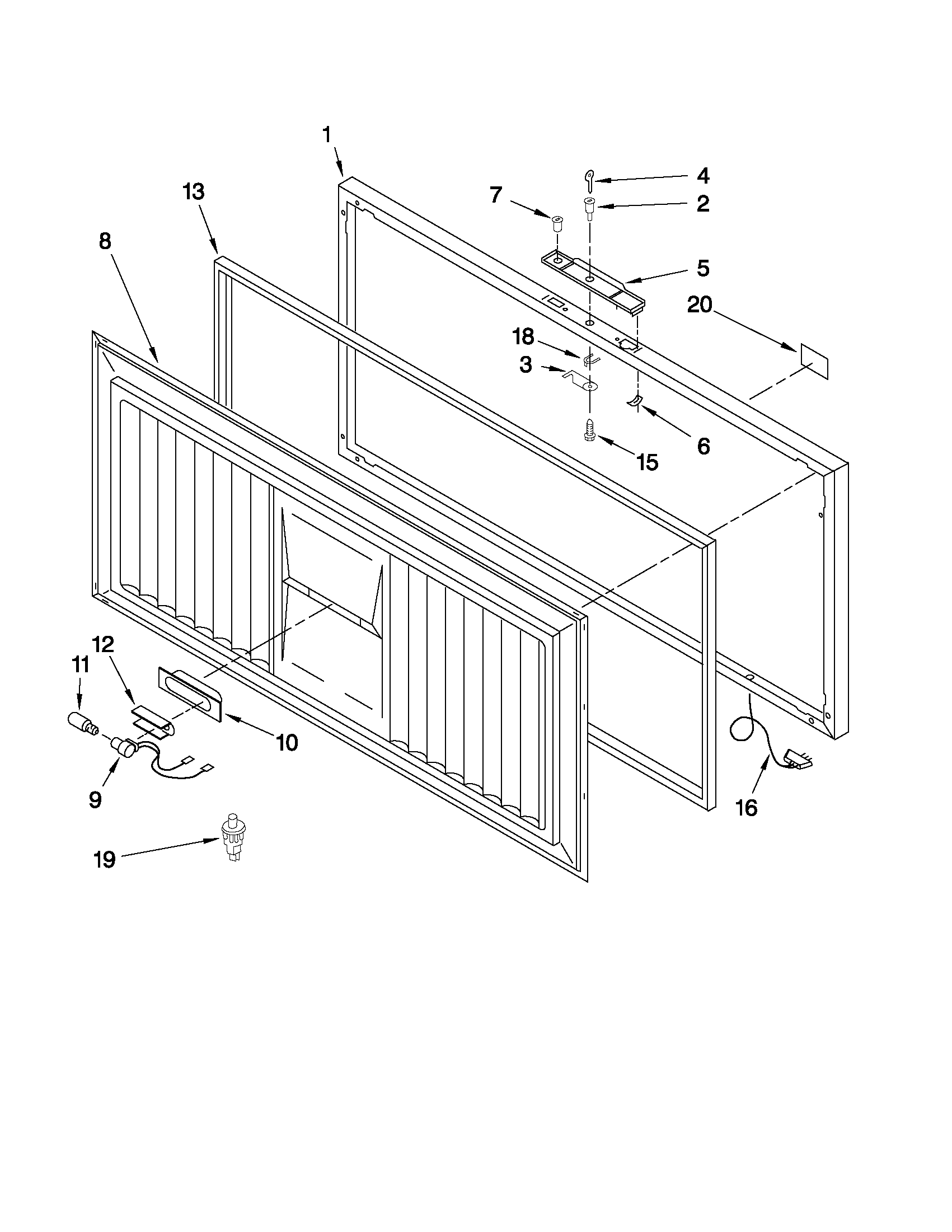

    Door parts Diagram

    Lock clip

    Part #1-26359
    $36.56

    In Stock

    Spacer

    #3

    Cabinet parts Diagram

    Spacer

    Part #1-17548-006
    $18.96

    In Stock

    Clip

    #6

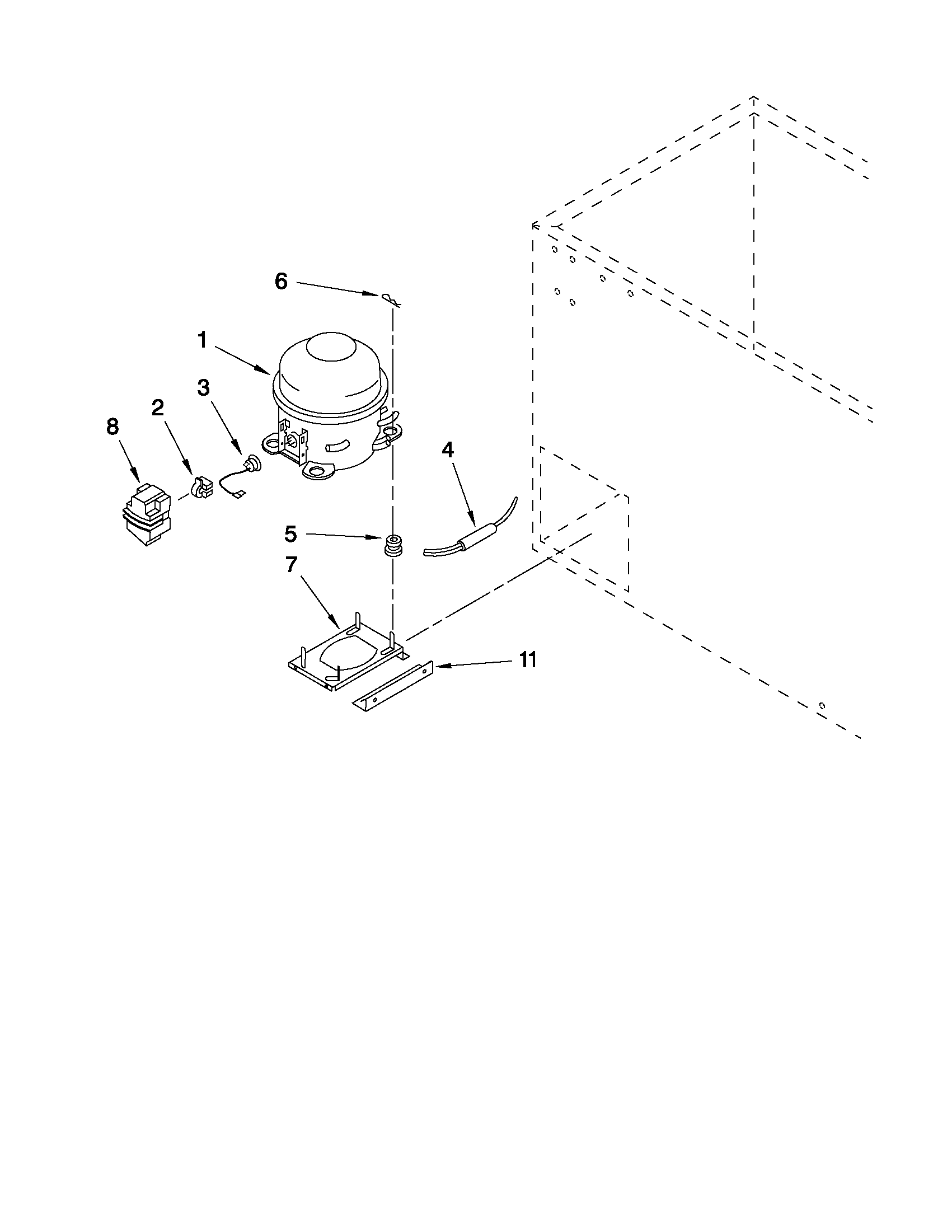

    Unit parts Diagram

    Clip

    Part #A201435
    This item is not returnable
    $7.39

    In Stock

    Light Reflector

    #10

    Door parts Diagram

    Light reflector

    Part #3-25693-001
    $9.89

    In Stock

    Brace

    #11

    Unit parts Diagram

    Brace

    Part #3-81556-001
    $10.80

    In Stock

    Trim Breaker

    #17

    Cabinet parts Diagram

    Trim breaker

    Part #4-35011-005
    $35.38

    In Stock

    Panel

    #14

    Cabinet parts Diagram

    Panel

    Part #4-35099-001
    $40.39

    In Stock

    Freezer Wire Harness

    #9

    Cabinet parts Diagram

    Freezer wire harness

    Part #4-35136-002
    $96.44

    In Stock
