No. Refrigerators are not all 70 inches high; overall height varies by style (top-freezer, bottom-mount, French door, built-in) and by model. Before you buy or move a refrigerator, we recommend measuring your opening and confirming the exact dimensions in the owner's manual.

Typical refrigerator height ranges

Most household refrigerators fall into a few common height bands:

• Compact/under-counter: about 32 to 36 inches
• Many top-freezer models: about 60 to 67 inches
• Many bottom-mount and French door models: about 65 to 72 inches (70 inches is common)
• Built-in/tall specialty models: often 80 inches or more

How to measure your space correctly

Measure the opening first, then compare to the refrigerator’s listed dimensions.

• Measure floor to the lowest cabinet/trim above the refrigerator
• Measure width at the front and back (walls can be out of square)
• Measure depth to the front edge of counters, then decide if you want counter-depth
• Plan for door swing clearance and drawer pull-out space
• Confirm you can get it inside: the manual for this Jenn-Air model notes a minimum 33-inch door opening for delivery (and more disassembly may be needed for tighter openings)

Clearance and ventilation (important for performance)

For the Jenn-Air JFFCC72EFS00, the manual calls out these minimum clearances for proper airflow:

Clearance area	Minimum space
Each side and top	1/2 inch
Behind refrigerator	1 inch
Next to a fixed wall (door swing)	3 3/4 inches

Why it matters

Height is only one fit issue. Even if a refrigerator is “about 70 inches,” you still need enough room for ventilation, door swing, and moving the unit through doorways; those details help prevent poor cooling, noise, and installation headaches.

Last updated: February 2026

A Jenn-Air refrigerator typically lasts 15 years. With normal use and basic maintenance (cleaning, correct temperatures, good door sealing), many units reach 12 to 20 years before major repairs become more likely. For model JFFCC72EFS00, following the care and operating guidance in the owner's manual helps maximize service life.

Typical lifespan and what to expect

Most premium French door and bottom-mount refrigerators follow a similar wear pattern over time.

• 0 to 5 years: Mostly minor issues (filters, lights, adjustments)
• 5 to 12 years: Higher chance of component replacements (fans, sensors, controls)
• 12 to 20 years: Sealed-system and compressor-related repairs become more common

What affects lifespan the most

These factors have the biggest impact on how long a Jenn-Air refrigerator runs reliably.

• Stable temperatures: Keep the refrigerator around 37°F and freezer around 0°F
• Airflow: Do not block vents; avoid overpacking shelves and bins
• Door sealing: A leaking gasket forces longer run times and adds wear
• Condenser and fan health: Dust and restricted airflow increase compressor workload
• Filter maintenance: Replace water and air filters on schedule to reduce strain and odors

Maintenance checklist (high impact, low effort)

Use this as a simple routine to extend the life of your JFFCC72EFS00.

Task	Good interval	Why it matters
Replace air filter	Every 6 months	Helps control odors and keeps airflow fresh
Replace water filter	Every 6 months (typical)	Helps maintain water flow and ice quality
Inspect/clean door gaskets	Every 3 to 6 months	Prevents warm air leaks and frost
Verify temps with a thermometer	Seasonally	Prevents overcooling and food spoilage

Helpful model-matched parts we stock include the refrigerator air filter W10311524, the refrigerator cartridge wrap assembly EDR2RXD1 (water filter), and the refrigerator door gasket (gray) W10917313.

Why it matters

Refrigerators usually fail early from heat, airflow restrictions, and air leaks. Reducing run time and keeping temperatures stable lowers stress on the compressor and sealed refrigeration system, which are the most expensive repairs.

Last updated: February 2026

Common problems we see with Jenn-Air refrigerators like model JFFCC72EFS00 include not cooling, water leaks or puddles, ice maker or dispenser issues, doors not sealing or closing, and control or sensor problems that cause temperature swings. Many of these start with airflow, door seal, or water supply checks in the JFFCC72EFS00 owner's manual.

Most common symptoms and what to check first

• Not cooling or warm temperatures: confirm controls are on, allow 24 hours after a new install, and keep vents unblocked.
• Water leaking or puddles: check for overfilled bins, door left ajar, and moisture from frequent openings.

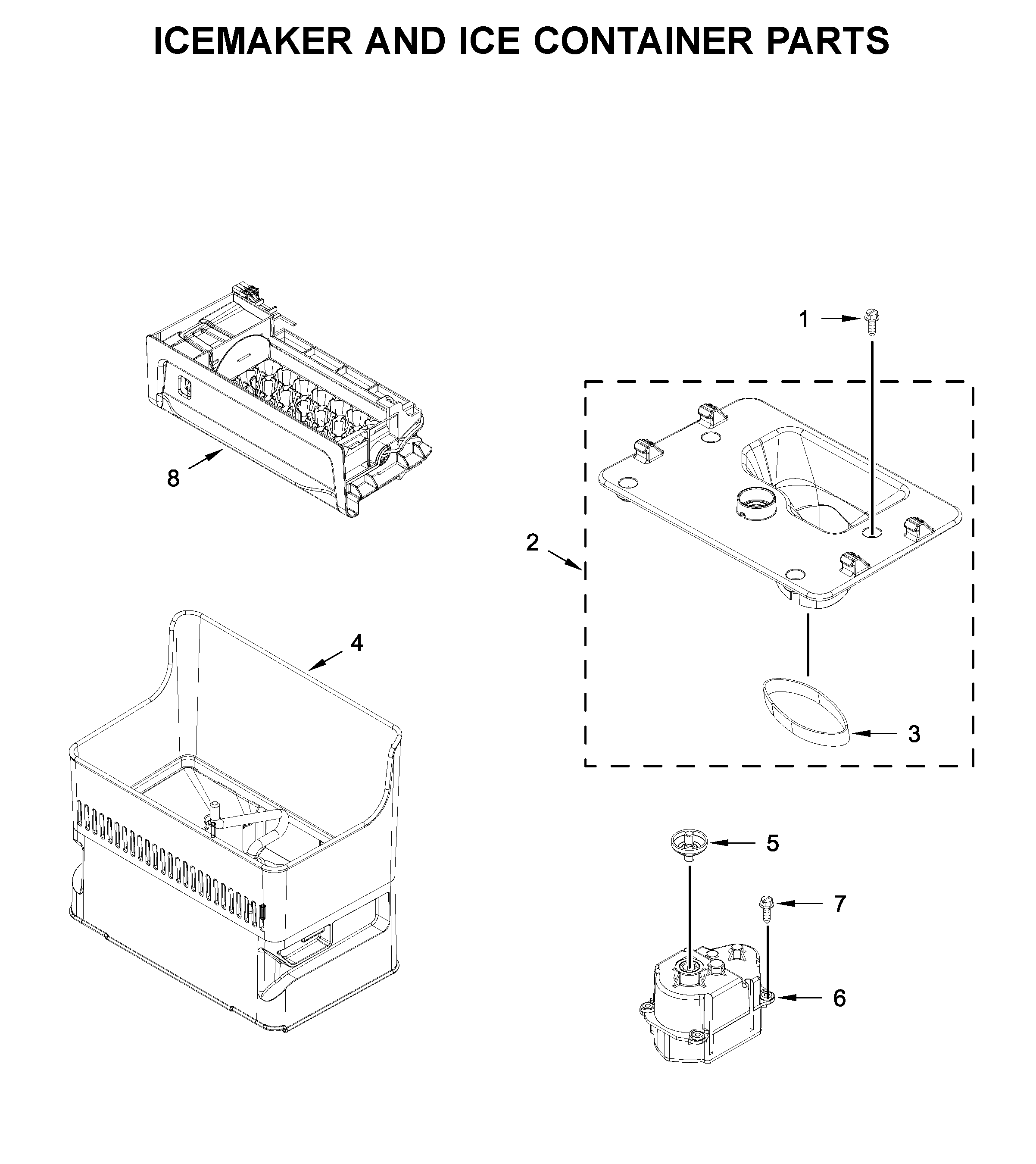

• Ice maker not making ice: verify the refrigerator is connected to water and the shut-off valve is fully open; look for a kinked water line.

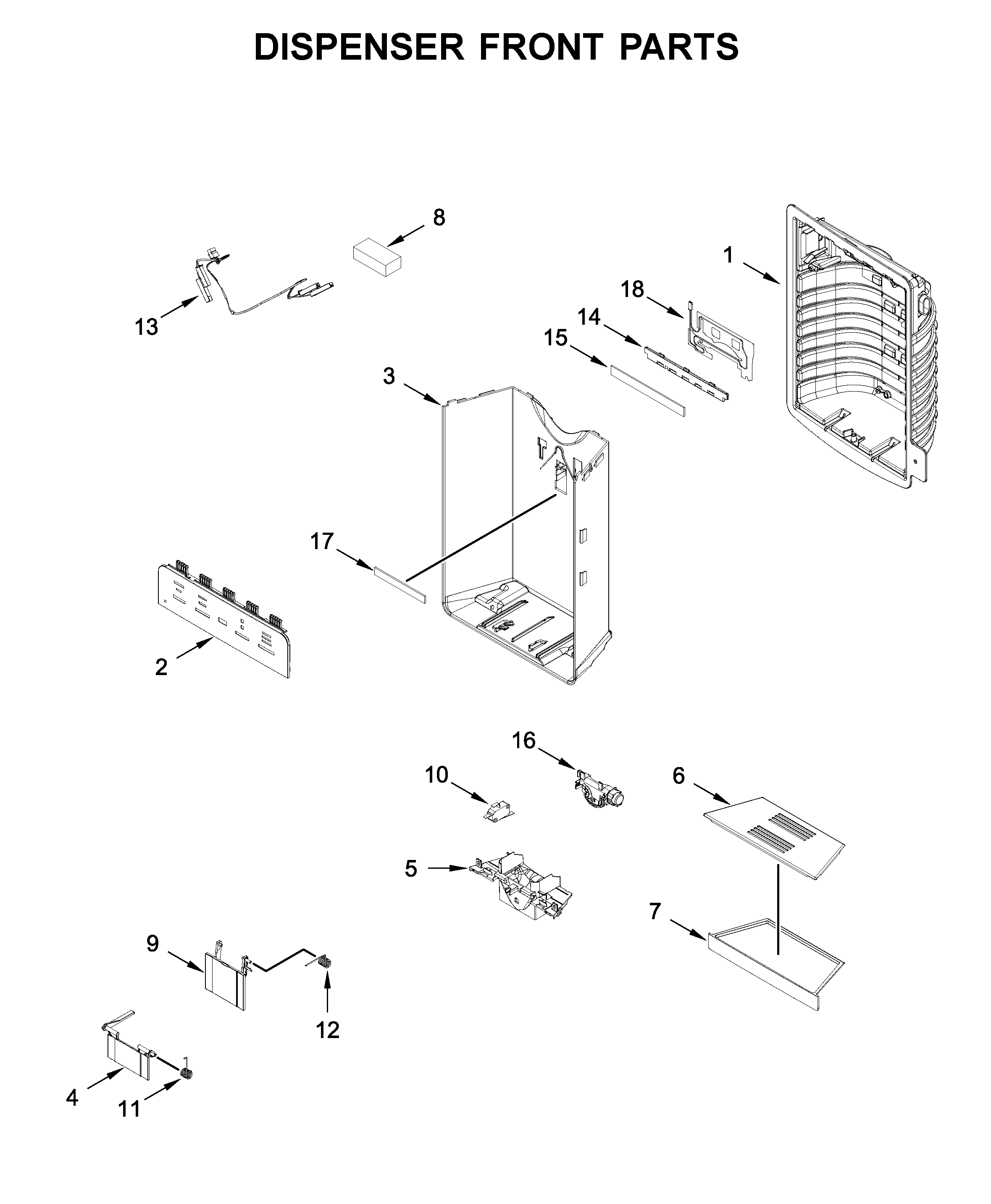

• Water/ice dispenser not working right: make sure doors and freezer drawer close completely; clear ice clogs in the bin or chute.
• Frost or ice buildup: reduce door openings and inspect for a poor door seal.

Parts that commonly solve these problems

If basic checks do not fix the issue, these model-matched parts are often involved:

Problem area	What fails	Example part for JFFCC72EFS00
Odors, stale air	Air filter overdue	Refrigerator air filter W10311524
Temperature swings	Sensor reading wrong	Refrigerator thermistor W11724692

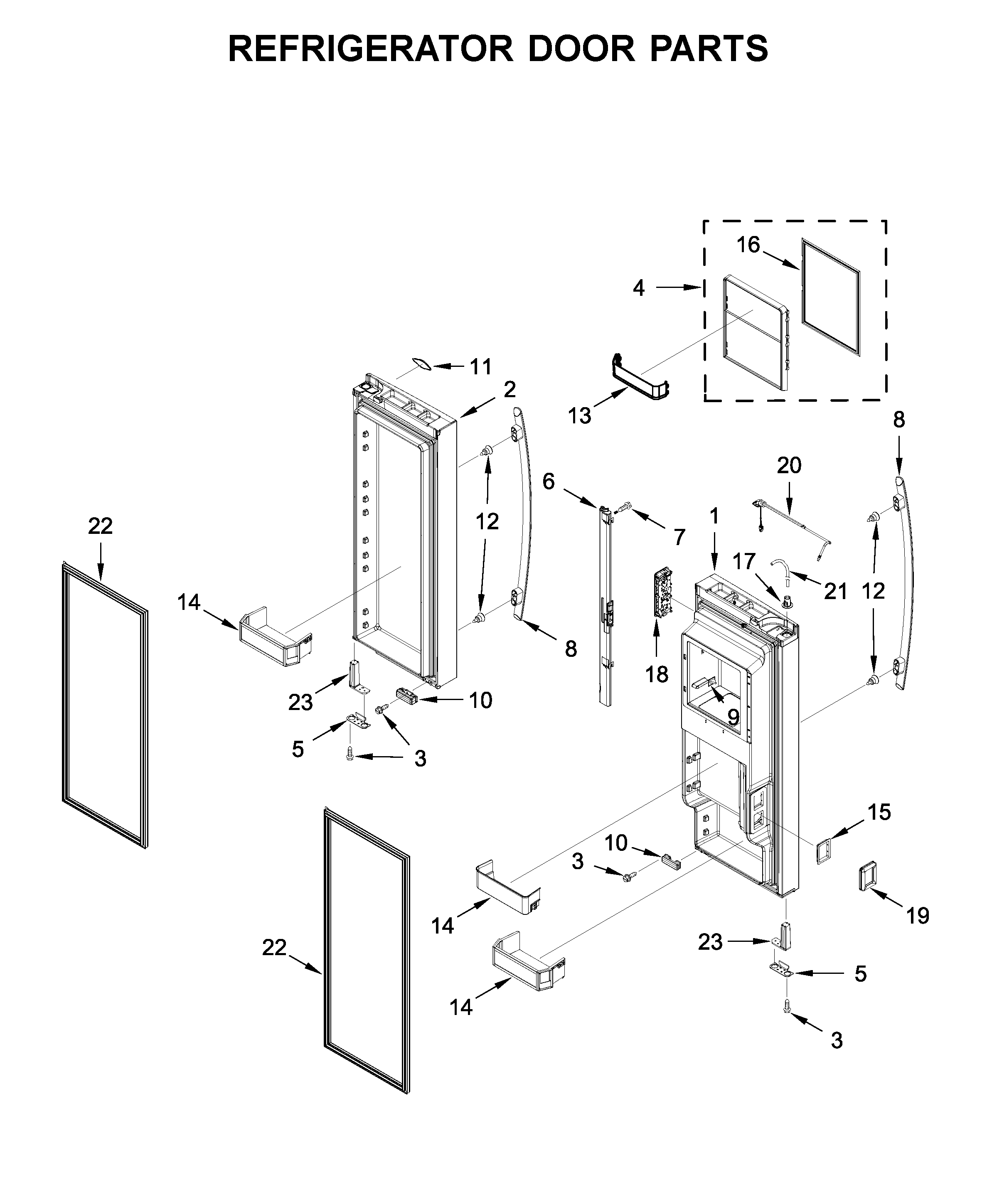

Door not sealing	Gasket torn or warped	Refrigerator door gasket (gray) W10917313
Dim or dead lights	LED module failure	Refrigerator led light W11683243

Why it matters

Small issues like a door not sealing or a clogged ice chute can quickly turn into bigger problems: frost buildup reduces airflow, warm temps shorten food life, and dispenser clogs can lead to spills and leaks. Fixing the root cause early helps your Jenn-Air refrigerator run efficiently and maintain stable temperatures.

Helpful DIY guidance

• For door seal and closing issues, use how to fix a fridge door seal.
• For puddles and leaks, follow how to get rid of refrigerator puddles.
• For ice maker performance, use common refrigerator ice maker problems and solutions.

Last updated: February 2026

Water leaking from the bottom of your Jenn-Air JFFCC72EFS00 refrigerator is usually caused by a loose water connection (often at the back or door hinge area), air in the water lines after a filter change, or a door that is not sealing and is creating excess moisture that later drips. Use the owner's manual troubleshooting steps to pinpoint the source.

Quick checks that solve most bottom-leak problems

• Look for water at the back of the refrigerator where the household water line connects.
• Check the bottom of the fresh food compartment and the door hinge area for signs of a loose tube/connection.
• If you recently replaced the water filter, flush the dispenser to purge air from the lines.
• Make sure the refrigerator doors and freezer drawer close completely and seal all the way around.
• Reduce frequent door openings in humid weather to limit moisture buildup.

Most common causes and what to do

What you notice	Likely cause	What to do next
Puddle near front/bottom after using dispenser	Air in lines after install or filter change	Flush several gallons through the dispenser until flow is steady
Water trails near hinge area	Loose water connection at door/hinge tube	Inspect and reseat the connection; ensure it is fully engaged
Water behind unit	Supply line connection not tight	Tighten fittings and recheck for seepage
Moisture, droplets, or water after heavy use	Door not sealing or left ajar	Clear bins/packages blocking closure; confirm gasket contact

Parts that can help (when the leak is tied to filtration or sealing)

• If the leak started right after a filter change, reinstall the filter and then flush the system; this model uses the refrigerator cartridge wrap assembly EDR2RXD1.
• If you find gaps, tears, or a warped seal causing condensation and dripping, replace the refrigerator door gasket (gray) W10917313.

Why it matters

A small leak can turn into floor damage or recurring ice and moisture issues. Fixing the root cause also helps your refrigerator maintain stable temperatures and reduces compressor run time.
