Model #1695359 Snapper snow thrower

Here are the diagrams and repair parts for Snapper 1695359 snow thrower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

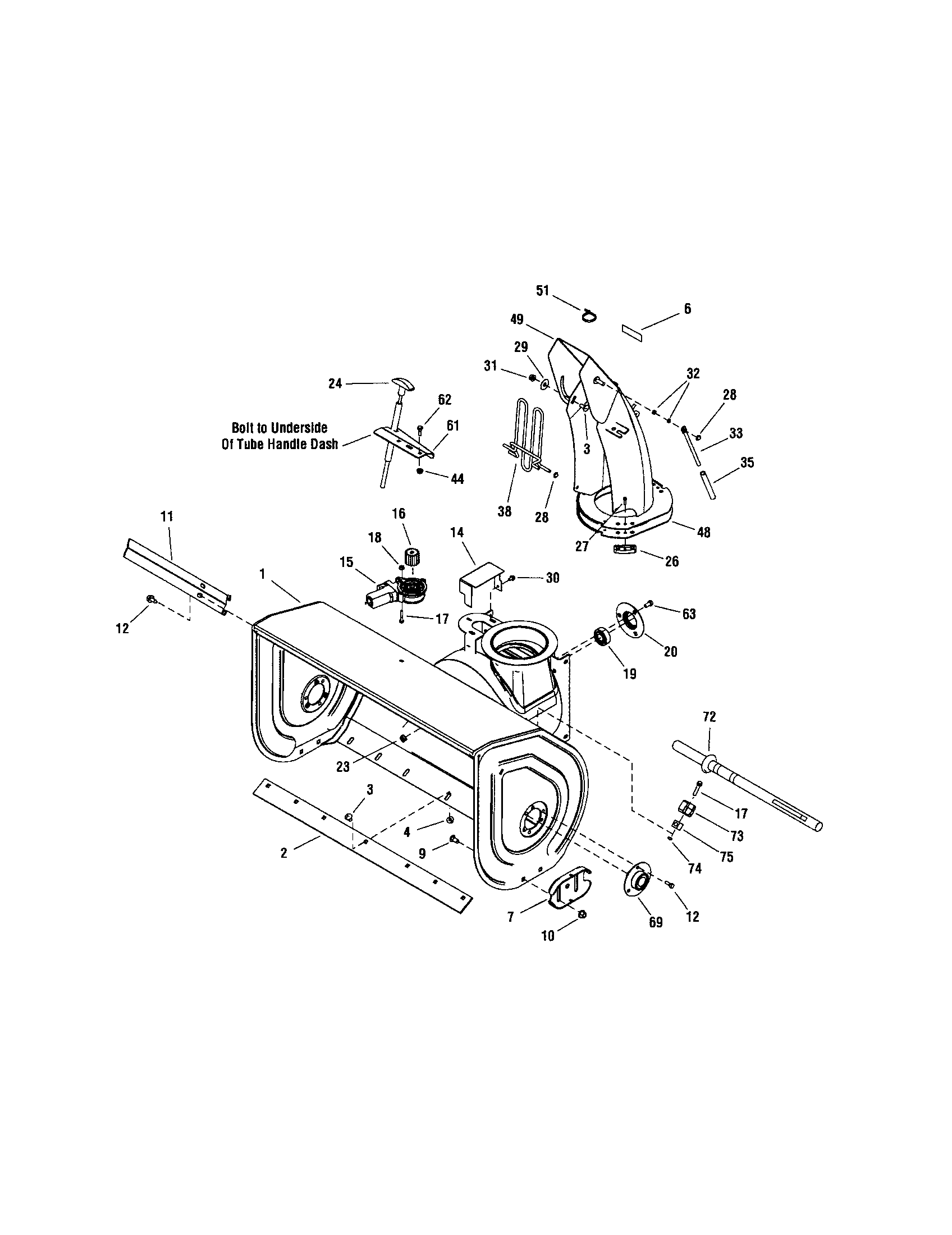

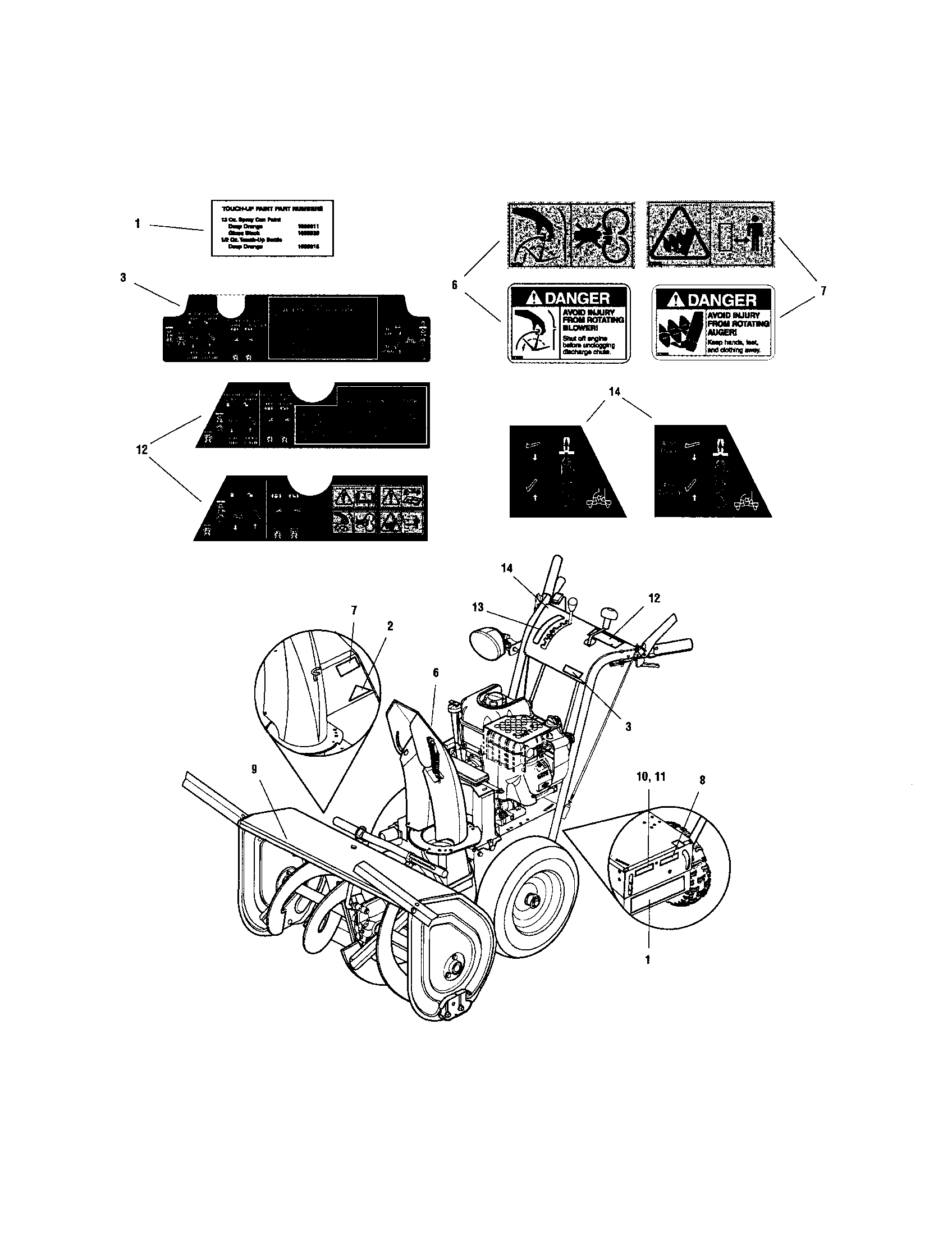

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 342 parts

Wheel- 5.375

#5

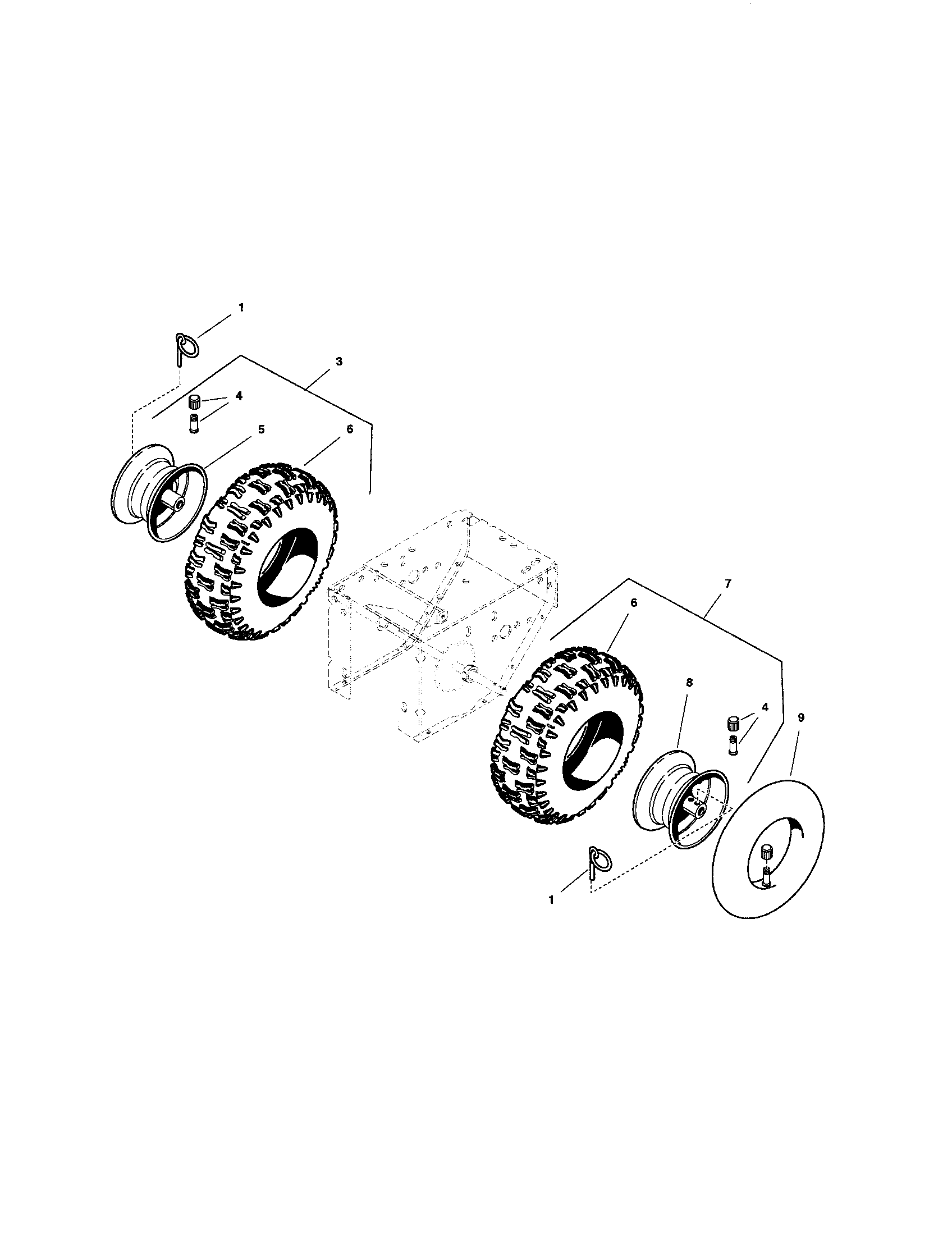

Wheels/tires Diagram

Wheel- 5.375

Part #1722762
$67.20

In Stock

Handle

#18

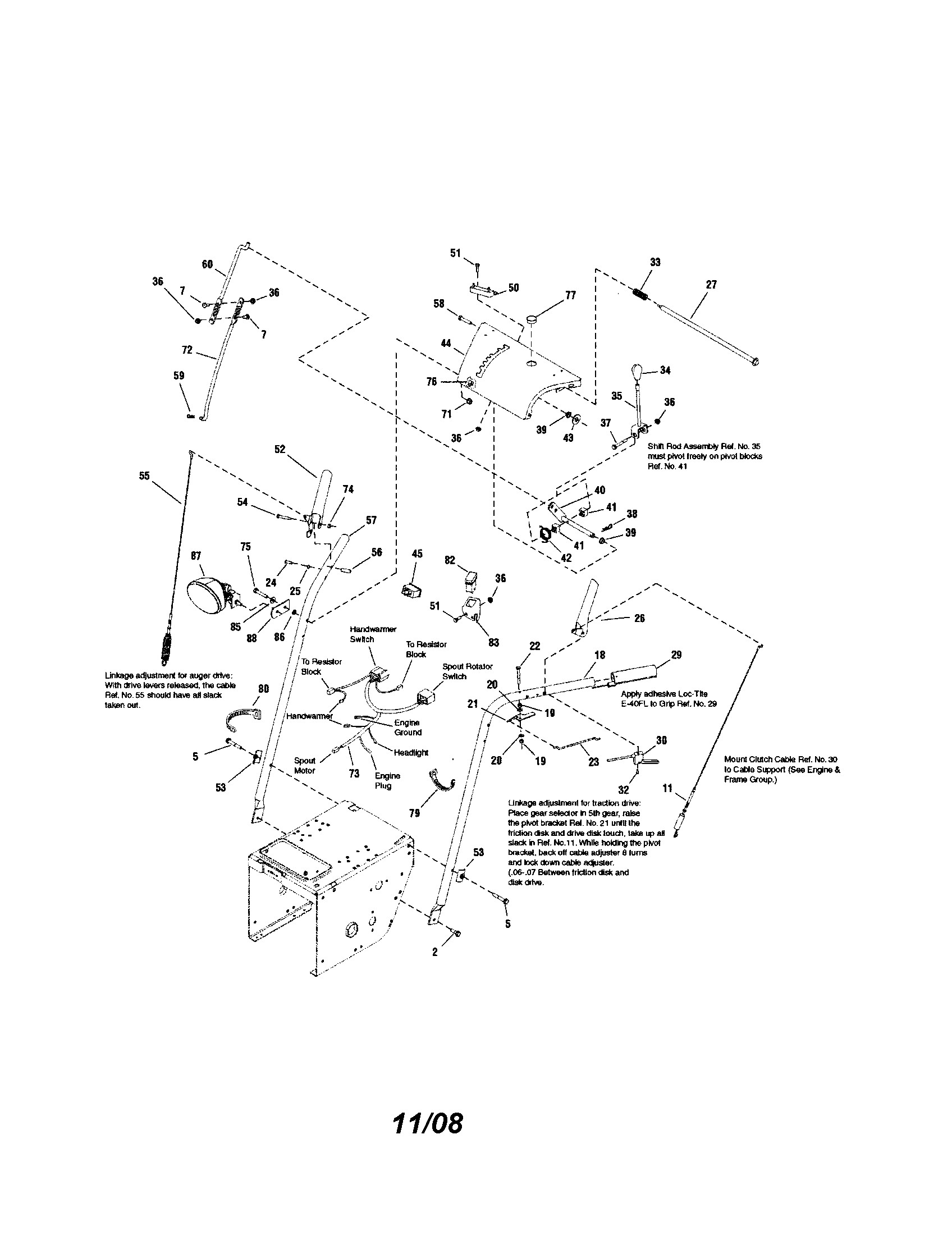

Handle/controls Diagram

Handle

Part #1731333A
$41.96

In Stock

Weld Frame

#33

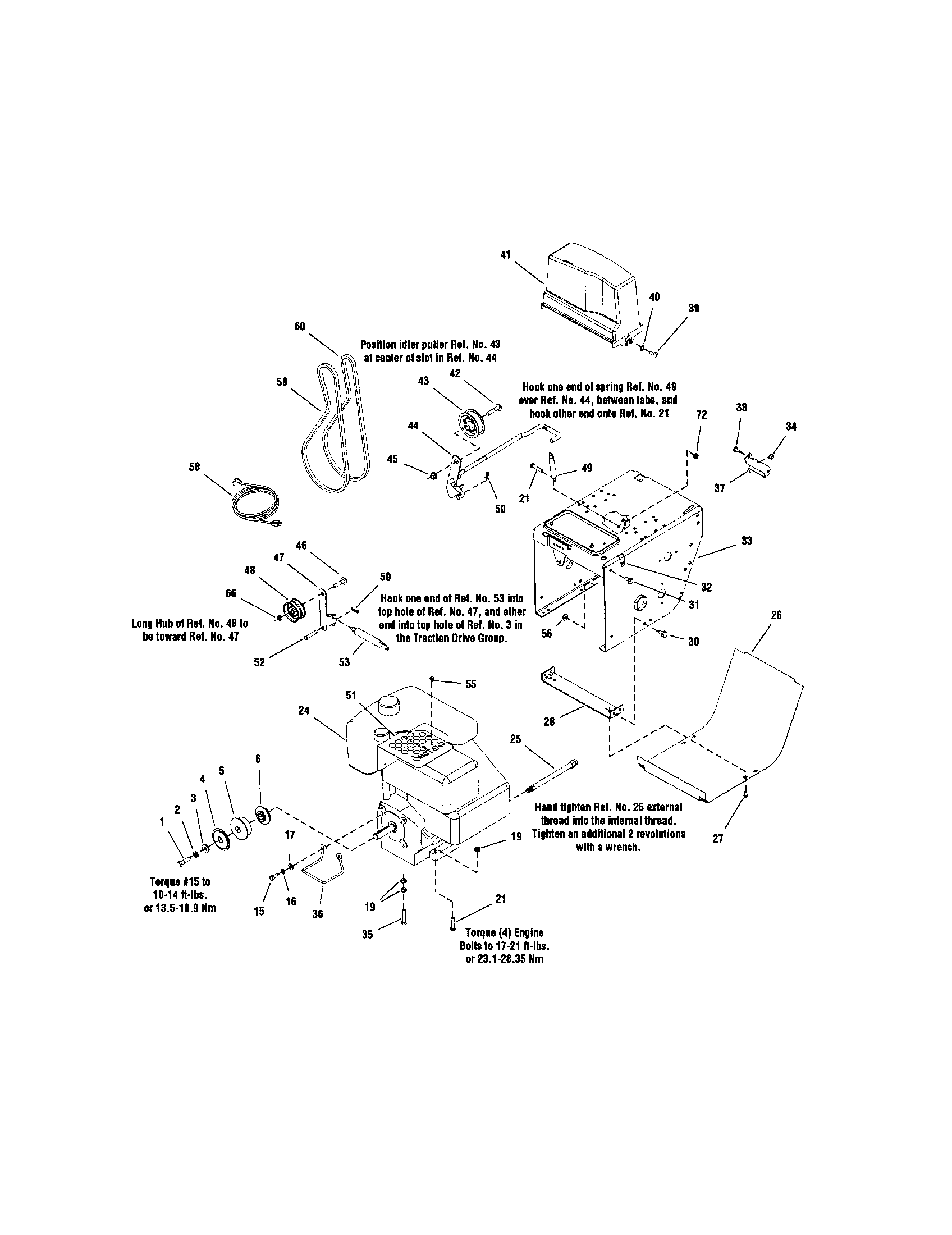

Engine/frame Diagram

Weld frame

Part #1726568D
$126.50

In Stock

Bushing

#39

Handle/controls Diagram

Bushing

Part #1668185SM
?
Manufacturer substitution
This part replaces 1668185. Substitute parts can look different from the original.
This part replaces 1668185
This item is not returnable
$4.85

In Stock

Tire

#6

Wheels/tires Diagram

Tire

Part #1751301YP
?
Manufacturer substitution
This part replaces 1727075. Substitute parts can look different from the original.
This part replaces 1727075
$118.69

In Stock

Gear & Hub A

#54

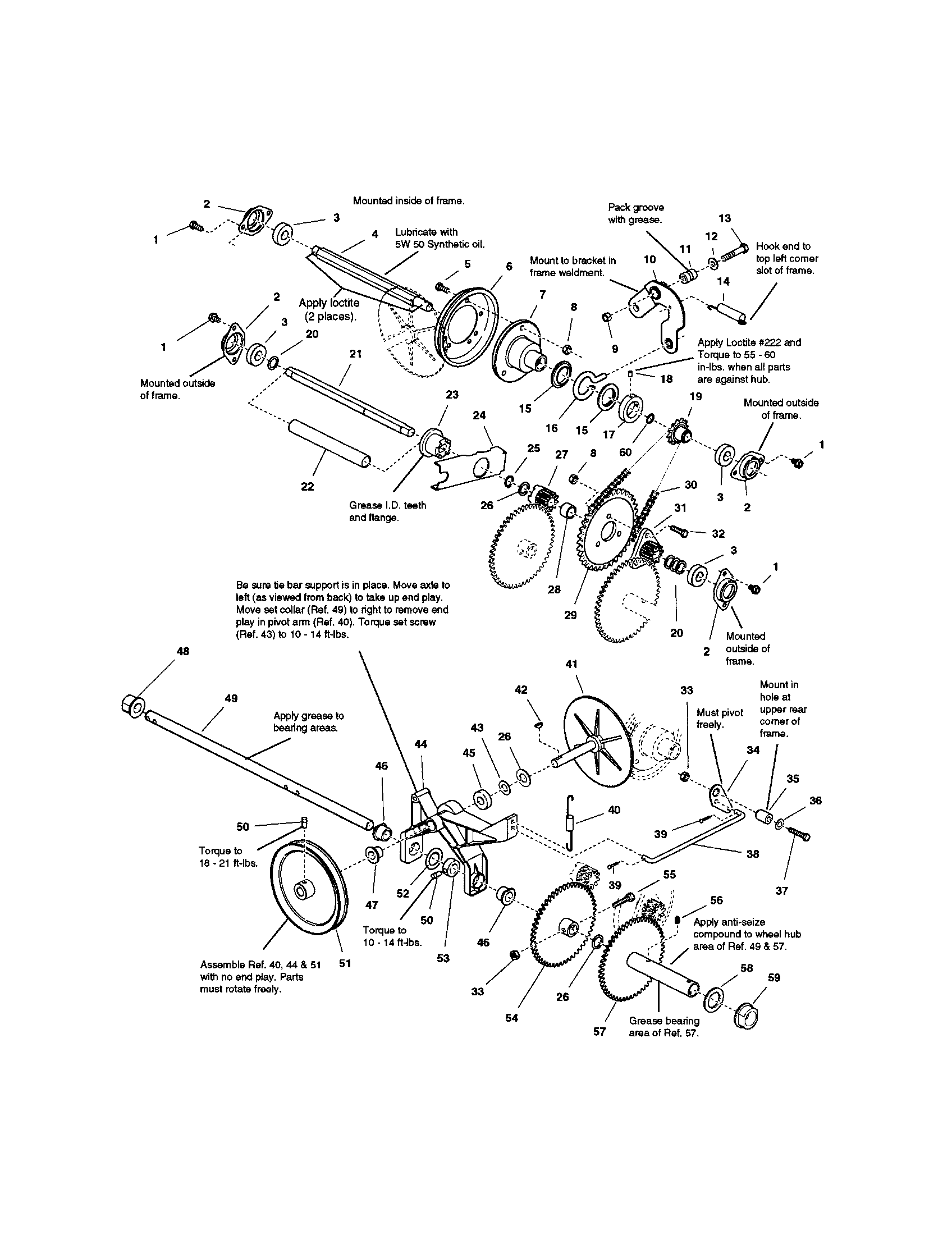

Traction drive Diagram

Gear & hub a

Part #1720300SM
?
Manufacturer substitution
This part replaces 1720300. Substitute parts can look different from the original.
This part replaces 1720300
$244.11

In Stock

Screw

#4

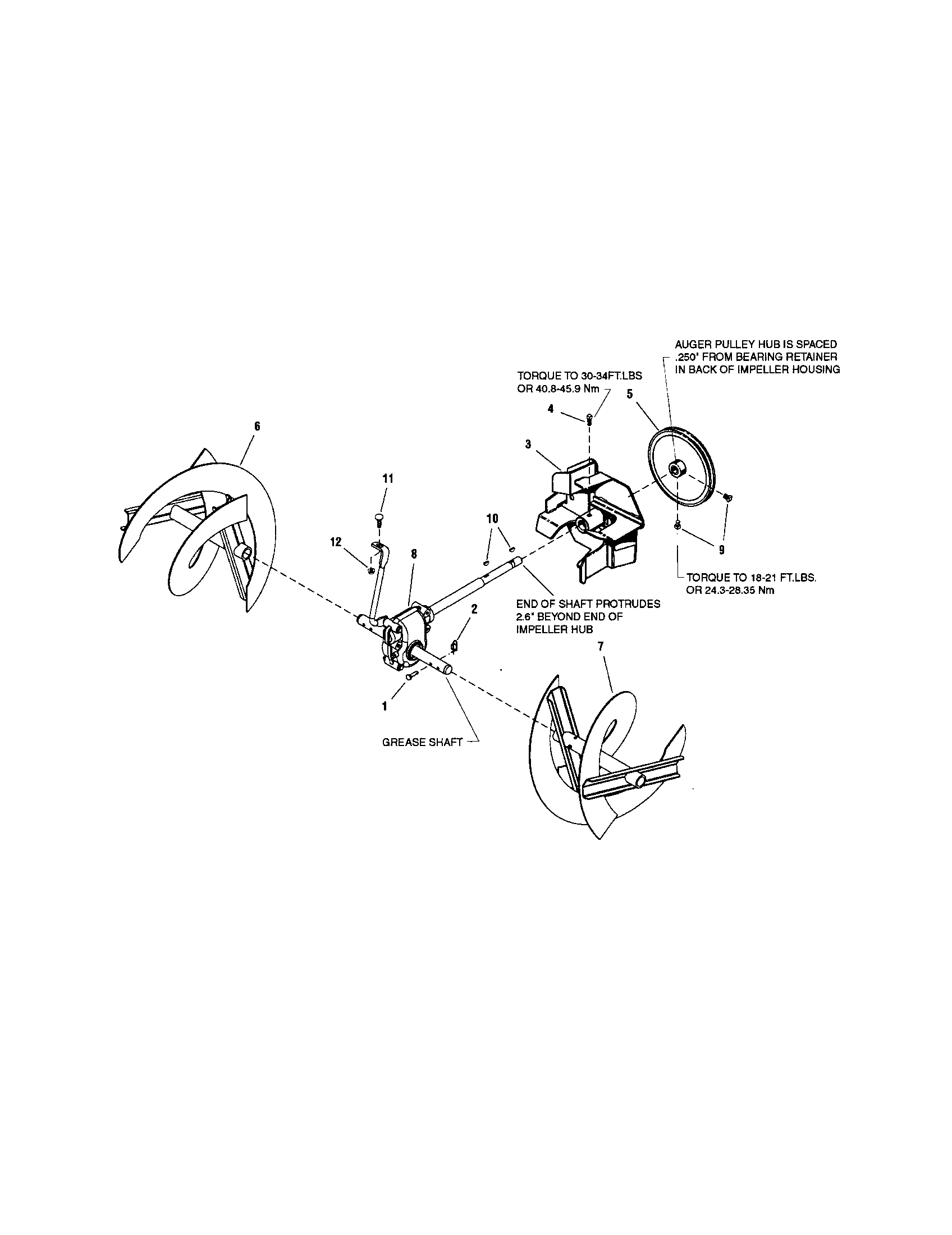

Auger drive Diagram

Screw

Part #1960474SM
?
Manufacturer substitution
This part replaces 1960474. Substitute parts can look different from the original.
This part replaces 1960474
This item is not returnable
$5.15

In Stock

Block

#41

Handle/controls Diagram

Block

Part #703050
?
Manufacturer substitution
This part replaces 1668524. Substitute parts can look different from the original.
This part replaces 1668524
$14.73

In Stock

Auger,38,

#6

Auger drive Diagram

Auger,38,

Part #1734680BMYP
?
Manufacturer substitution
This part replaces 1734680A. Substitute parts can look different from the original.
This part replaces 1734680A
$237.33

In Stock

Engine Pulley

#4

Engine/frame Diagram

Engine pulley

Part #1726867SM
?
Manufacturer substitution
This part replaces 1726867. Substitute parts can look different from the original.
This part replaces 1726867
$42.69

In Stock
