Frigidaire
Room Air Conditioner

Model # FAM157S1A11 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAM157S1A11 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

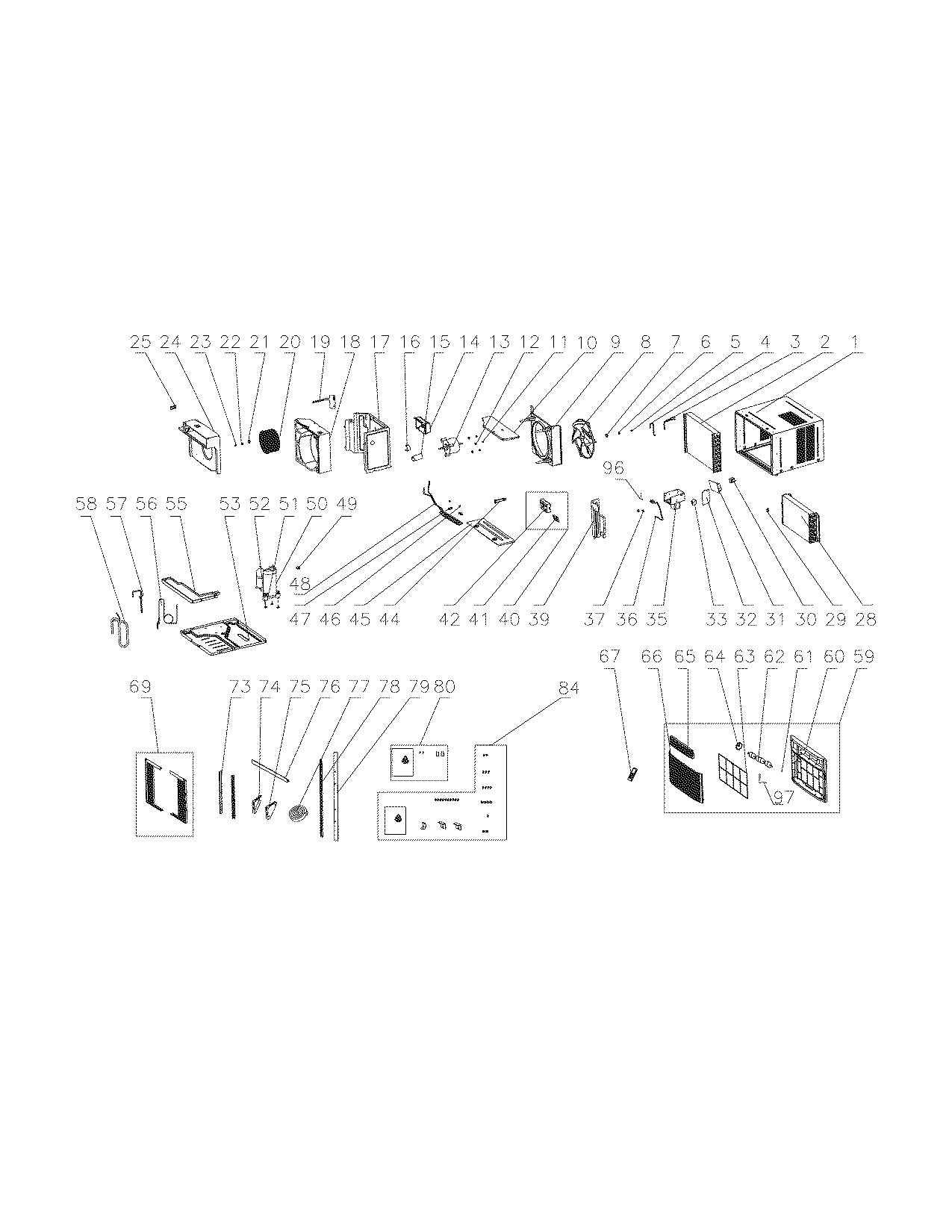

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

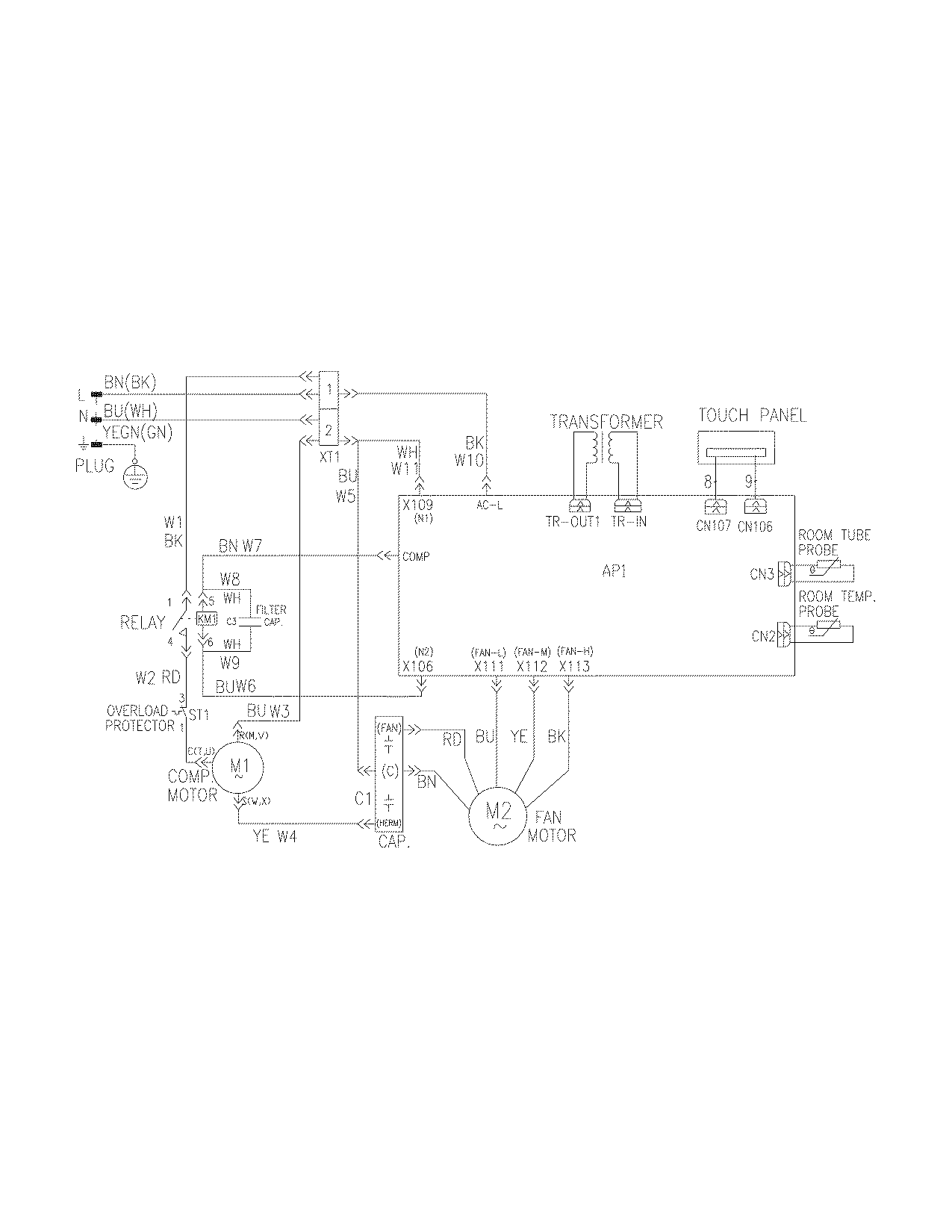

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Bulkhead 5304459184
#17

Recommended spare parts diagram

Bulkhead

Part #5304459184

In Stock
Strap 5304459183
#16

Recommended spare parts diagram

Strap

Part #5304459183

This item is not returnable
In Stock
Room Air Conditioner Blower Wheel 5304459187
#20

Recommended spare parts diagram

Room air conditioner blower wheel

Part #5304459187

In Stock
Transformer 5304459195
#30

Recommended spare parts diagram

Transformer

Part #5304459195

The manufacturer no longer makes this part, and there's no substitute part

Tube 5304465398
#57

Recommended spare parts diagram

Tube

Part #5304465398

The manufacturer no longer makes this part, and there's no substitute part

Knob 5304465429
#64

Recommended spare parts diagram

Knob

Part #5304465429

The manufacturer no longer makes this part, and there's no substitute part

Bracket 5304459538
#75

Recommended spare parts diagram

Bracket

Part #5304459538

The manufacturer no longer makes this part, and there's no substitute part

Nut 5304459169
#5

Recommended spare parts diagram

Nut

Part #5304459169

The manufacturer no longer makes this part, and there's no substitute part

Control Box 5304459235
#35

Recommended spare parts diagram

Control box

Part #5304459235

The manufacturer no longer makes this part, and there's no substitute part

Hardware Kit 5304459562
#84

Recommended spare parts diagram

Hardware kit

Part #5304459562

The manufacturer no longer makes this part, and there's no substitute part
